AMD and SAPPHIRE Releases The SAPPHIRE HD 7990

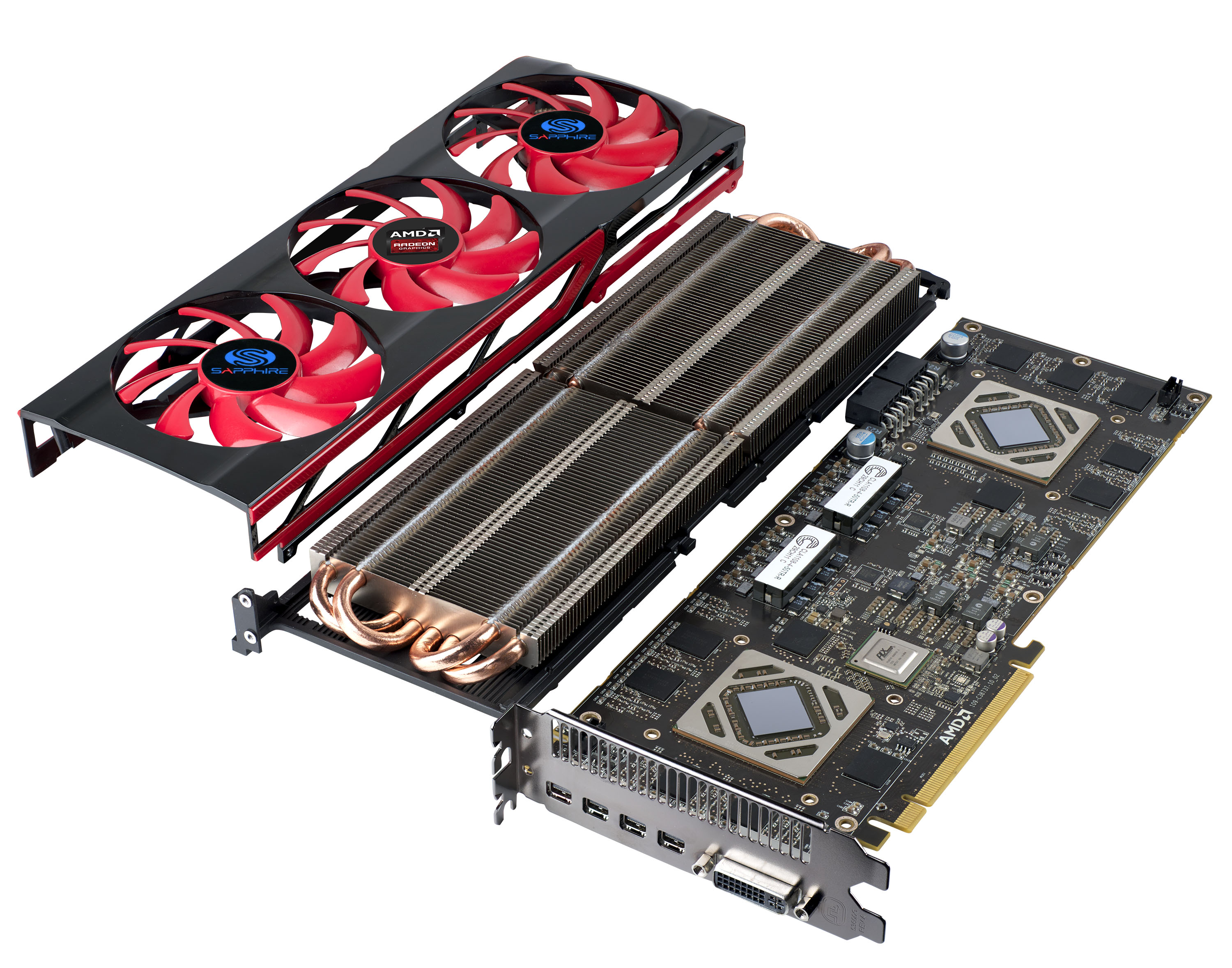

The SAPPHIRE HD 7990 has a dual GPU architecture with a total of 4096 Stream processors and core clock speeds of 1GHz (with Boost enabled), delivering up to 8.2 TeraFlops of compute power. It is equipped with 6GB of the latest DDR5 memory, and its output configuration of Dual-Link DVI plus four DisplayPorts supports up to 5 simultaneous displays in AMD Eyefinity. A large heatpipe assembly cooled by three axial fans ensures that the card runs quietly even under load.

AMD’s GCN architecture and driver suite is optimized to display the greatest image quality in gaming and this latest card delivers the highest performance yet – and the fastest frame rates in even the most demanding games. It also provides enhanced performance in a wide range of applications using the stream processing capabilities and specific hardware features of this graphics architecture. Typical examples include Video encoding and decoding, compression and multiplexing for media distribution, and video conferencing as well as accelerating specific supported applications



           Features:

  1. Graphics Core Next(GCN) architecture based on 28 nm process
  2. DirectX® 11.1-capable graphics
  • 9th generation programmable hardware tessellation units
  • Shader Model 5.0
  • DirectCompute 11
  • Accelerated multi-threading
  • HDR texture compression
  • Order-independent transparency
  • Up to 6 displays supported with DisplayPort 1.2 Multi-Stream Transport
  • Independent resolutions, refresh rates, color controls, and video overlays
  • Display grouping -Combine multiple displays to behave like a single large display
  • OpenCL 1.2 Support
  • Microsoft C++ AMP
  • DirectCompute 11
  • Double Precision Floating Point
  • AMD HD Media Accelerator
  • Universal Video Decoder (UVD)
    • H.264
    • VC-1
    • MPEG-2 (SD & HD)
    • MVC (Blu-ray 3D)
    • MPEG-4 Part 2 (DivX/Xvid)
    • Adobe Flash
    • DXVA 1.0 & 2.0 support
    • Enhanced Video Quality features
    • Advanced post-processing and scaling
      • Deblocking
      • Denoising
      • Automatic deinterlacing
      • Mosquito noise reduction
      • Edge enhancement
      • 3:2 pulldown detection
    • Up to 24x multi-sample and super-sample anti-aliasing modes
    • Adaptive anti-aliasing
    • Morphological Anti-Aliasing (MLAA) 2.0
    • DirectX® 9/10/11 Super-Sample Anti-Aliasing (SSAA)
    • 16x angle independent anisotropic texture filtering
    • 128-bit floating point HDR rendering
    • DisplayPort 1.2
    • Max resolution: 4096×2160 per display
    • Multi-Stream Transport
    • 21.6 Gbps bandwidth
    • High bit-rate audio
    • Quad HD/4k/UHDTV video support
      • 3GHz HDMI 1.4a with Stereoscopic 3D Frame Packing Format, Deep Color, xvYCC wide gamut support, and high bit-rate audio
      • Max resolution: 4096×2160
      • 2560x1600p60 Stereoscopic 3D
      • Quad HD/4k video support
    • Dual-link DVI with HDCP
      • Max resolution: 2560×1600
    • Automatic power management with low power idle states
      • Ultra-low idle power when system’s display is off
      • Efficient low power mode for desktop work
      • Secondary GPU in CrossFire technology configuration power down unneeded.



  1. Open GL 4.2 Support
  2. AMD Power Tune Technology with Boost: intelligent TDP management and dynamic clockspeed /performance boost for gaming.
  3. AMD HD3D Technology
  4. AMD CrossFire™ multi-GPU for dual, triple and quad-GPU scaling
  5. AMD Catalyst™ graphics and HD video configuration software
  6. AMD Eyefinity 2 Technology
  1. AMD App Acceleration
  1. Image quality enhancement technology
  1. Cutting-edge integrated display support
  1. AMD PowerPlay™ power management technology
  1.  AMD ZeroCore Power Technology
  1. Integrated HD audio controller supports AC-3, AAC, Dolby® TrueHD and DTS HD Master Audio™.

           15. Software support for Windows Vista, Windows 7 and Windows 8



       SKU Specification:



SKU

21207-00

GPU

AMD Radeon™ HD 7990

Bus Interface

PCI-E 3.0 x16

Memory

6144 MB / 768-Bit (384-Bit X2) GDDR5

Clock Speed

Default: 950 MHz Eclk / Effective 6000 MHz Mclk

Boost: 1000 MHz Eclk/ Effective 6000 MHz Mclk

Cooling System

2 Slot triple fan

Bracket

Full Height

Dimension

305(L)x100(W)x37(H)mm

Display Support

DL-DVI-I

Mini DisplayPort X4

VGA (Via included adaptor)

HDCP

Yes

Crossfire Support

Native Hardware Crossfire

External Power

PCIe Graphic External 2 x 8 pin

Accessories

Crossfire Interconnect Cable x 1

Mini DisplayPort to DVI Cable x1

Mini DisplayPort to DisplayPort Cable X1

DVI to HDMI Cable x1

Software

Driver CD
