case mods

COOLER MASTER CM Storm Scout 2

In early 2009, Cooler Master started up it’s CM Storm division with it’s debut of the full tower CM Storm Sniper and mid tower Scout case. Now, some 3 years later Cooler Master’s CM storm division has released the long awaited successor to the Scout, the Cooler Master CM Storm Scout 2. Thanks to the good folks at Cooler Master, we at Modders-Inc.com have the opportunity to review the Cooler Master CM Storm Scout 2 and give you a run down on the features this long awaited case has to offer. So, without further delay let’s just get right down to the review, shall we.

[dhr]

First Look:

The Cooler Master CM Storm Scout 2 comes packaged a military themed black box, with red and white logos and swish designs prominently placed in the foreground. This style and colored packaging seems to have become there identifying trade mark, so to speak.

CM Storm Scout 2CM Scout 2 box

The front has a picture of the case inside placed in a battlefield type scene. Putting forth the impression that it is ready to be taken to a LAN Party to do battle.

The back of the box highlights many of the features along with pictures of the case for illustration. They also have the features listed below the illustrations in eight different languages, to provide information to the multitudes of gamers world wide.

  On one end of the box features are listed and the other end the specifications.

inside the box case protetion

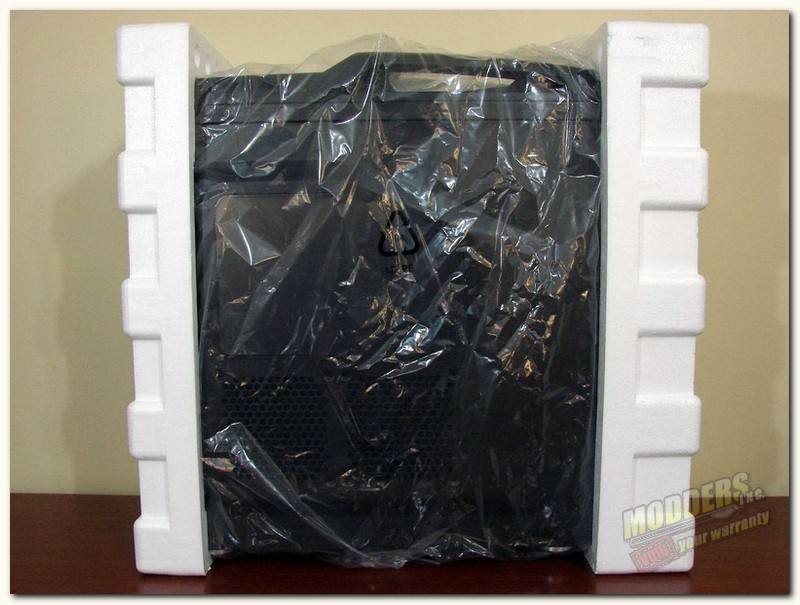

  Once we remove the box, you can see that Cooler Master and CM Storm have protected the case well with styrofoam end caps to keep the case in a stable position and also absorb any impacts the box may receive in shipping. They have also covered the case with plastic sheeting to keep dust and foam particles from entering the case.

[dhr]

Cooler Master CM Storm Scout 2

Specifications:

Cooler Master CM Storm Scout 2
Model SGC-2100-KWN1 (black)
SGC-2100-GWN1 (gunmetal gray)
Color Black (SGC-2100-KWN1)
Gunmetal Gray (SGC-2100-GWN1)
Material Appearance: Polymer, Coated Steel Mesh and Body
Dimension 230 x 513.5 x 517.5mm / 9.1 x 20.2 x 20.5 inch
Weight Net: 8.3 kg / 18.3 lb
M/B Type Micro-ATX, ATX
5.25″ Drive Bay 3 (exposed)
3.5″ Drive Bay 7 (hidden)
2.5″ Drive Bay 2 (converted from one 3.5″ drive bay)
I/O Panel USB 3.0 x 2 (int.), USB 2.0 x 2, Mic x 1,
Audio x 1 (supports AC97/HD Audio)
Expansion Slots 7
Cooling System Top: 120mm fan x 2 (optional)Front: 120mm fan x 2 or 140mm fan x 1 (optional)Rear: 120mm red LED fan x 1 (with LED on/off function)

Bottom: 120mm fan x 1 (optional)

Side: 120mm fan x 2 (optional)

HDD cage: 120mm fan x 1 (optional)

Power Supply ATX PS2 (optional)
Maximum Compatibility VGA card length:
287mm / 11.3 inch (with HDD cage)
399mm / 15.7 inch (without HDD cage)CPU cooler height:
162mm / 6.4 inch
Warranty 2 years
UPC Code 884102019036 (black)
884102019043 (gunmetal gray)

Features:

  • Ergonomic steel reinforced carrying handles bolted to support beams of the core structure
  • Dual USB 3.0 support for 10x faster file transfer and high current smart phone / tablet charging (~0.9A)
  • Supports up to 3 ODDs (tool-less), 7 HDDs and 2 SSDs for increased expandability
  • Supports up to 9 fans, including dual 120mm fans on the acrylic side panel window
  • Top panel LED switch to disable the LEDs of two separate LED lit case fans at night
  • Supports all high-end graphics cards after removing the 1st HDD cage
  • Dust filters for PSU (slide out) and top panel
