Cooler Master Hyper D92 CPU Cooler Review

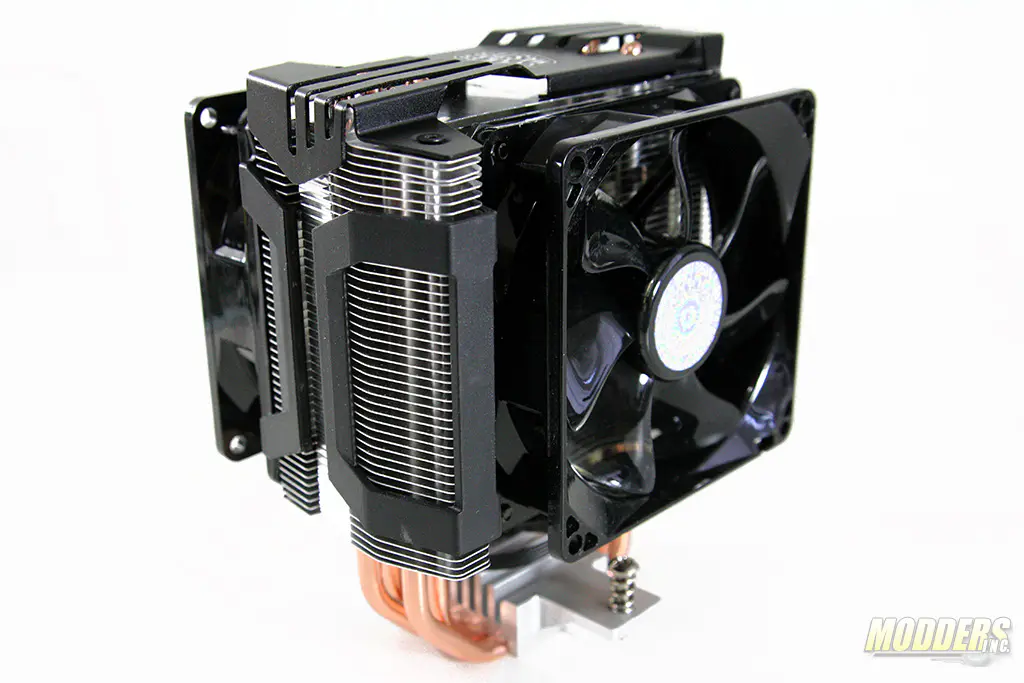

Design-wise, the CCooler Master Hyper D92ooler Master Hyper D92 is a re-engineered Hyper N520, improving upon its design based on current system building concerns such as better RAM heatspreader clearance compatibility, better looks and improved efficiency. The direct-touch design has worked well for Cooler Master’s mainstream CPU cooler offerings so the Hyper D92 utilizes it as well. The Hyper N520’s signature offset fan design remains to compensate for the airflow deadzone, albeit using superior 92mm Cooler Master rifle-bearing Xtra Flow PWM fans and the mounting design has also been improved for convenience.

Review Sample Provided by: Cooler Master
Product Name:
Cooler Master Hyper D92 CPU Cooler
MSRP: $44.99 USD
Product was given in exchange for work done to produce this review.

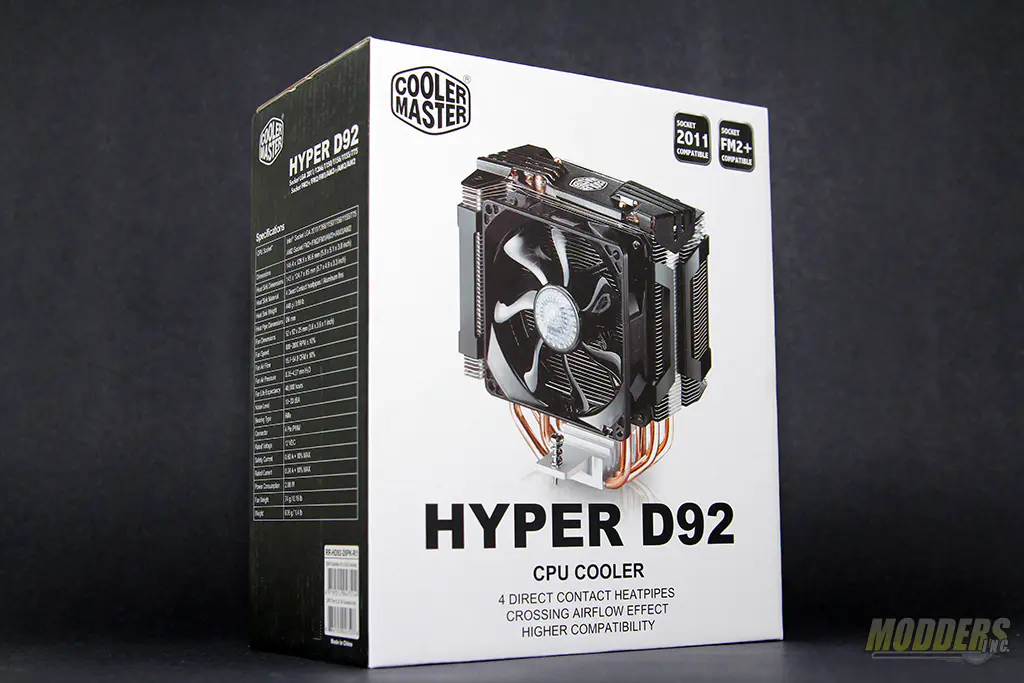

The Cooler Master Hyper D92 box drops the usual Cooler Master purple plus white for a black and white color scheme.  A table of specification is printed on the side while the rest of the box shows off the Hyper D92’s features.

Cooler Master Hyper D92

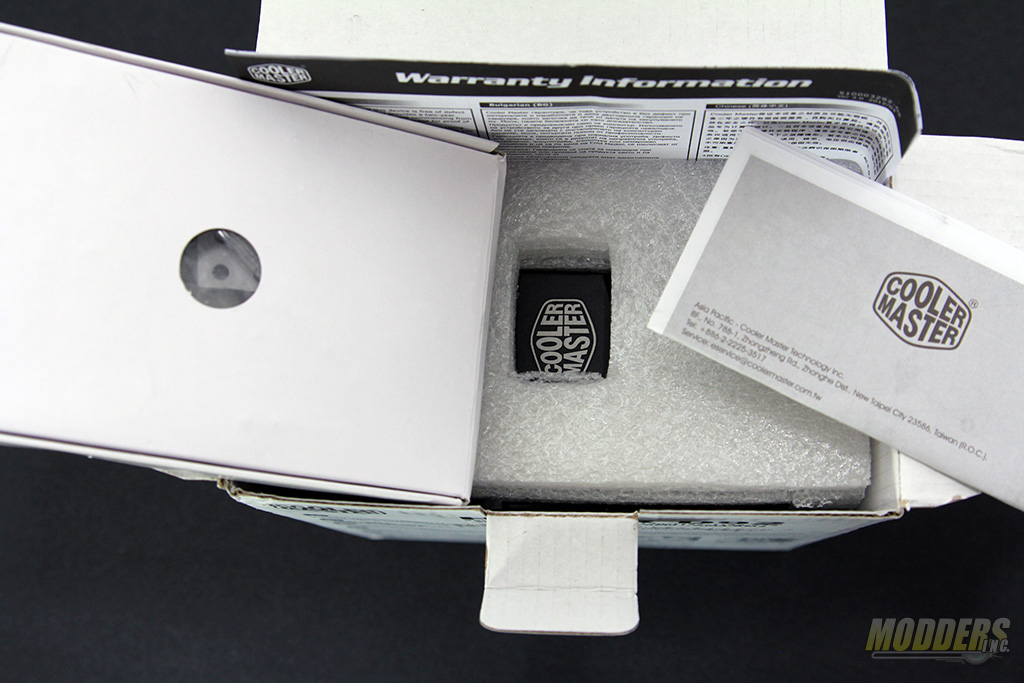

The internal components are separated into two compartments by way of a foam separator with the accessory box on top and the heatsink-proper with the fans pre-installed on the lower compartment. There is no padding for the heatsink body on the sides but the top and bottom foam padding hold the Hyper D92 heatsink in place at the middle of the box.

Cooler Master Hyper D92 Packaging

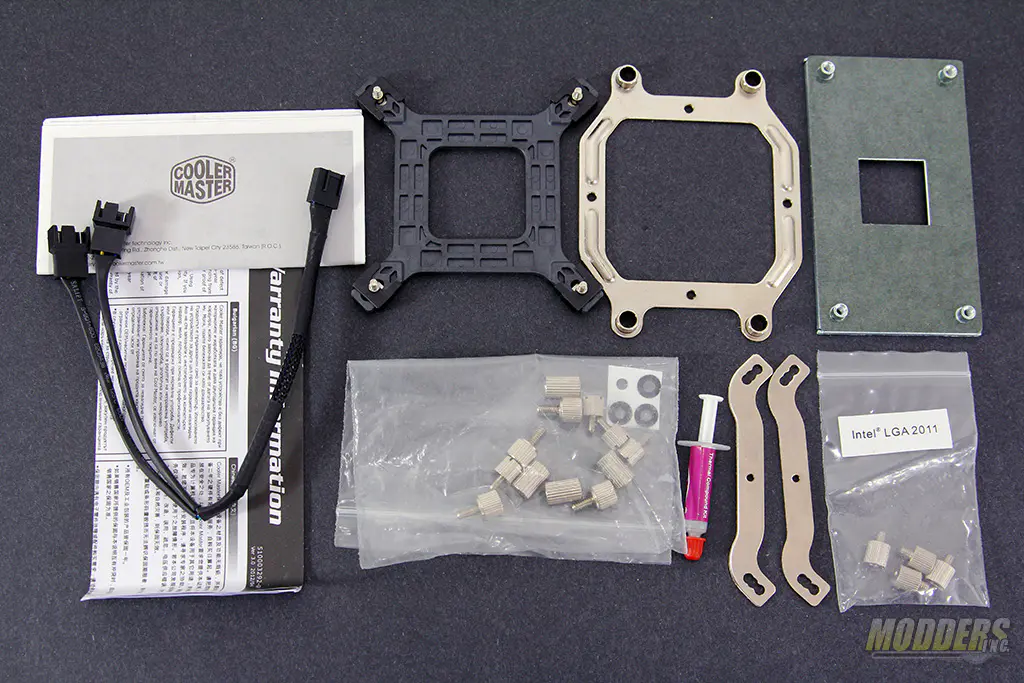

The accessories consist of an Intel backplate assembly, 4-pin PWM fan splitter, 4x thumbscrew mounts for LGA2011 motherboards, AMD backplate, AMD bracket, 4x Intel standoffs, 4x Intel thumbscrews, 2x Intel mounting bars, thermal compound, 4x sticky washers,  warranty information sheet and a fold-out installation guide.

Cooler Master Hyper D92 Accessories


CPU Socket
Intel® LGA 2011-3/2011/1366/1156/1155/1150/775
AMD FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
146.4 x 85 x 126.6 mm(5.7 x 3.3 x 4.9 inch)
Heat Sink Dimensions
146.4 x 128.9 x 96.6 mm (5.7 x 5.1 x 3.8 inch)
Heat Sink Material
4 Direct Contact Heatpipes / Aluminum Fins
Heat Sink Weight
448 g / 0.99 lb
Heat Pipe Dimensions
Fan Dimensions
92 x 92 x 25 mm (3.6 x 3.6 x 1 in)
Fan Speed
800~2,800 RPM (PWM) ± 10%
Fan Air Flow
15.7~54.8 CFM ± 10%
Fan Air Pressure
0.35~4.27 mm H2O ± 10%
Fan Life Expectancy
40,000 hours
Noise Level
18~33 dBA
Bearing Type
Rifle Bearing
Rated Voltage
12 VDC
Rated Current
0.24A + 10% max.
Power Consumption
2.88 W (max)
Fan Weight
74 g / 0.16 lb
636 g / 1.4 lb
