Cooler Master M2 Silent Pro 1500 Watt Power Supply Overview



Cooler Master Silent Pro M2 1500W

Power, we all want it and need it and so does your computer hardware. The real question is how much do you need and do you have enough. Over the past few years the hardware that we use has gone up and down in how much power it needs to be feed. Cooler Master understand that when your hardware is hungry you need to feed it. That is why they gave us the Cooler Master M2 Silent Pro 1500 Watt Power Supply.


Review Sample Provided by:
Cooler Master
Product Name: Silent Pro M2 1500W
Product was given in exchange for work done to produce this review



  First Look

 This particular review will be an overview of the Cooler Master Silent Pro M2 1500 Watt Power Supply. Currently Modders-Inc does not have the proper equipment to give you the absolute numbers needed to give you a fully in-depth look into the heart of a power supply, but what we can do is give a detailed look at the all the features that they contain.

The Cooler Master Silent Pro M2 series of power supplies is the second generation of the successful Silent Pro M series. The M2 Silent Pro 1500 has the largest amount of wattage available in the series with a powerful dual 12 volt rail that is capable of pushing the maximum amount of power to your ever hungry CPU, single or multiple GPU’s.

Cooler Master M2 Silent Pro 1500

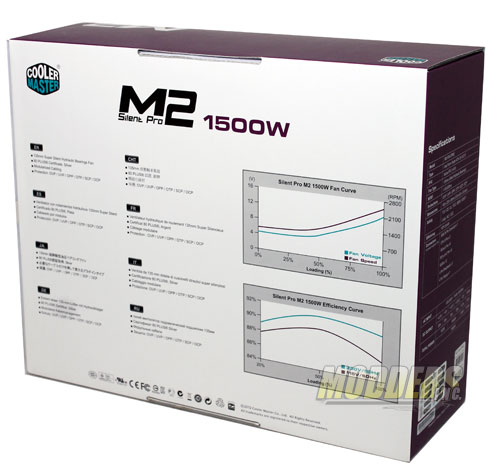

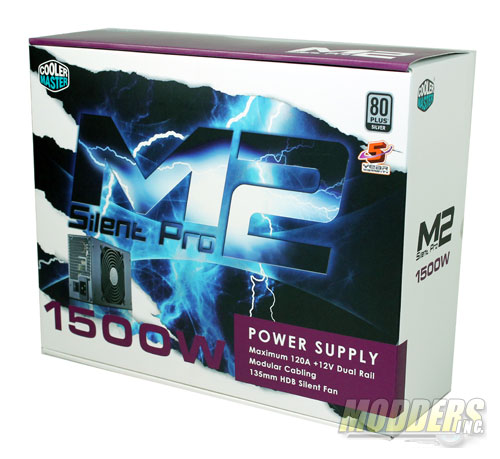

The power supply comes in a well designed box that gives you plenty of information about the 1500 watt PSU (Power Supply Unit).

Cooler Master M2 Silent Pro 1500

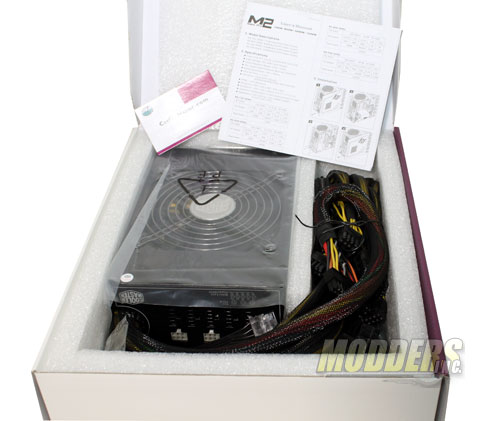

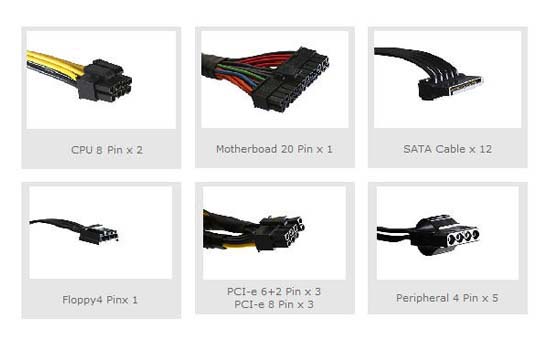

Packaged tightly and nicely you are guaranteed that the power supply will make into your hands safe and sound. A user manually and all the needed power cables are included in the box. The cables have all the connection points that you could ever want and need. Listed below are how many of each connector you receive.

The fun does not stop here. With the all the power connectors you not only get the cables, but everything that makes it work.

  • Copper-Aluminum Heat Sink
    This slick CM design incorporates an expansive flat surface area for superior heat conductivity out to the aero-dynamic fins, therefore removing heat at an unprecedented rate.
  • Silent Operation
    135 mm Hydraulic Dynamic Bearing Fan for quieter operation
  • Dual 12V Power Rails
    Dual 12 V Power Rails Tackling challenges from the most power-intensive peripherals head on, this solitary 12 V power rails provides ample power and strong resistance to any overloading up to 70 and 55A.
  • Modularized Cabling
    Neatly arranged connectors on the rear plate connect to flat internal cabling improve installment facility while allowing for greater airflow through the PSU.
  • Intel Compliant
    Proficiently prepared to provide a stable power source and connectors for the latest ATX 12V v2.3 Intel processors.
  • Eco-friendly design: Erp Lot6 Ready!
    A maximum 5Vsb current draw target in S5 off-mode of 0.1A for its motherboards and needed to ensure the system will consume < 1W in its off-mode
  • And More
    - Multiple updated connectors for all types of interfaces (PCIe, SATA etc.)
    - Double-Layer EMI Filter Dual protection from electromagnetic interference.
    - Multiple Protection Design (OVP/UVP/OPP/OTP/SCP)
    - High reliability with an MBTF of at least 100,000 hours of use.
    - Five Year Warranty

    ** Yes that does say Five (5) Years! That’s longer than some marriages.

Model RSF00-SPM2D3-US; RS-F00-SPM2

Type ATX 12V V2.3

Dimension 150 x 220 x 86mm (5.9 x 8.6 x 3.4 inch)

Input Voltage 90-264Vac (Auto Range)

Input Current 18 – 9A

Input Frequency Range 47 – 63Hz

PFC Active PFC (>0.9)

Power Good Signal 100-500ms

Hold Up Time >17ms

Efficiency 80 Plus Silver

MTBF 100,000 Hours

Protection OVP/UVP/OCP/OPP/OTP/SCP

Output Capacity 1500W

Operation Temperature 0-40°C(Nominal Input Voltage)

Certification 80 Plus Silver

Regulatory TUV / CE / UL / FCC / BSMI / GOST / C-tick / KC / CCC

Fan Silent HDB 135mm

Connector M/B 24 Pin Connector x 1
CPU 8 Pin x 2
PCI-E 8 Pin x 6
PCI-E 6+2 Pin x 6
SATA x 12
4 Pin Peripheral x 5
4 Pin Floppy x 1

Warranty 5 years
