DeepCool GENOME II Case Review

DeepCool Genome IIThe Genome as defined by some sources as the complete set of genetic material that makes up an organism. Over the last few release cycles, DeepCool has been working at redefining their products and their Gamer Storm line is no different. The Gamer Storm series is DeepCool’s higher end enthusiast products. The evolution of their cases over the last couple of years shows an increase in their manufacturing processes as well as how their product designers and engineers come up with their products. The Genome II is the second generation of this particular case line and features an integrated DeepCool Captain 360 mm water cooler with an additional double helix reservoir as well as the ability to mount a graphics card vertically and some other minor updates and tweaks.



Review Sample Provided by: DeepCool
Product Name/Link to Website: DeepCool Genome II
Product was given in exchange for work done to produce this review.



Packaging

The box  housing the Genome II case features artistic graphics that show off the Captain 360 pump as well as a front shot of the three different color variations the case comes in.
DeepCool Genome II

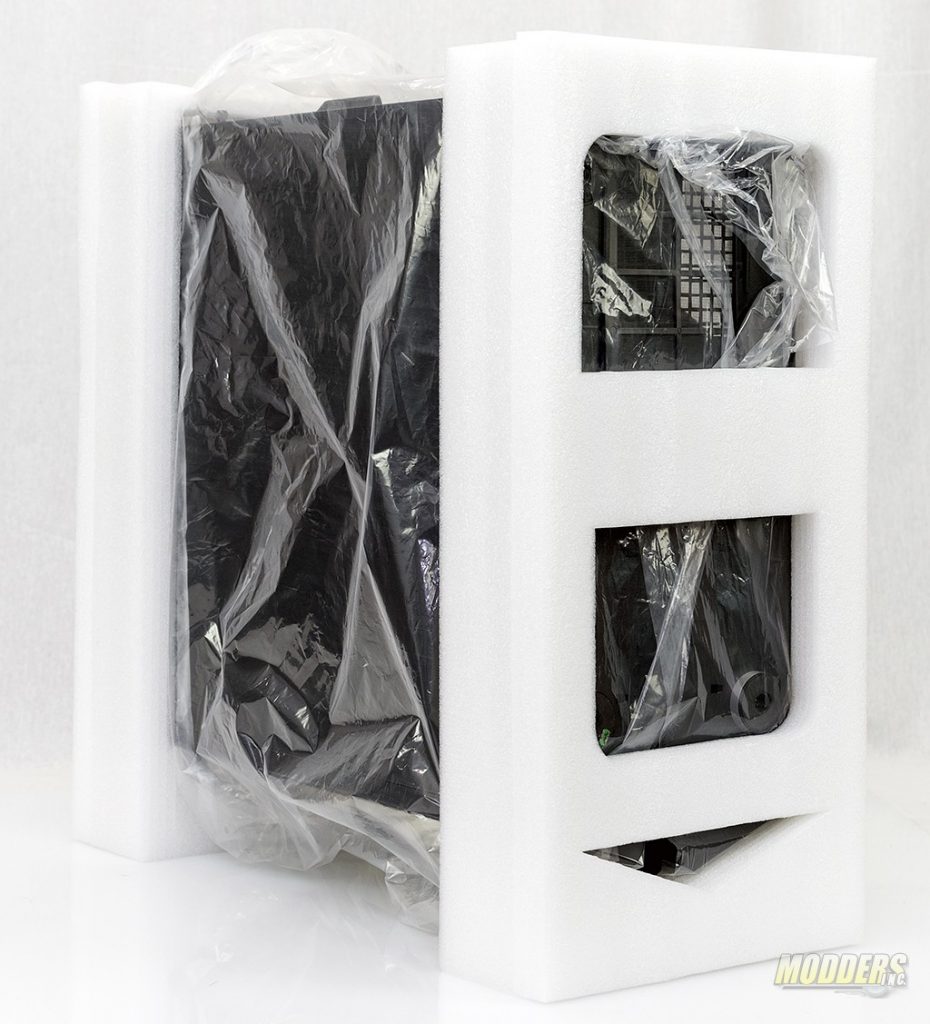

The case is further protected from damage as it is placed in a plastic bag to prevent scuffs and scratches to the finish then then placed inside two foam frames.
DeepCool Genome II

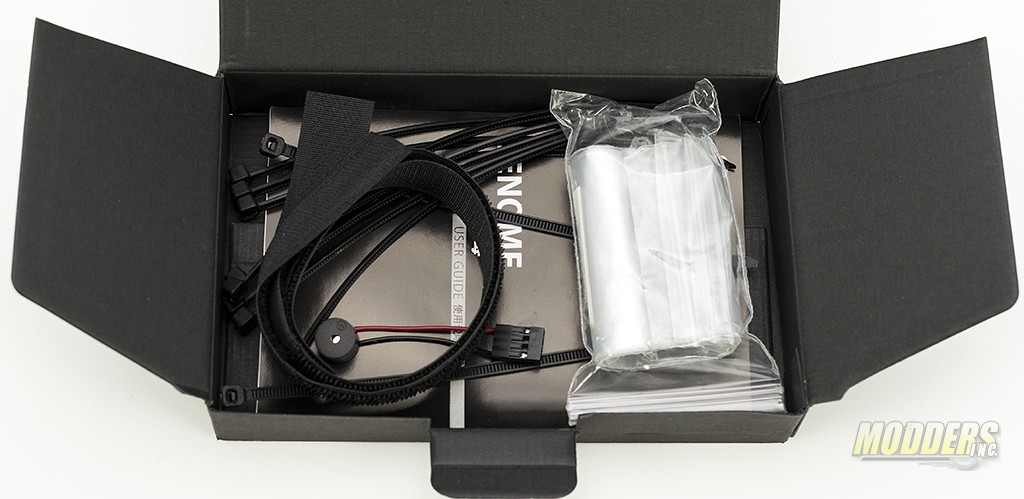

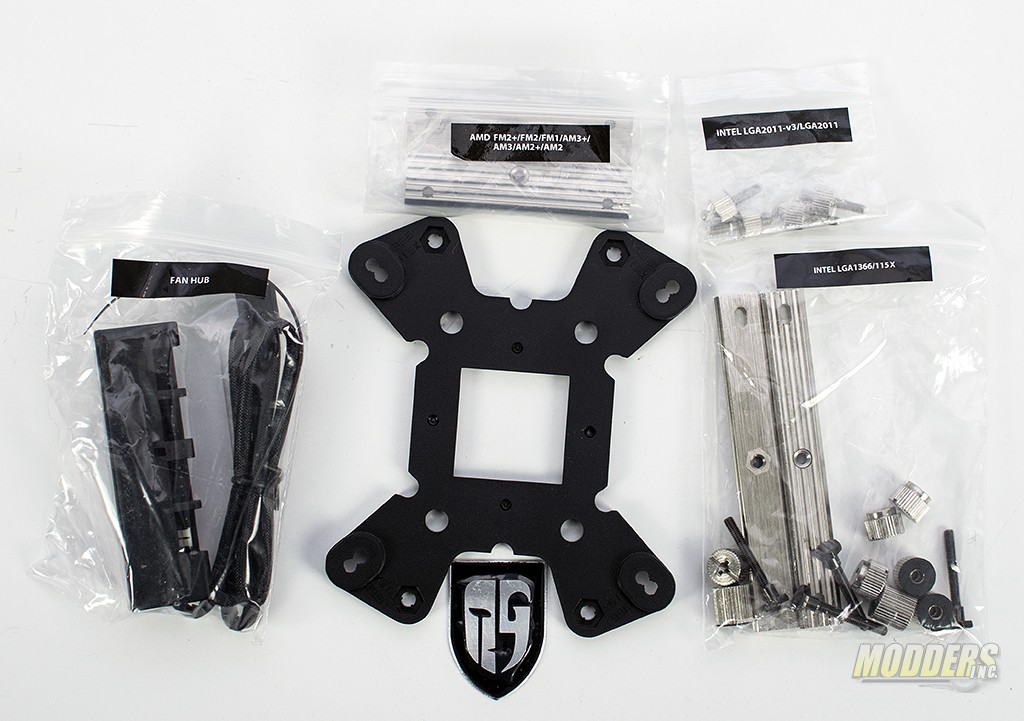

Since the case comes with a built in water cooler, there is more than just the standard case installation accessories. The kit comes with accessories to mount the cooler to LGA 115x, LGA 2011, AMD FM2, FM3, AM2 and AM3. AM4 mounting was not included but would be provided. The kit also includes the accessories to get the PC built inside the case and includes zip ties, extra screws for the motherboard and hard drives, PC speaker, and installation manual.



Specifications

Technical Spec

Motherboards(MAX:305×275MM)E-ATX/ATX/MICRO ATX/MINI-ITX
MaterialsSGCC+PLASTIC (ABS)(Panel thickness: 0.8mm)
Product Dimension (LxWxH)506×210×505 MM
Net Weight9.77 kg
Gross Weight12.09 kg
Liquid Cooler Compatibility120/240mm at front; 120/240/280/360mm at top
3.5″ Drive Bays2
2.5″ Drive Bays2
I/O Panel2×USB3.0/Audio(HD)×1/Mic×1
Expansion Slots7  (plus 2 extra slots for vertical VGA card installation)
Cooling FansPre-installed: Rear: 1×120mm fan; Top: 360mm liquid cooling system; Optional: Front: 2×120mm or 1×200mm fan
Power Supply TypeATX PS2
VGA Compatibility330mm
Carton Dimension575×285×600 mm
Color of LED LightsWhite
Radiator Dimensions395X120X32mm
Fan Dimensions120X120X25mm(3PCS)
Fan Speed500±200-1800±10%RPM (4Pin)
Fan Air Flow229.56CFM(MAX)
Fan Noise Level17.6~31.3dB(A)
Fan Bearing TypeHydro Bearing
Fan Rated Voltage12VDC
Fan Rated Current0.18±10%A(MAX)
Fan Power Consumption2.16W
Pump Connector3Pin
Pump Operating Voltage6~13.8VDC
Pump Rated Voltage12VDC
 Pump Speed2200±10%RPM
 Pump Load Current0.16±15%A
 Pump Power Consumption1.92W
 Net Weight2093±10g (liquid cooling system only)
