Gigabyte GeForce GTX 1070 Xtreme Gaming Graphics Card Review

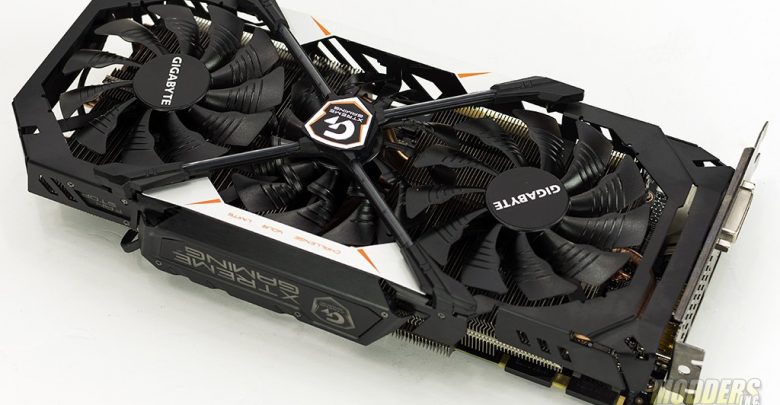

Gigabyte GeForce GTX 1080 Xtreme GamingIt is that time again where the GPU wars are heating up. Nvidia recently released Pascal upon the world and with the reference cards in the wild, it is time for the board partners to release their cards. Gigabyte makes a few models of the GTX 1080’s and the GTX 1070’s but at the top of the list is the Xtreme Gaming series. The Gigabyte GeForce GTX 1070 Xtreme Gaming is the top of the 1070 series from Gigabyte. The Gigabyte GeForce GTX 1070 Xtreme Gaming features a coated PCB to prevent shorts due to dust, dropped screws or the nightmare of water cooling coolant dripping from a leaking CPU block. The GPU also features the new Windforce Stack 3x cooling system, which features three 100mm fans.



Review Sample Provided by: Gigabyte
Product Name: Gigabyte GeForce GTX 1070 Xtreme Gaming
Price at time of review: $ 459.99 USD
Product was given in exchange for work done to produce this review.



Packaging

The GTX 1070 Xtreme Gaming edition box art is typical of the series. Up front, you’ll see Gigabyte’s Xtreme Gaming logo with a little bit of information about the card. On the reverse side, you’ll find more information on the GPU, such as addition features, cooling technology and RGB lighting.



Inside the thin outer box is a thicker inner box that protects and  houses the GPU and accessories.
Gigabyte GeForce GTX 1070 Xtreme Gaming



Included in the box is a Gigabyte Xtreme Gaming sweatband, case badge and accompanying documentation.
Gigabyte GeForce GTX 1070 Xtreme Gaming



Specifications

Graphics Processing GeForce® GTX 1070
Core Clock Boost: 1898 MHz / Base: 1695 MHz in OC mode
Boost: 1873 MHz / Base: 1670 MHz in Gaming mode
Memory Clock OC mode: 8316 MHz
Gaming mode: 8168 MHz
Process Technology 16 nm
Memory Size 8 GB
Memory Bus 256 bit
Card Bus PCI-E 3.0 x 16
Memory Type GDDR5
DirectX 12
OpenGL 4.5
PCB Form ATX
Digital max resolution 7680×4320@60Hz
Multi-view 4
Card size H=57 L=291 W=140 mm
I/O Standard mode (Dual-link DVI-D*1, DP1.4*3, HDMI 2.0b*1)
VR mode (Dual-link DVI-D*1, DP*1, HDMI*3)
Recommended PSU 500W ( WITH One 8-Pin and One 6-Pin EXTERNAL POWER CONNECTOR)
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
