Gigabyte GTX 960 G1 Gaming 2GB Video Card Review: Mainstream Price, High-End Extras

Gigabyte GTX 960 G1 Gaming Video CardAs much as everyone wants a high-end video card, the premium price often means that it is out of reach for a majority of users out there. While there are many who upgrade with every generational release, most users choose to upgrade their graphics card every other generation or every two or three years. This mainstream market segment is often the most hotly contested between NVIDIA and AMD because of the sheer volume of users involved.

Review Sample Provided by: Gigabyte
Product Name: Gigabyte GTX 960 G1 Gaming Video Card
Price at time of review: $ $229.99 (MSRP), $209.99 (NewEgg.com) USD
Product was given in exchange for work done to produce this review.

It is that time again right after the release of the last two new NVIDIA Maxwell cards to introduce a new graphics solution within reasonable budgetary reach. NVIDIA is aiming for the mainstream sweet spot with the release of the GeForce GTX 960 and Gigabyte is right along with them releasing a Windforce 3X variant under their G1 Gaming line equipped with a steep factory overclock of 1241 MHz core/1304 MHz boost up from the 1127 MHz core/1178 MHz boost reference values. Paired with Gigabyte’s award-winning cooling system is a robust 160W 6-phase power system design that is ambitious and compared to other GTX 960 offerings with the standard 120W 3-phase VRM.

Packaging and Accessories

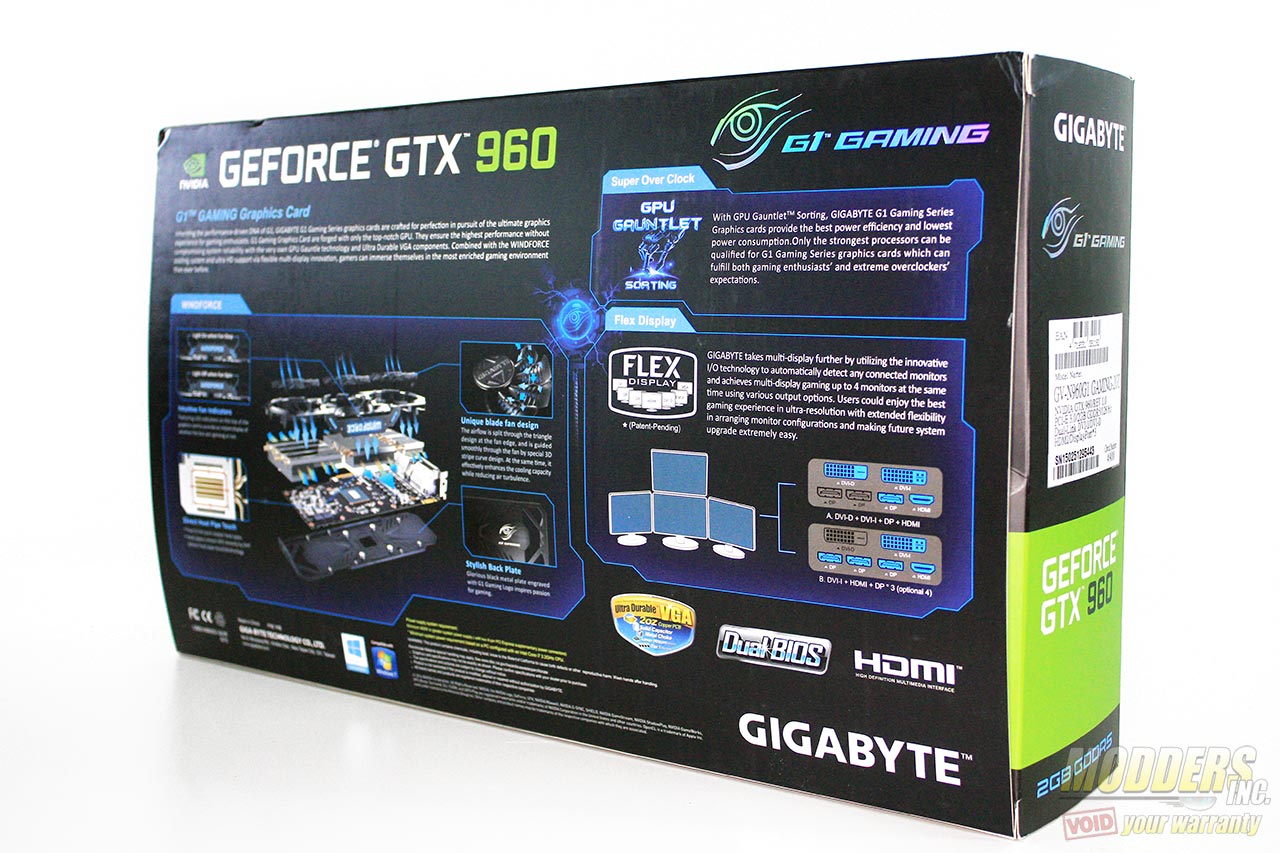

Gigabyte’s external packaging compared to the GTX 700 series Kepler video cards are very similar with the exception of the G1 Gaming logo in the front and several of the new features printed. The box itself is a very dark blue with the Gigabyte Eye logo and is accented with unmistakbly NVIDIA-green trim.

Gigabyte GTX 960 G1 Gaming Video Card Box Gigabyte GTX 960 G1 Gaming Video Card Box

Gigabyte GTX 960 G1 Gaming Video Card Box

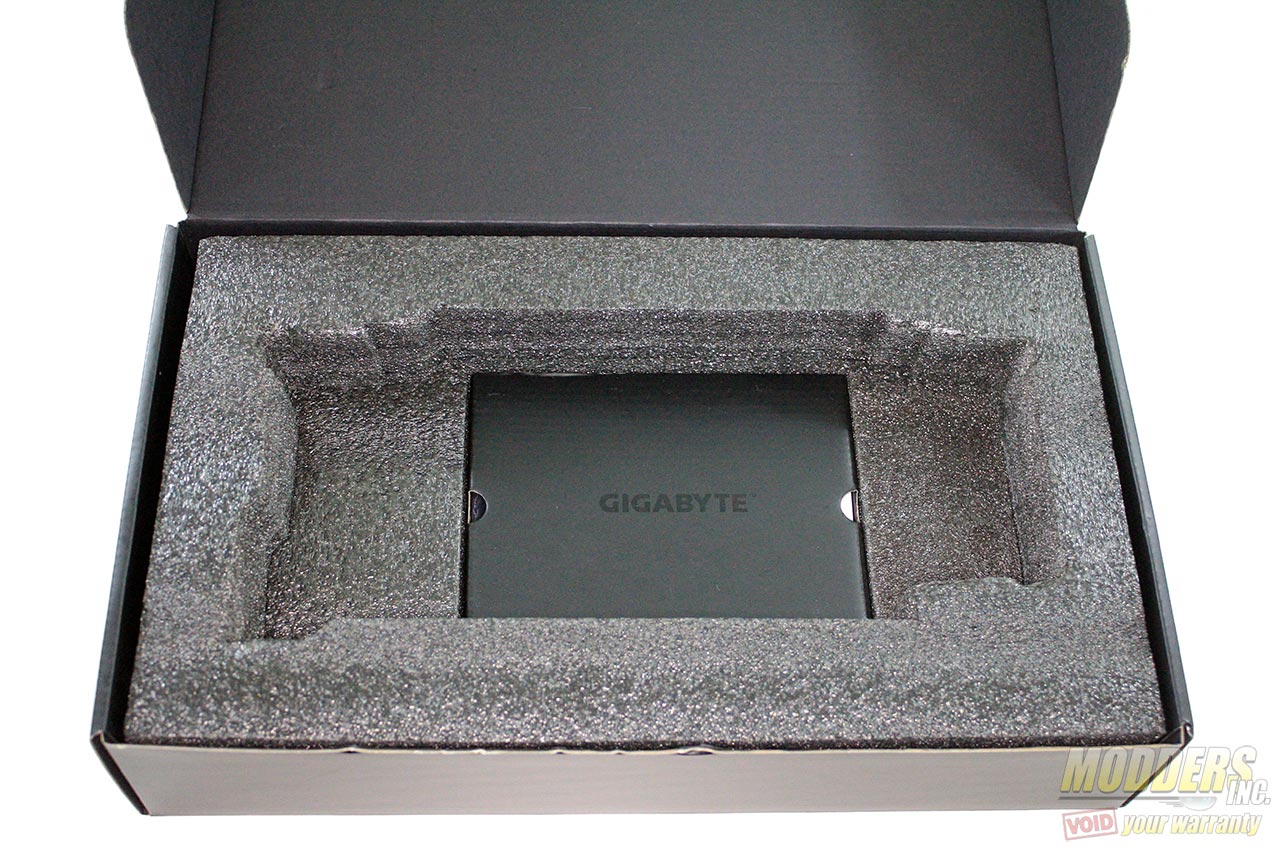

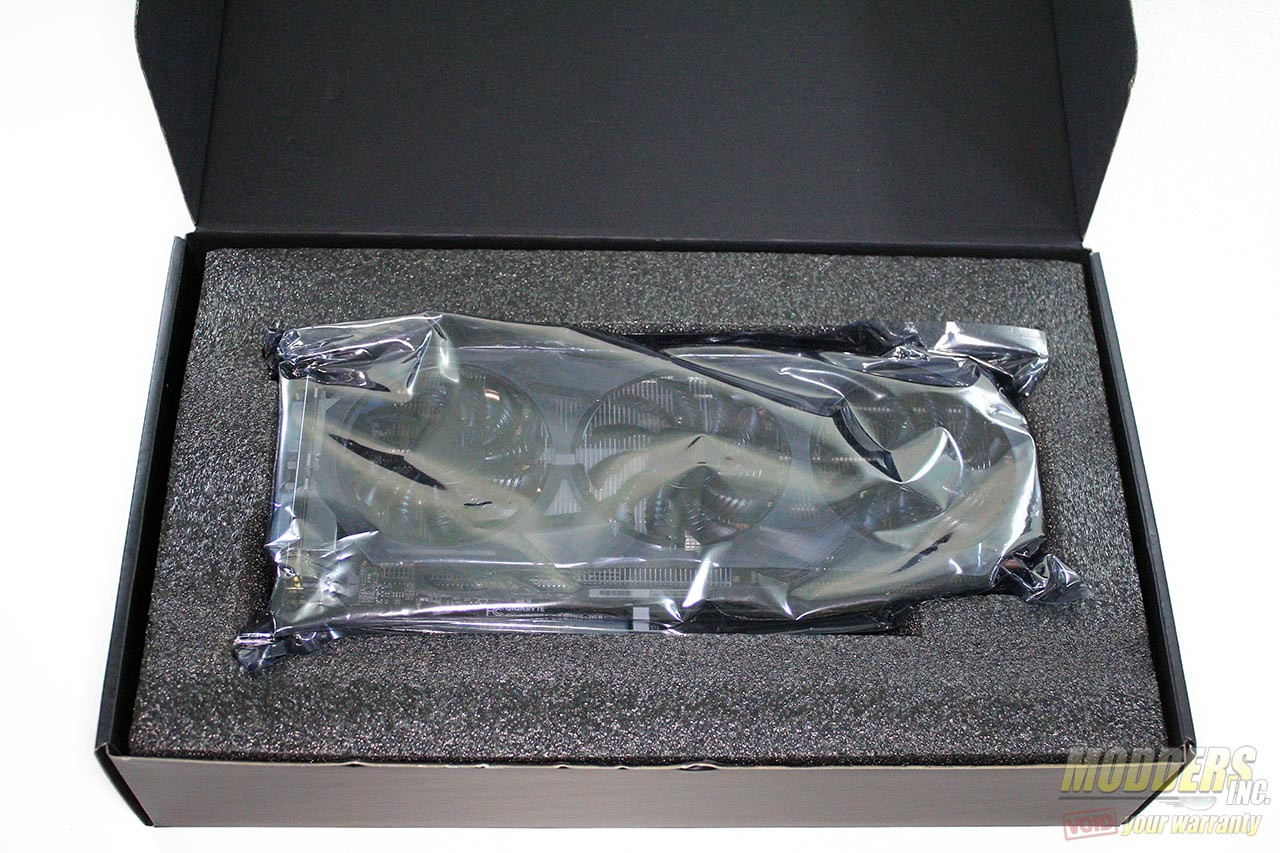

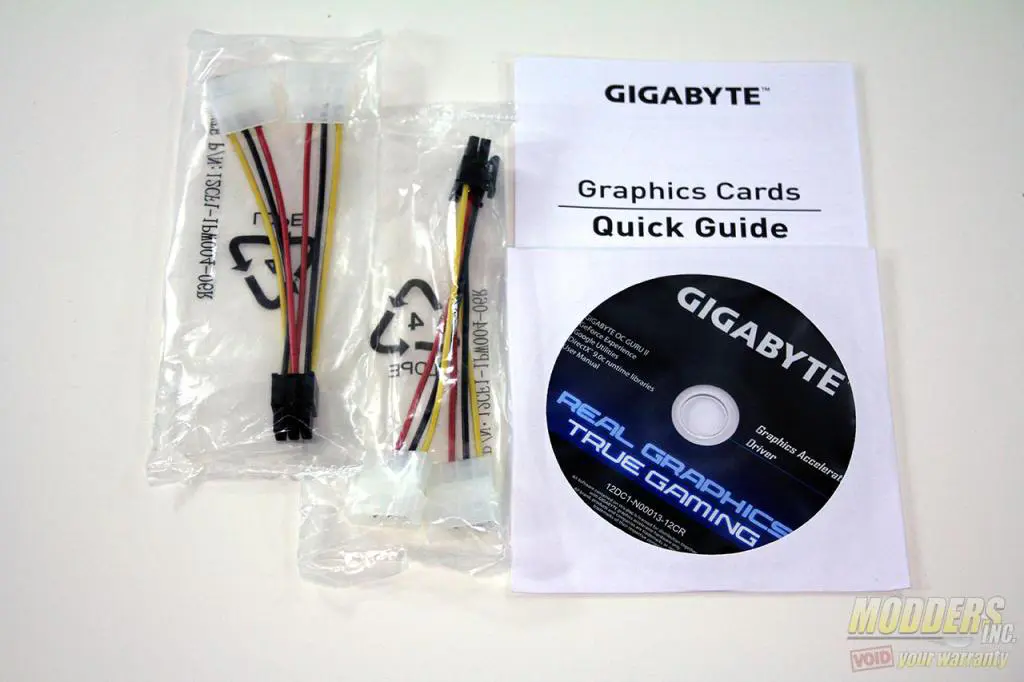

For protection, the package is double boxed with the inner compartment lined up with thick foam padding on all sides and back. A smaller partition contains the accessories which includes a pair of 2x 4-pin MOLEX power to 6-pin PCI-E adapters, graphics card installation guide as well as a driver disc containing drivers and OC Guru II software.

Gigabyte GTX 960 G1 Gaming Video Card Packaging Gigabyte GTX 960 G1 Gaming Video Card Packaging

Gigabyte GTX 960 G1 Gaming Video Card Accessories

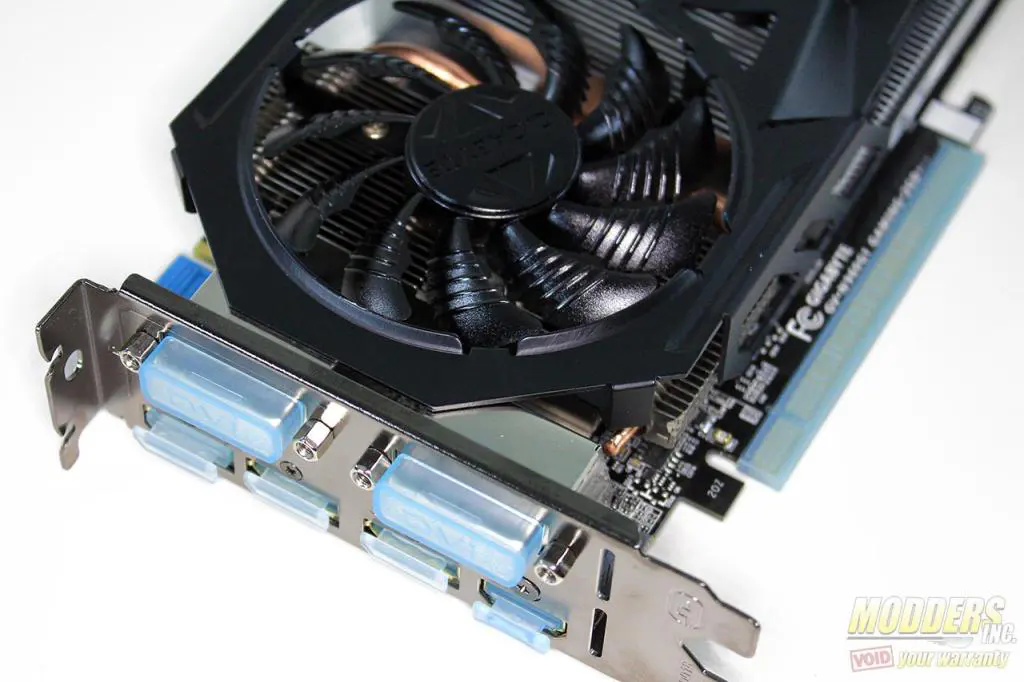

The brushed aluminum looking Windforce cooler shroud also has protective film that must be removed first prior to using. All connectors in the rear as well as on the PCB also shipped with protective coverings.

Gigabyte GTX 960 G1 Gaming Video Card Gigabyte GTX 960 G1 Gaming Video Card

Specifications

GPUGeForce GTX 960
Core Base Clock1241 MHz (std. 1127)
Core Boost Clock1304 MHz (std. 1178)
Memory Clock7010 MHz
Memory Size2048MB GDDR5
Bus TypePCI Express 3.0
Memory Bus128-bit
CUDA Cores1024
Memory TypeGDDR5 128Mx32
DirectX12
OpenGL4.4
DVI PortDVI-I/DVI-D
DisplayPort1.2 *3
HDMI2.0 *1 (support [email protected])
