Today I am going to be taking a
look the new Zalman copper VGA cooler.
Zalman has been making decent Video card coolers for some time now. The most recent ones have been thin copper
fins with a fan blowing over them to quickly dissipate the heat. The last set of coolers that they had run
with, the VF700 series was an excellent cooler. Unfortunately it was beginning
to get overwhelmed by the newer hotter GPU's that Nvidia and ATI were kicking
out. This is where the VF900-Cu comes
in. Similar in appearance but with more
thin rings of copper fins all the way around, and this time with heat pipe
technology added as well.

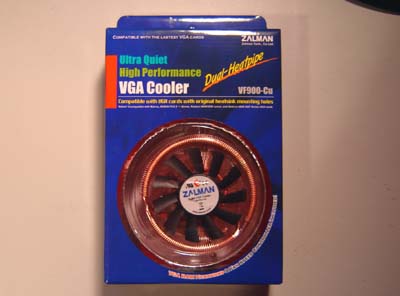

The VF900 comes in a compact

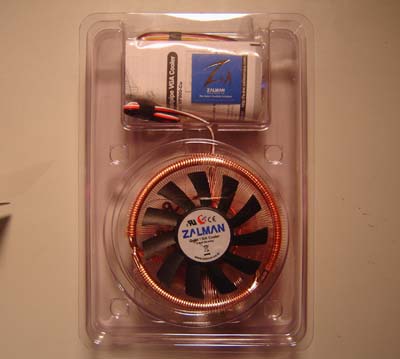

cardboard package with the cooler sandwiched in a plastic clamshell inside the
cardboard box. The whole thing is about
the size of a Game CD box. The packaging

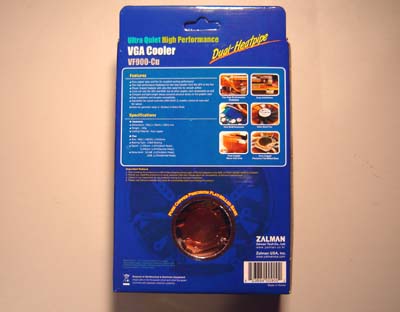

is fairly plain and not very flashy. The

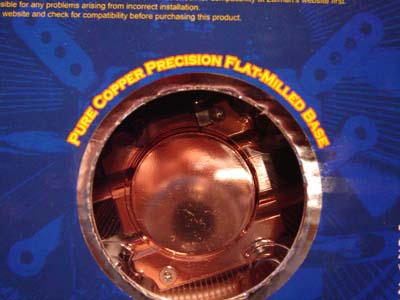

back side gives you a list of Features and Specifications of the Cooler. They also have a little window for you to
view the "Pure Copper Precision Flat-Milled Base".
FEATURES:
1. Pure copper heatsink base and fins maximize
cooling performance.
2. Use of two high performance heatpipes maximizes heat transfer.
3. Circular heatsink formed by radially aligned ultra-thin(0.2mm) fins
minimizes airflow resistance
and maximizes heat dissipation surface area for excellent
cooling performance.
4. Fan installed in the heatsink cools not only the VGA chipset and VGA RAM,
but all other VGA
components.
5. Does not exert any excessive force on the VGA card due to the product's
light weight.
6. Improvement in the installation structure provides excellent compatibility
and easy installation.
7. Adjustable fan speed controller(FAN MATE 2) enables control of noise and fan
speed.
8. Does not generate noise or vibration in Silent Mode.
SPECIFICATIONS:
- Dimensions : 96(L) X 96(W) X 30(H)mm
- Weight : 185g
- Base Material : Pure Copper
- Bearing Type : 2-Ball
- Speed : 1,350 ~ 2,400rpm ± 10%
- Noise Level : 18.5 ~ 25.0dB ± 10%
|
