MSI Z170A Gaming Pro Carbon Motherboard Review

Table of Contents -

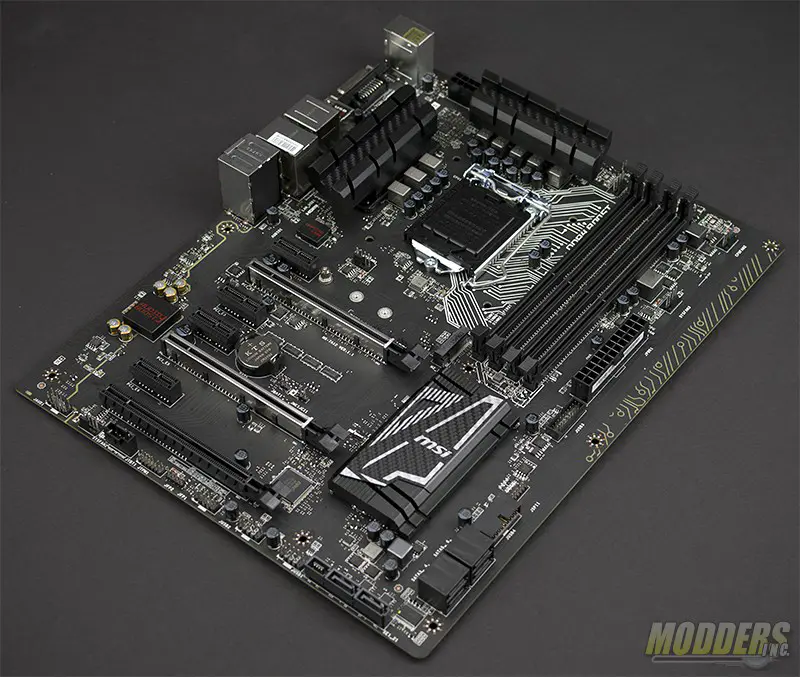

MSI Z170A Gaming Pro CarbonWhen choosing a motherboard, some users make their choice based on the extra features and overall look of the board while others choose boards based purely on speed and performance. However, the extra features and speed come at a cost; price. Over the last few years, MSI has released a slew of motherboards that hit both ends of the spectrum as well as balance the features that user’s want along with good performance. The MSI Z170A Gaming Pro Carbon is marketed to be in the middle ground and supposedly strikes a balance between performance and features all at a reasonable cost.



Review Sample Provided by: MSI
Product Name: MSI Z170 Gaming Pro Carbon
Price at time of review: $ 169.99 USD
Product was given in exchange for work done to produce this review.



The MSI Dragon is not the promenent feature on the box. As the name implies, a carbon fiber bodied car is featured on the front of the box. While on the back a lot of information is presented about the special features and the specifications of the Z170A Gaming Pro Carbon.

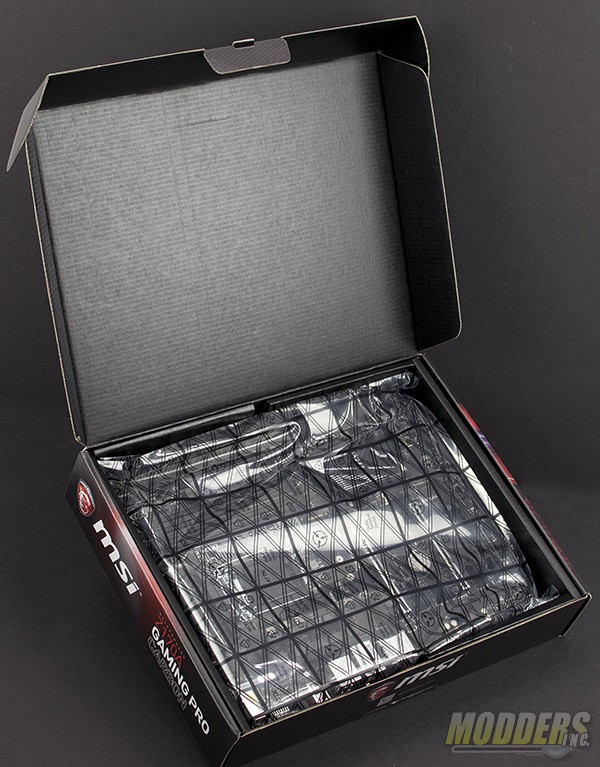

Inside, you will find the motherboard protected from static discharge as it is wrapped in an anti-static bag. The accessories and manuals are under the motherboard in a separate compartment separated by a thin cardboard layer.

MSI Z170A Gaming Pro Carbon

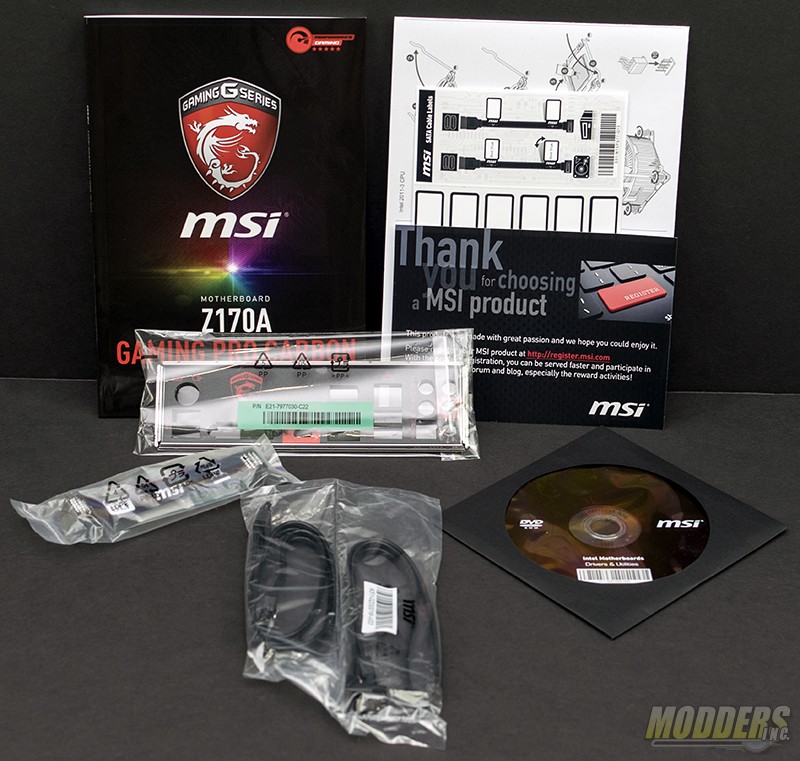

The accessories that are included with the MSI Z170A Gaming Pro Carbon include a users guide, a quick start guide, I/O shield, SLI connector, SATA cables and a driver and software CD.

MSI Z170A Gaming Pro Carbon



Specifications

CPU• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

Chipset• Intel® Z170 Chipset

Main Memory

• 4 x DDR4 memory slots, support up to 64GB
– Supports DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz*
• Dual channel memory architecture
• Supports ECC, un-buffered memory
– ECC UDIMM memory (non-ECC mode)
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer to Compatibility reports for more information of compatible memory.

Slots• 3 x PCIe 3.0 x16 slots (support x16/x0/x4 or x8/x8/x4 modes)
• 4 x PCIe 3.0 x1 slots

Onboard Graphics
• 1 x HDMI™ port, support a maximum resolution of 4096×2160@24Hz,
2560×1600@60Hz
• 1 x DVI-D port, support a maximum resolution of 1920×1200@60Hz

Multi-GPU
• Supports 3-Way AMD® CrossFire™ Technology
• Supports 2-Way NVIDIA® SLI™ Technology

Storage

Intel® Z170 Chipset
• 6 x SATA 6Gb/s ports* (2 ports reserved for SATA Express port)
• 1 x M.2 slot*
– Supports PCIe 3.0 x 4 and SATA 6Gb/s standards,4.2cm/ 6cm/ 8cm length M.2 SSD cards
– Supports PCIe 3.0 x 4 NVMe Mini-SAS SSD with Turbo U.2 Host Card**

• 1 x SATAe port (PCIe 3.0 x2)*/ ***
• Supports Intel® Smart Response Technology for Intel Core™ processors

* SATA5 and SATA6 ports will be unavailable when installing the M.2 module in M.2 slot.
** The Turbo U.2 Host Card is not included, please purchase separately
*** SATAe port is backward compatible with SATA. SATA
and SATAe ports maximum support 6x SATAs or 1x SATAe + 4x SATAs.

RAID

• Intel® Z170 Chipset
– Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

USBASMedia® ASM1142 Chipset
– 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports on the back panel• Intel® Z170 Chipset
– 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 4 ports available through
the internal USB 3.1 Gen1 connectors)
– 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
Audio• Realtek® ALC1150 Codec
– 7.1-Channel High Definition Audio
– Supports S/PDIF output

LAN • 1 x Intel® I219-V Gigabit LAN controller

Internal I/O Connectors– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 6 x SATA 6Gb/s connectors (2 ports reserved for SATA Express port)
– 1 x SATAe connector
– 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
– 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
– 2 x 4-pin CPU fan connectors
– 3 x 4-pin system fan connectors
– 1 x Front panel audio connector
– 2 x Front panel connectors
– 1 x TPM module connector
– 1 x Chassis Intrusion connector
– 1 x Clear CMOS jumper
– 1 x TBT connector
Back Panel I/O Ports– 1 x PS/2 keyboard/ mouse port
– 4 x USB 2.0 ports
– 1 x DVI-D port
– 2 x USB 3.1 Gen1 ports
– 1 x USB 3.1 Gen2 port
– 1 x USB 3.1 Gen2 Type-C port
– 1 x HDMI™ port
– 1 x LAN (RJ45) port
– 1 x Optical S/PDIF OUT connector
– 5 x OFC audio jacks
BIOS• 1 x 128 Mb flash
• UEFI AMI BIOS
• ACPI 5.0, PnP 1.0a, SM BIOS 2.8
• Multi-language
Dimension• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor
Mounting• 9 mounting holes



Caution:
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

***Specifications are provided by MSI and may be subject to change without notice.
