Noontec-TerraMaster D2-310: Direct Attached Storage with a kick.

Table of Contents -

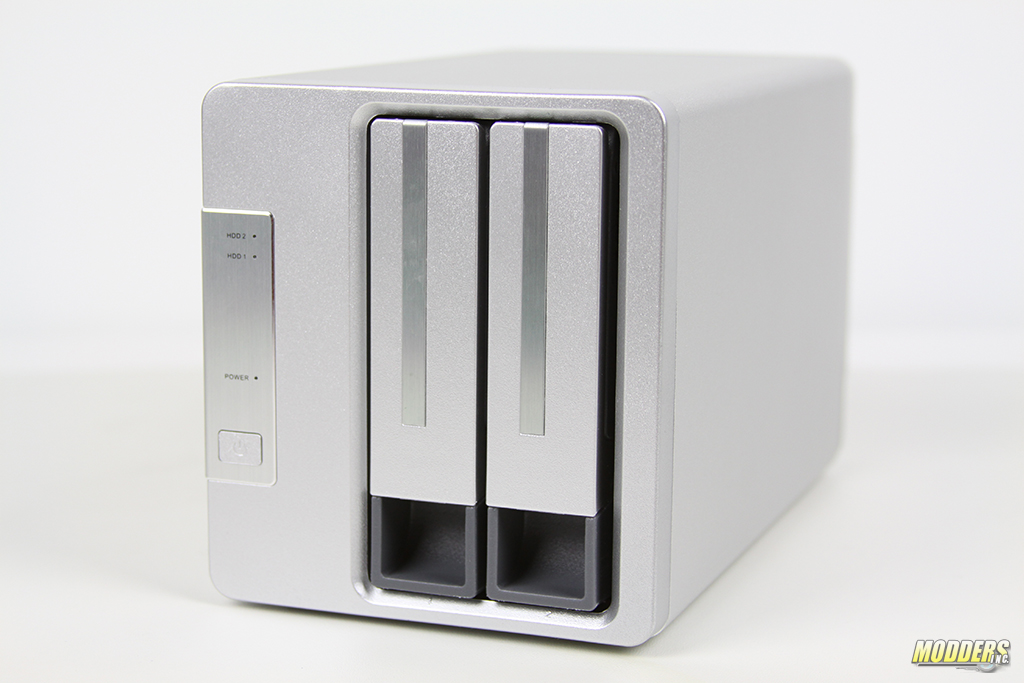

D2-310 is a direct attached storage device by Noontec-TerraMaster. Most of the market is moving away from DAS devices to network based devices however, there is still a need for simple and fast solutions to store data locally. D2-310 offers USB 3.1 connectivity and supports RAID redundancy in a two bay shell. Whether you are looking for a device to support your video editing, photo or music library D2-310 would be a good candidate.

Review Sample Provided by: Terra Master
Product Name: D2-310
Price at time of review$ 159.99 USD MSRP
Product was given in exchange for work done to produce this review.

Packaging

Just like most of the Terra-Master packaging D2-310 comes in a simple cardboard box. The only section of the specifications is on the side of the packaging. Here you will find basic information about the device inside. This RAID storage device ships without hard drives/SSHD so you will have to use your own drives in D2-310.

Internal packaging is very neat. D2-310 is wrapped in a plastic bag and supported by two foam inserts on each side. Accessories and instruction manual is included in the accessory box.

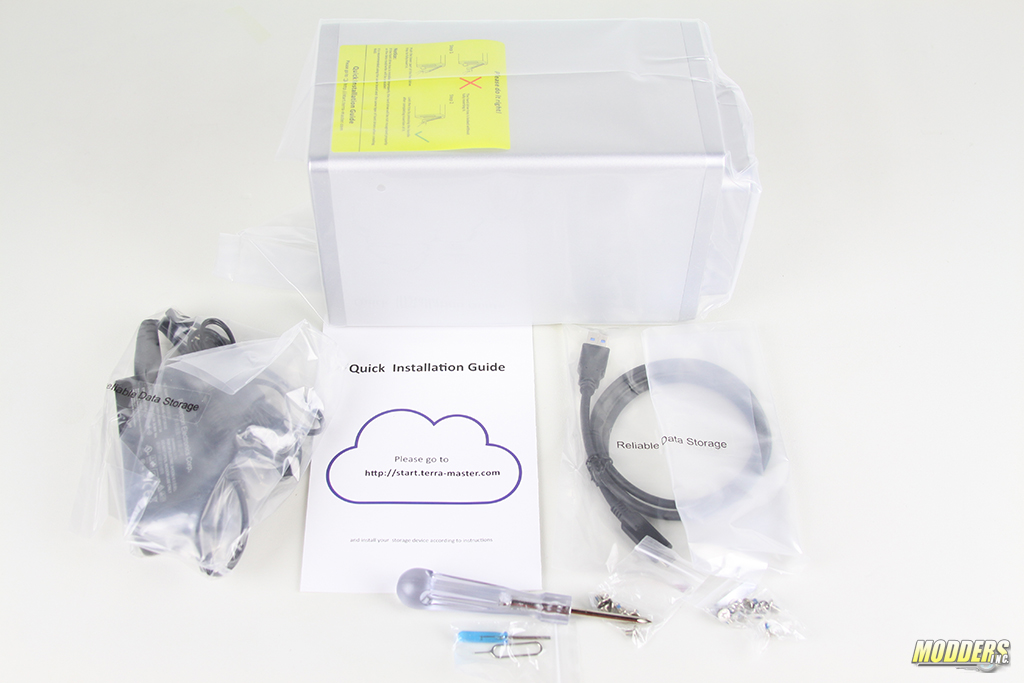

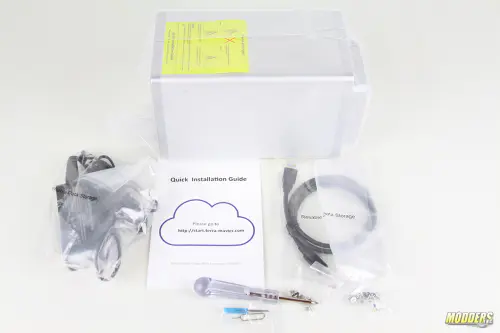

The accessory box includes power supply, USB 3.1 Type C cable, two bags of screws (HDD and SSHD), two sets of small screwdrivers, a resett pin and a quick installation guide.

Hardware Specifications

Storage
Drive Bay(s)2
Compatible Drive Type2x 3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s Hard disk or SSD
supports hard disk group modeSINGLE DISKJBODRAID 0RAID 1
Maximum Internal Raw Capacity16 TB (8 TB HDD * 2) (Capacity may vary by RAID types)
External Ports
Data transmission interfaceUSB type-C x 1
Data transmission cableUSB Type-A – USB Type-CLength1M
File System
Internal DrivesFAT 32/16NTFS
Read/write speed(maxRead410MB/sWrite400MB/s (2 SSHD RAID0 mode)
Supported OS
Supported OSWindows OSMac OS
Appearance
Size (Height X Width X Depth)227(H) x 119(W) x 133(D) mm
Housing materialaluminum
Weightnet weight: 1.3 Kg
Power
AC Input Power Voltage100V to 240V AC
Power Frequency50/60 HZ, Single Phase
Power Consumption20W(Access)
Environment Temperature
Operating Temperature5°C to 35°C (40°F to 95°F)
Storage Temperature-10°C to 70°C (15°F to 155°F)
CertificationCCCCEFCCUL
Warranty2 Years
NotesPower consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Environment & Packaging
EnvironmentRoHS Compliant
Packaging Content·Main Unit X 1
·Welcome Note X 1
·Accessory Pack X 1
·AC Power Adapter X 1
·Adapter Cable * 1
·USB Type-Cable * 1
