CPU Coolers come in various shapes and sizes but these variants are not all done purely for performance reasons. For instance, since memory manufacturers continue to use unnecessarily tall heat spreaders on their modules, CPU cooler makers have begun designing heatsinks to maximize compatibility. Phanteks, specifically with their latest PH-TC14S CPU cooler, incorporates two main design ideas to ensure it stays within Intel’s keep-out zone: utilizing the twin-tower design of their flagship PH-TC14PE and using a slimmer aluminum fin design.

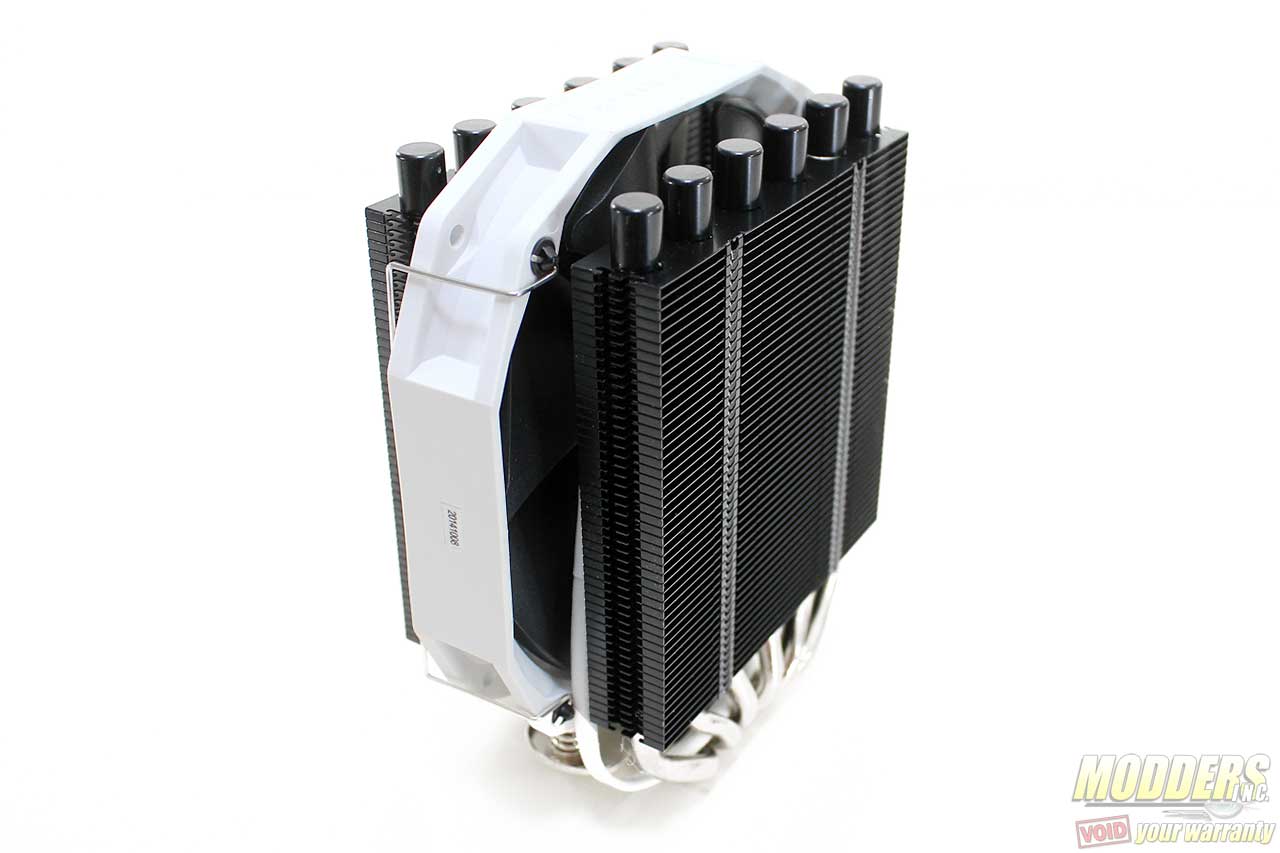

The Phanteks PH-TC14S is equipped with six 6mm heatpipes configured in a U-shaped dual-tower design with the bundled PH-140HP II PWM fan installed in the middle. Its total operational body thickness is a mere 74mm, much thinner than conventional tower coolers. The PH-TC14S is quite light as well, weighing only 740g with the fan. The bundled PH-14HP II uses standard 120mm fan mounting so it can be replaced with any 120mm fan or 140mm fan with 120mm mounting but an additional fan can be installed on the front side as well.
Review Sample Provided by: Phanteks
Product Name/Link to Website: Phanteks PH-TC14S CPU Cooler
Product was given in exchange for work done to produce this review.

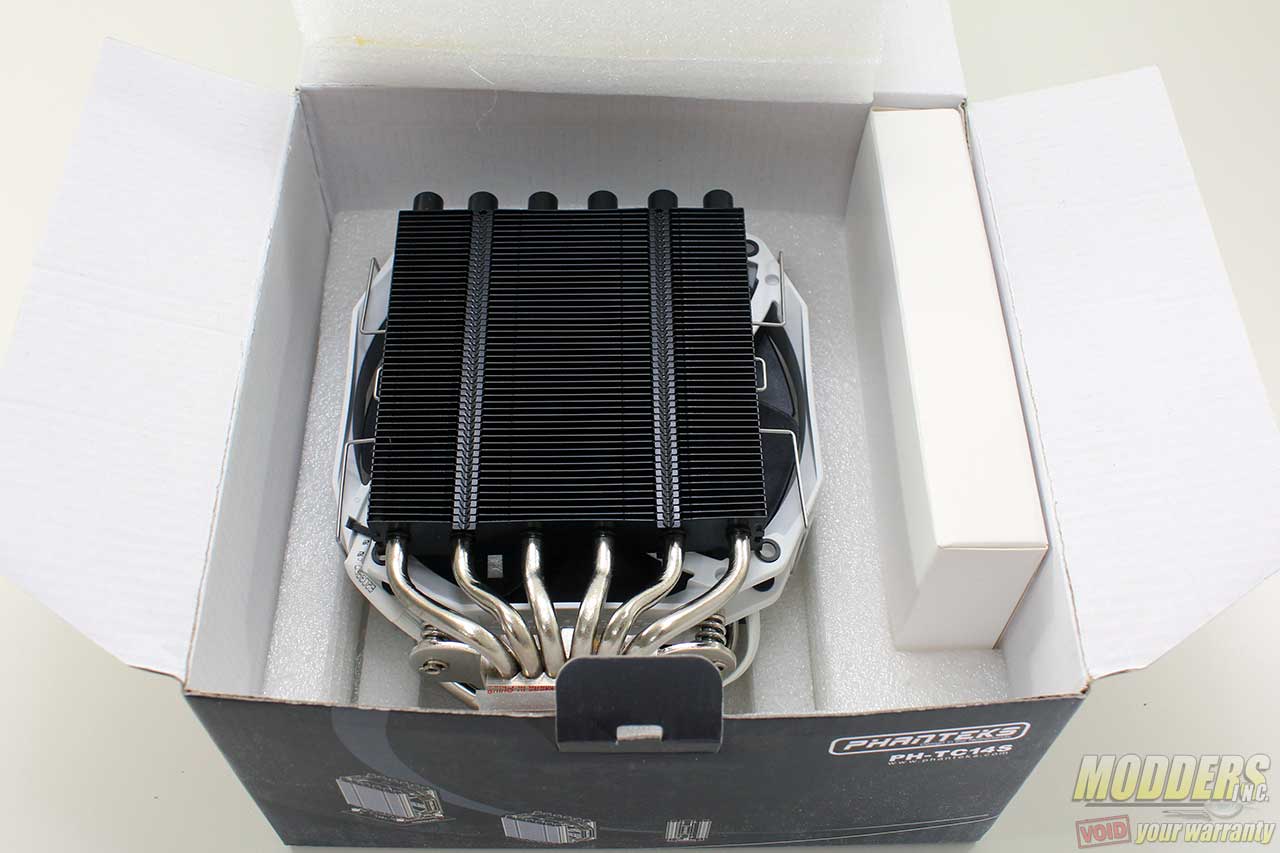

The Phanteks PH-TC14S is packaged in a matte gray outer box with printed graphics of the heatsink unit. Opening it is fairly straightforward at the top and the contents inside are sandwiched top and bottom in two pieces of thick foam padding.
The accessories are housed in a box to the side while the main PH-TC14S comes with the bundled fan pre-attached with fan clips. This fan must be removed first so that the unit can be installed.

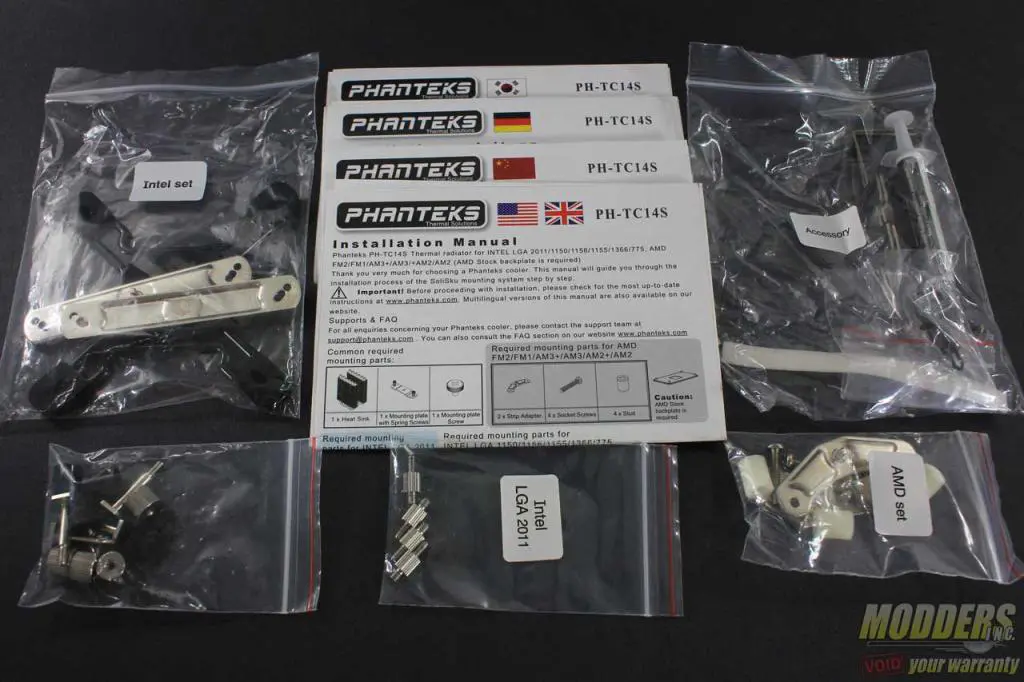

Accessories include documentation for each mounting system in multiple languages, a full-sized tube of PH-NDC thermal compound, extra fan clips for an optional second fan (with 120mm mounting distance) with plastic holders, two additional fan vibration-dampening strips, as well as mounting kits for Intel LGA 775, 115x, 2011x and AMD mainboards. A universal backplate is provided for mounting on Intel systems but the AMD mounting accessories require the use of the stock AMD backplate.
||Intel Socket 2011/115X/1366/775. AMD FM1/FM2(+)/AM2(+)|
||– Copper (Base and Heat-pipes), Nickel Plated
– Aluminum Cooling Fins with patented P.A.T.S.
||PH-F140HP PWM Ultra High Static Pressure Premium Fan|
||Seven Colored Blades with MVB2|
||UFB (Updraft Floating Balance) Bearing|
||500 – 1600 ± 250 RPM|
|Heatsink Dimensions (LxWxH) without fan
Heatsink Dimensions (LxWxH) with fan
|Heatsink Weight without fan
|Heatsink Dimension (LxWxH) with Single Fans
|8.5x8x4.7 inches (LxWxH)|
Scope of Delivery
|– 1x PH-TC14S
– 1x PH-F140HP PWM Premium Fan
– 1x SoliSku Mounting kit for Intel and AMD(Stock backplate required)
– 4x Fan Clips, 4 Rubber Bar
– 1x PH-NDC Thermal Compound
– 1x Phanteks PH-TC4S User’s Manual
