Project : 5th GeN 29TB gaming rig by grevaeg

Project : 5th GeN 29TB gaming rig by grevaeg

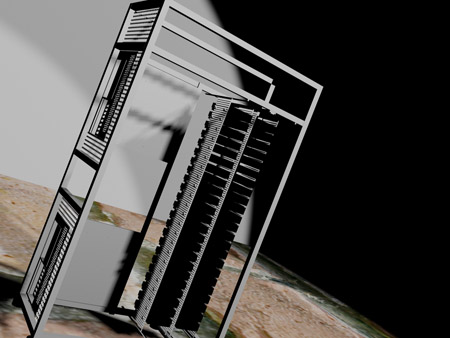

I’ve thrown in some of the highlights of the build here but I don’t want to give away too much about this worklog.  A lot of the beauty is in the process.    Below we see the initial rendering of the case before construction began.

Like a lot of great mods this one had it’s humble beginnings in the planning stages.  Even here you could tell it was going to be a beast



The main part of the Chassis is construction from 25mm square tubing welded together.   This will be very sturdy and somewhat light.  This tubing will also be perfect for attaching the plexi to later on in the process.

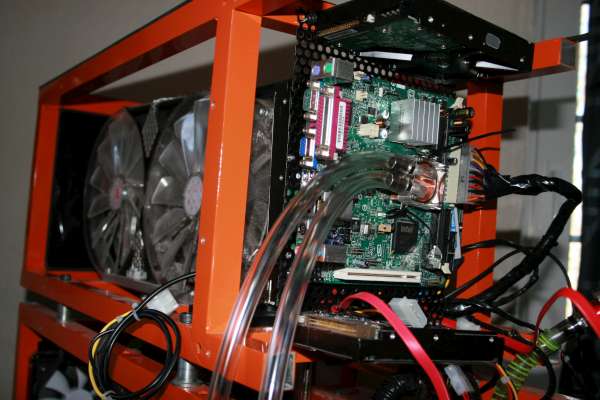

One of the features that I found to be very cool is the Mini-ITX system that is attached to the upper section of the rig….watercooled!  Check out those huge 200mm fans attached to the Rads behind it!

The bottom full size ATX system with watercooling on the RAM.

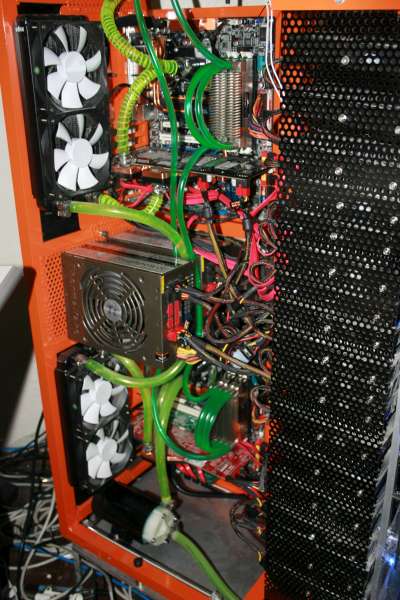

Here is a great shot of both of the main systems.    Look at all those HD’s there!  Wow that a lot of storage space!

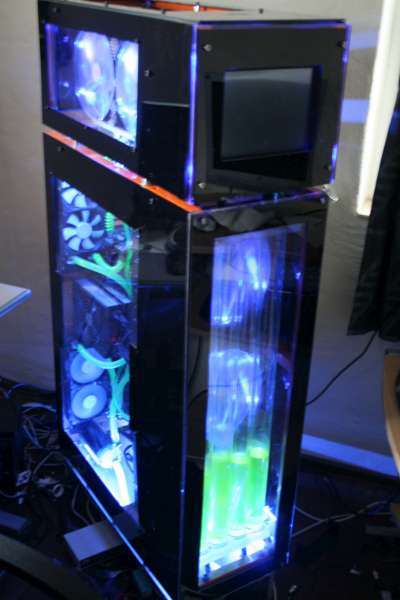

the final fitting stage you get to really see how this thing will come together.
