Reviews
Xigmatek HDT-S1283

Sponsor: Xigmatek

Price:

Author: Tazz

Published: Thu, Sep-20-2007

 Description:

     A little over a month ago we took a look at XigMateks HDT-S963, which performed really well for its size. This time we are going to look at its big brother the HDT-S1283. The main difference between the two coolers is the over all size of the cooler and the fact that the HDT-S1283 uses a 120mm fan where the HDT-S963 used a 92mm fan. So let's check it out and see if it can show the little brother up.

 First Impression:

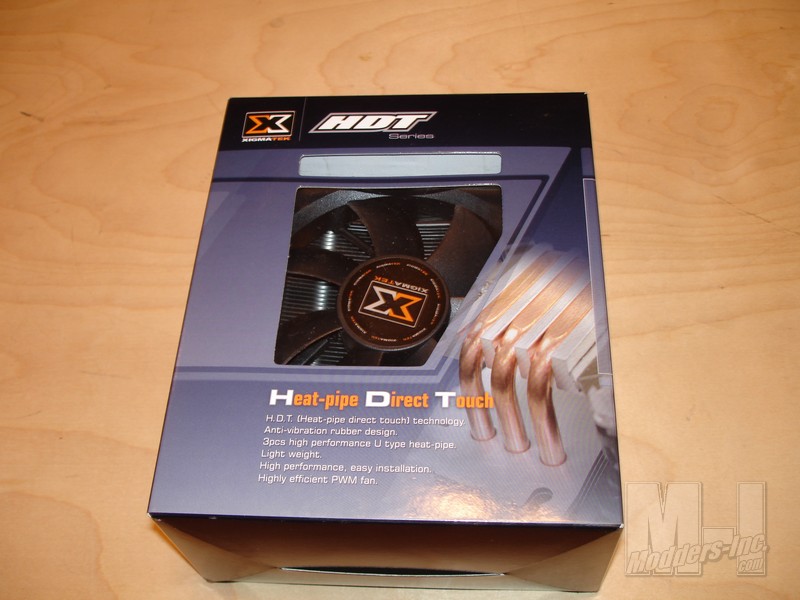

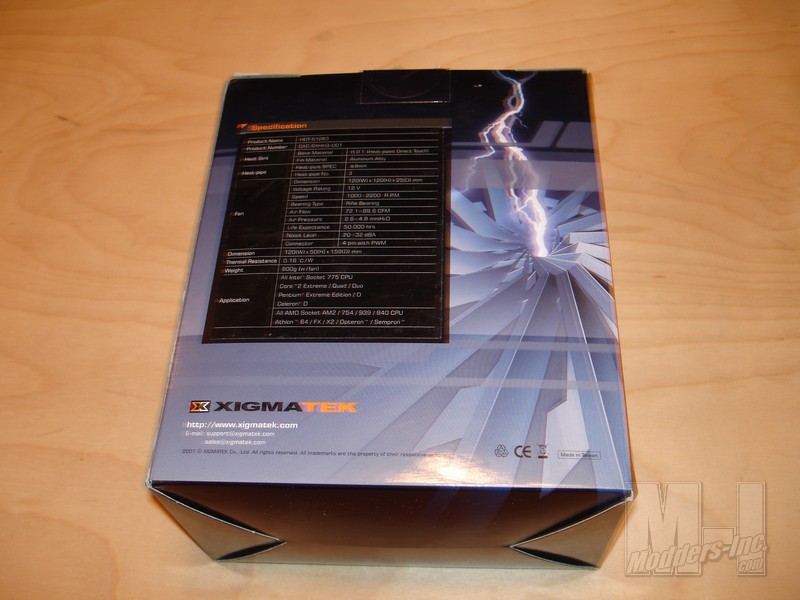

     The Xigmatek HDT-S1283 came in a container that had a little more fluff than the HDT-S963 did. The box is eye catching and informative. On the front you will find the main features the cooler has to offer. On the side we can easily find out which processor socket types the HDT-S1283 will fit. Flipping over to the rear of the box you can find a complete listing of the HDT-S1283's specifications.

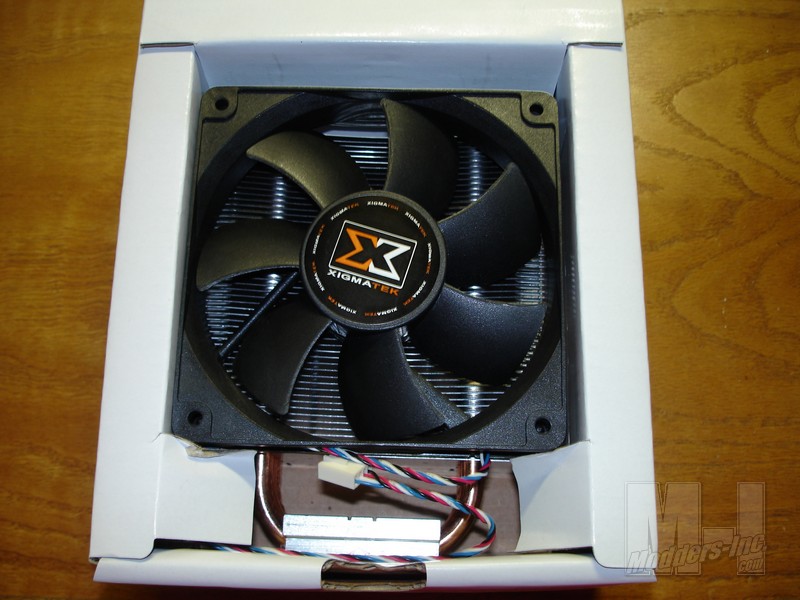

     The Xigmatek HDT-S1283 came packaged just as securely as its little brother did. The cooler is tightly packed in the inner box with all the mounting hardware tucked under one of the flaps of the box.

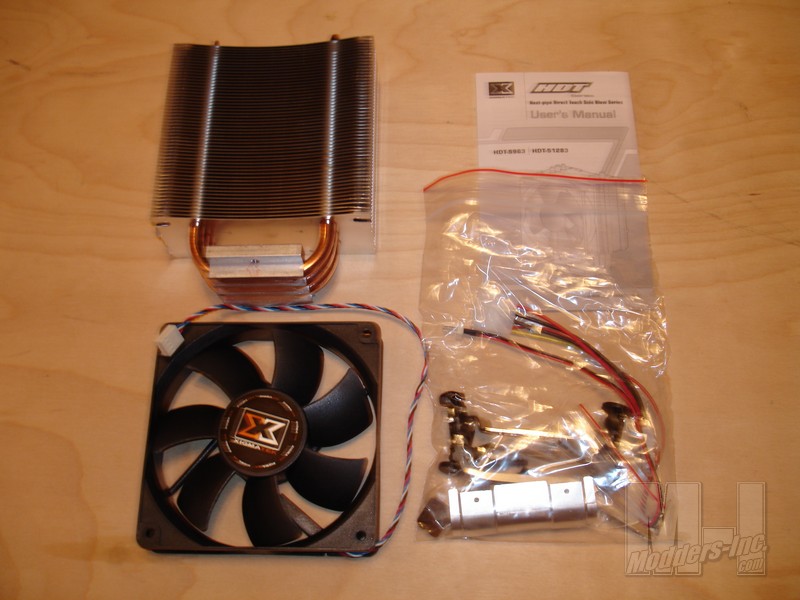

     Here we have the HDT-S1283 components pulled out of the box. You receive the HDT-S1283 cooler, the 120mm brushless fan, and a bag containing the deflector and mounting hardware along with the manual.

Features:
  • H.D.T. (Heat-pipe direct touch) technology.
  • Anti-vibration rubber design.
  • Particular spoiler design.
  • 3pcs high performance U type heat-pipe.
  • Light weight.
  • High performance & easy installation.
  • 120mm highly efficient PWM fan.
  • 3 in 1 application: LGA775 push-pin/K8 & AM2 tool-less clip.
Specifications:

Product Name
HDT-S1283
Product Number CAC-SXHH3-U01
Outside Dimension Dimension (W) x (H) x (D) mm 120 x 50 x 159
Heat Sink Material
Aluminum Alloy
Heat-pipe Φ8 x 3
Fan Dimension (W) x (H) x (D) mm 120 x 120 x 25 PWM fan
Voltage Rating (V) 12V
Speed (R.P.M.) 1000~2200 R.P.M.
Bearing Type Rifle Bearing
Air Flow (CFM) 72.1~99.6 CFM
Air Pressure (mmH2O) 2.6~4.8 mmH2O
Life Expectancy (hrs) 50,000 hrs
Noise Level (dB) 20~32 dBA
Connector 4 Pin with PWM
Weight (g)
600g (w/fan)
Thermal Resistance(/W) 0.16℃/W
Application All Intel Socket 775 CPU
Core 2 Extreme / Quad / Duo
Pentium Extreme Edition / D
Celeron D
All AMD Socket AM2 / 754 / 939 / 940 CPU
Athlon 64 / FX / X2 / Opteron / Sempron
