Swiftech H320 X2 All-In-One Watercooling Kit Review

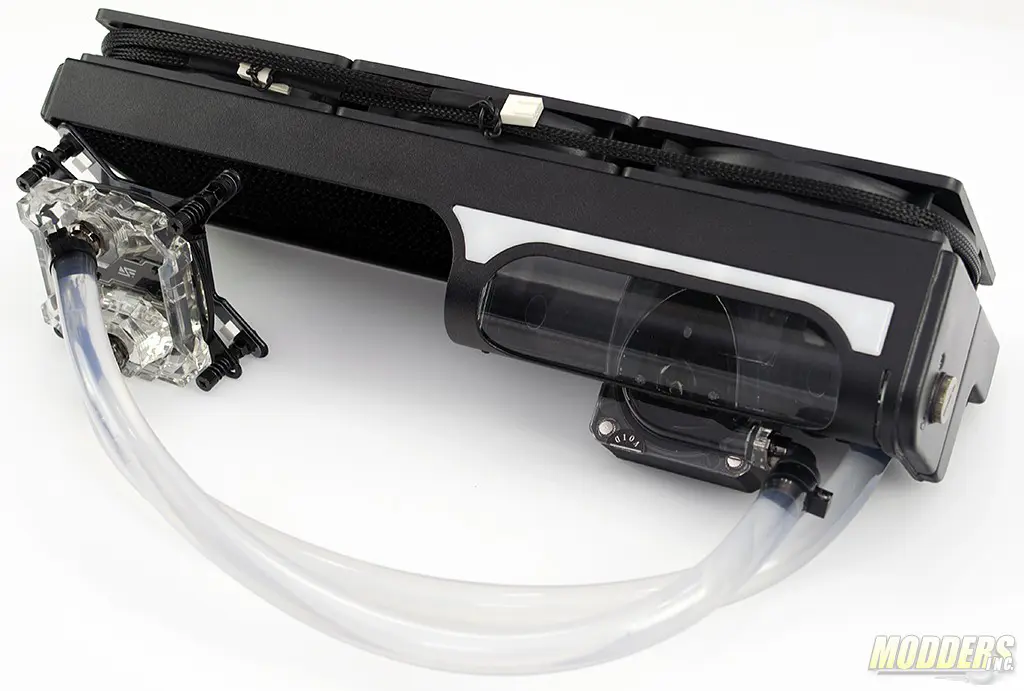

DSC_7915All-in-one (AIO) water cooling units have brought the performance and silence of water cooling to the masses with the simplicity of installing an air cooler. AIOs offer simple installation without the need to bleed the loop. Simply attach the hardware and power cables and you are all set. Recently, water cooling component manufacturers have upped the ante a bit by offering expandable AIOs. This gives the consumer the option to add in optional components such as an extra radiator or GPU waterblock. Swiftech has been a long time manufacturer of both air and water cooling and at CES 2016 they announced the X2 line of their take on AIO. The H320 X2 is a triple 120mm radiator that features a 109ml clear reservoir and the Apogee XL2 CPU waterblock.

Review Sample Provided by: Swiftech
Product Name: H320 X2
Price at time of review: $ 164.95 USD
Product was given in exchange for work done to produce this review.

Packaging

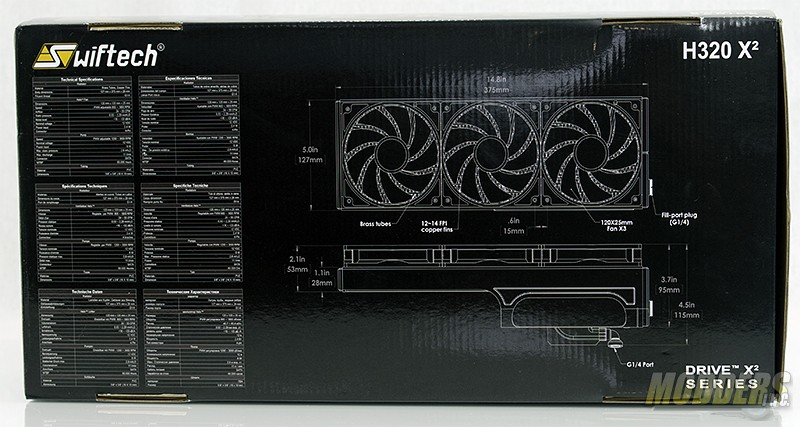

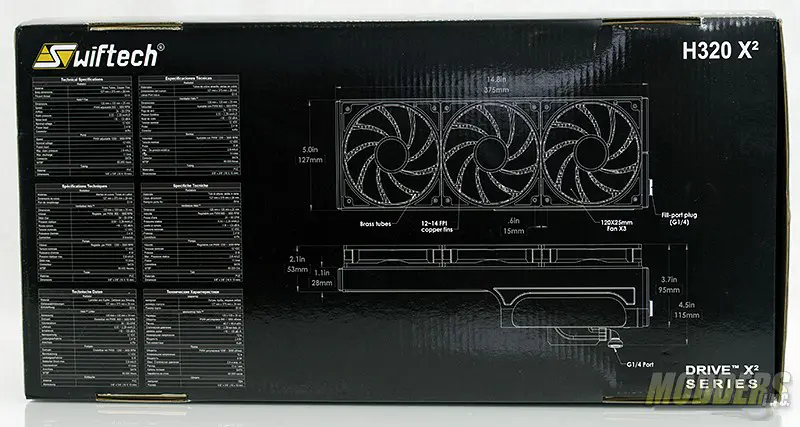

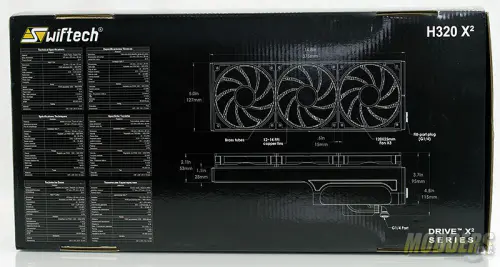

The front of the box clearly shows off Swiftech’s new cooler. On the back, there is a nice graphic that shows the dimensions of the unit as well as the technical specifications.

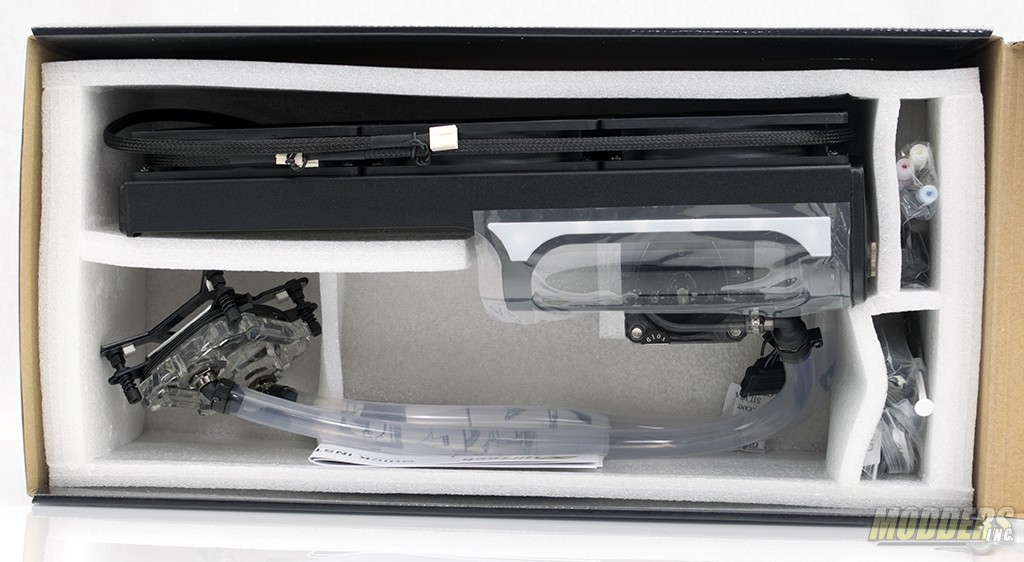

Inside, you’ll find the cooler and accessories tucked away inside a compartmentalized foam insert designed to keep the cooler in one piece during shipping.

DSC_7902

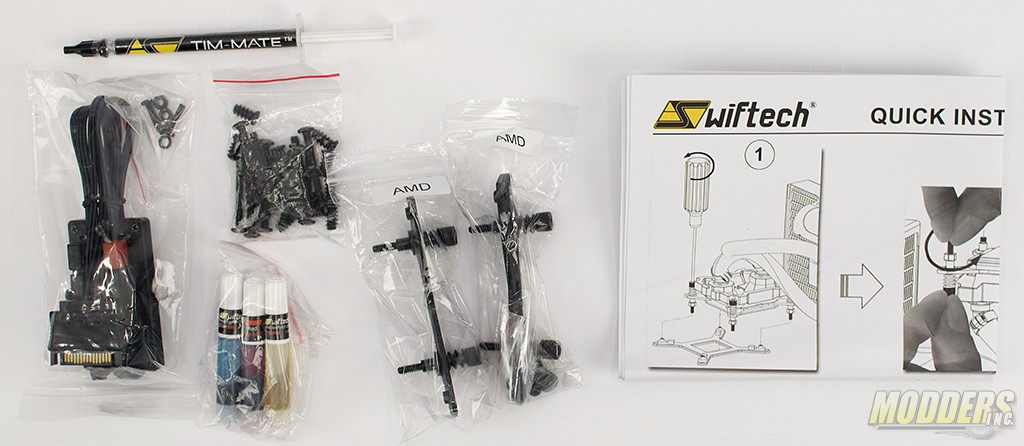

Aside from the cooler, the parts list includes: installation guide, an Intel CPU backplate (attached to the waterblock), Intel Socket 2011/-v3 screws, AMD water block mount and screws, fan mounting screws, a PWM hub, colored dye vials, and Swiftech’s TIM Mate thermal paste.

DSC_7904



Specifications

Specifications
Radiator with patent pending integrated pump and reservoir (1 each)
Radiator body
Material Brass tubes, louvered copper fins
Body dimensions 127 x 375 x 28 mm
Fill-port thread class G 1/4
Barb fittings Integrated swivel 90° elbows, 3/8″ (10mm) OD
Installation hardware
  • Standard: (12) coarse thread fans screws
  • Alternate: (12) 6-32 x 1 3/16 (30mm)  Philips screws
Lighting type ALED
Reservoir
Material Acrylic
Capacity 109 ml
Lighting type ALED
Pump
Pump speed control PWM
Pump Speed range 1200 ~ 3000 RPM
Pump nominal voltage 12 VDC
Pump nominal power 6W
Max. Static Pressure 2.8 mH₂O
Max. discharge 11 l/mn
Redundant fail safe
  • Software current limiting fail-safe and
  • Hardware shutoff built-into the pump power wires. The hardware fail safe is only triggered in case of a firmware malfunction.
Pump Bearing type Ceramic shaft, PTFE bearing
Pump Power connector SATA
Pump RPM & PWM connector Mini 4-pin
Pump MTBF 60,000 hours
ROHS Compliant
Pre-installed Helix™ Fan (3 each)
Dimensions 120 mm x 120 mm x 25 mm
Speed control PWM
Speed range 800+/- 25% ~ 1800+/- 10%  RPM
Airflow range 24 ~ 55 CFM
Static pressure range 0.53 ~ 2.29 mmH₂O
Noise level range <16 ~ <33 dB/A
Nominal Voltage 12 v
Nominal current 0.2 A
Bearing Type Z-axis
Connector Mini 4-pin
MTBF 60,000 hours
ROHS Compliant
Apogee™ XL2 Waterblock (1 each)
Housing material Clear acrylic
Base plate material C110 copper
Cooling engine 0.25mm x 0.25mm  micro-pin array
Barb fittings Swivel elbows, 3/8″ (10mm) OD
Port thread G1/4 standard
Installation hardware & processor + socket compatibility
  • For Intel LGA 1150/51/55/56
    • M4 to M3 Standoffs + Back-plate
  • For Intel LGA 2011
    • (4) Spring loaded screws with M4 thread
  • For AMD AM2, AM3, FM1,FM2, 939
    • (2) Pre-assembled brackets & spring loaded screws
    • Bracket installation screws
Lighting type ALED
Tubing & Coolant
Material PVC tubing
Color Clear
Dimensions 5/8″ x 3/8″ (16/10mm)
Coolant Pre-filled with non-toxic propylene glycol coolant mix
Clamps (4 each)
Material Black anodized aluminum
PWM splitter (1 each)
PWM Ports 4
RPM signal port Channel 1
ALED connectors 3
2 pin connector 1
Power connector SATA
PWM/RPM connector Mini 4-pin
Installation hardware Peel-off sticker,  mounting screws & nuts
ROHS Compliant
Tim-Mate 2, 1g syringe thermal compound
Quick Installation Guide
