Titan Fenrir Siberia Edition CPU Cooler

Burrr.. did someone leave a window open in here , nope its just Titans new Fenrir Siberia Edition cooler. Titan announces the newest member to join its Fenrir Family of heat pipe CPU coolers – Fenrir Siberia Edition TTC-NC55TZ(RB).

Sponsor: Titan

First Look

Fenrir Siberia Edition combines vertical and horizontal low profile fins to disperse heat by sideways and downward airflow (Up to 220W TDP). This provides a better ambient temperature in an over clocking environment by cooling the CPU and its surrounding components such as RAM at the same time. Fenrir- Siberia Edition is equipped with 12cm & 14cm silent Kukri fans to maintain low noise levels and is compatible with most Intel and AMD systems This is the perfect cooler for you crazy over clocking guys

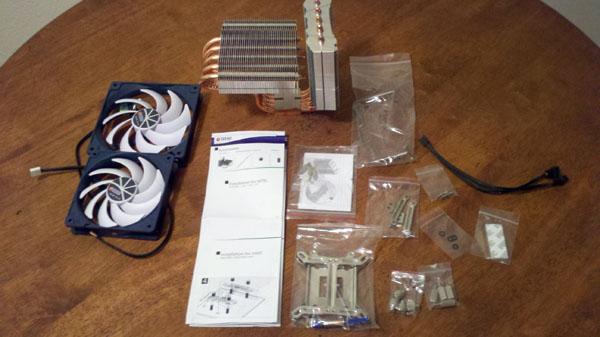

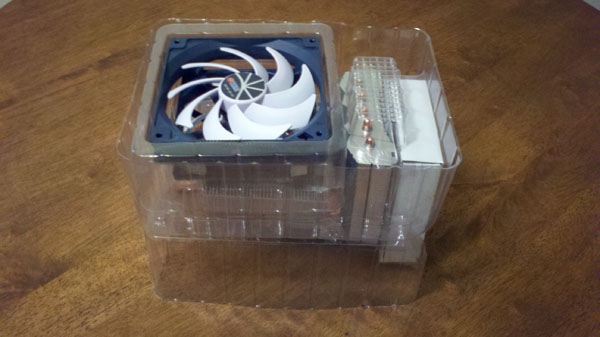

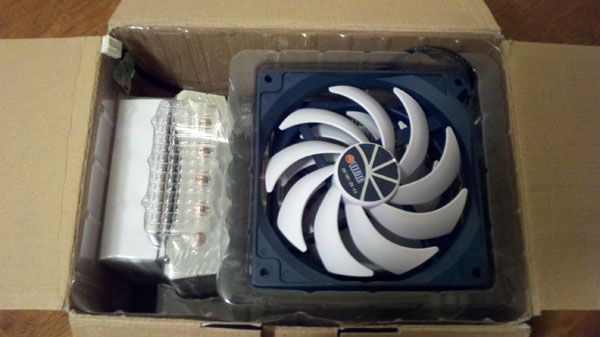

Packaging is standard with the cooler packed tightly in plastic to keep from being damaged or rattling around and a nifty handle for caring it out of the store like a boss. All Hardware is included for mounting almost any processor you can throw at it



Features
5x8mm heatpipes
  5x 8 mm double U shaped heat pipes to maximize heat conductivity and performance (220W TDP)
Great CPU cooling performance
  Offers great CPU cooling performance while also cooling other surrounding components such as memory, MOSFET, and north bridge
2 in 1 cooler design
  2 in 1 cooler design provides excellent airflow through innovative downward and sideways airflow
PWM function
  PWM function fan with automatic speed adjustment according to the temperature of CPU for extra-silent operation
12 cm & 14cm Kukri fan
  12 cm & 14cm Kukri shaped fan for efficiency and silence
Compatible with most Intel & AMD platform
  Compatible with Intel LGA 1366 / 1156 / 1155 / 775 & AMD FM1 / AM3 / AM2+ / AM

CPU Support
For AMD K8/AM2/AM2+/AM3/FAM1 all series
For Intel LGA 2011 all series
For Intel LGA 1156 all series
For Intel LGA 1155 all series
For Intel LGA 1366 all series
For Intel LGA 775 all series




Outline Dimension
Fan Dimension
Rated Voltage
Rated Current
Power Consumption
Rated Speed
Airflow
Static Pressure
Noise Level
Connector
Bearing Type
Life Time

200 x 130 x 162 mm
120 x 120 x25mm                    140 x 140 x25mm
12 VDC                                      12 VDC
0.32 A(Max.)                              0.4 A(Max.)
3.84 W                                        4.8 W
800±25%~2200±10%RPM    700±25%~1800±10%RPM
24.23~66.62 CFM                    34.78~89.43 CFM
0.02~0.14 InchH2O                  0.01~0.09 InchH2O
<15 ~<35 dBA                           <8.3 ~<28.8dBA
4-PIN PWM function
Z-AXIS
60,000 Hours
