In Win Announces Mid-tower 805 ATX Chassis

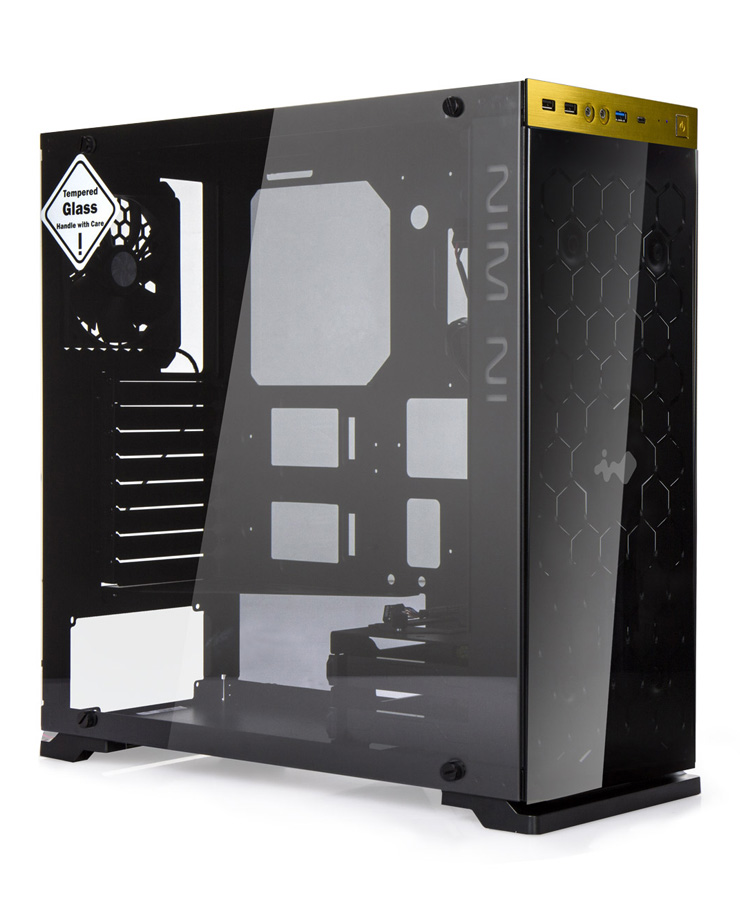

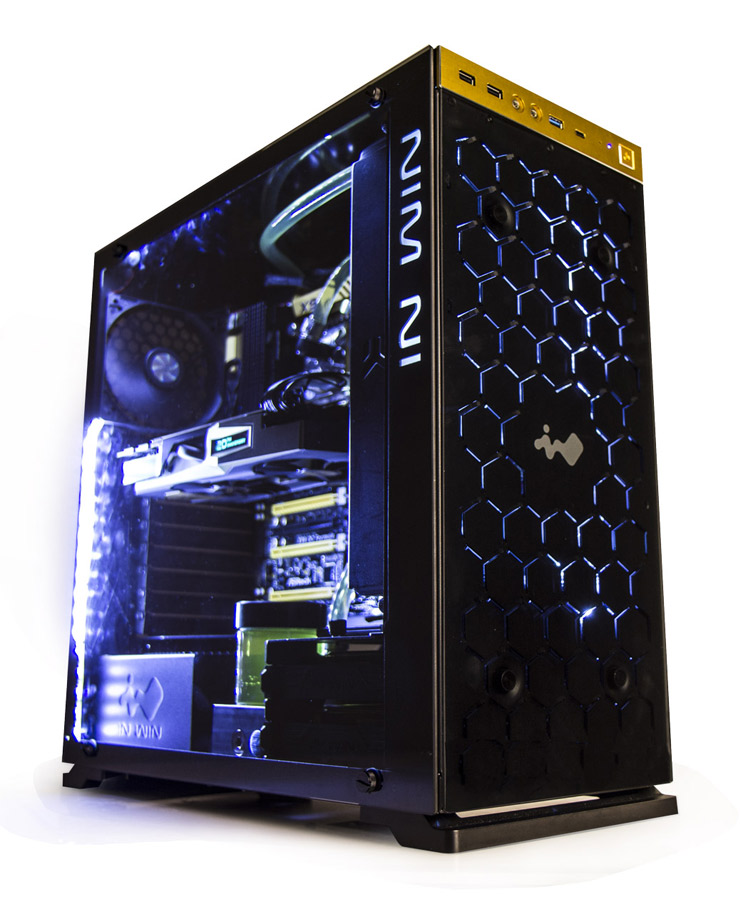

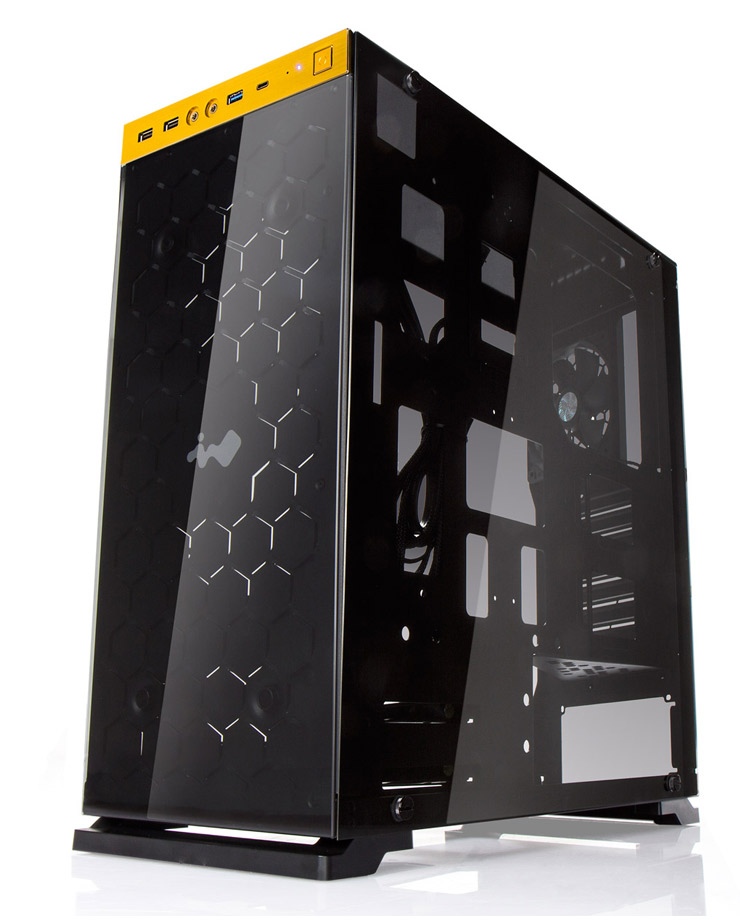

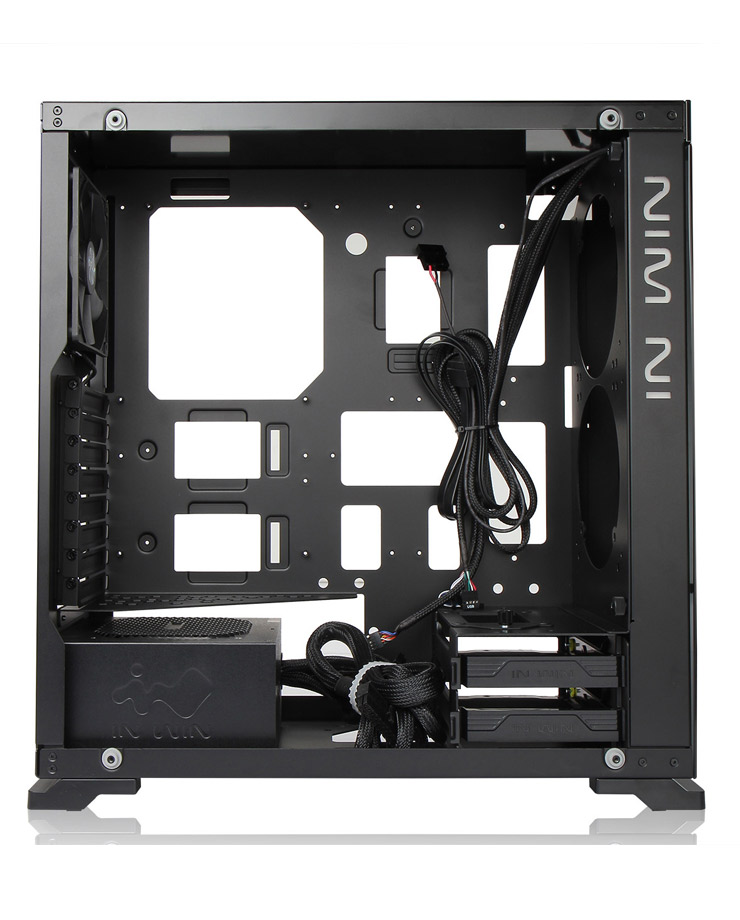

In Win has added the new 805 chassis to their mid-tower ATX stable with see-through side-panels, USB 3.1 type C front panel connector, tempered glass covers, and impeccably designed for the clean contemporary conscious user. The In Win Mid-tower 805 ATX Chassis also boasts a sleek anodized gold, red or black front IO cover and high airflow design with front and bottom radiator support. To help accommodate radiator mounting compatibility, In Win has made the HDD cages uniquely modular and movable, depending on the user’s design choice. Make sure you take some time to check out the In Win Mid-tower 805 ATX Chassis below.

Case SizeMid Tower
MaterialAluminum
3mm Tempered Glass
Internal Drive Bay3.5″ / 2.5″ x 2
2.5″ x 4
3.5″ / 2.5″ x 2
2.5″ x 2 (Max up to 4 pcs)
M/B Form FactorATX / Micro-ATX /Mini-ITX  (Max: 12” x 10.5”)
Power SupplyATX 12V, PSII Size and EPS up to 220mm
I/O PortUSB 3.1 (TYPE-C) x 1,
USB 3.0 x 1,
USB 2.0 x 2,
HD Audio
USB 3.0 x 2
USB 2.0 x 2
HD Audio
Expansion SlotPCI-E Slot x 8
Supports High-End Graphic Card up to 320mm (Height: 164mm)
Thermal SolutionSupports:
Air Cooling
– Front: 120/140mm Fan x 2
– Rear: 120mm Fan x 1 (Included)
– Bottom: 120mm Fan x 2 (Remove HDD Cage)
Water Cooling

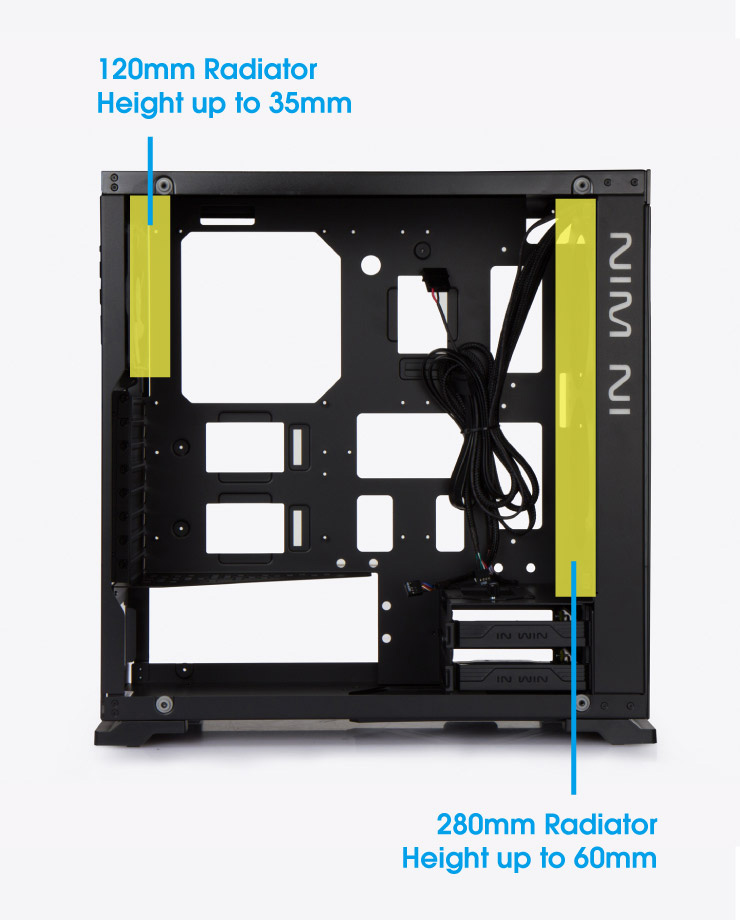

– Front: 120/140/240/280mm Radiator (Height up to 60mm)
– Rear: 120mm Radiator (Height up to 35mm)
CPU Heatsink

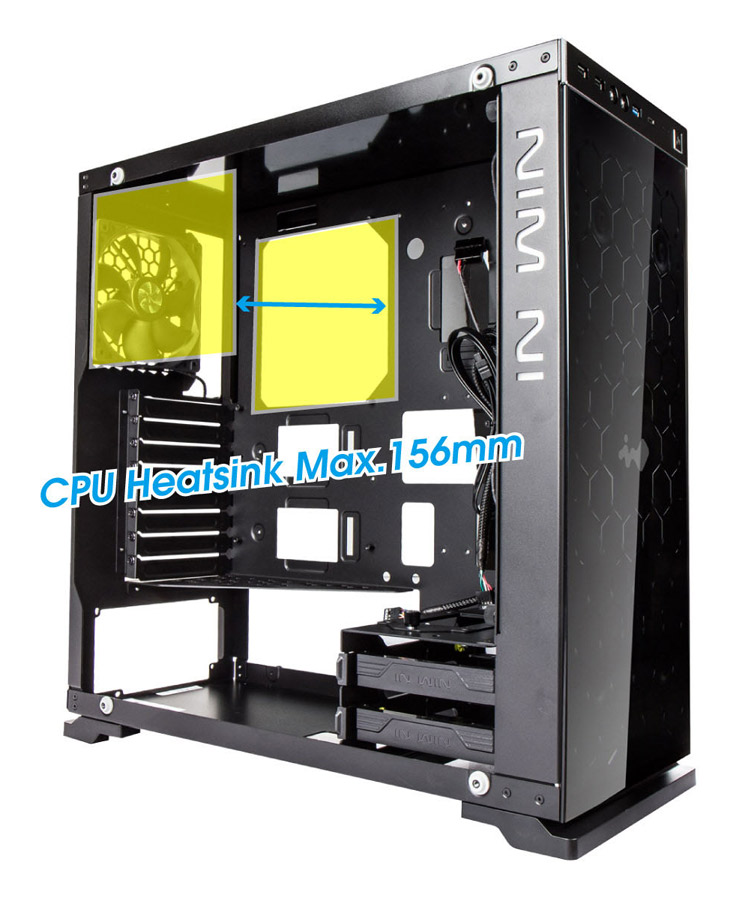

Maximum CPU Heatsink up to 156mm (CPU Die Surface to Side Panel)
Dimension (HxWxD)476 x 205 x 455mm
18.7”x 8” x 18”

For more information, visit the product landing page: http://inwin-style.com/en/goods.php?act=view2&id=805#product_tab
