Lian Li Introduces New Series of All-Aluminum Convertible Tower and HTPC Cases

High Airflow Mini-ITX, MicroATX and ATX Chassis with USB 3.1 Type-C

Article Pages:

Lian Li Industrial Co. Ltd is proud to present the new range of all-Aluminium PC chassis, the PC-Q50, PC-V320, and PC-V720. In a time of tempered glass and RGB lighting, Lian Li’s new cases offer a return to classic PC chassis, crafted with high-quality materials and offering a spacious solution to high-performance builds for regular desktop and HTPC use. Despite their classic looks, the PC-Q50, PC-V320, and PC-V720 are all equipped with, and ready for the latest PC technology, this includes a USB 3.1 Type-C connector on the front panel. All three models will be available in a bare Aluminium or Black and come equipped with intake and exhaust fan (depending on the model) in an already well-vented chassis. With models sized for Mini-ITX, MicroATX and ATX motherboards, PC enthusiast looking for a luxurious case to adorn their desk or home entertainment center have a freedom of choice.

Lian Li

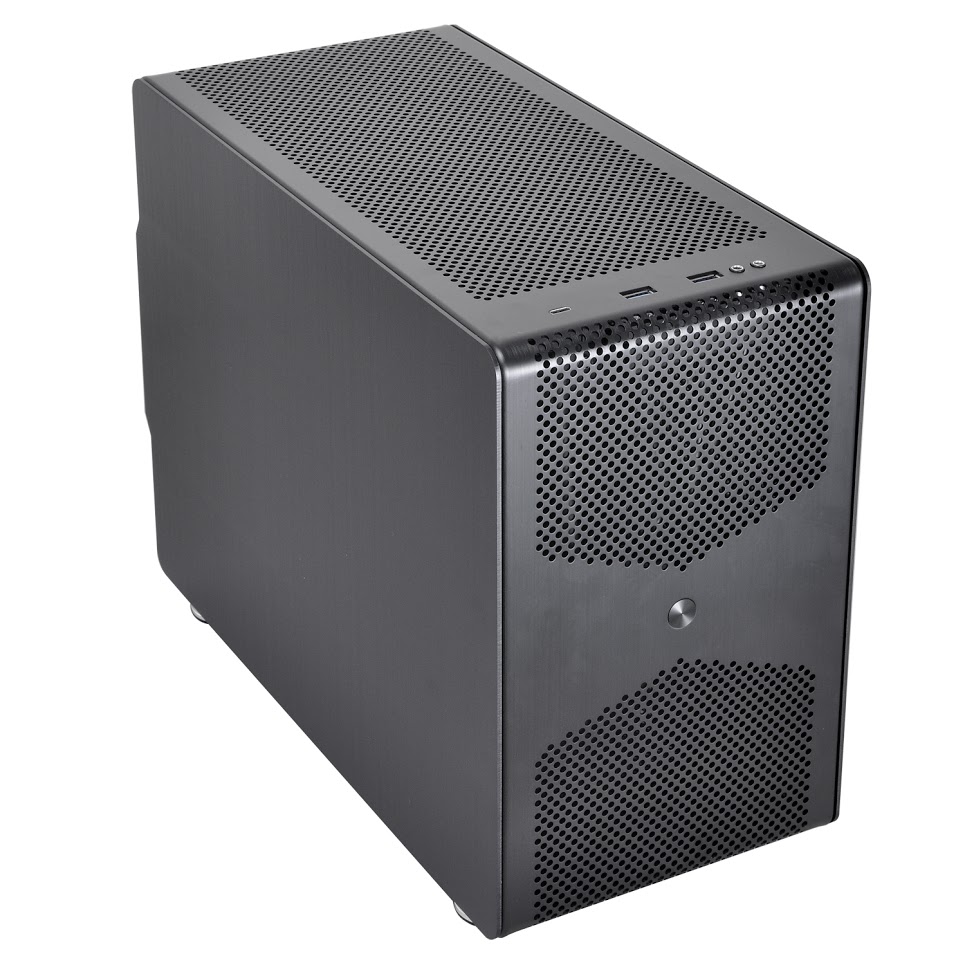

PC-V320

High-Quality Aluminium Chassis

All the new Lian Li Aluminium chassis can be easily converted from tower to desktop model for flexible placing on or under a desk, or for use as a powerful HTPC in a home entertainment environment. The Aluminum feet with rubber anti-vibration and protective layer can be easily removed or installed by simply turning them to screw in or out. The front, top, and bottom panels all feature an exorbitant amount of laser cut holes for optimal ventilation. This allows the PC-Q50, PC-V320, and PC-V720 able to operate with a minimum amount of low noise fans in environments where those requirements are vital.

Lian Li
PC-Q50

Compact Design For Maximum Space Efficiency

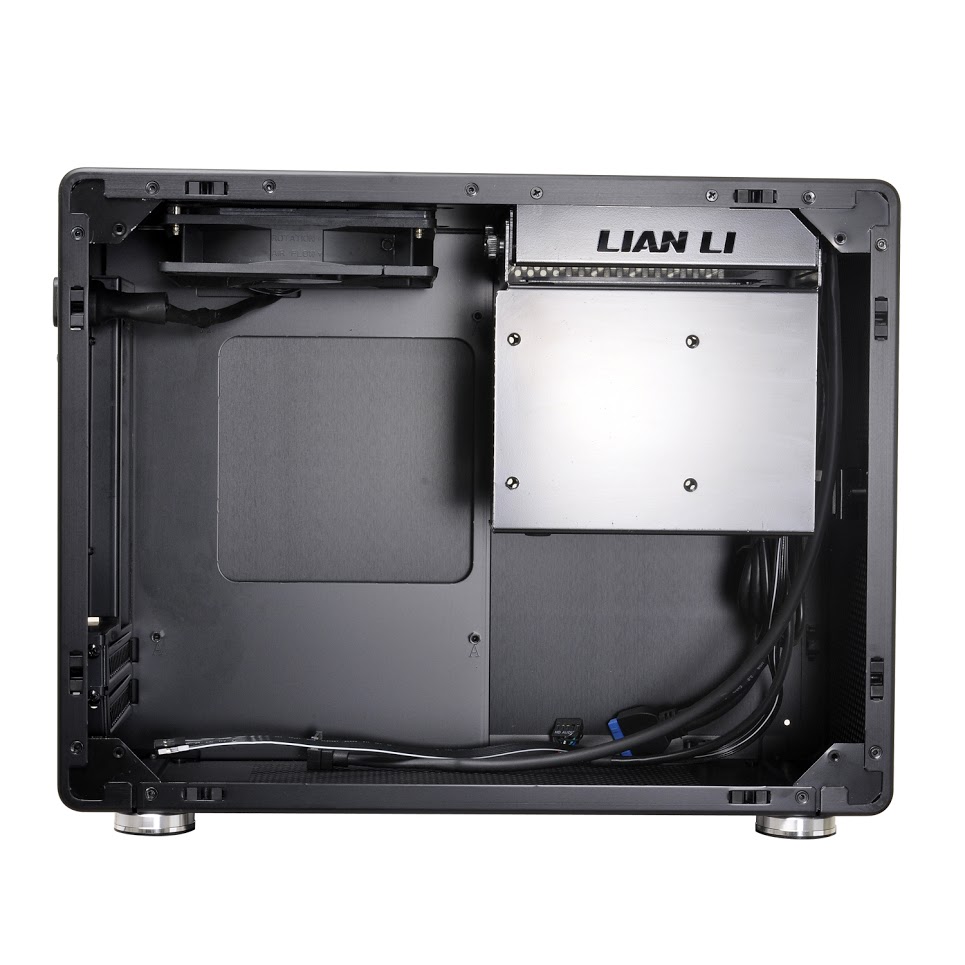

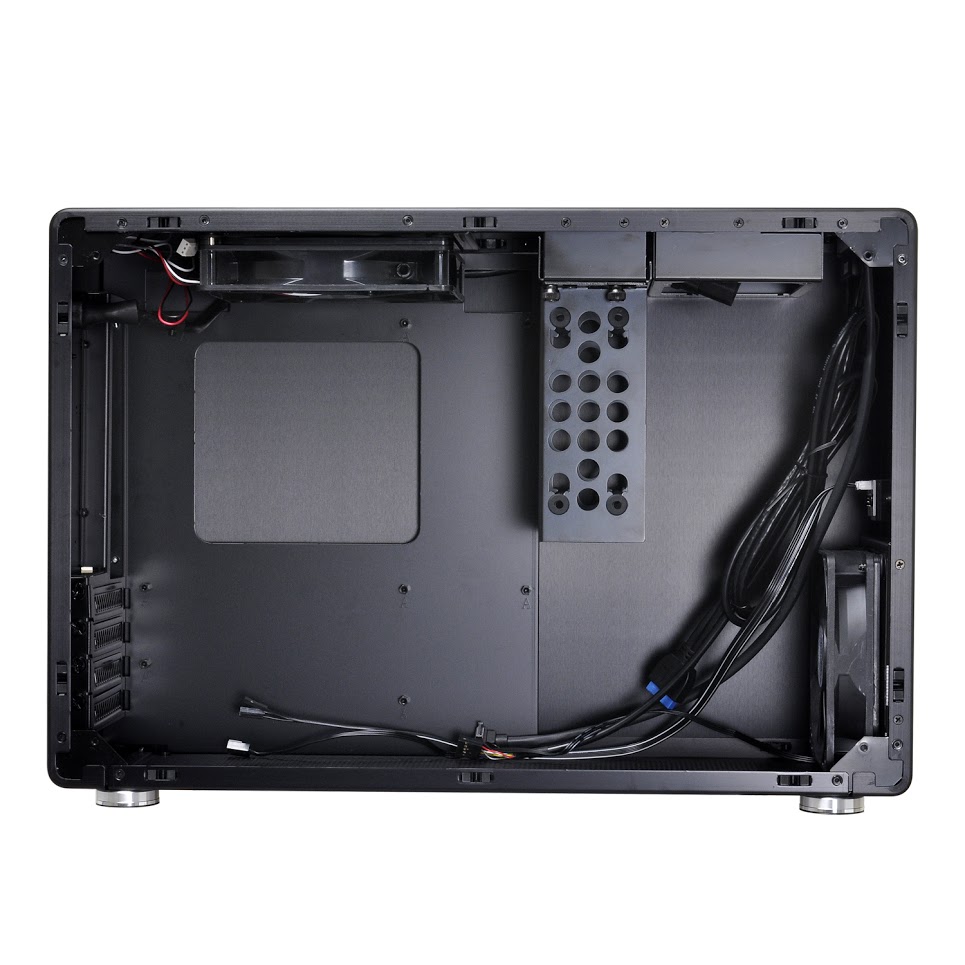

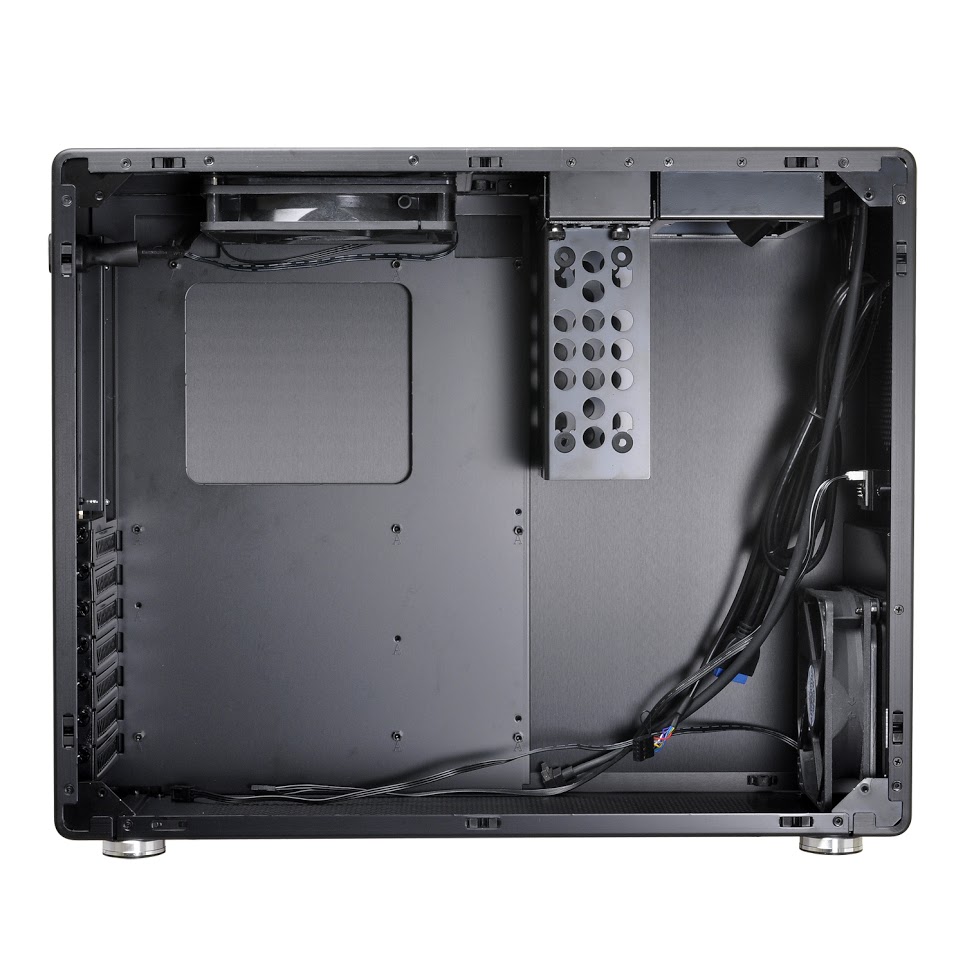

All three models feature a motherboard-centric design principle. By developing the case around the motherboard tray, the designs have become immensely space efficient. Each chassis features an exhaust fan at the top, to exhaust hot CPU & VRM air, while a pass-through cable allows the placement of a suspended PSU (SFX for the PC-Q50, ATX for the PC-V320 and PC-V720) from the top of the chassis, together with a 2.5”/3.5” drive rack. Below that, an intake fan (120 mm) on the PC-V320 and PC-V720 ensure sufficient cooling for the larger components that fit a (Micro) ATX system.

Lian Li

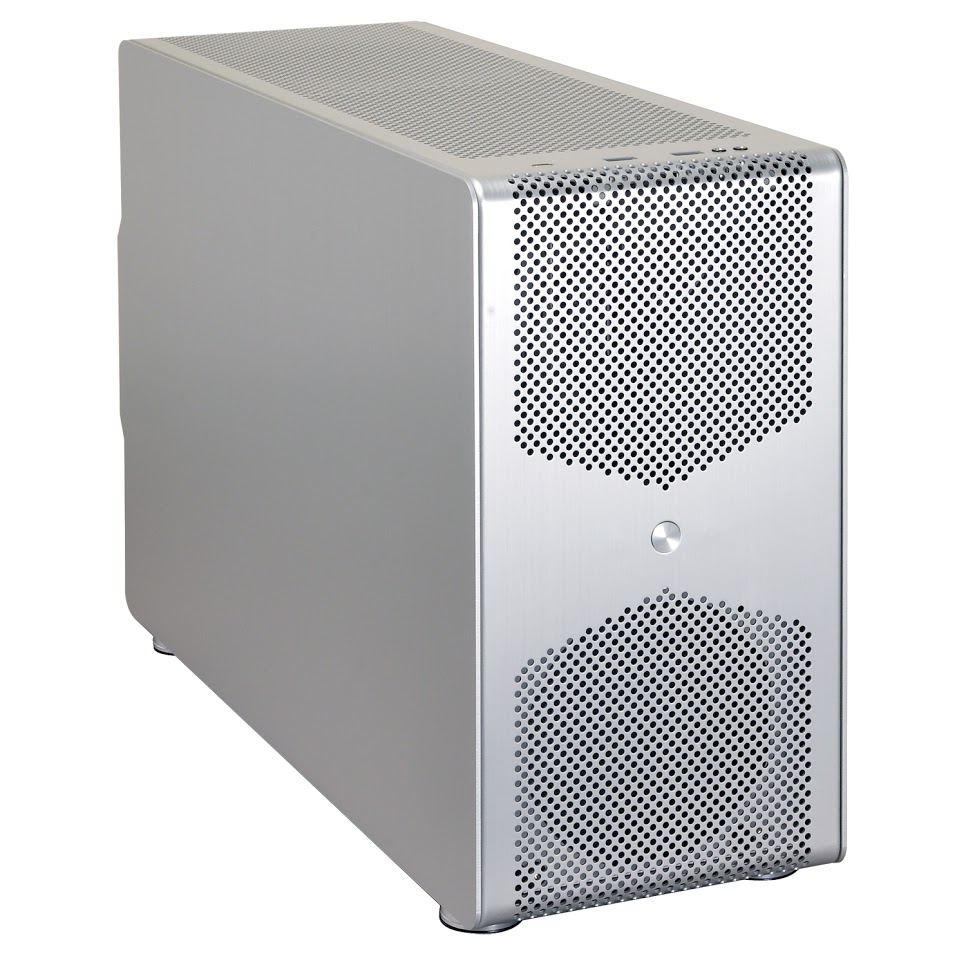

PC-V720

Traditional Lian Li Quality

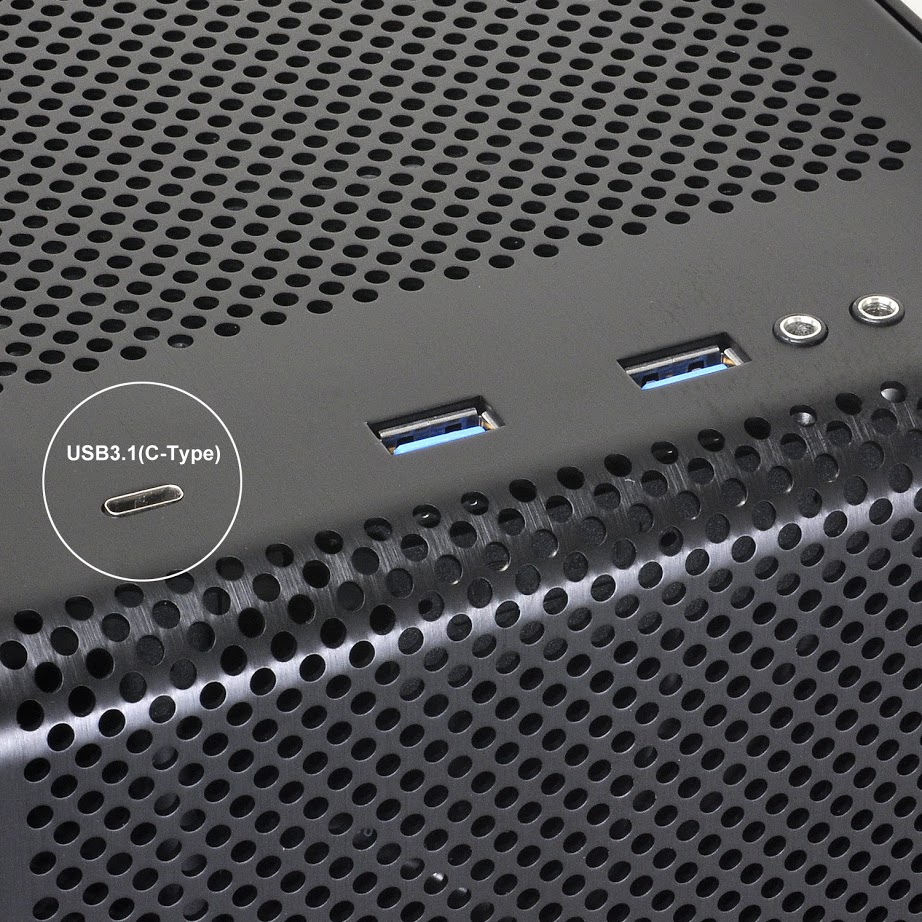

The PC-Q50, PC-V320, and PC-V720 uphold the traditional Lian Li qualities of high-quality materials, ease-of-use and forward thinking. That’s why all models feature a USB 3.1 Type-C connector next to the regular array of connectors you usually find on a front panel, such as two USB 3.0 and HD Audio jacks. The side panels feature Lian Li’s patented rivet locking mechanism and allow easy access to components inside the chassis.

Key Features of the PC-Q50 / PC-V320 / PC-V720

  • All Aluminium PC chassis
  • 1x USB 3.1 Type-C, 2x USB 3.0 ports
  • Two low-noise 120 mm fans bundled (1x on PC-Q50)
  • High airflow and external ventilation
  • 2x 3.5” & 2x 2.5” drive mounts
  • Supports CPU coolers up to 140 mm high
  • Supports Graphics cards up to 400mm in length
  • Motherboard format:
    • PC-Q50: Mini-ITX
    • PC-V320: MicroATX
    • PC-V720: ATX

Price and Availability

The Lian Li PC-Q50 will be available in the US in the middle of September, for $149
The Lian Li PC-V320 will be available in the US in the middle of September, for $189
The Lian Li PC-V720 will be available in the US in the middle of September, for $219

PC-Q50 Specifications

Model PC-Q50
Case Type Mini-Chassis
Dimensions (W x H x D) 170mm x 285mm x 360mm
Color Black / Silver
Front Panel Aluminum
Side Panel Aluminum
Body Material Aluminum
HDD Bay 3.5″ HDD x 2, 2.5″ HDD x 2
Expansion Slot 2
Motherboard Type Mini-ITX
System Fan 120mm fan x 1 (Top)
I/O Ports USB3.0 x 2 / USB3.1 (Type-C) / HD Audio
VGA Card Support (L) 320mm x (D) 140mm
CPU Cooling Support (H)140mm
PSU Support SFX PSU, (L) 160mm

PC-V320 Specifications

Model PC-V320
Case Type Mid-Chassis
Dimensions (W x H x D) 170mm x 325mm x 467mm
Color Black / Silver
Front Panel Aluminum
Side Panel Aluminum
Body Material Aluminum
Net Weight 4.3kg
HDD Bay 3.5″ HDD x 2, 2.5″ HDD x 2
Expansion Slot 4
Motherboard Type Micro-ATX
System Fan 140mm fan x 1 (Top) / 120mm fan x 1 (Front)
I/O Ports USB3.0 x 2/ USB3.1 (Type-C) / HD Audio
VGA Card Support (L) 400mm x (D) 140mm
CPU Cooling Support (H) 140mm
PSU Support ATX PSU, (L) 150mm

PC-V720 Specifications

Model PC-V720
Case Type Mid Tower Chassis
Dimensions (W x H x D) 170mm x 385mm x 467mm
Color Black / Silver
Front Panel Aluminum
Side Panel Aluminum
Body Material Aluminum
Net Weight 3.77kg
HDD Bay 3.5″ HDD x 2, 2.5″ HDD x 2
Expansion Slot 7
Motherboard Type ATX
System Fan 140mm fan x 1 (Top) / 120mm fan x 1 (Front)
I/O Ports USB3.0 x 2/ USB3.1 (Type-C) / HD Audio
VGA Card Support (L) 400mm x (D) 140mm
CPU Cooling Support (H) 140mm
PSU Support ATX PSU, (L) 160mm
