There is a new boss in town called TITAN X

Today NVIDIA unleashed the newest graphic card in the TITAN series, the TITAN X.

TITAN X is the ultimate gaming GPU, designed to tackle the latest games with ease, be that at 1920×1080, 2560×1440, or 3840×2160. Twice as fast and twice as energy efficient as previous-generation TITANs, and with double the memory, TITAN X lets you game at any resolution with all the effects cranked up.

TITAN X is the ultimate gaming GPU, designed to tackle the latest games with ease, be that at 1920×1080, 2560×1440, or 3840×2160. Twice as fast and twice as energy efficient as previous-generation TITANs, and with double the memory, TITAN X lets you game at any resolution with all the effects cranked up.

Titan X Benchmark chart

TITAN X dominates our performance charts thanks to its expanded, faster Maxwell GPU, which boasts 3072 single-precision CUDA Cores, 3072 kilobytes of L2 cache, 192 Texture Units, 92 ROP Units, and a 384-bit memory interface. Compared to previous-generation TITANs, TITAN X has more of the key components that accelerate your framerate, in addition to a faster clock speed.

Specifications TITAN X TITAN Z TITAN Black TITAN
Chip GM200 (Maxwell) GK110 (Kepler) GK110 (Kepler) GK110 (Kepler)
CUDA Cores 3072 5760 (2880 per GPU) 2880 2688
Transistors 8 billion 14.16 billion
(7.08 billion per GPU)
7.08 billion 7.08 billion
Base Clock 1000 MHz 705 MHz 889 MHz 837 MHz
Boost Clock 1075 MHz 876 MHz 980 MHz 876 MHz
Framebuffer 12 GB 12 GB (6 GB per GPU) 6 GB 6 GB
Memory Speed 7.0 Gbps 7.0 Gbps 7.0 Gbps 6.0 Gbps
Memory Bandwidth 336.5 GB/s 672 GB/s
(336 GB/s per GPU)
336 GB/s 288.4 GB/s
Power Connectors 1 x 6-pin
1 x 8-pin
2 x 8-pin 1 x 6-pin
1 x 8-pin
1 x 6-pin
1 x 8-pin
TDP 250 W 375 W 250 W 250 W
SLI Options 4-Way Quad 4-Way 4-Way

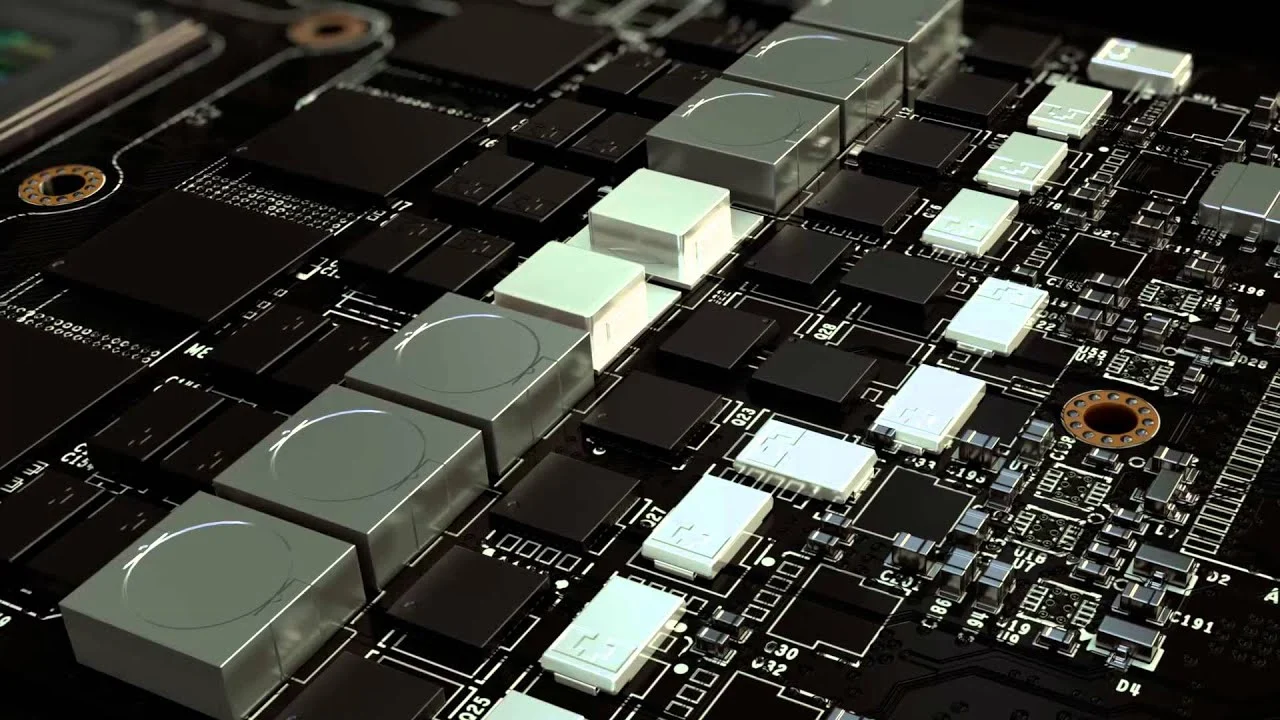

TITAN X’s energy efficient Maxwell architecture enables improved performance and gifts TITAN X with significant overclocking headroom. To help, we’ve packed TITAN X with high-capacity VRMs with 10% power headroom, a 6-phase GPU power supply with overvolting capabilities, and a dedicated 2-phase power supply for the 12GB of 7Gbps memory. Together, these overclocking features and Maxwell’s overclocking headroom power TITAN X to even greater speeds.

Get the whole story here at the TITAN X webpage
