CLOSER LOOK

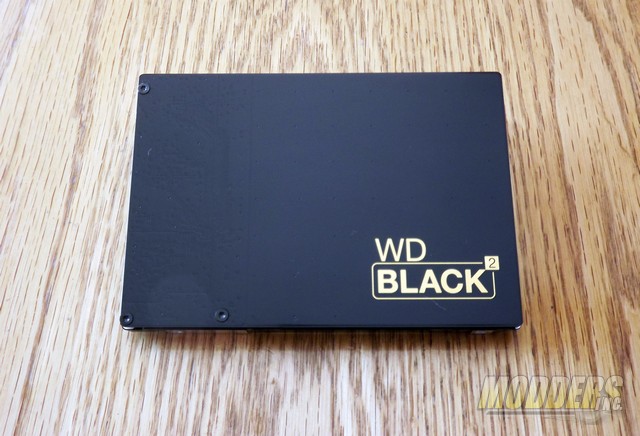

Western Digital WD Black² 2.5-inch Dual Drive (SSD + HDD) Hybrid 2.5 inch Hybrid Drive, SSD, WD, Western Digital 1
Inside is the User Guide, USB 3.0 Clone/Migration cable, USB Key to unlock the HDD and download the transfer software and the WD Black 2 Dual SSD + HDD drive.
Western Digital WD Black² 2.5-inch Dual Drive (SSD + HDD) Hybrid 2.5 inch Hybrid Drive, SSD, WD, Western Digital 2
SPECS
Specifications1 120   GB SSD + 1 TB HDD
Model number  WD1001X06XDTL
Interface SATA 6 Gb/s
Form factor  2.5-inch
Advanced   Format (AF) Yes
RoHS   compliant2  Yes
Performance   (SSD) Data transfer rates
Interface   speed 6 Gb/s
Internal   transfer rate (read, max) 350 MB/s
Internal   transfer rate (write, max) 140 MB/s
Reliability/Data   Integrity
Load/unload   cycles 600,000
Non-recoverable   read errors per bits read  <1 in 1014
Limited   warranty (years)4 5
Power   Management Average power requirements (W)
Read/Write 1.8
Idle 0.9
Standby/Sleep 0.9
Environmental   Specifications5 Temperature (°C)
Operating 0 to 60
Non-operating -40 to 70
Shock   (Gs)
Operating (2   ms, read/write) 300
Non-operating   (2 ms) 1000
Acoustics   (dBA)6
Idle 20
Seek   (average) 21
Physical   Dimensions
Height   (in./mm, max) 0.374/9.50 0.374/9.50
Length   (in./mm, max) 3.95/100.30 3.95/100.30
Width   (in./mm, ± .01 in.) 2.75/69.85 2.75/69.85
Weight   (lb./kg, ± 10%) 0.28/0.125 0.28/0.125
 1 As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB)=  1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second. Effective maximum SATA 6 Gb/s transfer rate calculated according to the Serial ATA specification published by the SATA-IO organization as of the date of this specification sheet. Visit www.sata-io.org for details.
 2 WD hard drive products manufactured and sold worldwide after June 8, 2011, meet or exceed Restriction of Hazardous Substances (RoHS) compliance requirements as mandated by the RoHS Directive 2011/65/EU.
 3 Controlled unload at ambient condition.
 4 For additional warranty terms and conditions, visit http://support.wd.com/warranty for details.
 5 No non-recoverable errors during operating tests or after non-operating tests.
 6 Sound power level.

Western Digital WD Black² 2.5-inch Dual Drive (SSD + HDD) Hybrid 2.5 inch Hybrid Drive, SSD, WD, Western Digital 3
