New ASRock Z590 PG Velocita Motherboard Review

« Multimedia, Compression, and Semi-Synthetic Benchmarks for the ASRock Z590 PG Velocita | ASRock Z590 PG Velocita Synthetic and Gaming Benchmarks »

ASRock Z590 PG Velocita Sub System Benchmarks (Storage, Audio, and Networking)

CrystalDiskMark

“CrystalDiskMark 5 is designed to quickly test the performance of your hard drives. Currently, the program allows us to measure sequential and random read/write speeds.”

Velocita

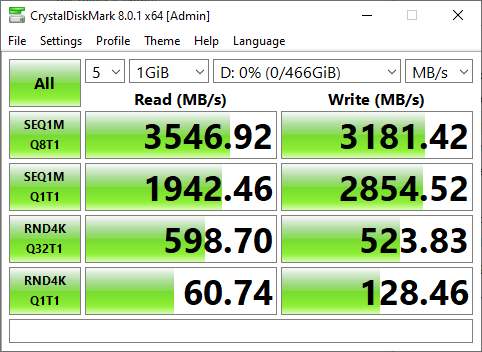

Ultra M.2 (slot 2)
Velocita
Ultra M.2 (slot 3)
Velocita

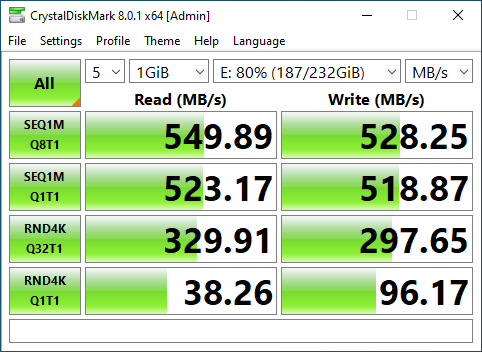

SATA 3



Note: I was unable to benchmark the Hyper M.2 slot (PCIe Gen4 x4) due to the lack of the required processor that supports this function.

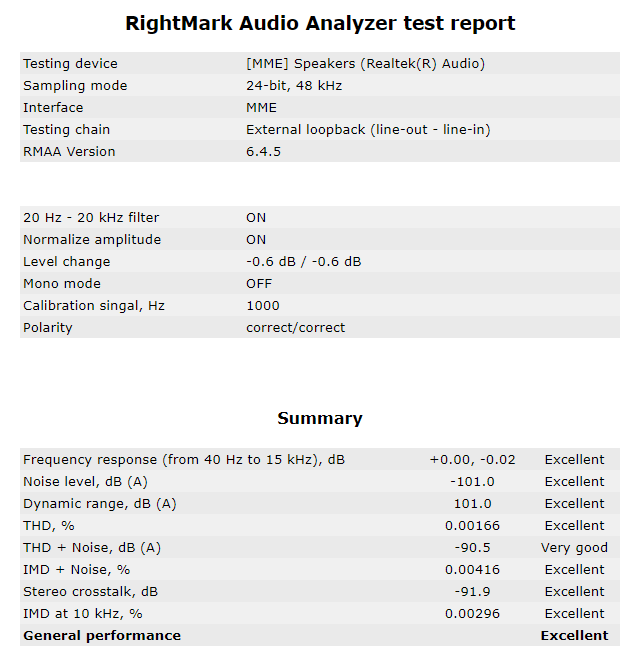

RightMark Audio Analyzer

To test the onboard audio on the ASRock Z590 PG Velocita motherboard, I use the Rightmark Audio Analyzer benchmark. To test the onboard audio of any motherboard, I follow the guide on RMAA’s site that talks about how to review Asus Xonar D2 in RMAA 6.0.5.

Velocita

Performance Test 9 Networking tool

For network testing, I have a MicroTik CRS317-1G-16S+RM switch that is capable of single and 10-gigabit switching.  I am not able to test the full speed of the Killer E3100G 2.5G LAN adapter as my switch doesn’t support 2.5g network connections. It automatically connects at 1g.

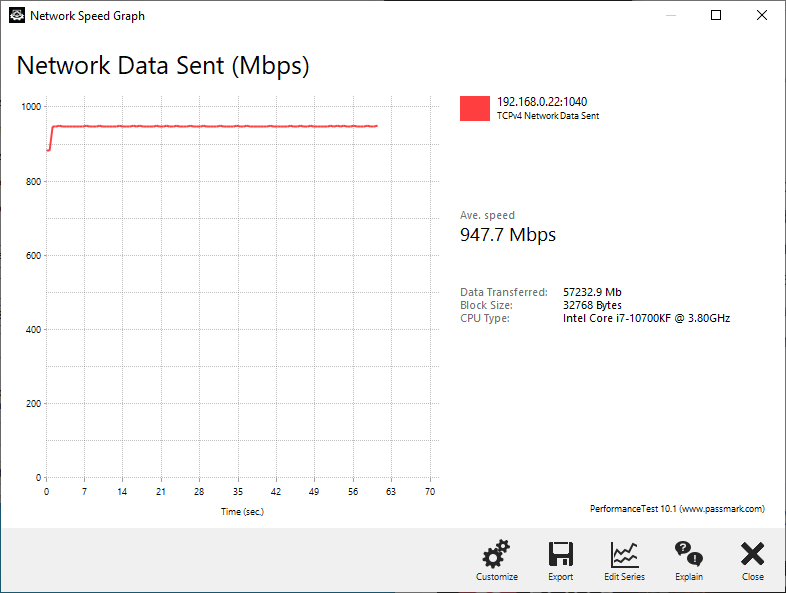

Killer E3100G 2.5G LAN

Velocita



Velocita

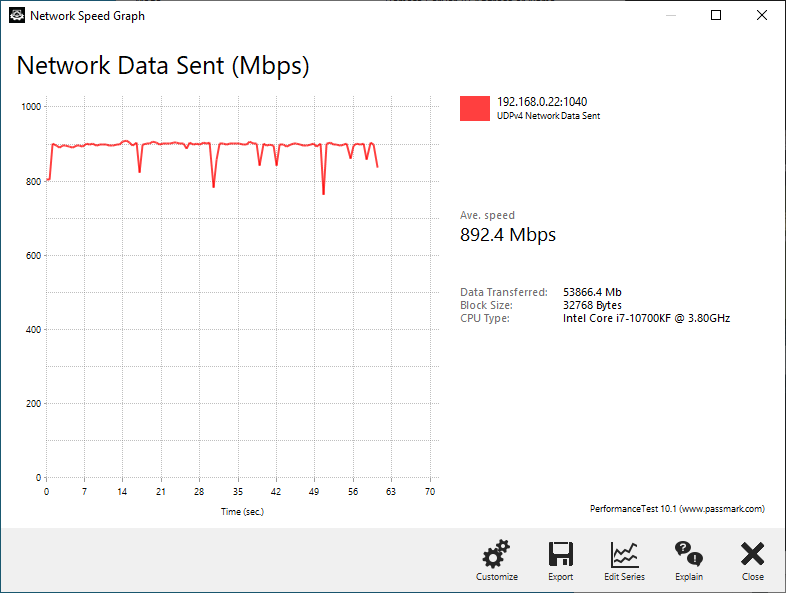

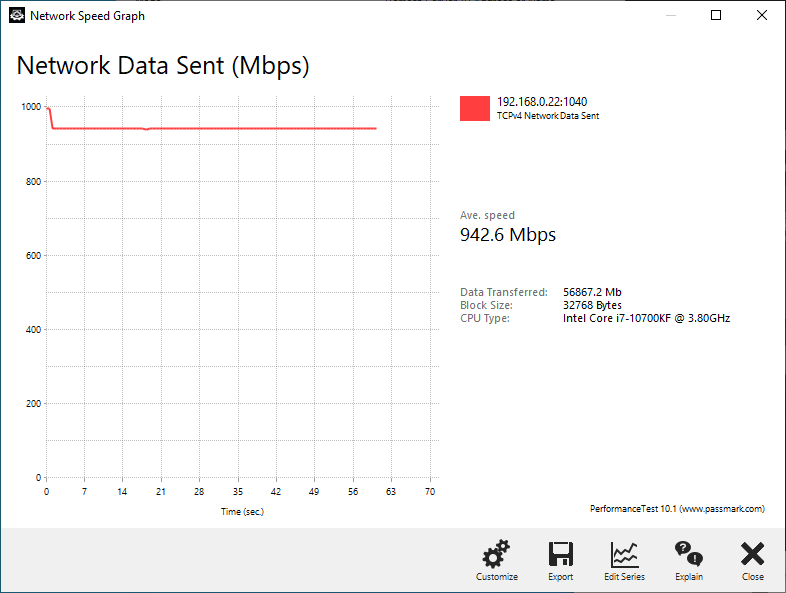

Intel® Gigabit LAN

Velocita

Velocita

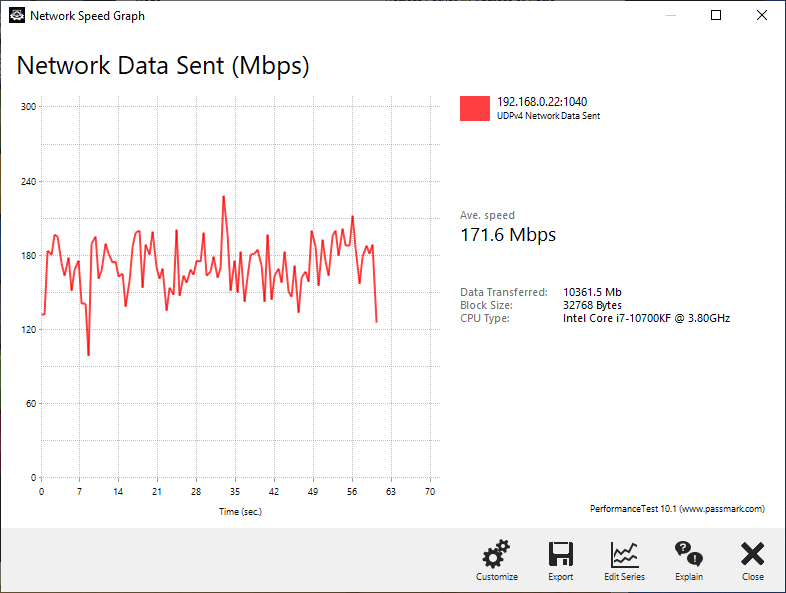

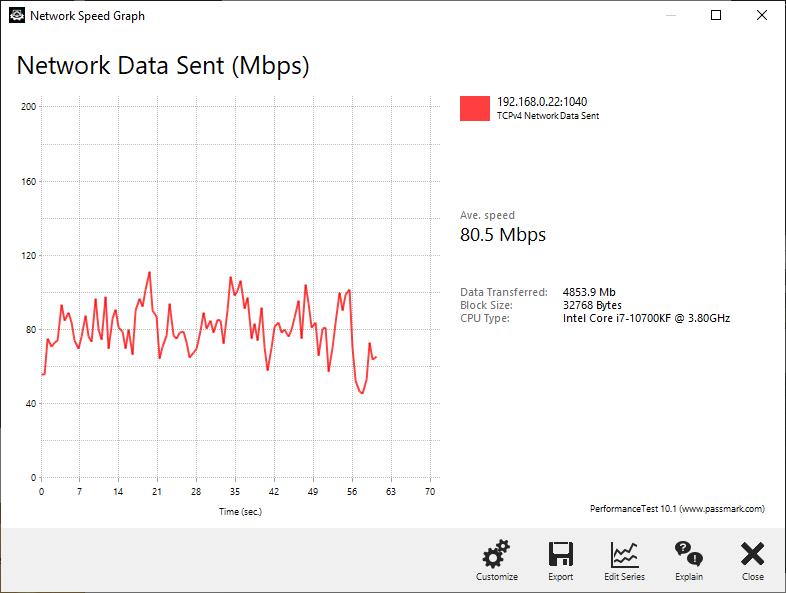

Killer AX1675x 802.11ax was tested with a Google Wifi AC1200 mesh network.

Velocita

Velocita

All hard-wired tests displayed great results as we would expect in the lab type of environment.  The WiFi speeds were satisfactory based on the AC1200 throughput speeds.
