Cooler Master Announces Palm-sized MasterLiquid Maker 92 AIO CPU Cooler

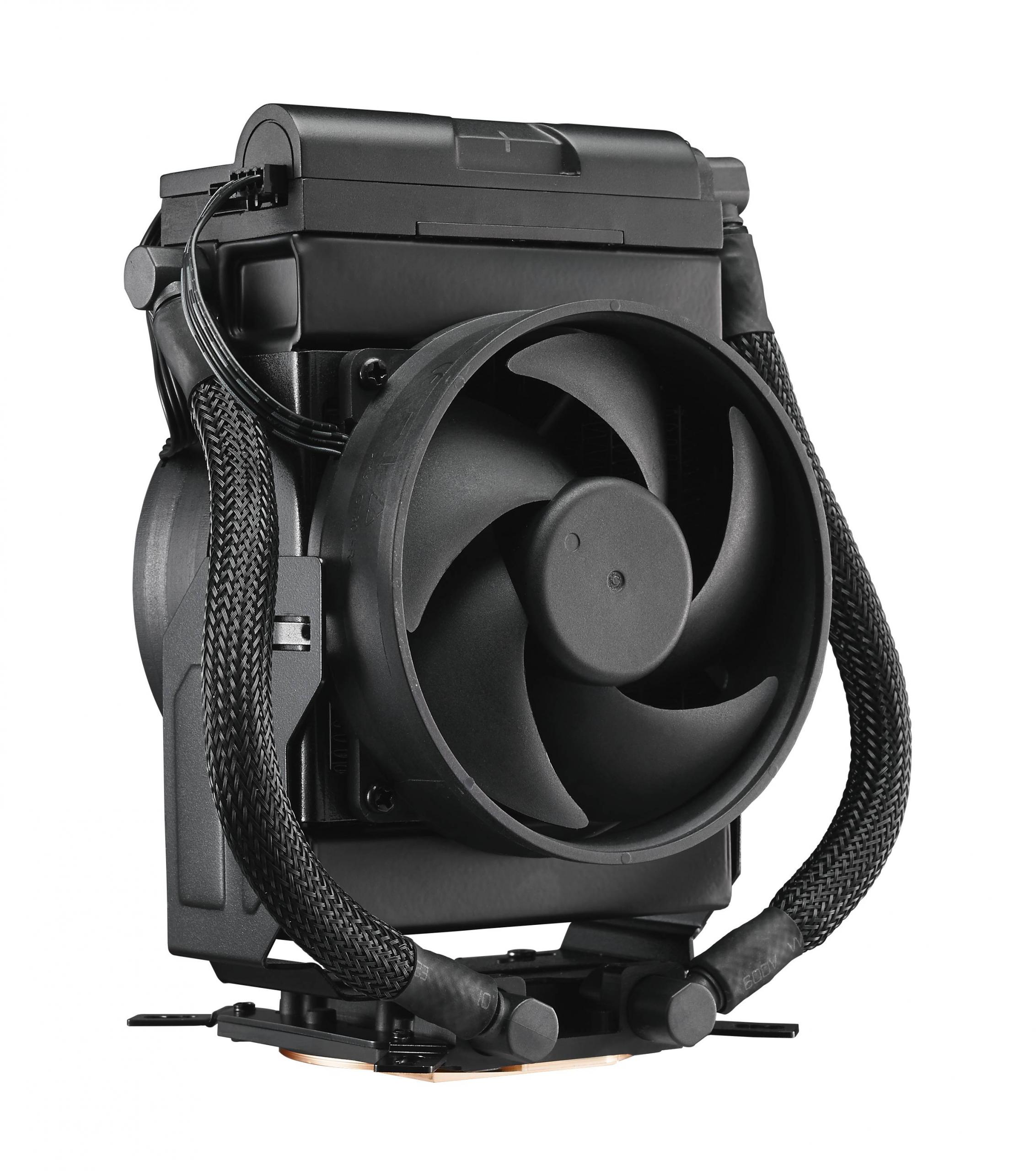

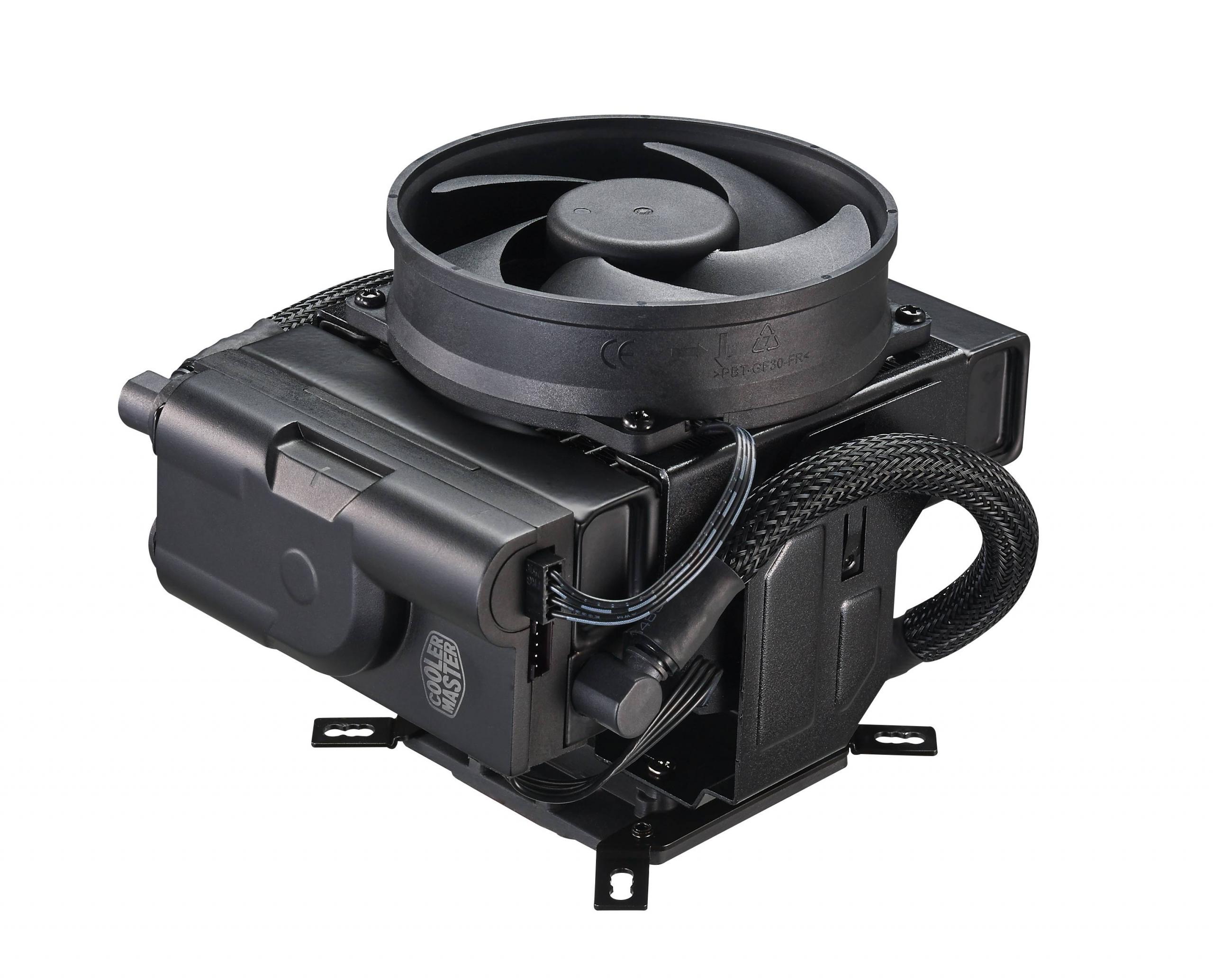

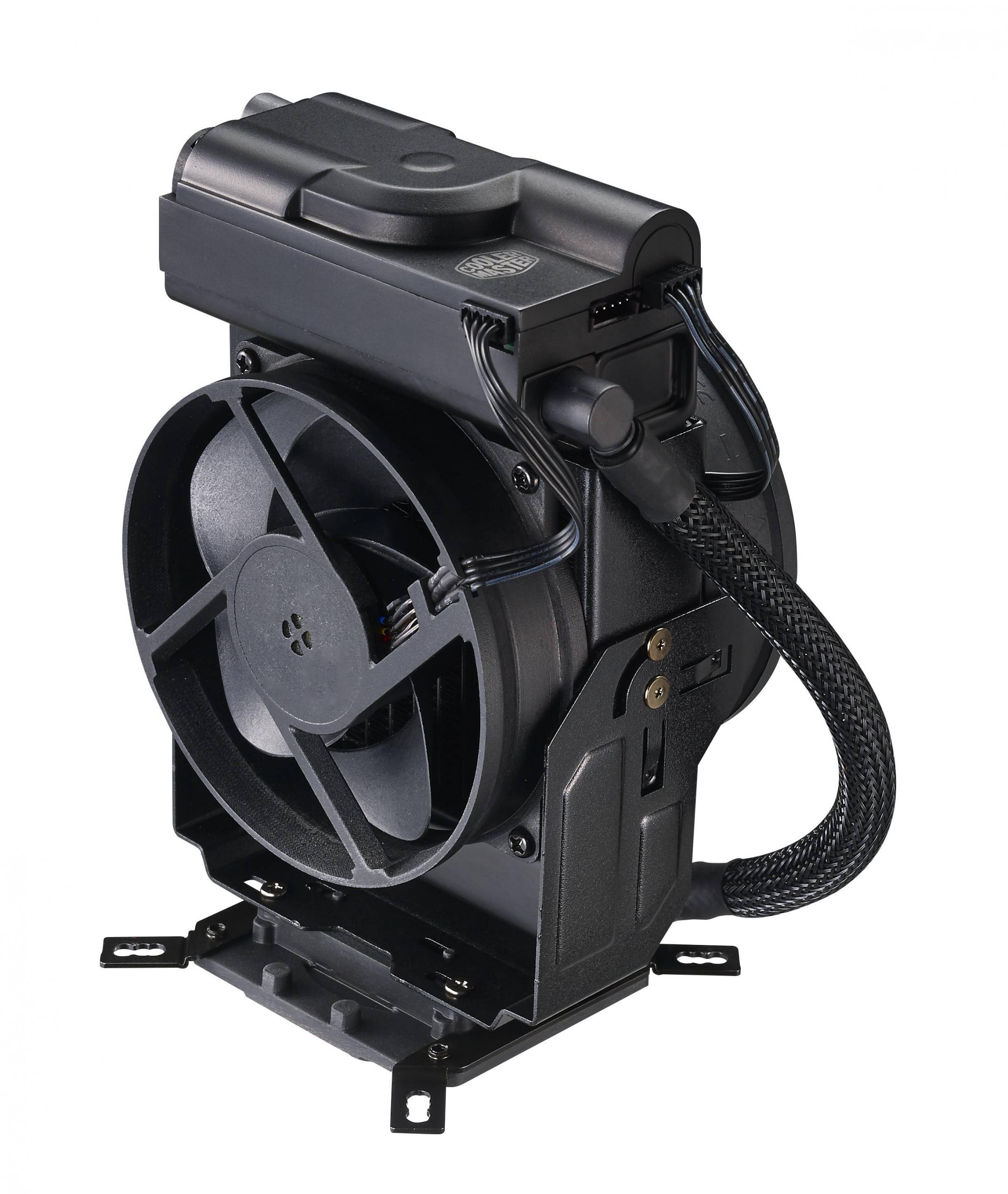

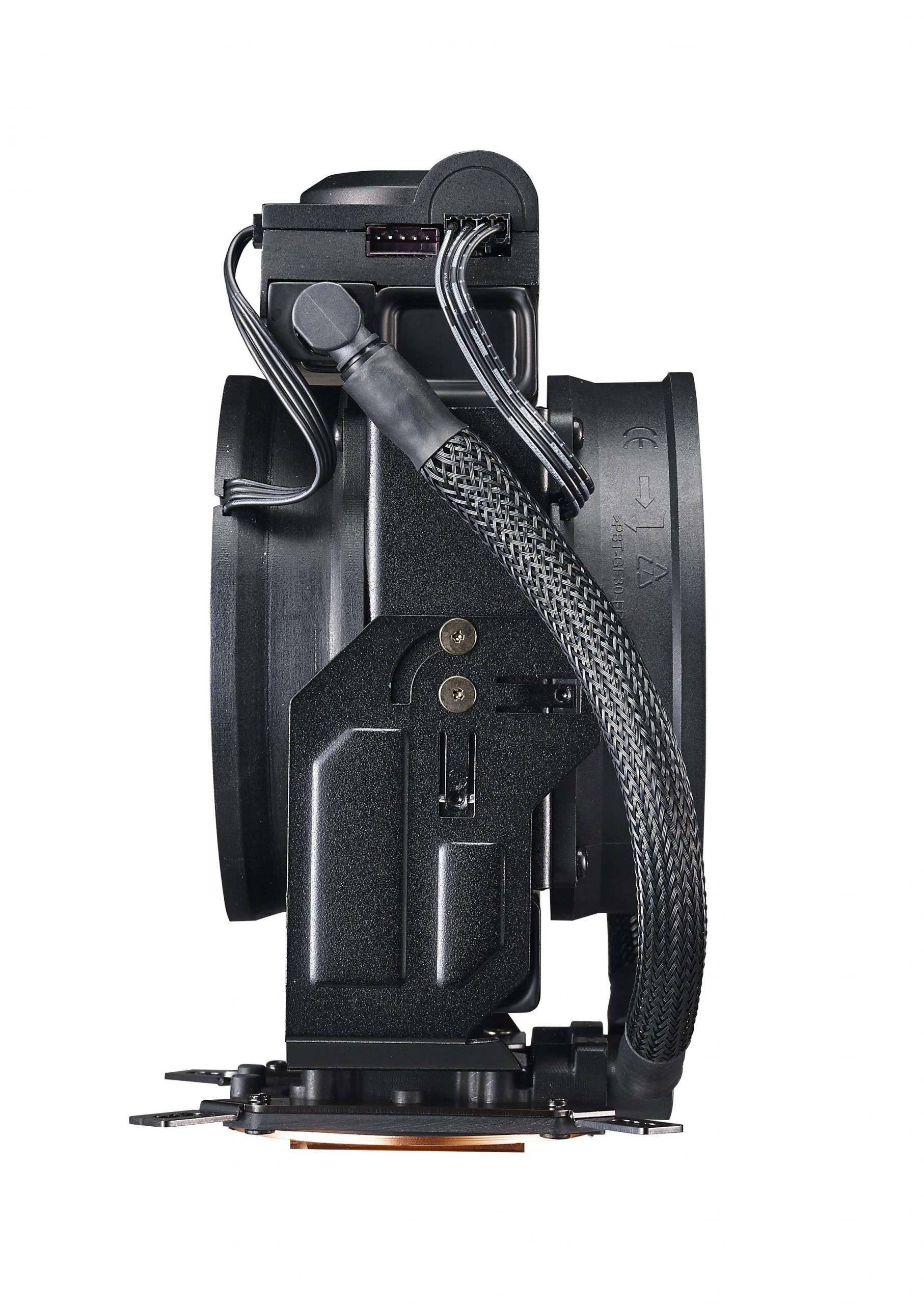

Cooler Master has been teasing this new cooling product on their social media pages for the past few weeks but now details about the MasterLiquid Maker 92 are finally made public. This new cooler is an all-in-one self-contained liquid CPU cooler that is small enough to match most CPU heatsink sizes. Versatility is the MasterLiquid Maker 92’s point, so unlike other CPU coolers, this new AIO is able to be mounted upright or horizontally, depending on the room available inside a chassis. The compact radiator  can fit up to a pair of 92mm fans and the radiator itself is suspended on top of the CPU water block.

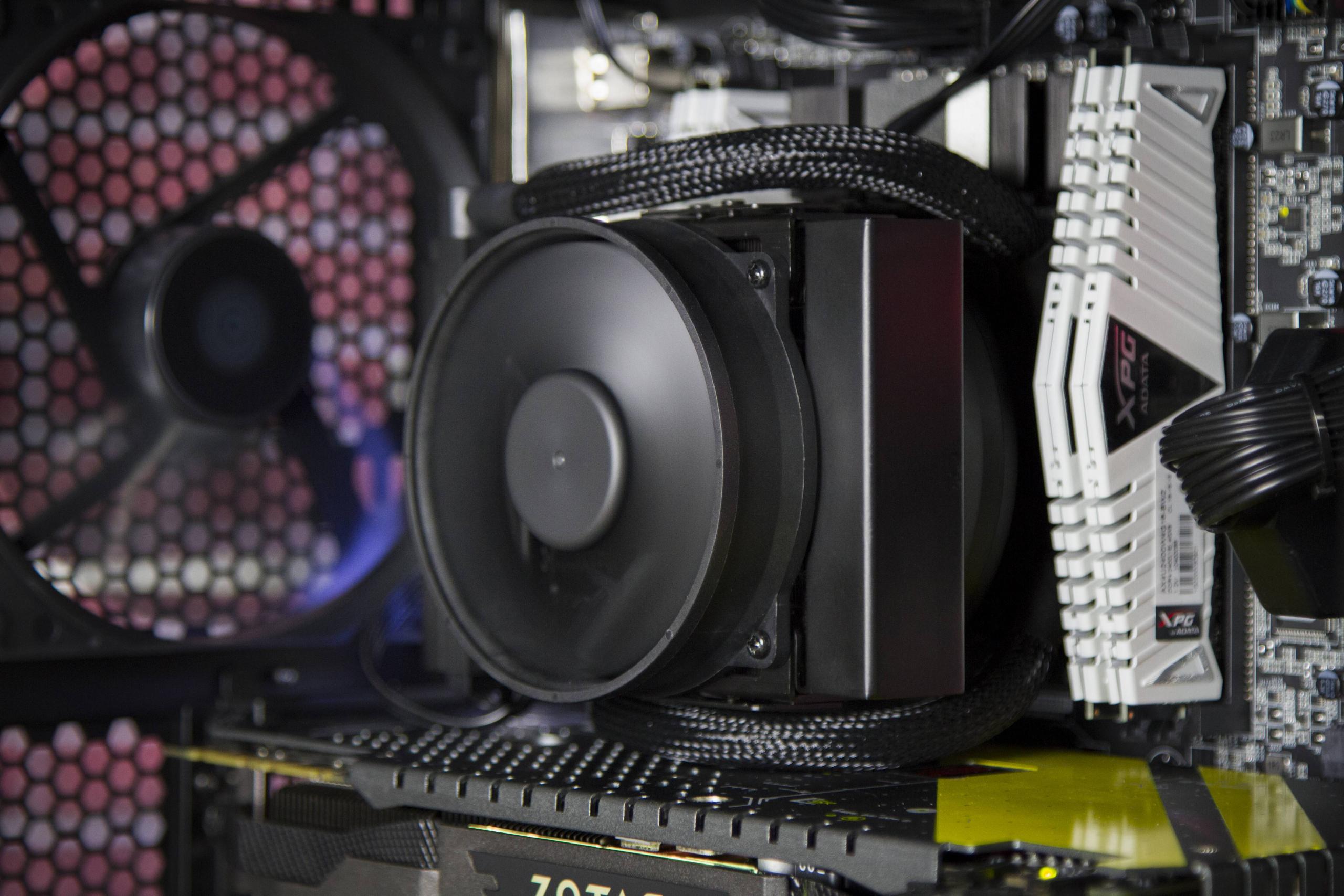

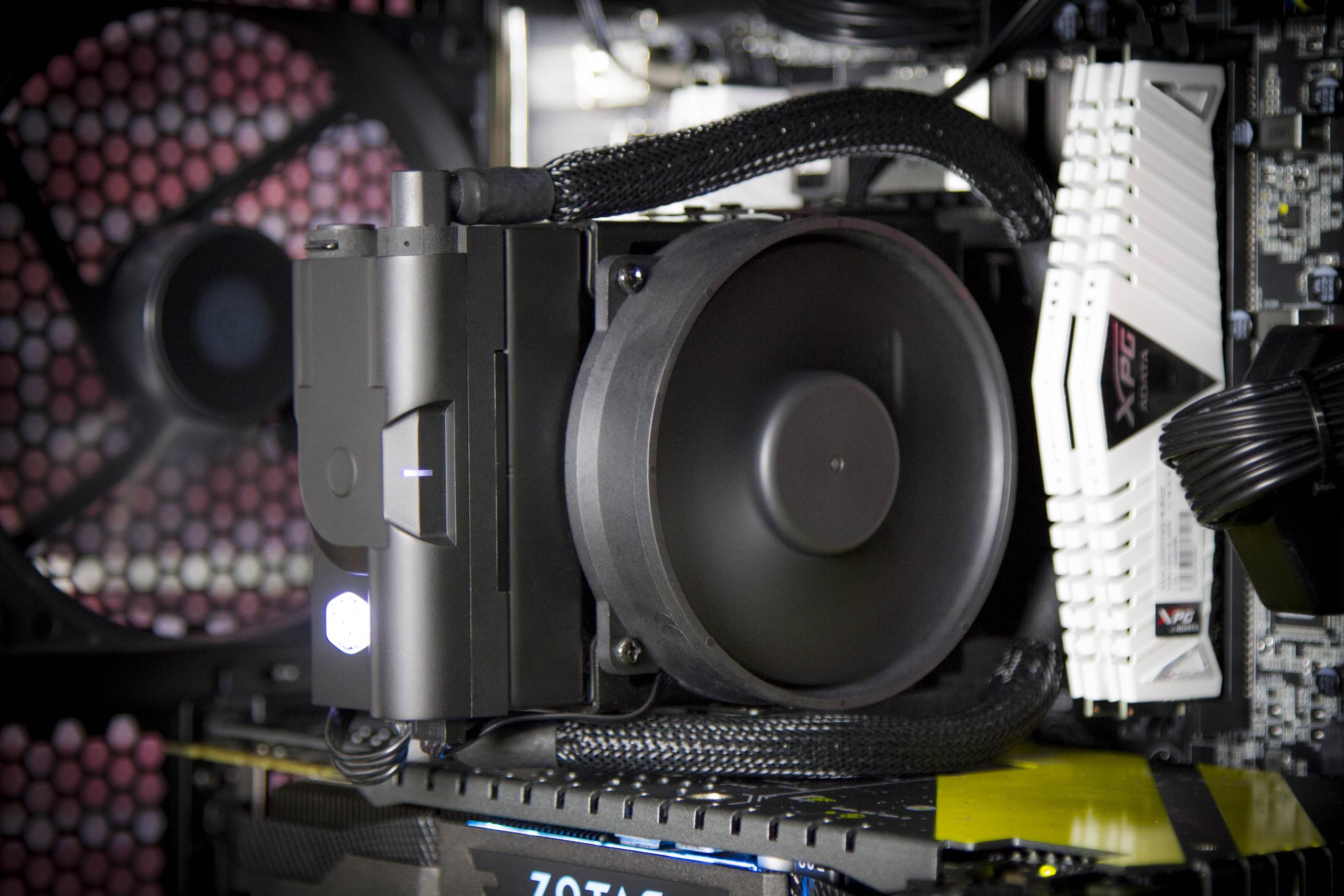

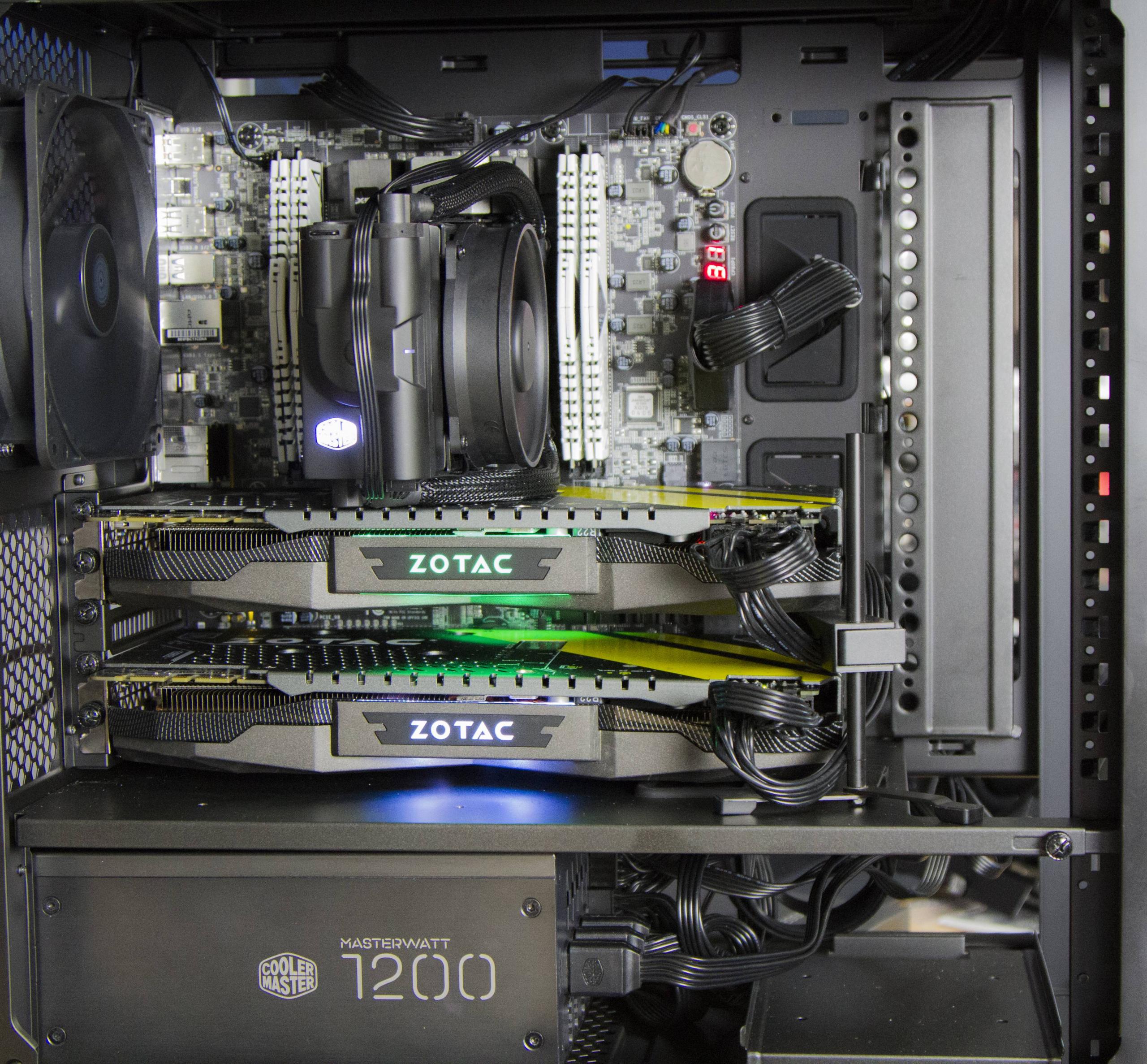

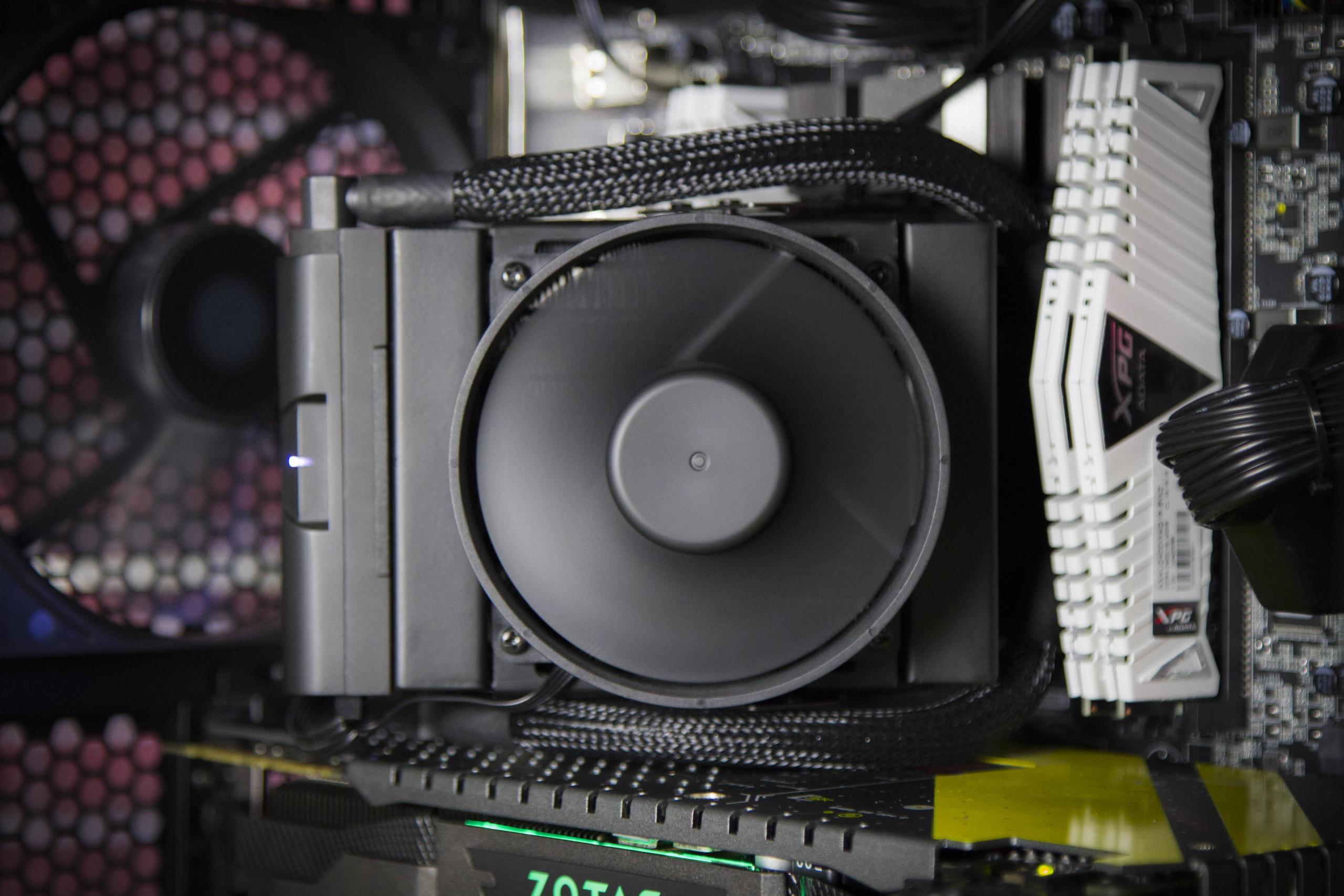

The flexible mounting orientation also frees up clearance issues associated with certain RAM modules or avoid certain PCI-E clearance problems. This solution seems to be an interesting alternative to Corsair’s Hydro H5 SF cooler used on their Bulldog units. This new Cooler Master product is not currently in wide release however but it is being offered in very limited supply available for pre-order until August 30.  Users who are interested can pre-order the MasterLiquid Maker 92 on this link:

Product Features:


  • Switch and Swivel – Choose between vertical and horizontal cooler configurations for space and air flow.
  • Liquid and Air- A single tower utilizes superior AIO liquid cooling with dual fans for air flow
  • Compact Body – a merged pump and radiator in one easily installed unit brings liquid cooling to tighter layouts.
  • Silent Efficiency – MasterFan Pro 92 fans monitor CPU loads and spin only when needed.
  • Quality Standards – With FEP sleeved tubing and a white LED indicator and logo.
  • Clean Cabling – Multiple fan cables plug into a cable hub, reducing messy wiring.
CPU Intel® LGA

2011-v3/ 2011/ 1151/

1150/ 1155/ 1156 socket

Power Connector SATA and 4-Pin
Radiator Material Aluminum
Dimension Vertical 99.9 x 81.6 x 167.5mm (3.9 x 3.2 x 6.6”)
Horizontal 99.9 x 142 x 118.8 mm (3.9 x 5.6 x 4.7”)
Fan Dimension Φ 95 x 25.4 mm (3.7 x 1”)
Airflow 49.7 CFM (max)
Air Pressure 6.4 mmH2O (max)
Noise Level 30 dBA (max)
MTTF 350,000 hours
L-10 Life 50,000 hours
Rated Voltage 12 VDC
Pump Noise Level <12 dBA (max)
MTTF 175,000 hours
L-10 Life 50,000 hours
Rated Voltage 12VDC
Warranty 5 Years
