Fractal Design Lumen S36 RGB Review

Lumen S36 RGB AIO Water Cooling

A Closer Look at the Fractal Lumen S36 RGB »

Lumen S36 RGBInnovative All-In-One liquid coolers are hard to find. Most of the AIO systems you see on the market are a copy of a copy or a replica that uses Aestek type of pump. The new Fractal Design Lumen S36 RGB AIO unit has a new type of pump that is not Aestek based and I am very curious how it’s going to perform. The Fractal Lumen S36 RGB is a 360mm based All-In-One system that offers RGB design and newly released Aspect PWM fans for cooling. There are other sizes available to purchase such as 240, 280, and 360. All models could be purchased with the RGB options so you can really get creative with your build.

The packaging of Lumen S36 RGB has vivid images on the front and the back of the shipping box. On the front of the package, we can clearly see the unit inside. On the back of the packaging, there is a black and white version of the image with a list of Features that Lumen S36 RGB has to offer.

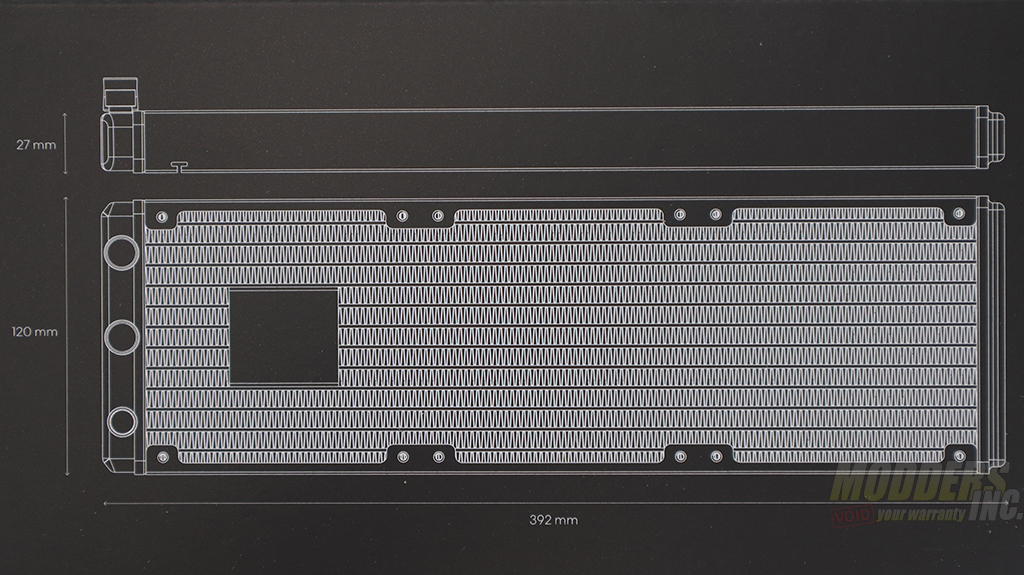

On the top of the box, I found a small diagram of the radiator with the proper sizes of it. The RGB of Lumen S36 RGB is supported by multiple platforms, Aura Sync, RGB Fusion 2.0, Mystic Light Sync, Polychrome Sync, and Chrome RGB.

Lumen S36 RGB

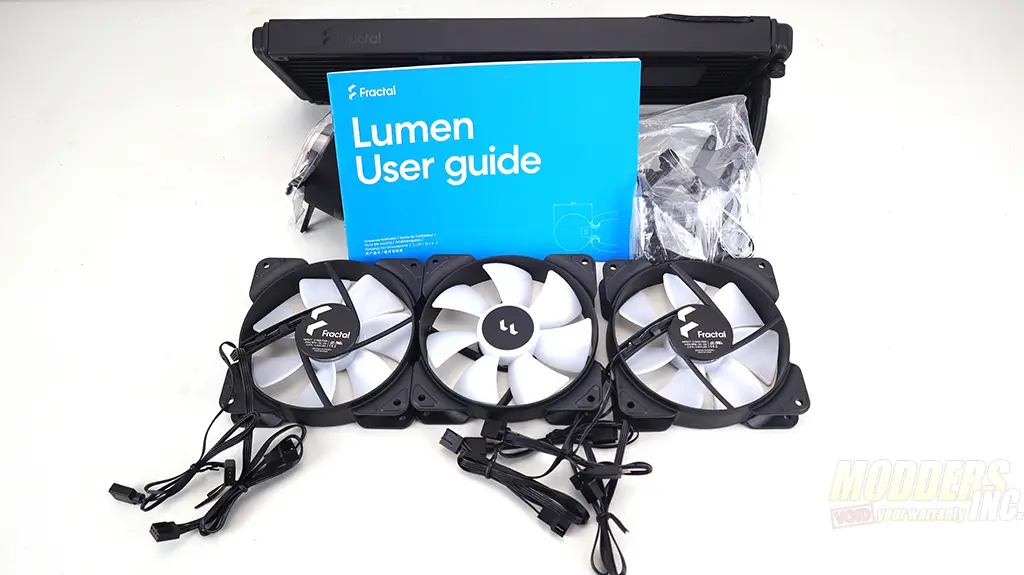

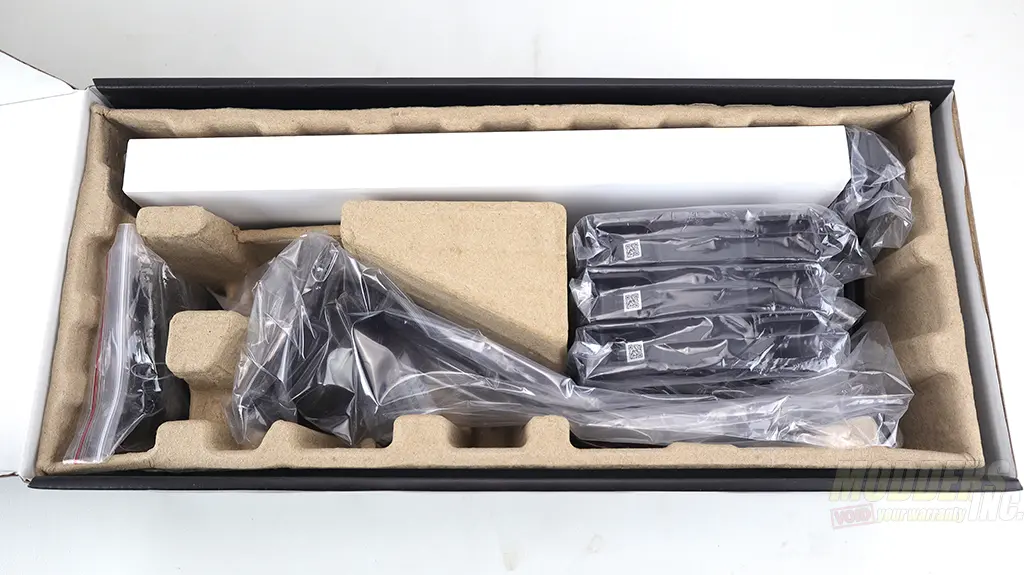

The internal packaging of Lumen S36 RGB is straightforward. We see the same recycled packaging material in other AIO systems on the market. The fans and CPU block with hoses are wrapped in plastic bags to prevent any accidental scratches.

Lumen S36 RGB

Technical Specifications

Supported sockets (Intel) • LGA 1150, 1151, 1155, 1156, 1200, 1366, 2011, 2011-3, 2066
Supported sockets (AMD) • AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+
Coldplate material • Copper
Thermal paste • Pre-applied
Block height • 43 mm
Block measurements (with fittings) • 79 x 67 mm
Block diameter (main block body) • 67 mm
Pump rotational speed • 4000 ± 10% RPM
Pump bearing type • Ceramic
Pump PWM control • No
Pump acoustical noise (full speed) • 22 dBA
Pump maximum pressure, 50°C • 1.8 mm H2O/ 17.6 kPa / 2.5 PSI
Pump rated voltage • 12V
Pump input current • 0.34A
Pump input power • 4.08W
Pump MTTF • 50,000 hours
Pump power cable length • 775 mm
Pump aRGB 5V, 3-Pin cable length • 500 mm
Tube length • 400 mm
Tube material • Low-permeability rubber with braided-nylon sleeve
Fittings, block side • Articulating 90-degree elbow
Fittings, radiator side • Barbed fitting
Warranty • 5 years

Fan Specifications

Lumen S24/S36 RGB
Fan type • Aspect 12 RGB PWM
Size • 120 x 120 x 25 mm
Blade color • Semi-opaque white
Frame color • Black
LED type • Addressable RGB
Screw hole pattern • 105 x 105 mm
Power connector • 4-pin
Number of Blades • 7
Rotational speed • 500 – 2000 RPM
Bearing • Rifle
PWM control • Yes
Acoustical noise • <10–33.2 dBA
Airflow (max) • 13–56 CFM
Static pressure (max) • 0.23–2.34 mm H2O
Input voltage • 12V
Input current (max) • 0.37A
Fan starting voltage • 7V
LED input power • 1.50W
LED max input current • 0.30A
LED input voltage • 5V
Power Cable length • 500 mm
RGB Cable length • 500 mm
Cable type • Black ribbon cable
MTTF • 90,000 hours
