Front : 2x 120/140 mm (2x Aspect 12 RGB included).
Radiator support for Up to 280 mm.
Rear mounted:
Rear : 1x 120mm (1x Aspect 12 RGB included).
Radiator support for 120 mm.
Top mounted:
Top : 2x 120/140 mm.
Radiator support for Up to 240 mm. (max 46 mm RAM height)
Power Supply:
There is no removable plate for installing PSU.

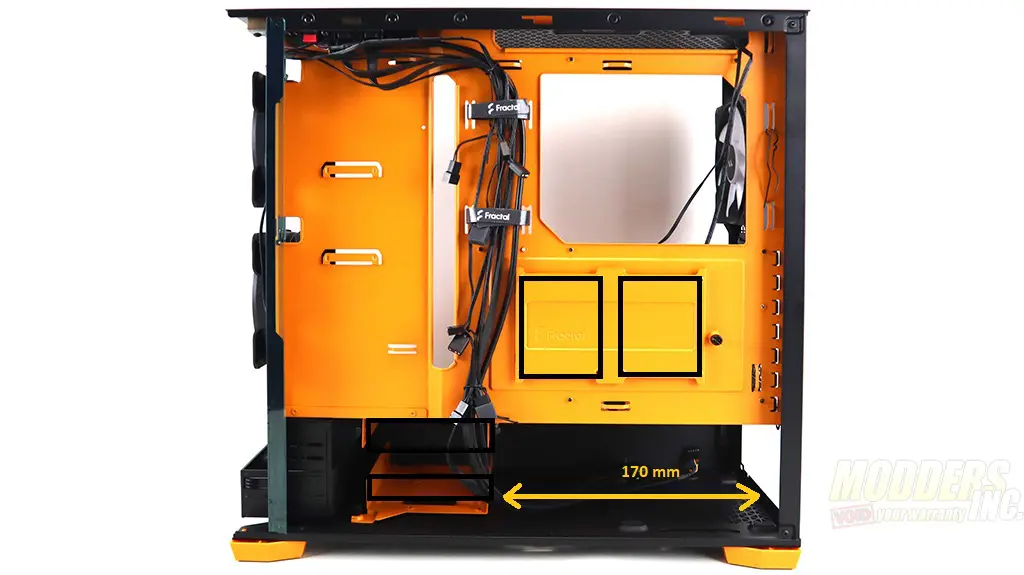

250 mm Clearance for Power Supply installation. 170 mm without removing the hard drive cages
Video Card clearance:

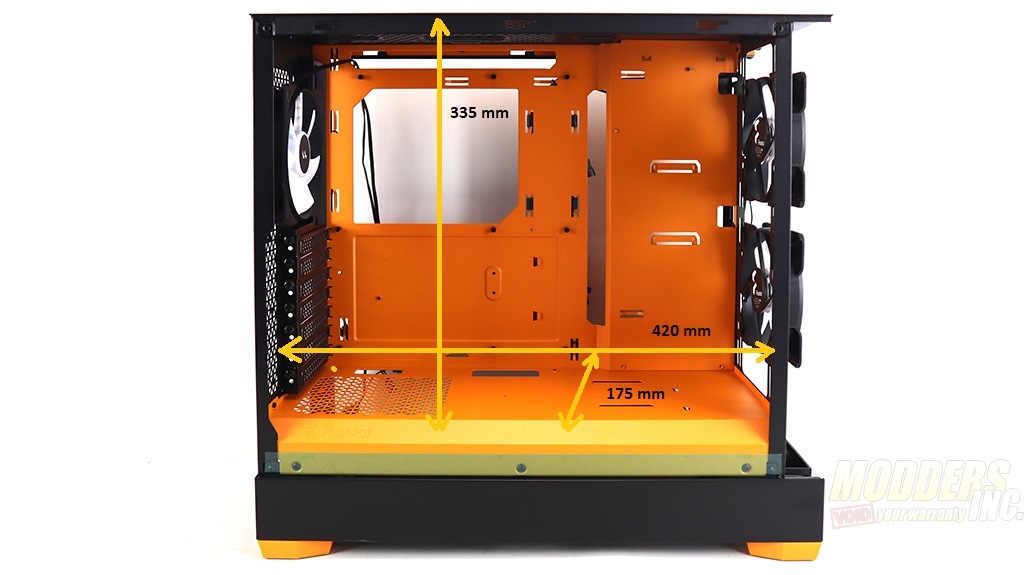

There is 400 mm (440 mm without front fan) clearance before reaching the front fan mounting area.
CPU Tower coolers:
CPU heat-sink height clearance is about 185 mm from the motherboard to the glass.
Large CPU back plate cutout.

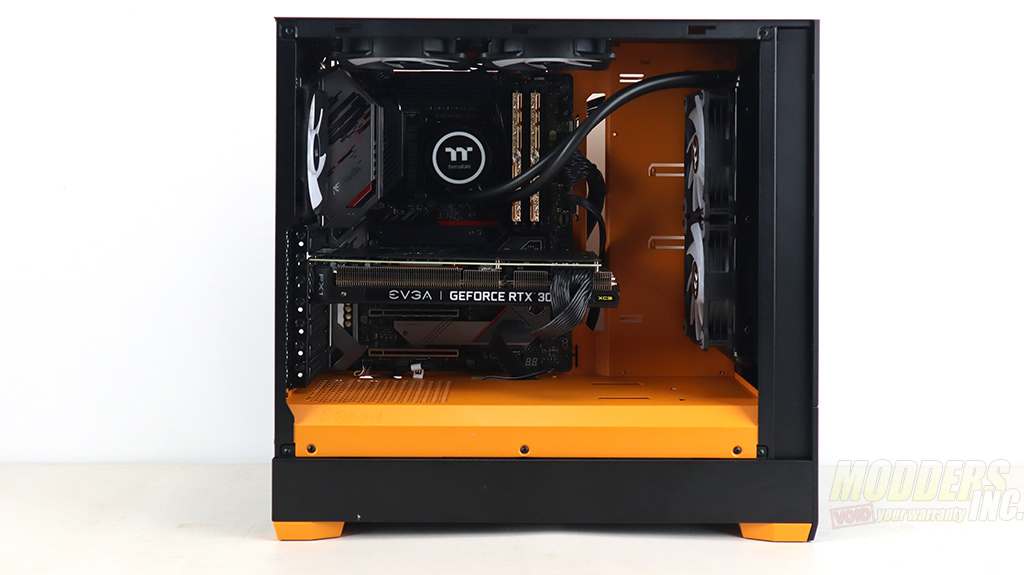

Putting together the system was pretty quick and easy. There aren’t any surprises that I have encountered with this case. The only challenge with the AIO system here was the placement of the radiator. since the radiator I have is a full size 240mm, it did not fit right on top of my RAM modules. If you have a low-profile radiator, they would work on the top of this case. The AIO here I am using is Thermaltake Water 3.0 240 ARGB.

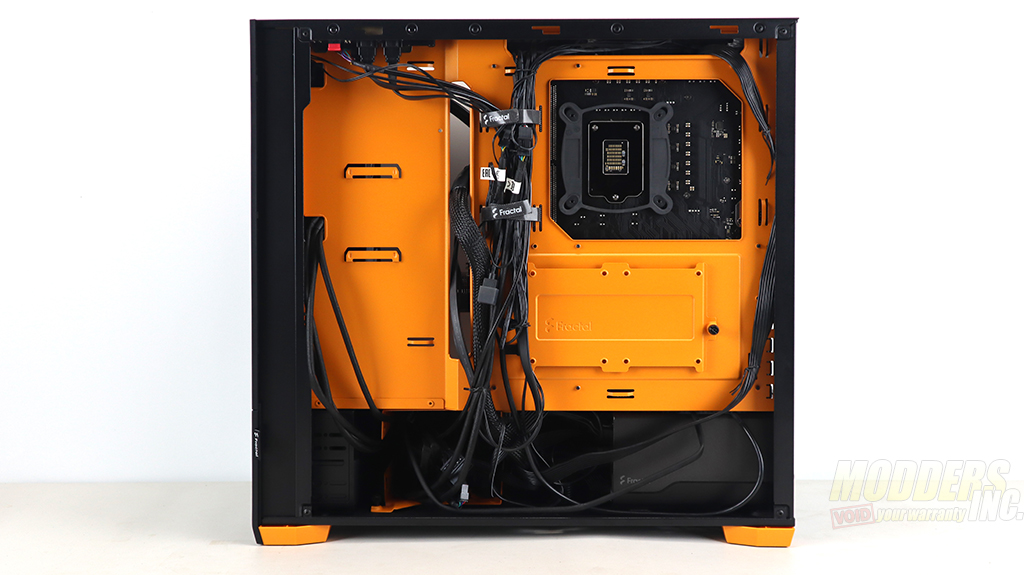

Besides this little issue, I really don’t see anything difficult with this case. Cable management could be better in this case, but it is possible to make clean cabling with what was provided.
