ZADAK Announces MOAB II ELITE as Their New Flagship Compact Water Cooled PC

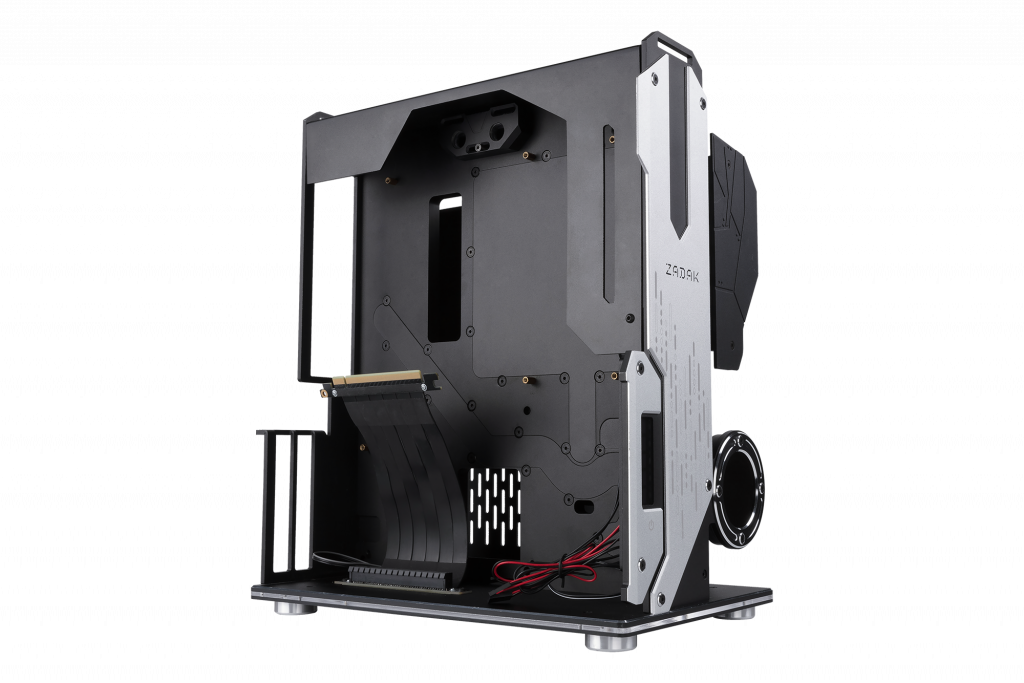

ZADAK MOAB II Elite Water Cooled PC Case

ZADAK introduces the MOAB II ELITE, the next-gen. compact water-cooled PC case into their growing line of products. The MOAB II ELITE is a compact case (311mm x 193mm x 371mm), built around the patented CNC-milled aluminum water distribution plate. The distribution plate is meticulously designed and manufactured with built-in water channels to reduce unnecessary tubing for clean builds. The MOAB II ELITE is now compatible with graphics card of up to 280mm in length and most m-ATX motherboards. Other notable features include the world’s first capacitive touch switch for powering on/off, a digital display providing real-time water temperature measurements, and customizable ARGB accent lighting.







ZADAK Announces MOAB II ELITE as Their New Flagship Compact Water Cooled PC MOAB2 lite 01Zadak MOAB II Elite Water Cooled PC Case





Water Cooling at the Core

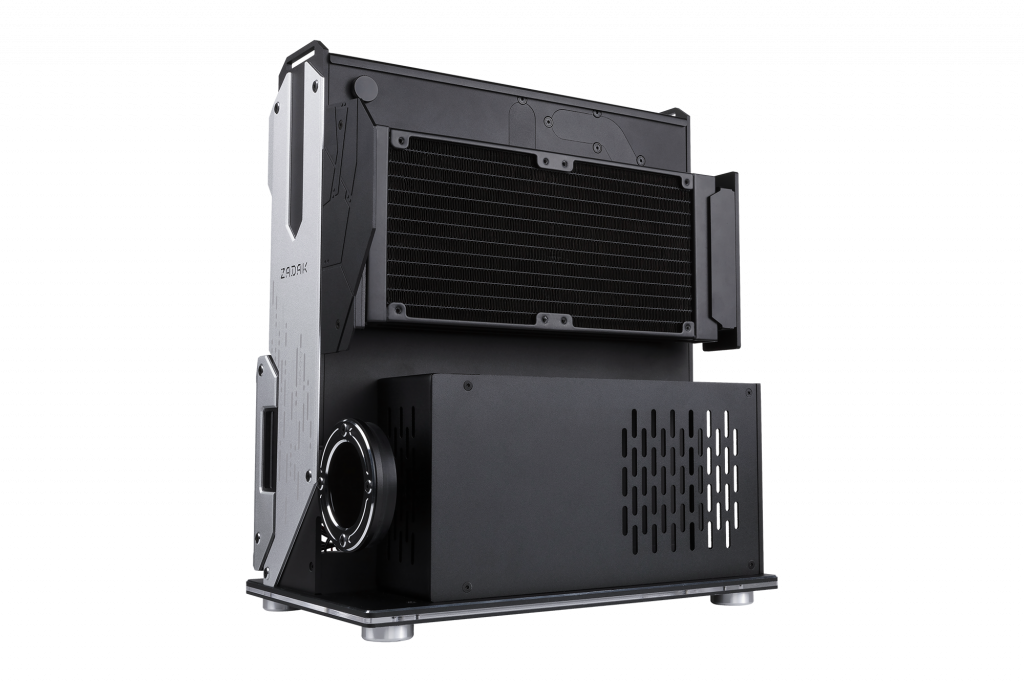

The MOAB II ELITE also features the patented CNC-milled aluminum water distribution plate, that eliminates unnecessary tubing. The unit itself is hidden in the center of the case. While this creates a compact build, it also reduces the risk of leaking and cracking. In addition, the case includes a 240mm radiator connected to the water distribution plate, which is strategically placed on the backside.

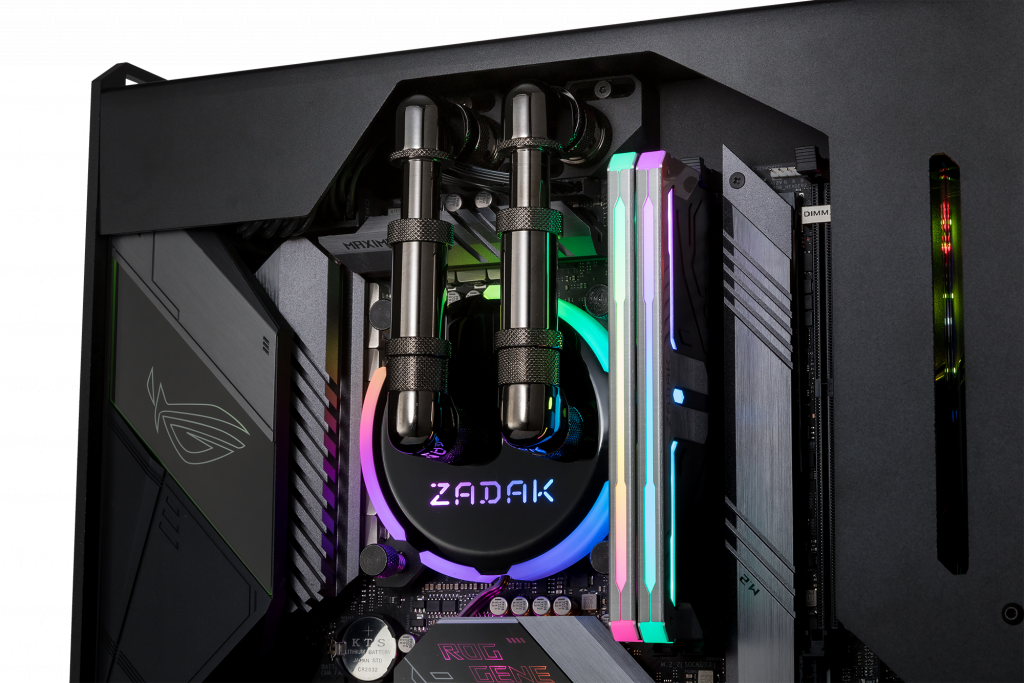

ZADAK Announces MOAB II ELITE as Their New Flagship Compact Water Cooled PC MOAB2 lite 04

Smart Detection and Monitoring

For monitoring, even the most power-hungry systems, the MOAB II ELITE is equipped with a digital display for real-time water temperature measurements. Users will have an accurate display of their PC water cooling temperature levels to avoid overheating. Also included is the water level indicator, which is found on the side of the case. This additional feature displays the water cooling levels so users will know when they need to make necessary adjustments.

ZADAK Announces MOAB II ELITE as Their New Flagship Compact Water Cooled PC MOAB2 lite 04

Compact and Compatible

While maintaining its compact size, the MOAB II ELITE has updated the connecting outlet to the CPU block, allowing it to adjust horizontally and vertically making it compatible with most m-ATX motherboards. In addition, The MOAB II ELITE is now compatible with any graphics cards of up to 280mm in length and easily slotted on the side of the case.

Touch and Slide to Power On

The MOAB II ELITE features the world’s only capacitive touch power switch. This one-of-a-kind intelligent design operates the on/off function when users slide their finger across the capacitive strip, a demonstration of ZADAK’s PC innovation.

For more information, visit: https://www.zadak.biz/products/content/64

Specifications
Product nameMOAB II ELITE Water Cooled PC Case
Thermal solutionLiquid cooler
M-ATX Mainboard recommendedIntel
ROG STRIX Z490-G GAMING
GIGABYTE Z490M
ASRock Z490M Pro4
ROG MAXIMUS XI GENE
GIGABYTE B360M AORUS GAMING 3
GIGABYTE B360M AORUS PRO
MSI MAG Z390M MORTAR
AMD
GIGABYTE B450M GAMING
GIGABYTE B450 AORUS M
CPU supportedIntel 1200, 115x Socket, AMD AM4 (Ryzen) series Desktop Processors
Motherboard supportMicro ATX
Waterblock materialCopper, Aluminum
Waterblock dimension88 x 88 x 20 (non-Bracket) (L x W x H mm)
Radiator materialAluminum
Radiator dimension276 x 120 x 30 (L x W x H mm)
Pump noise≤30 dBa
Pump rated voltage12V (DC)
Pump rated current0.5A
Product dimension311 x 193 x 371 (L x W x H mm)
Packing dimension472 x 347 x 639 (L x W x H mm)
Net weight7.3 kg
Gross weight11 kg
Warranty1 year
