ASRock Unveils New DeskMini Innovations
Smarter. Faster. Just as Compact.
ASRock introduces the latest additions to our Mini PC lineup: DeskMini B860 and DeskMini X600/USB4. Designed to balance power, efficiency, and flexibility in an ultra-compact form factor, the new DeskMini series offers ideal solutions for business, education, digital signage, and home entertainment.

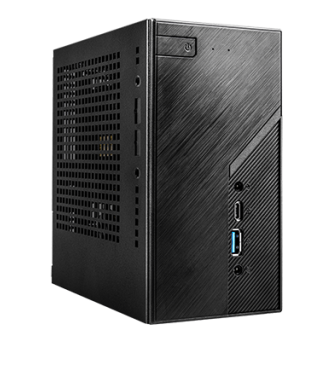

🔹 DeskMini B860: Intel® Power Meets Practicality
Built on Intel®’s next-generation platform, DeskMini B860 features Thunderbolt™ 4, quad-display output, and support for dual DDR5 CSODIMM memory. With Energy Star 9.0 compliance, it delivers energy-saving performance that meets the needs of modern work environments.
At just 1.92L, DeskMini B860 delivers strong performance with support for quad display, DDR5 memory, flexible storage, and Thunderbolt 4. With NPU-enabled Intel® Core™ Ultra processors it supports features like auto-framing and background blur. It is ideal for smart offices, signage, and light AI workloads.
- 1.92L Mini PC
- CPU: Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851), up to 65W
- Memory:
CSO-DIMM version, 2 x DDR5-6400+(OC) MHz slots, max. 128GB

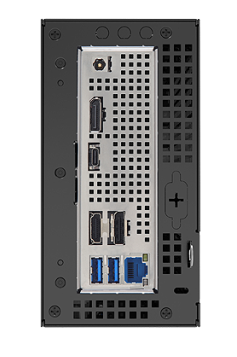

SO-DIMM version, 2 x DDR5-5600+(OC) MHz slots, max. 128GB - Quad Video Outputs:
1 x HDMI 2.1
2 x DisplayPort
1 x Thunderbolt™ 4 - Quad Storage Devices:
1 x M.2 2280 Slot for PCIe Gen5x4 SSD
1 x M.2 2280 Slot for PCIe Gen4x4 SSD
2 x SATA3 6Gb/s - Abundant USB Ports:
1 x USB 3.2 Gen2x2 Type-C (Front)
1 x USB 3.2 Gen1 Type-A (Front)
1 x Thunderbolt™ 4 (Rear)
2 x USB 3.2 Gen1 Type-A (Rear

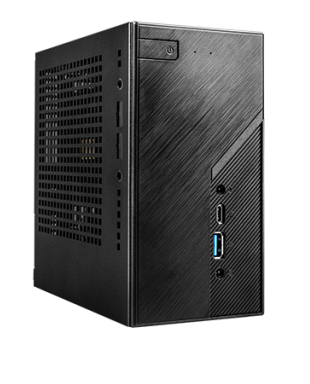

🔹 DeskMini X600/USB4: AMD Innovation Meets AI
DeskMini X600/USB4 features a sleek 1.92L design while delivering exceptional performance. It supports AMD Ryzen™ AM5 processors, DDR5 memory, and PCIe Gen5 storage for outstanding speed and multitasking. Upgraded with a USB4 slot, it offers lightning-fast 40Gbps data transfer, supports high-resolution DisplayPort signals, and includes a 15W PD function for fast charging. This combination of power and efficiency makes it ideal for general users, business applications, and professionals who need high performance in a stylish, space-saving form factor.
Optimized for AMD AM5 processors, DeskMini X600/USB4 upgrades its legacy D-sub interface to USB4, offering faster data transfer and greater expansion capabilities. Supporting triple independent displays and powered by AMD’s robust APU, it is ideal for AI-powered video applications, multi-tasking business workflows, digital classrooms, and home multimedia entertainment.
- 1.92L Mini PC
CPU: Supports AMD Socket AM5 Ryzen™ 9000/8000/7000 Series Processors, up to 65W

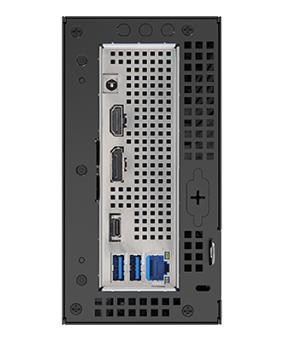

Memory: Dual DDR5 6400+(OC)MHz memory, Max. 128GB - Triple Video Outputs：
1 x USB4
1 x HDMI
1 x DisplayPort - Quad Storage Devices:
1 x M.2 (PCIe Gen5 x4) Slot
1 x M.2 (PCIe Gen4 x4) Slot
2 x 2.5″ HDD/SSD - Abundant USB Ports:
1 x USB4
1 x USB 3.2 Gen1 Type-C
3 x USB 3.2 Gen1 Type-A
Both models support dual DDR5 memory, multiple USB connectivity options, and flexible storage expansion, making the DeskMini series the go-to choice for compact yet powerful computing.
