 Phanteks PH-TC14PE

The Phanteks PH-TC14PE is a massive twin 140 mm tower cooler. The two towers are separated by just over 25mm of space. This is Phanteks Premium flagship CPU cooler.



Specifications

Brand
PHANTEKS
Type
Heatsinks and Fans
Compatibilities
Intel Socket LGA 2011/1155/1156/1366/775
AMD FM1/FM2/AM3+/AM3/AM2+/AM2 (stock back-plate required)
Color
Blue, White, Red, Orange, Black
Material
Copper (Base and Heat-pipes), Nickel Plated
Aluminum(Cooling Fins/ Top Cover)
Patented P.A.T.S (Physical Anti-Oxidant Thermal Shield)
Patented C.P.S.C (Cold Plasma Spraying Coating) Technology
Fan Model
PH-F140 Premium Fan with PWM Adapter.
Fan Size
140 x 140 x 25mm (Dual Fans included)
Fan Compatibilities
140 x 140 x 25mm (3pcs) / 120 x 120 x 25mm (3pcs)
(Third fan clips and accessories included)
Bearing Type
UFB (Updraft Floating Balance) Bearing
Blade Geometry
Nine White Colored Blades with MVB (Maelstrom Vortex Booster) Design
RPM
1300 ± 10%
Max Air Flow
88.6 CFM
Max Air Pressure
1.37mm H2O
Acoustical Noise
19.6 dB (A)
RPM with PWM Adapter
700 – 1200 RPM ± 10%
Max Air Flow with PWM
45.1CFM – 78.1 CFM
Max Air Pressure with PWM
0.45 – 1.21mm H2O
Acoustical Noise with PWM
13.4 – 19 dB (A)
Input Power
2.8W
Current (Ampere)
0.24A
Rate Voltage
12V
MTBF
>150,000 hr.
Heatsink Dimensions without Fan
134 x 140 x 160mm (LxWxH)
Heatsink Dimensions with Dual Fans
159 x 140 x 171mm (LxWxH)
Heatsink Weight without Fan
970g
Heatsink Weight with Fans
1110 / 1250g (Single/Dual)
Package Dimensions
167 x 214 x 190mm (LxWxH)
Scope of Delivery
1x PH-TC14PE Heatsink
2x PH-F140 Premium Fan
PH-F140 Fan Accessories
6 x Rubber Bar, 12x Fan Clip Adaptor, 6x Fan Wire Clip, 16x Rubber Pad
1x PWM External Adaptor
SoliSku mounting Kits for Intel and AMD
1x Y-Fan Splitter
1x PH-NDC Thermal Compound
2x Phanteks PH-TC14PE User’s Manual
Warranty
5 Years



 DSC_0093p DSC_0094p

The Phanteks PH-TC14PE shows a teaser of the cooler housed in side. This cooler comes in five different colors, instead of the four available on the other two Phanteks coolers on the previous pages.

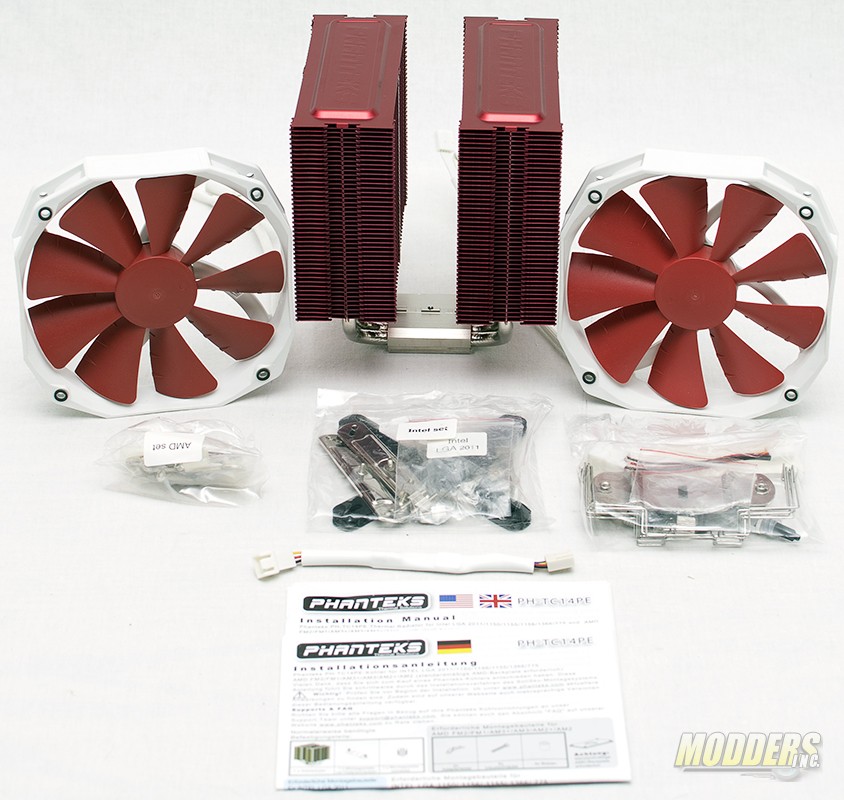

DSC_0096pInside the box is the cooler, the installation kits for AMD and Intel, two PWM fans, the accessory kit, PWM adapter and instructions written in a few different languages.



DSC_0100p

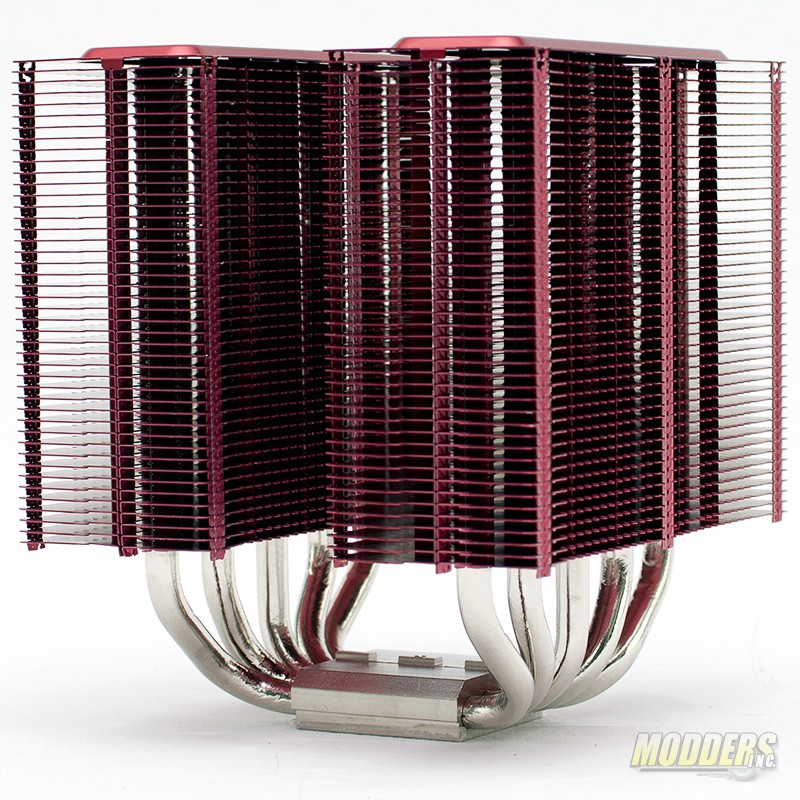

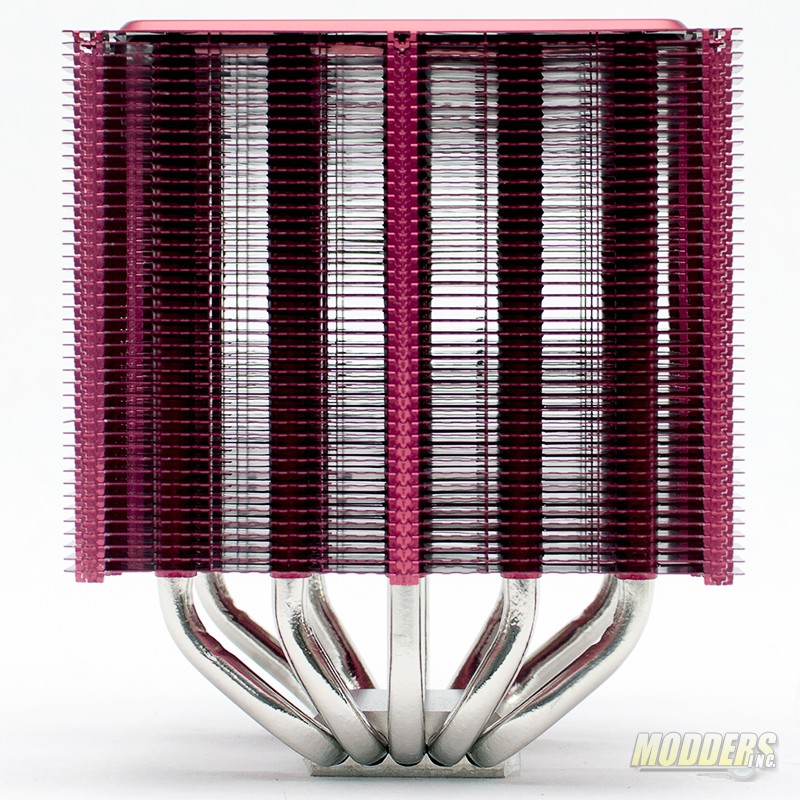

Do you remember when I said this cooler was massive? The Phanteks PH-TC14PE has two 140×50.8mm towers that house five 8mm heat pipes.



DSC_0101pThe fin spacing on the Phanteks PH-TC14PE is of a similar design for all their coolers. The fin spacing and design allow higher air flow and lower thermal resistance.

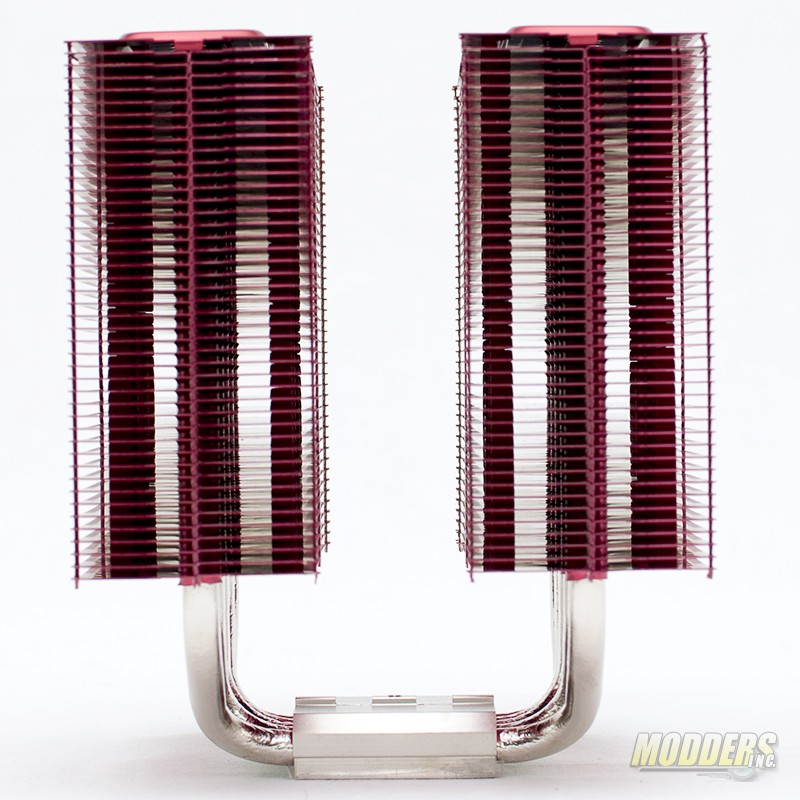

DSC_0102pThe two towers of the Phanteks PH-TC14PE are only connected to each other via the heat pipes. The space between the two towers allow enough room to barely squeeze a 25mm thick fan in between.

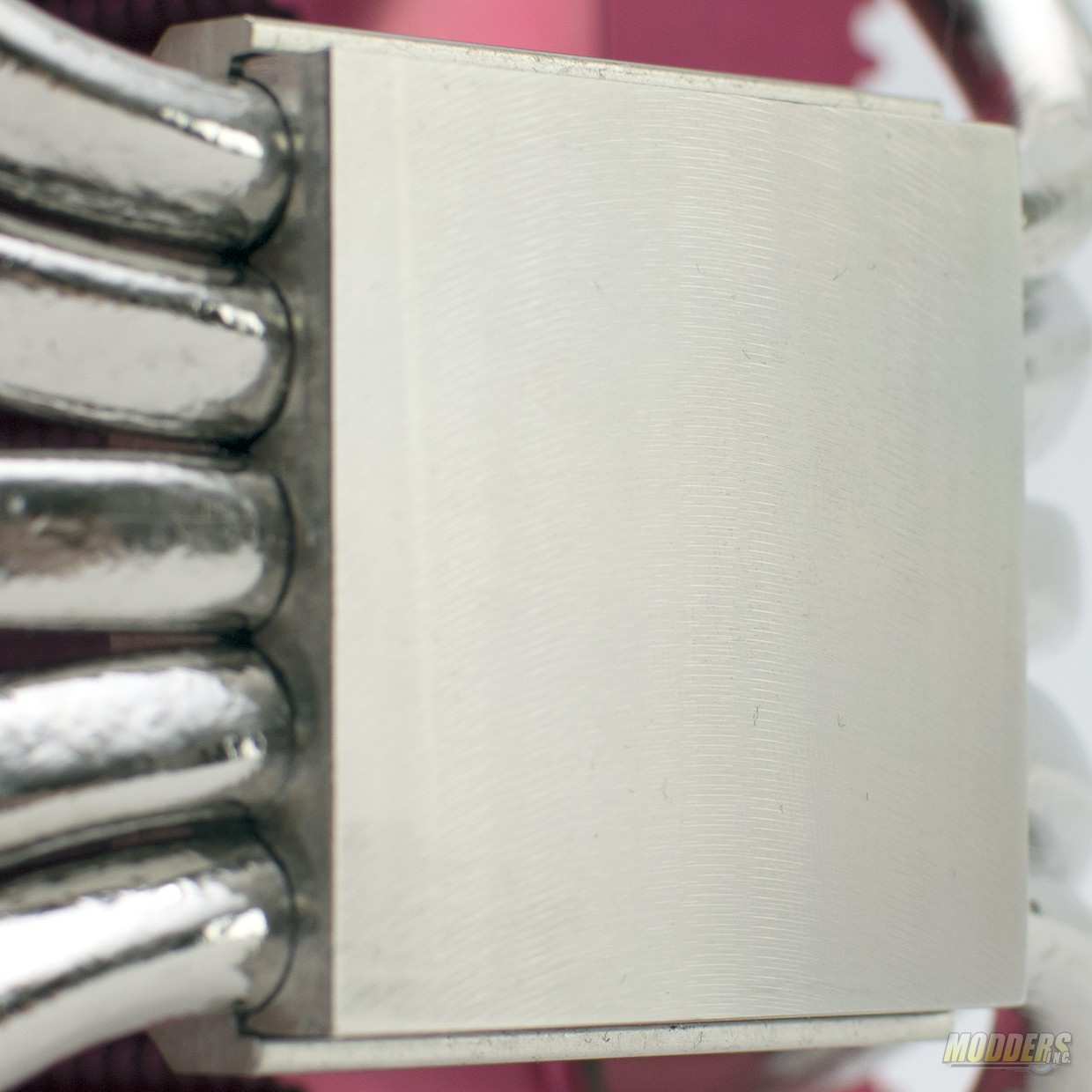

DSC_0104pMinor machining marks are barely visible on the base of the Phanteks PH-TC14PE.

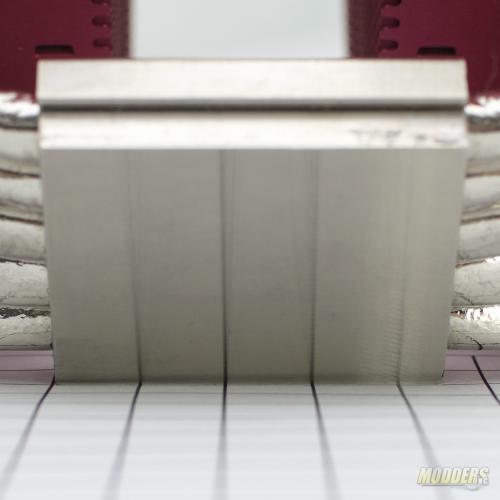

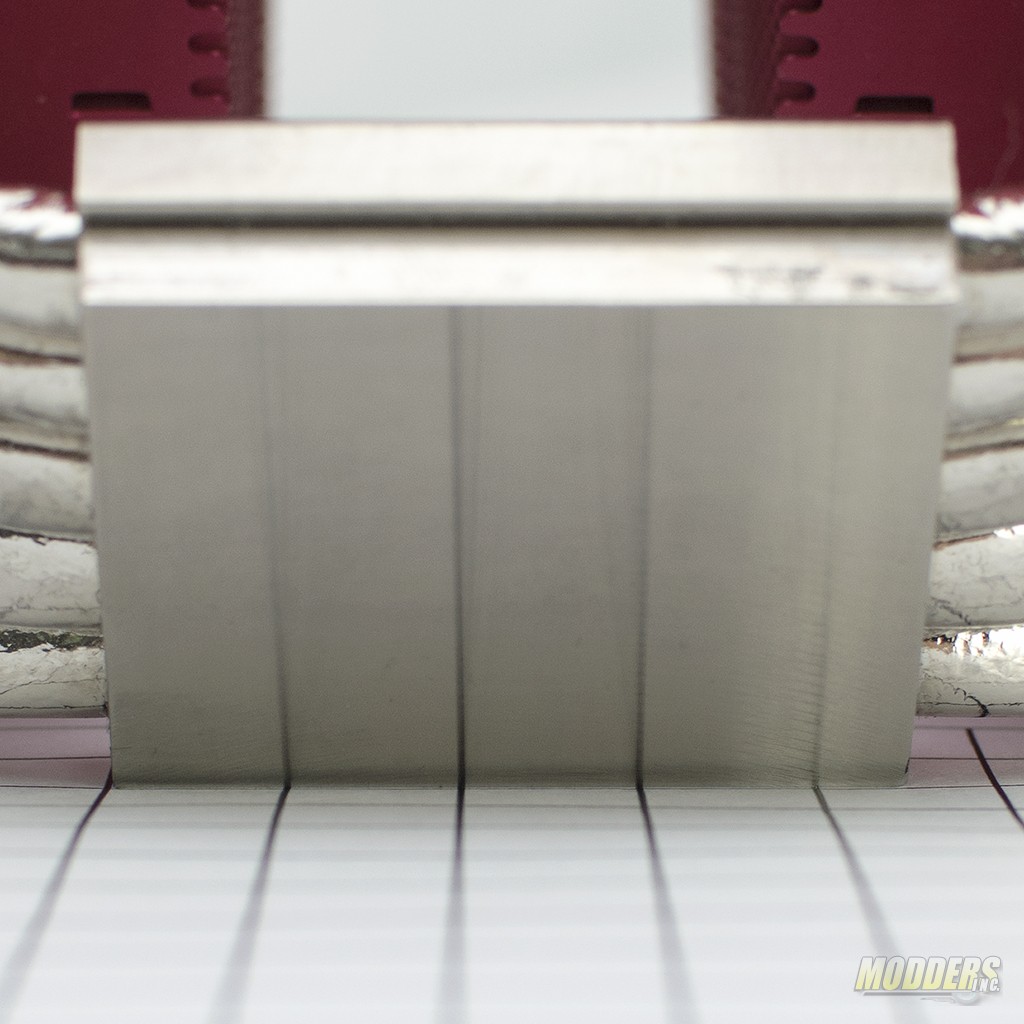

DSC_0105pThe base does reflect our 1cm graph. The line are reflected nice and straight. The minor distortion present in the reflections are due to the machining marks.

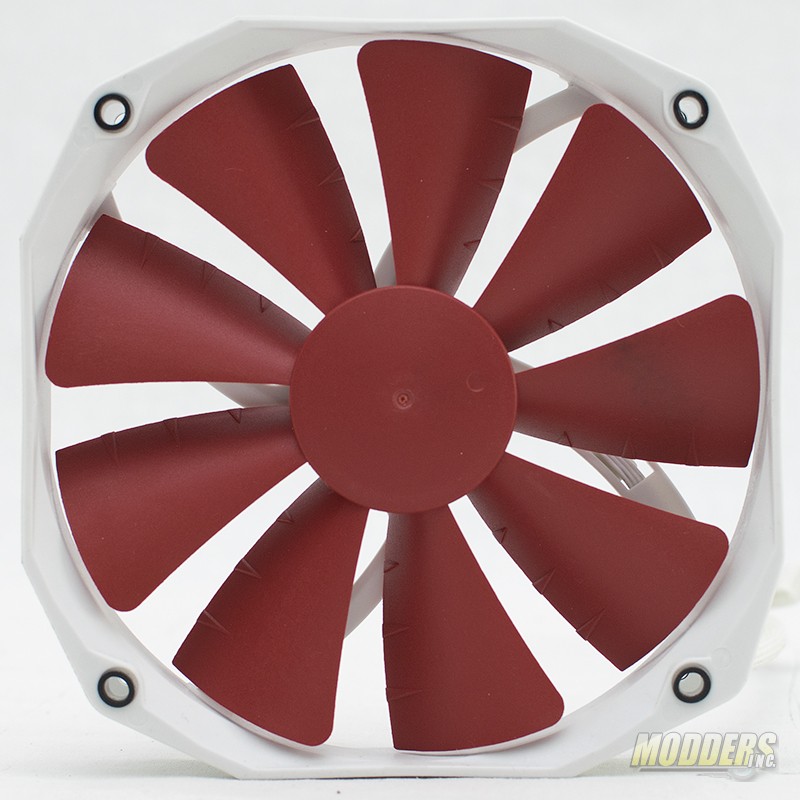

DSC_0109pThe fans that come with the Phanteks PH-TC14PE are the same fans that come with the PH-TC14CS.  These are 140x25mm fans and have a rating of 45.1-78.1 CFM at a noise level of 13.4-19 dBA.

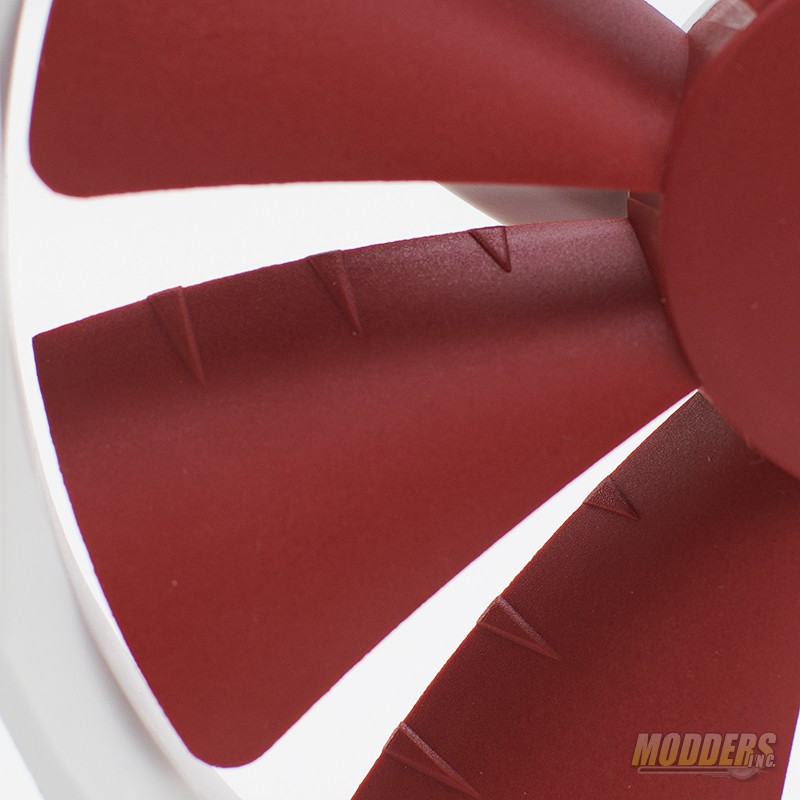

DSC_0110pThe Phanteks fans that come with the PH-TC12DX feature blades that use the Maelstrom Vortex Booster design. The design allows for increased airflow by creating a vortex behind the fan and producing less noise while doing so.



DSC_0112p DSC_0113p

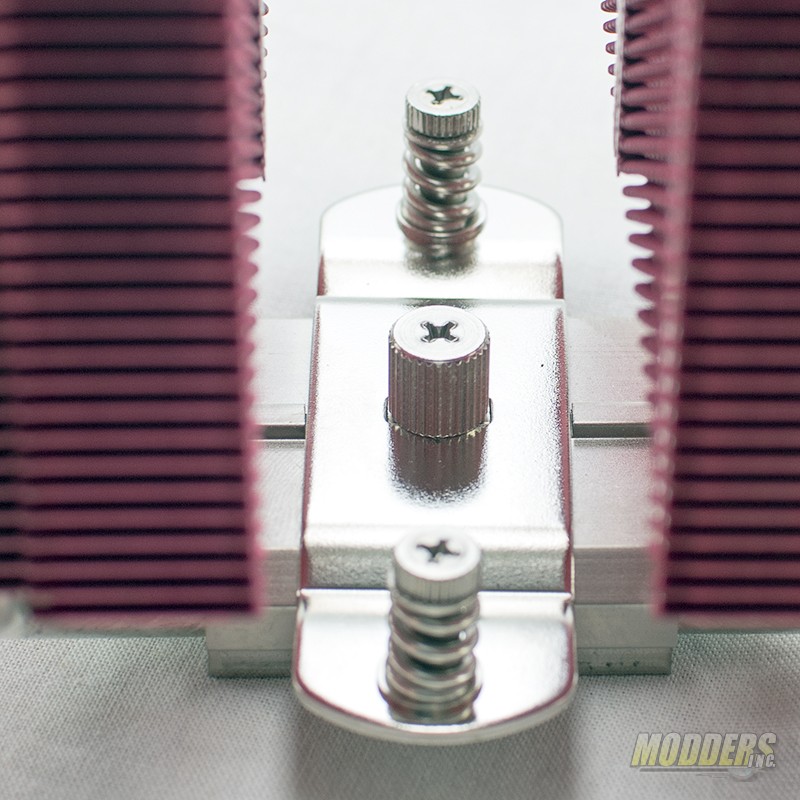

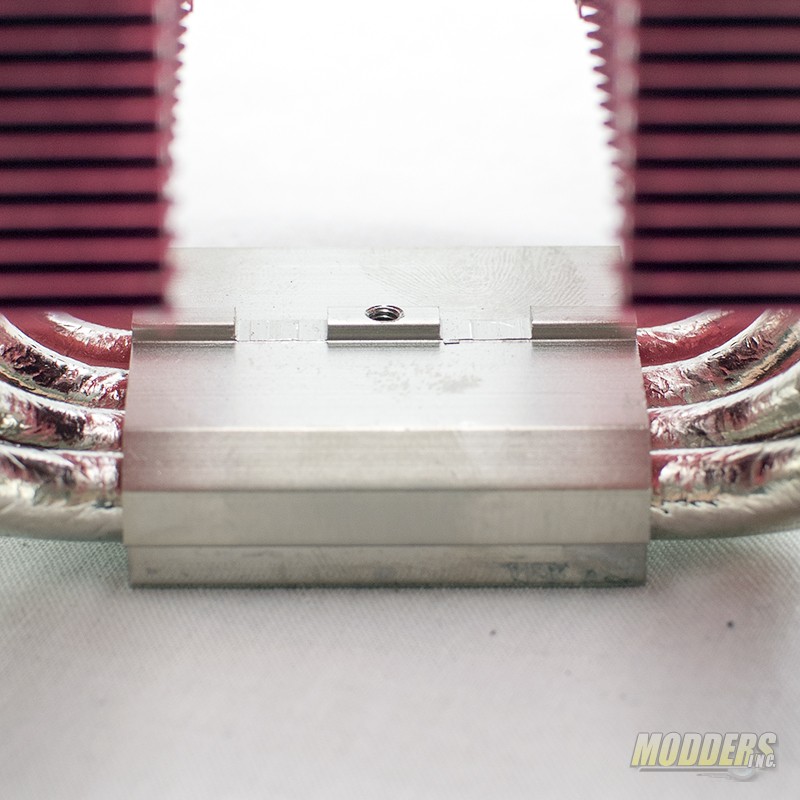

In order to install the Phanteks PH-TC14PE the cooler hold down bracket needs to be attached to the top of the base. This is the only additional step required as compared to installing the other two Phanteks coolers.

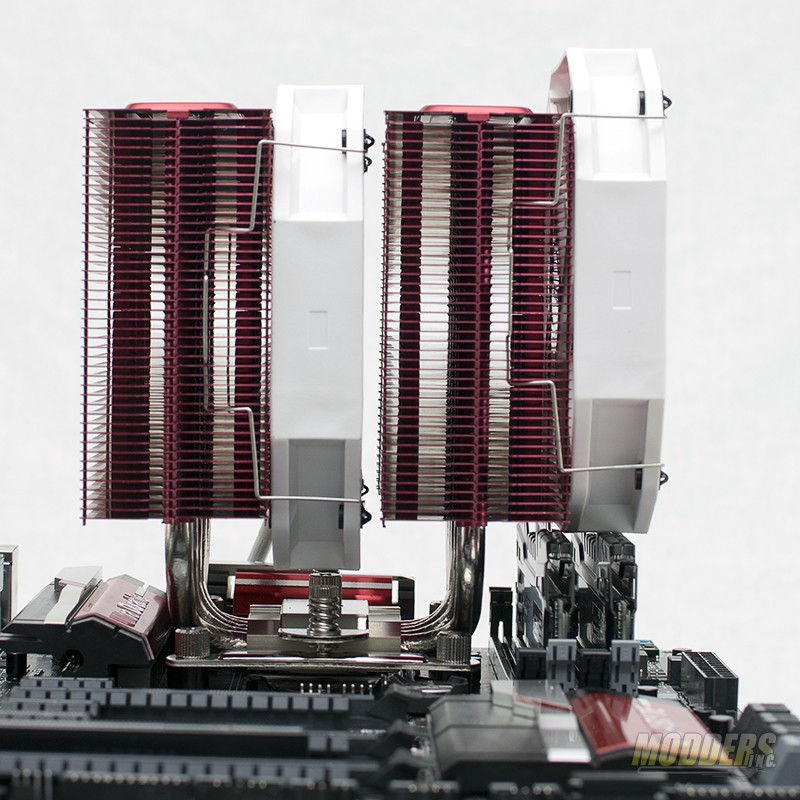

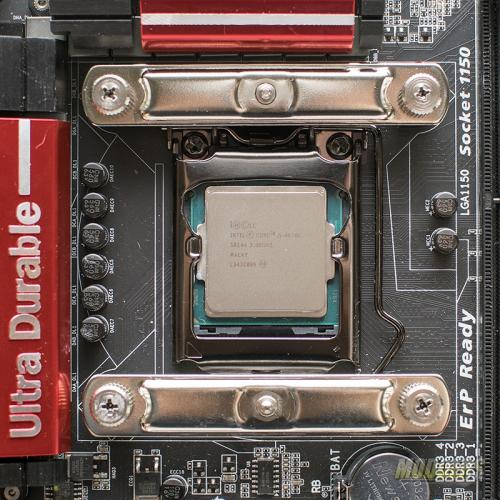

DSC_0117pThis cooler can be installed with either the fans facing front to back or top to bottom. I chose to use a front to back orientation for this test. To do so, the brackets needed to be installed around the CPU socket in the manner shown above. All three Phanteks coolers in this test use exactly the same mounting system and the parts are 100% compatible with each other.



DSC_0120pAfter securing the CPU cooler to the retention bracket it was time to install the RAM into the motherboard. I was a bit concerned that the memory that I am using was not going to fit. However, there is just enough clearance to install the Kingston HyperX Beast memory kit.

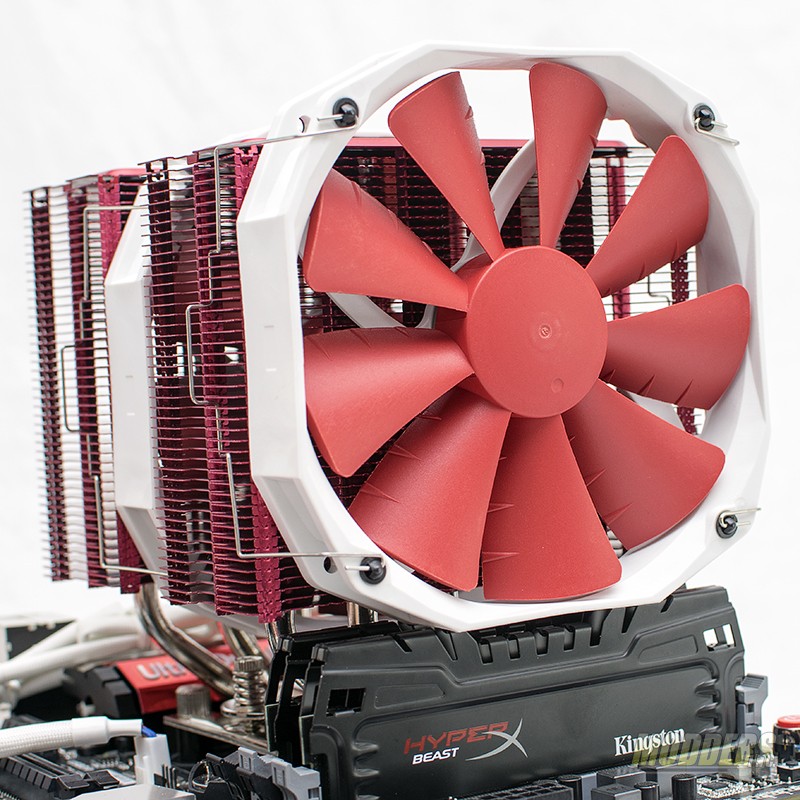

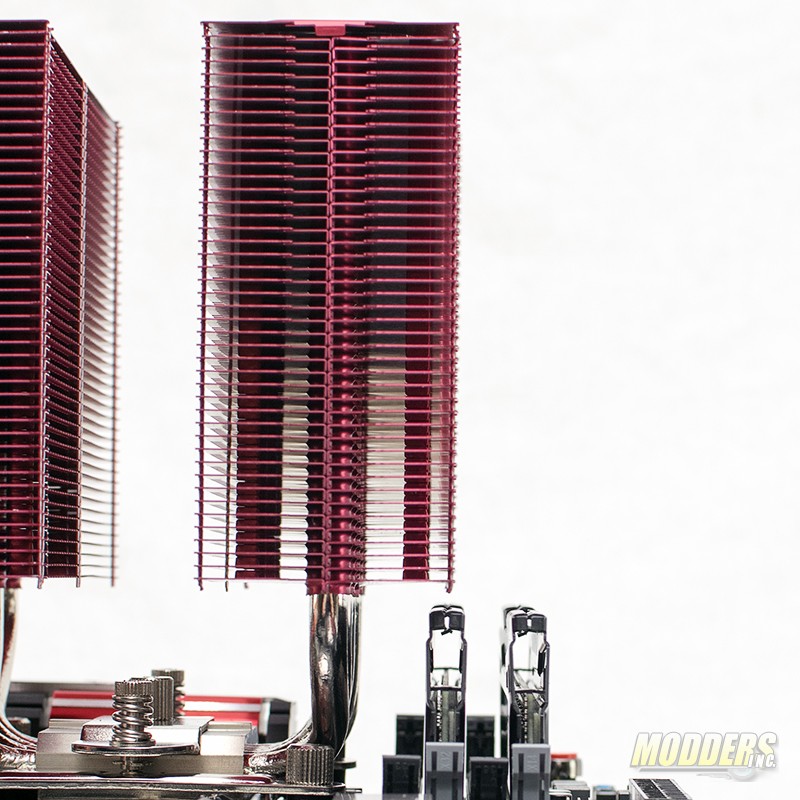

DSC_0123pWhile the memory fit under the heatsink, the fan is a different story.  As the picture above shows, the front fan is slightly higher than the center fan, due to the memory. However, this isn’t all bad. With the fans at different heights, the dead spot directly behind the fan hub has changed.



DSC_0124pFor this installation I choose to install the fans in a push/push configuration. One fan is pushing air through tower one and the other is pushing through tower two. One thing to note here. The fans that came with our kit are 4 pin PWM fans. There was a splitter that was shipped that was a 3 pin splitter. The instructions say to plug each fan into the splitter then plug the splitter into the PWM adapter. However, with the parts included in this kit that turned out to be impossible. In order to use the fans, I used the PWM splitter that was included in the Phanteks PH-TC12DX.
