Twelve CPU Air Cooler Roundup

« Page 10 | Page 12 »

BeQuiet! Shadow Rock 2

Be Quiet! is well known through Europe. Their products have won countless awards. In 2013 Be Quiet started bringing their products into the U.S. market and continued to win awards. The Be Quiet Shadow Rock 2 is a massive square tower cooler that features four 8mm heatpipes.



Model SHADOW ROCK 2
Overall dimensions without mounting material (L x W x H), (mm) 147 x 122 x 160
Total weight (kg) 1.12
TDP (W) 180
Socket compatibility Intel: LGA 775 / 1150 / 1155 / 1156 / 1366 / 2011AMD: 754 / 939 / 940 / AM2(+) / AM3 (+) / FM1 / FM2 (+)
Fan model, number be quiet! quality fan
Anti vibration fan fixing
Overall noise level (dB(A)) @ 50/75/100% (rpm) 15.3 / 19.8 / 25.4
Dimensions (L x W x D), (mm) 122 x 122 x 160
Number of fins 51
Fin material Aluminum
Base material Copper
CPU contact surface CNC Machined
Heatpipe number, Diameter (mm) 4 / 8
Fan dimensions (mm) 120 x 120 x 25
+SilentWings
Speed @ 100% PWM (rpm) 1600
Airflow @ 12V (cfm, m3/h) 51/87
Air Pressure @ 12V (mm H2O) 1.40
Bearing Type Rifle
Motor Technology 4-pole fan motor
Rated Voltage (V) 12
Input current (A) .24
Input Power (W) 2.88
Connector 4-pin PWM
Cable length (mm) 220
Lifespan (h /25°C) 80,000
Thermal grease (g) 1
Backplate mounting set Y
User manual languages DE,EN,FR,ES,PL
Warranty (Years) 3
International hotline/free of charge Y
Article Number BK013
Range Shadow Rock
EAN Code 4260052183311
Dimensions, package (L x W x D), (mm) 190 x 170 x 145
Gross weight, package (kg) 1.47
Pieces per packaging unit 12
Dimensions, shipping box (L x W x D), (mm) 450 x 420 x 360
Gross weight, shipping box (kg) 18.90
MSRP (USD) 49.99



DSC_0242 DSC_0244

The packaging for the Be Quiet! Shadow Rock 2 is quite simple. The color scheme they chose to use is not flashy, but does grab the attention and is elegant. The front of the box shows a nice picture of the CPU cooler housed inside. The rear of the box has a line art drawing of the cooler and lists out the features and specifications.

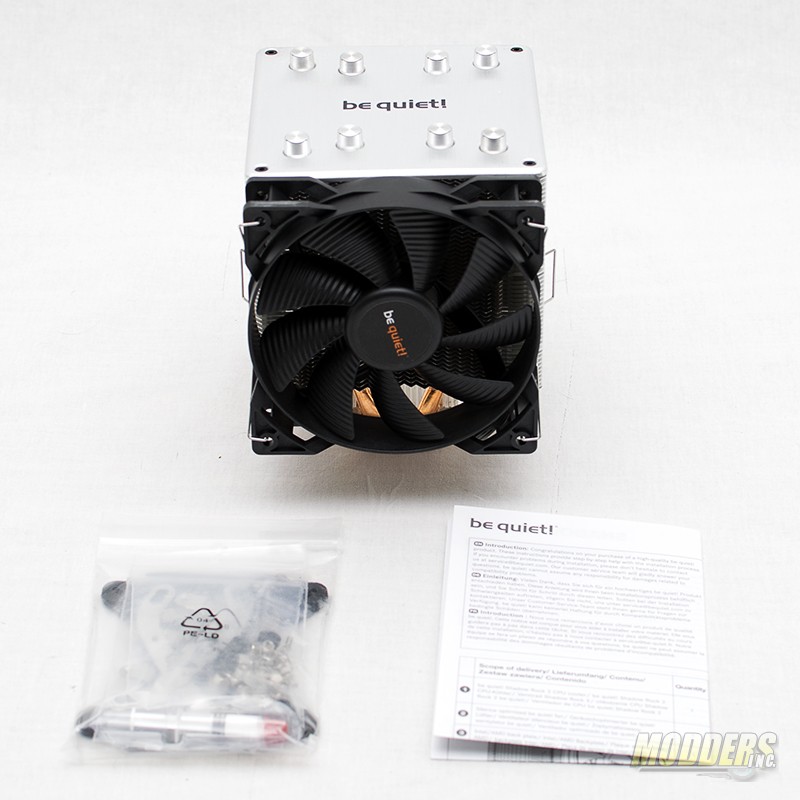

DSC_0247The contents of the Be Quiet! Shadow Rock 2 is very well packaged. There’s not a lot of wasted space. Included in the package are the mounting brackets to get the cpu cooler mounted to almost any modern motherboard.

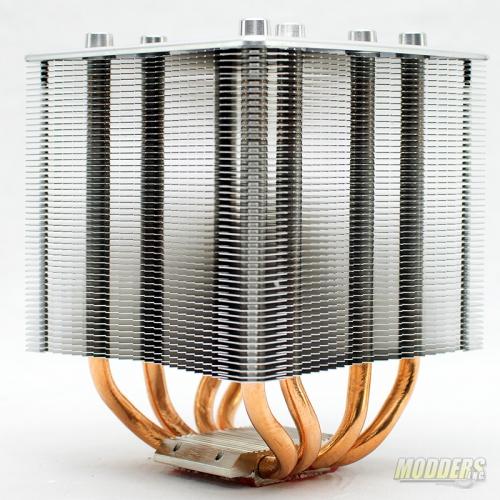

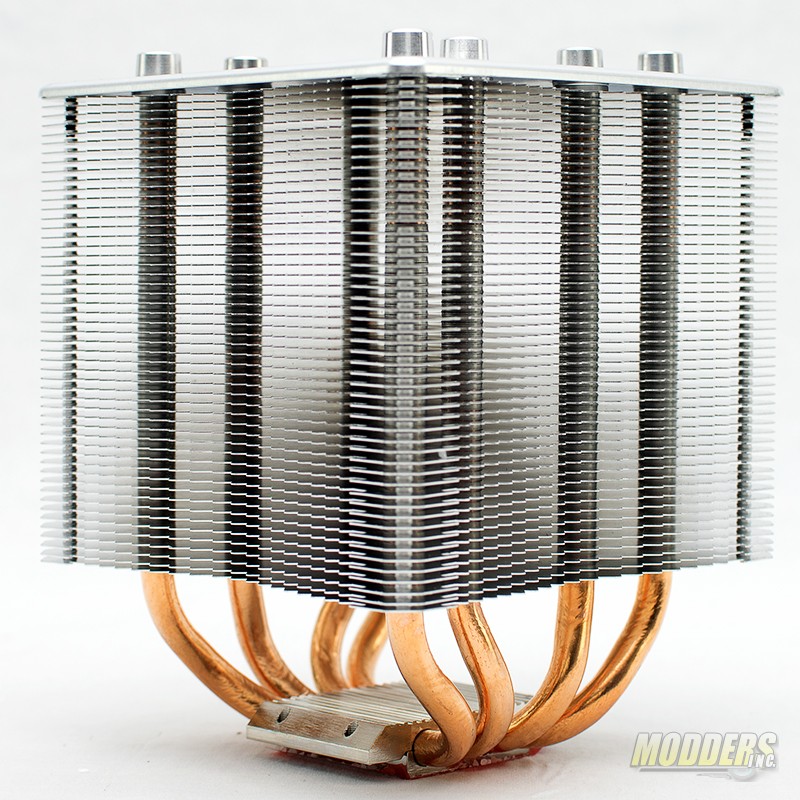

DSC_0249The Be Quiet! Shadow Rock 2 is a large cooler but at the same time it is lighter than some of the other coolers in this round up. There are four 8mm copper heat pipes that run through the tower portion of the cooler.

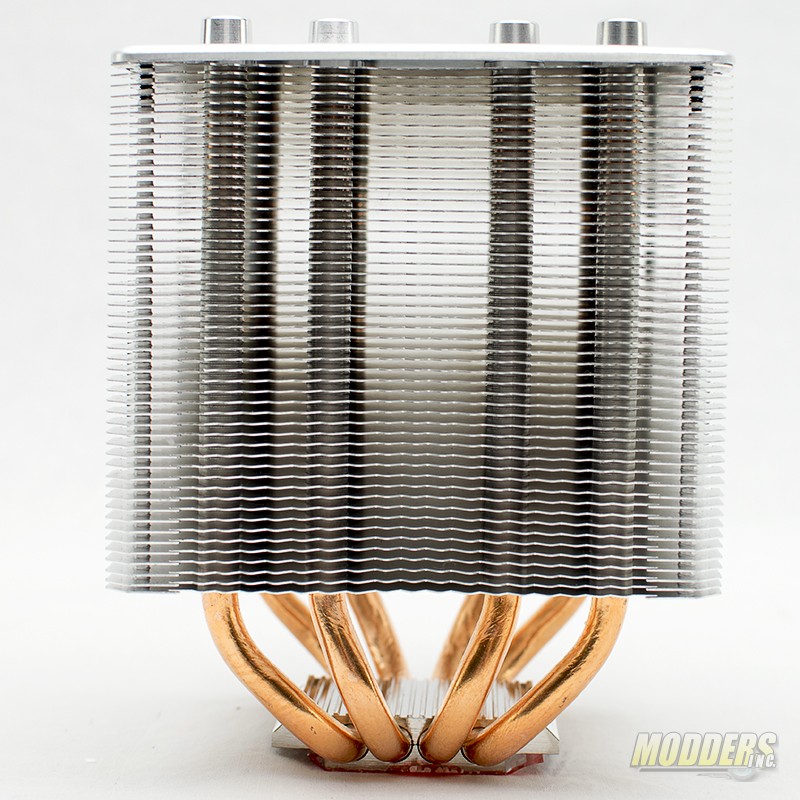

DSC_0251Fin spacing is good on the Shadow Rock two and visibility through the cooler is good. The 51 aluminum fins are pressed onto the heat pipes and are not soldered.

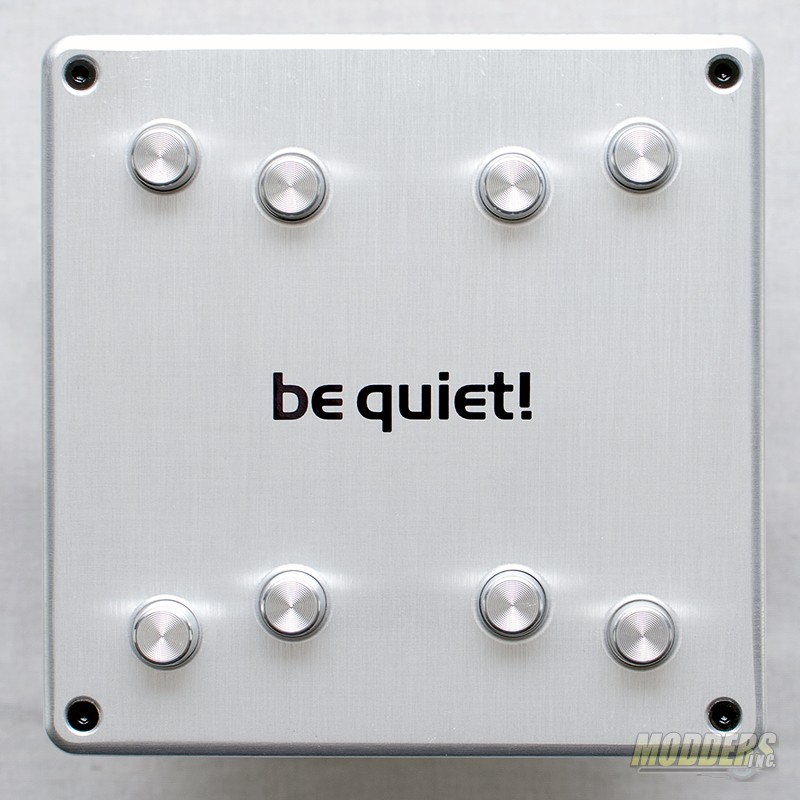

DSC_0252The Shadow Rock 2’s tower is square and measures in at 122x122x160 mm. The top of the cooler is nicely finished with an aluminum cover and machined caps for the heat pipes.

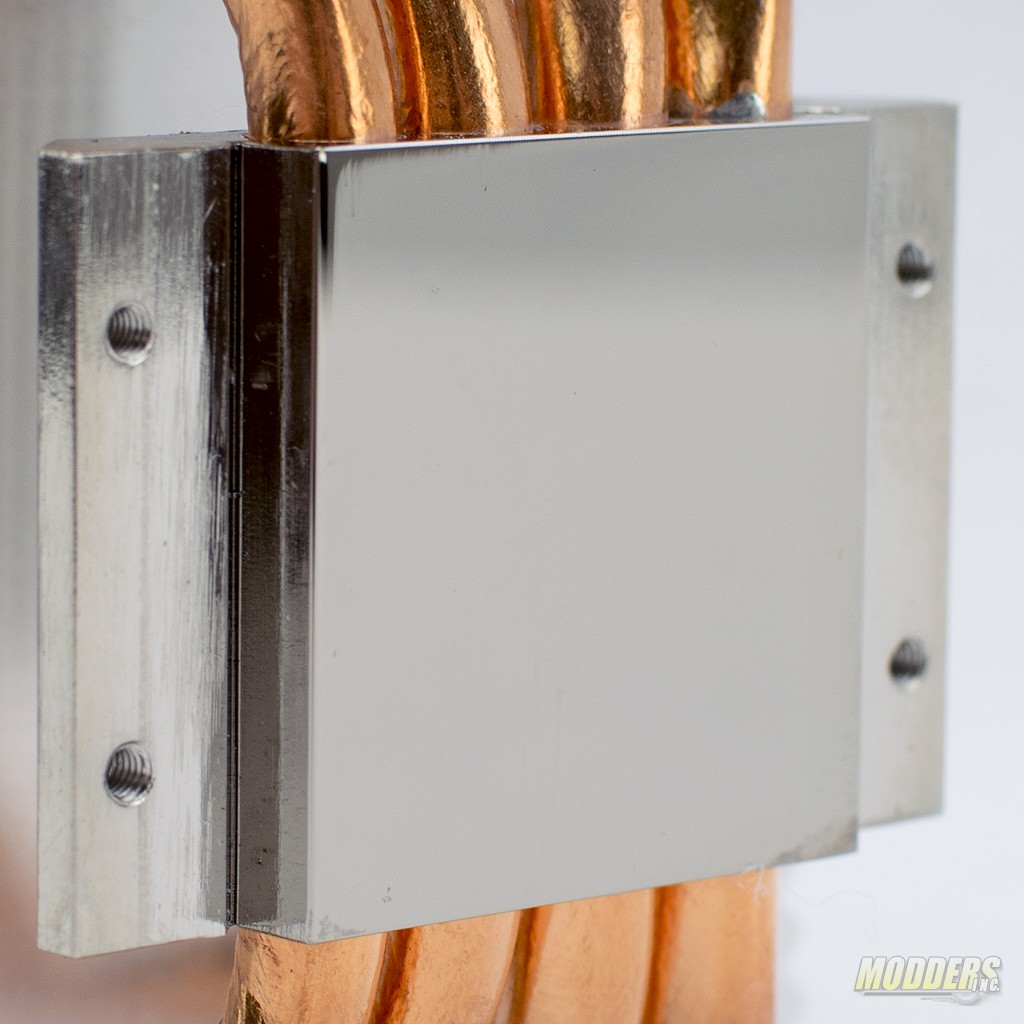

DSC_0255The base of the CPU cooler is highly machined and polished to a mirror finish. The copper heat pipes are soldered into the copper base which is plated in nickel.

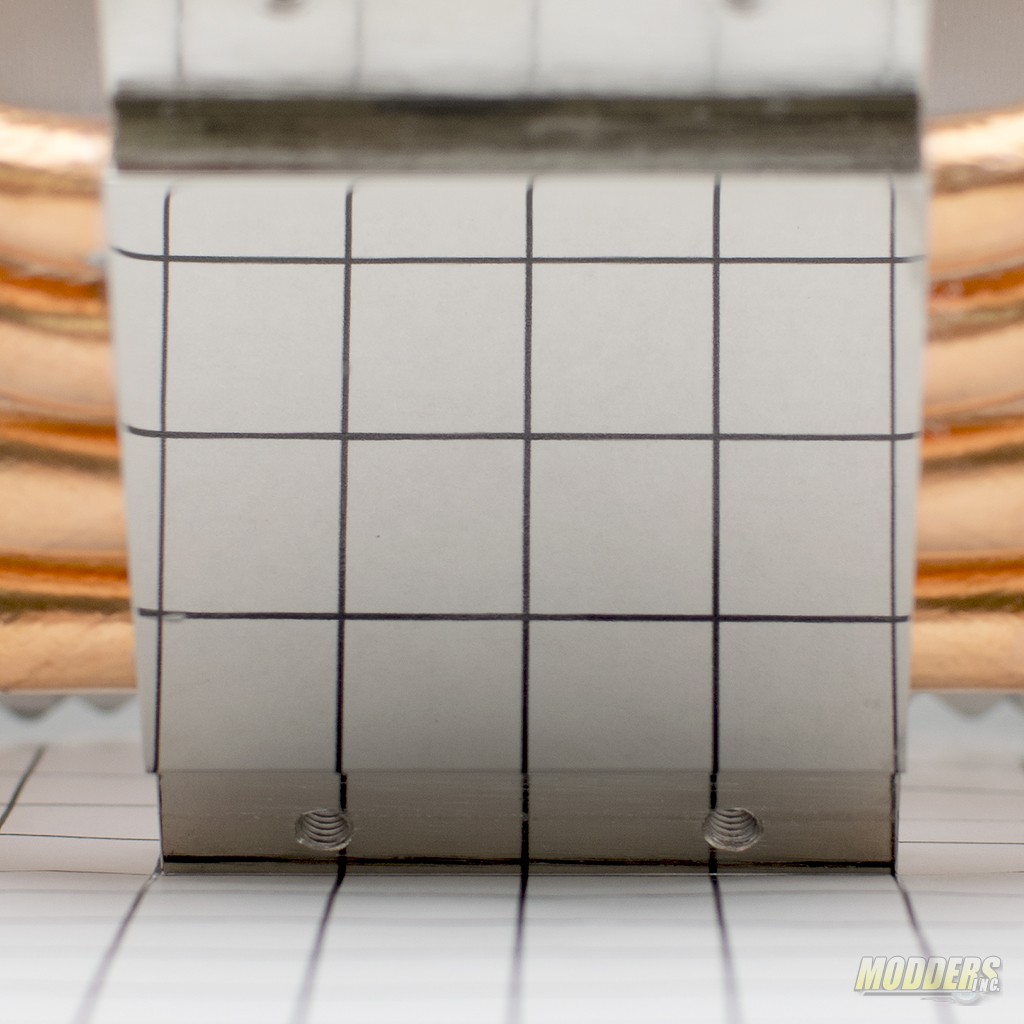

DSC_0256Here is an absolutely perfect mirror finish on the base of the Be Quiet! Shadow Rock 2. There is only as very slight amount of distortion at the extreme edges of the base and the reflected lines and sharp and straight.

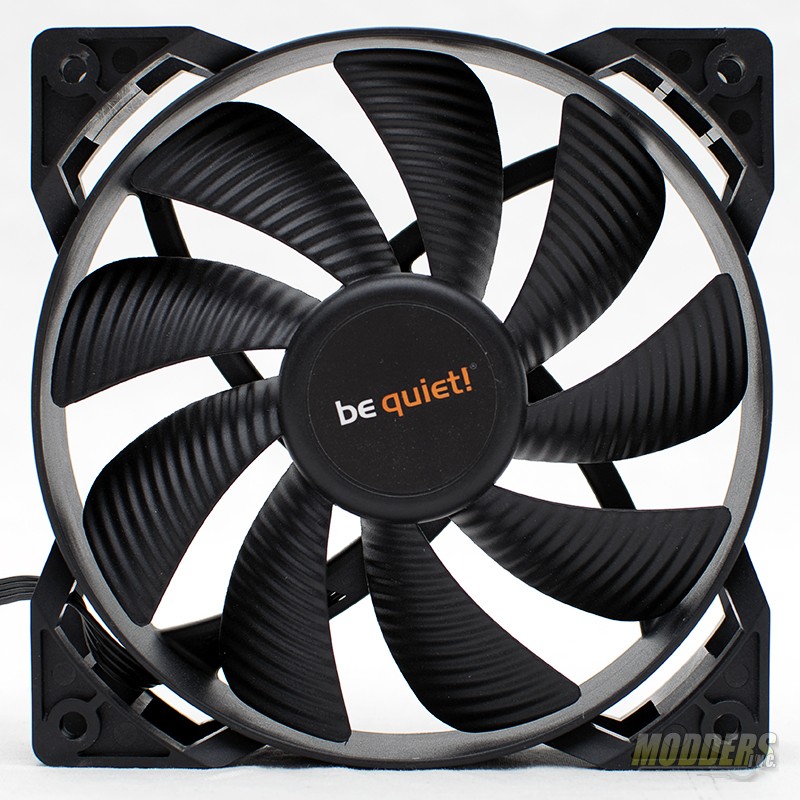

DSC_0263The fan that is included with the CPU cooler is the Be Quiet! Pure Wings 2 120mm. The fan measures in at 120x120x25mm and is a 4-pin PWM fan.

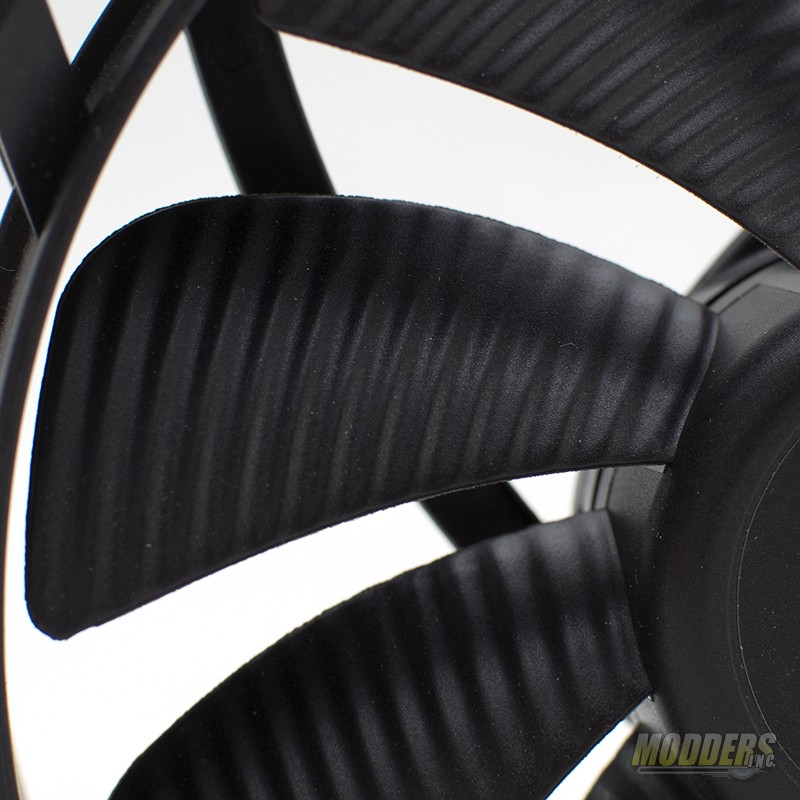

DSC_0262The blades of the fan feature a very unique design. There are slots throughout the entire length of each of the nine blades. This is designed to reduce operating noise and increase airflow. The fan is rated at 1500 RPM (Max) and flows 51.4 CFM (Max) while maintaining a noise level of 19.2 dBA.

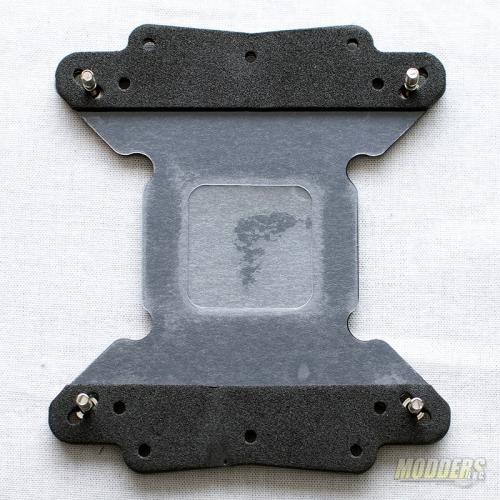

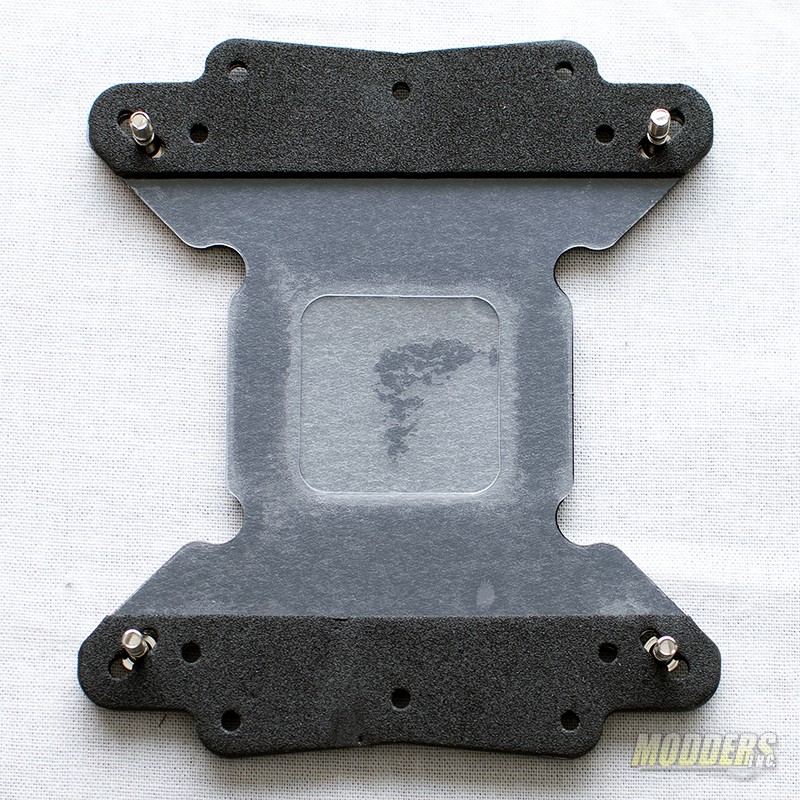

DSC_0266Installation of the Be Quiet! Shadow Rock 2 was interesting, to say the least. The first step is to assemble the back plate. According to the instructions, the screws (not bolts) need to be installed in the manner shown above.

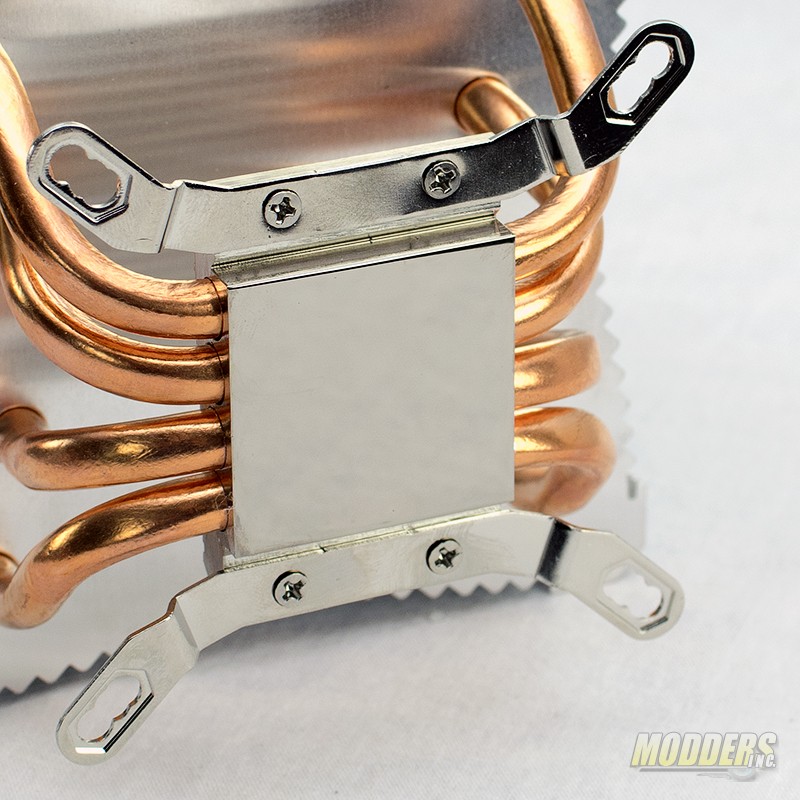

DSC_0272The next step to get the Shadow Rock 2 installed is to attach the retention brackets. A set of four tiny screws are included and it is as simple as screwing the bracket to the base. Make sure to have the bracket in the proper orientation. If not damage to the CPU may occur.

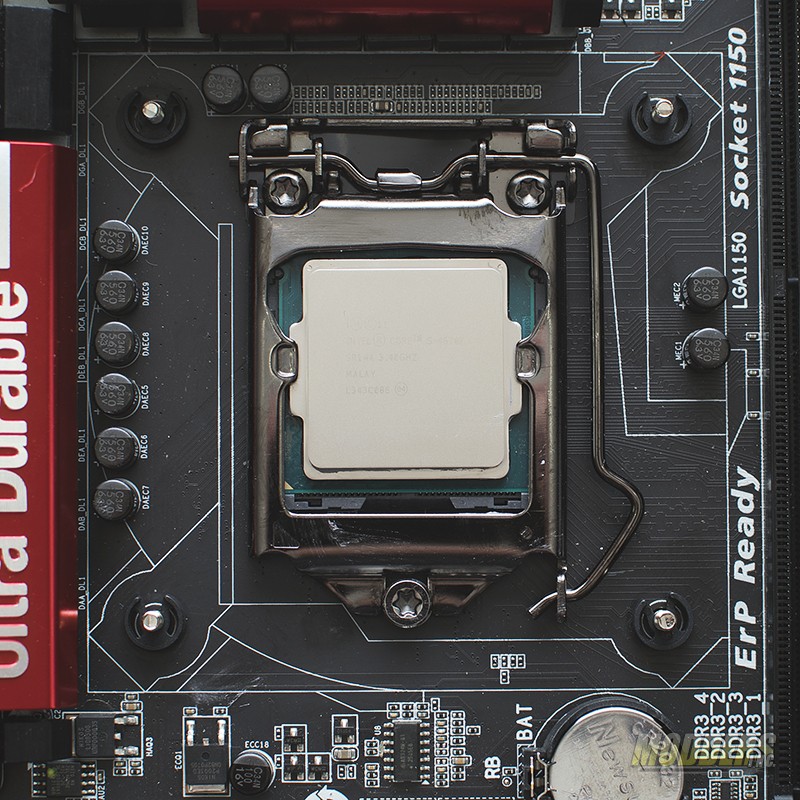

DSC_0273bNext after the previous to parts have been assembled, put the back plate on the motherboard. Then slide each of the included plastic clips over the screws that stick out from the motherboard. These help keep the screws from falling out during assembly.

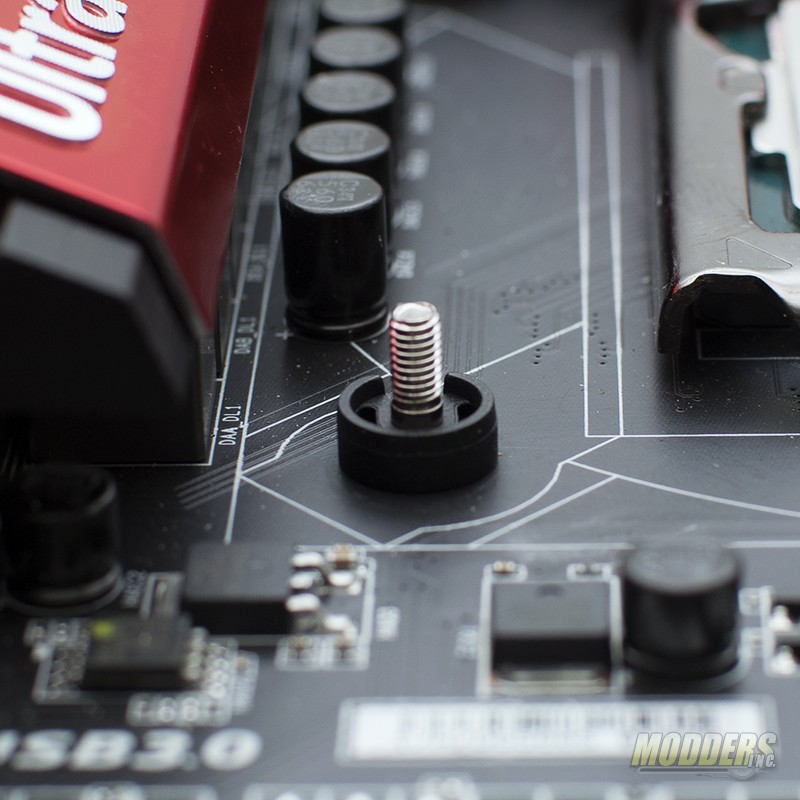

DSC_0277bThere is a small notch just under the threads where this clip should snap into place.

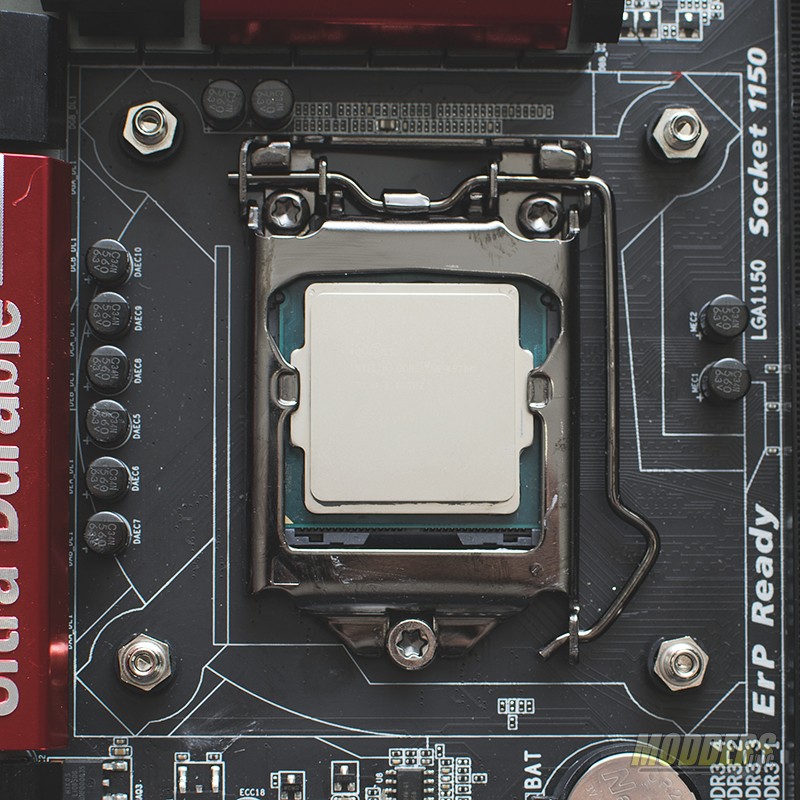

DSC_0278bNext up screw the stand offs to the screws at each corner.

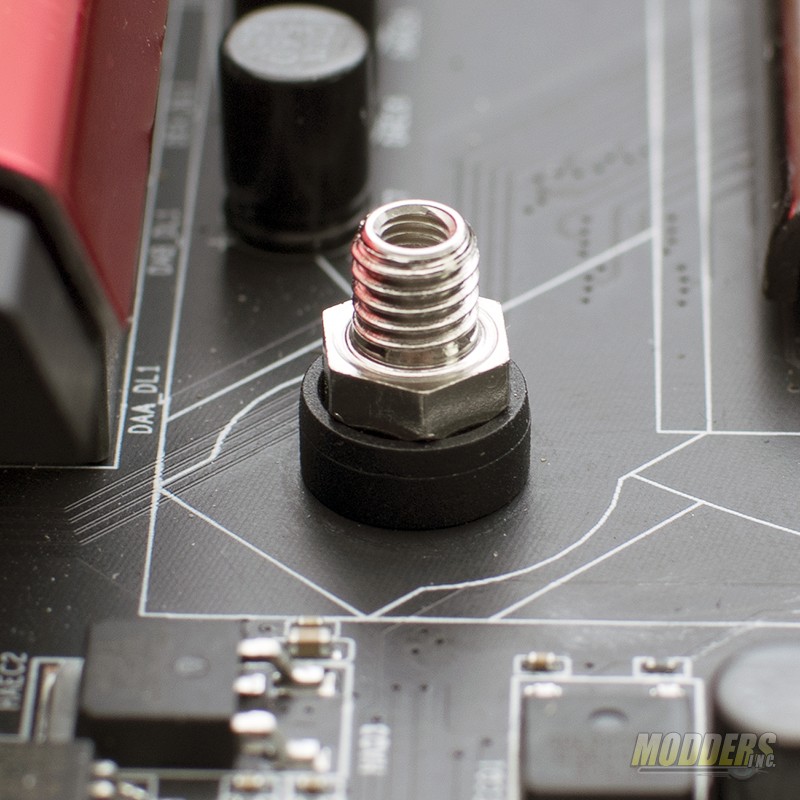

DSC_0279bHere is a close up of the correct stand off. There are two different sets of stand offs. For the 1150 board the stand offs are hollow with threads inside. The solid stand offs are for the LGA 2011 boards.

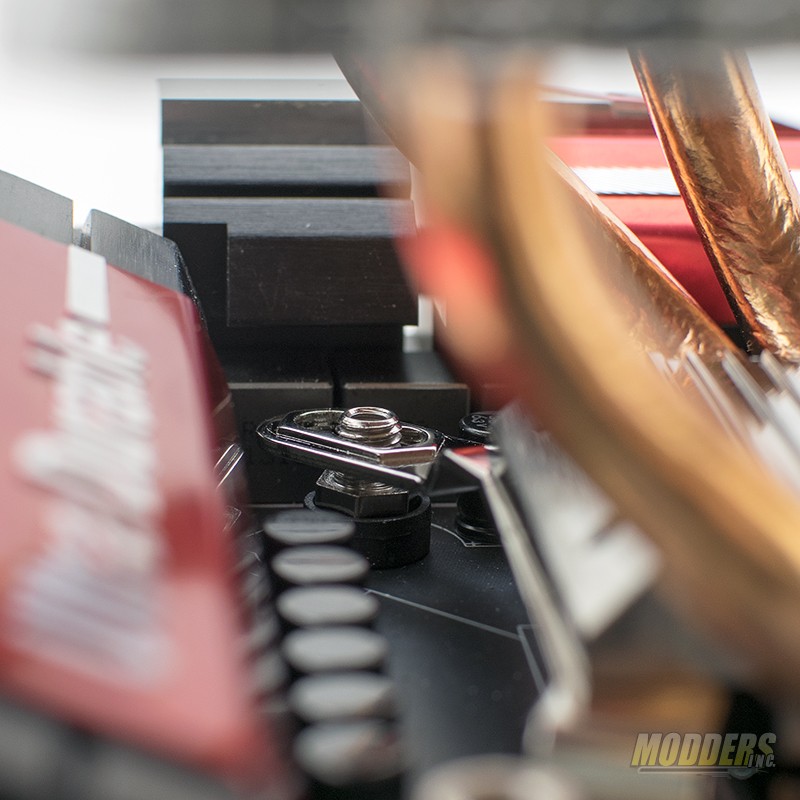

DSC_0281bThe next step in the installation process is to install the assembled CPU cooler onto the assembled motherboard. Easier said than done. If the motherboard has heatsinks around the CPU socket, it will be a tough fight to get the upper nut installed on the stand off as there is little room. Best bet, go get a small socket. After fiddling around for five or ten minutes I was able to get the nut to bite just a bit. Using a screw driver on the back of the motherboard I was able to tighten the nut. I was able to do they by holding the nut with the included wrench and turning the screw.

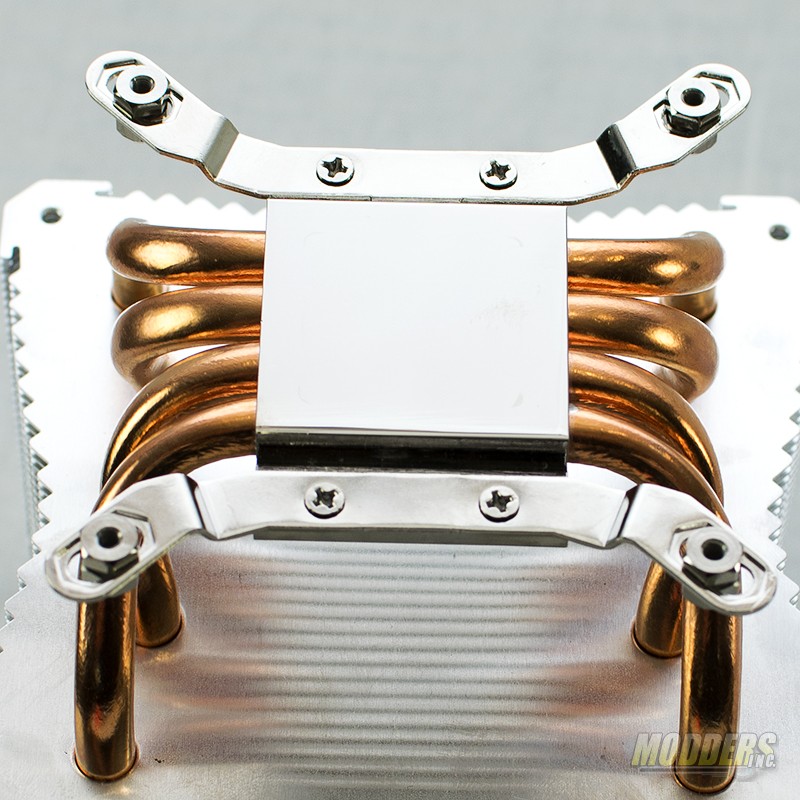

DSC_0323Actually, the correct and easiest installation process is to attach the standoffs to the retention bracket as shown.

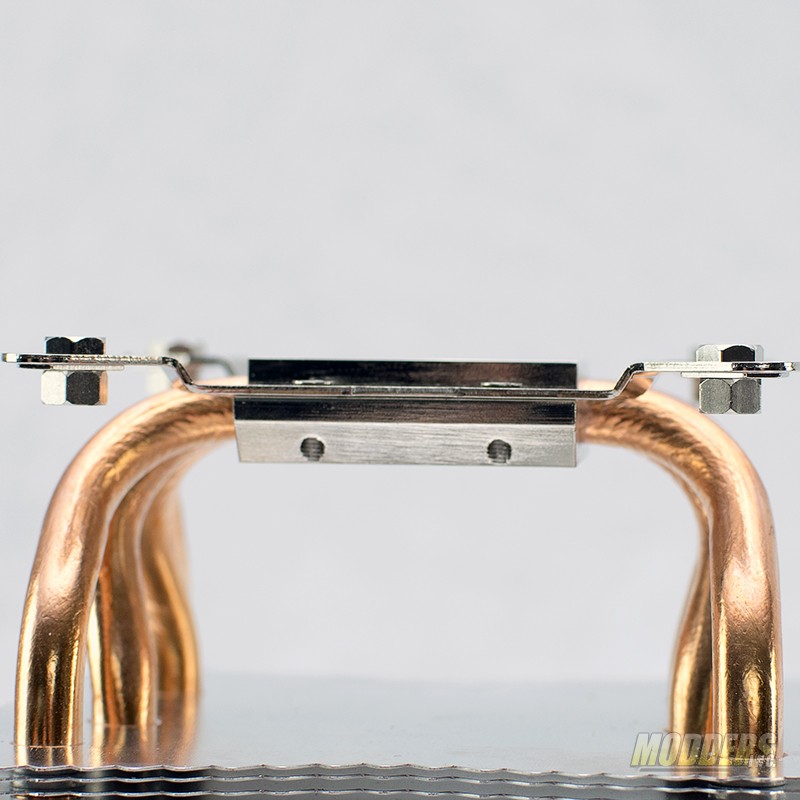

DSC_0326For our purposes, the standoffs will be installed in the number 2 slot on the retention bracket. Then place on the motherboard and tighten the screws on the back of the retention plate.  Depending on the case, a second set of hands may be needed to help hold the CPU cooler in position.

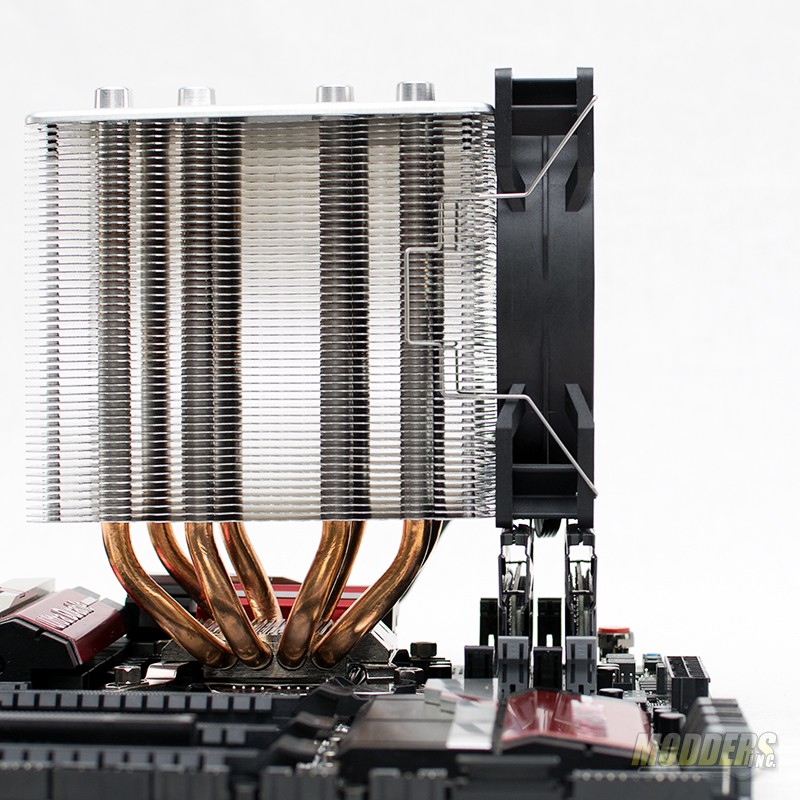

DSC_0284This cooler is massive. The CPU cooler does overhang the 1st memory slot but some memory will just barely clear. The HyperX Beast kit that we are using did just clear. Adding the fan however does overhang all four slots. The fan can be moved up to accommodate taller memory modules.

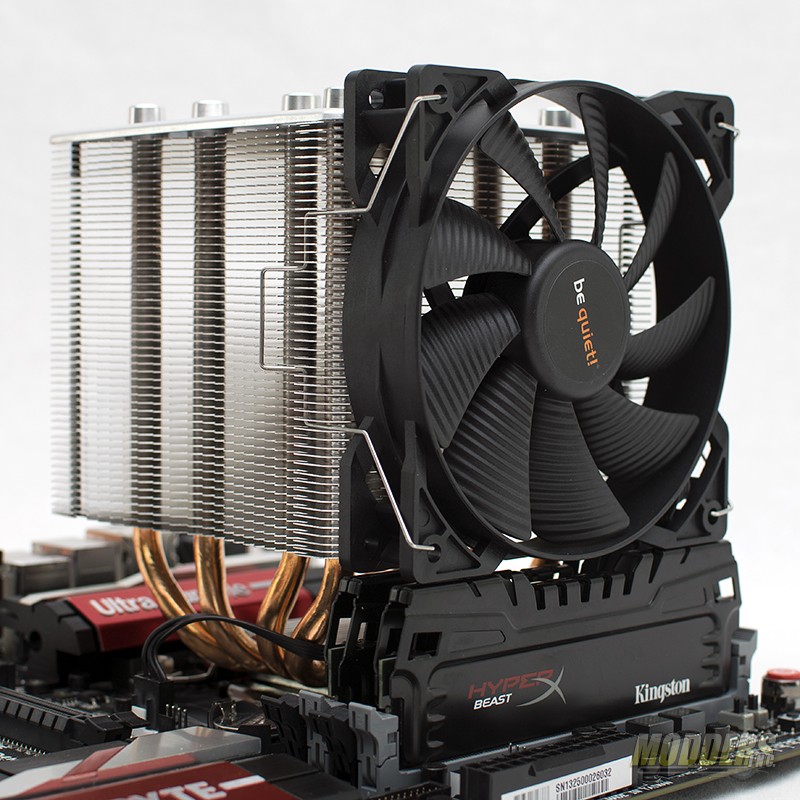

DSC_0285bAfter a little bit of a battle and not the smoothest install I’ve done, the Be Quiet! Shadow Rock 2 is installed atop the motherboard and ready for the test bench.



Next to the test bench is the BeQuiet! Dark Rock Pro 3.
