HyperX Fury 2666MHz CL15 HX426C15FBK2 2x8GB DDR4 Review: Fast and Furious

Test Setup and Benchmarks »

khx400If current prices are any indication, DDR4 is the new normal. Not only are DDR4 supplies steadily increasing, the prices have also become progressively much more affordable ever since the few months leading to the release of Intel’s Skylake CPUs. This also means that the DDR4 market is becoming competitive and the winner in the end is the consumer as more choices and affordability means upgrading to the latest Intel platform is within reach for many (motherboard compatibilities notwithstanding). For their part, Kingston’s HyperX has beefed up their Fury, Savage and Predator product lines to cover all range of Skylake users with the Fury line representing the mainstream segment.

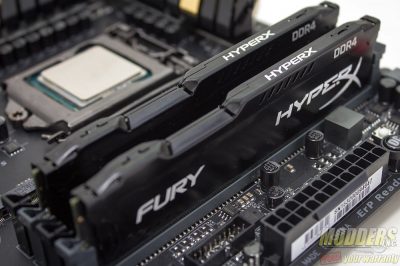

Outfitted in black aluminum heatspreaders, the HyperX Fury DDR4 is available in dual-channel and quad-channel kits for Z170 and X99 motherboards. Capacities range from 4GB to 64GB in kits of one through eight. The 1.2V HyperX Fury speed range starts at the 2133MHz (CL14) JEDEC base with faster 2400MHz and 2666MHz XMP modules (CL15) available.

[sc:sponsor sponsor=”HyperX” product_link=”http://www.kingston.com/dataSheets/HX426C15FBK2_16.pdf” product_name=”FURY 2666MHz DDR4 Non-ECC CL15 DIMM 16 DDR4 2400 MT/s (PC4-19200) HX426C15FBK2/16″ product_price_link=”http://amzn.to/1K3wtJ8″ product_price=”$132″ ]

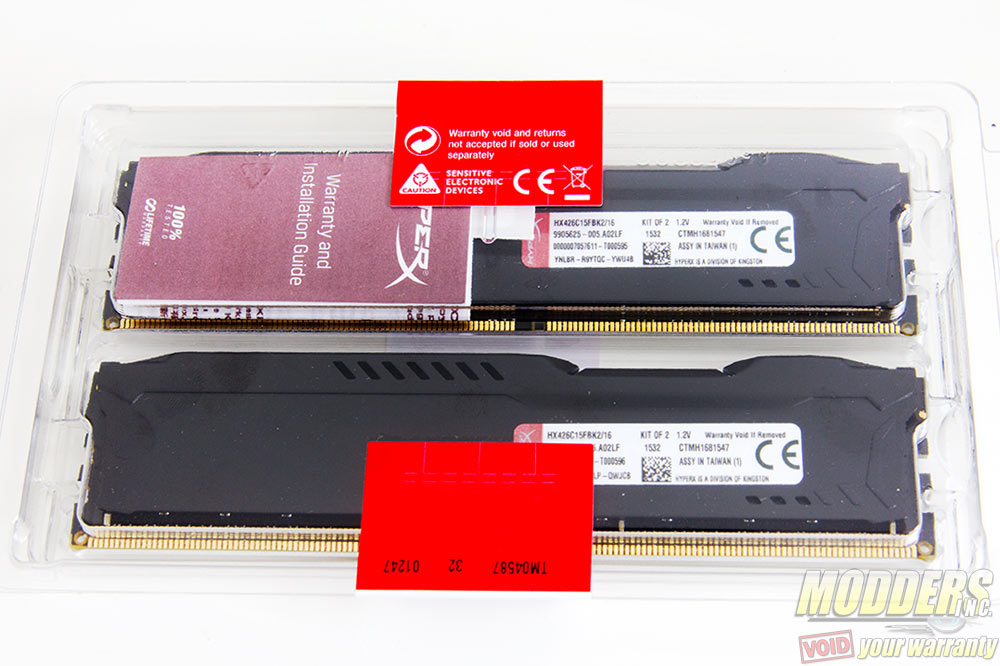

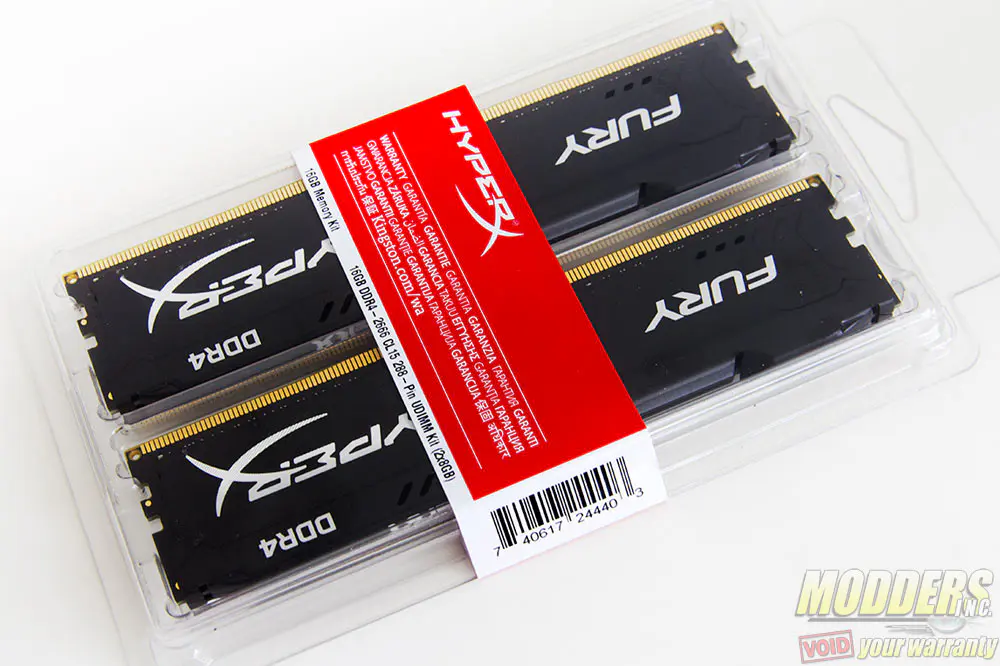

The HyperX Fury packaging is in a completely see through blister-pack unlike previous Kingston HyperX DDR3 modules which had a black backing. Security sticker steal wraps the side edges and from the back view, the warranty and installation guide fold-out sheet is visible.

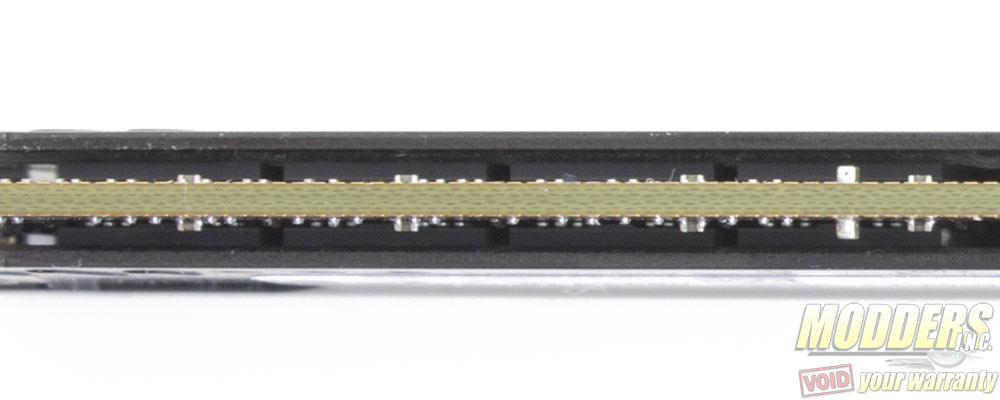

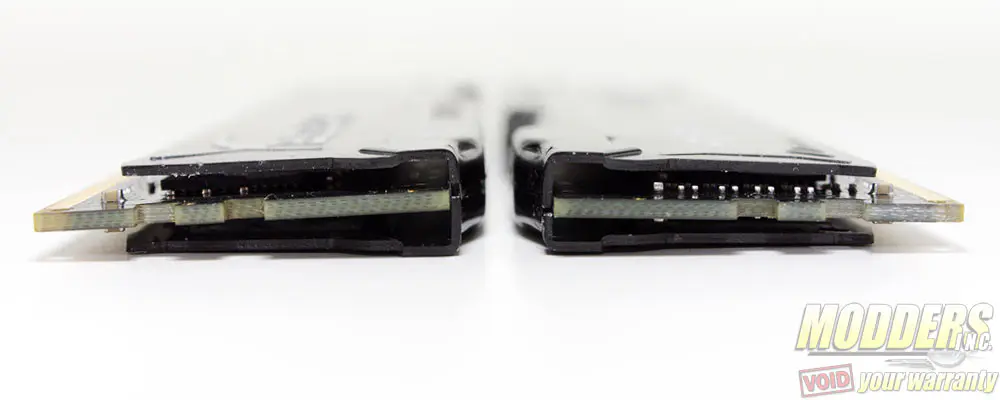

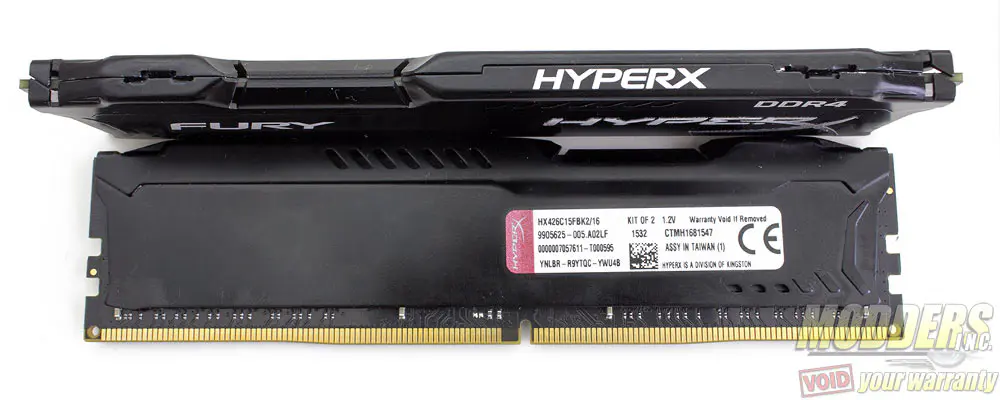

DDR4 runs cooler with lower 1.2V default voltage compared to DDR3 so it is nice to see more reasonably sized heatsinks. The total height of the HyperX Fury module is only 34.04mm and is 7.08mm thick with a standard length of 133.35mm. As as also standard of DDR4, the connector pins closer to the edge slope up compared to the middle part which are longer. This is so that uneven pressure is minimized during installation.  The HyperX logo on the side is embossed while the other texts are printed white on the black heatsink. As shown on the label, this is a 2666MHz dual-channel kit.

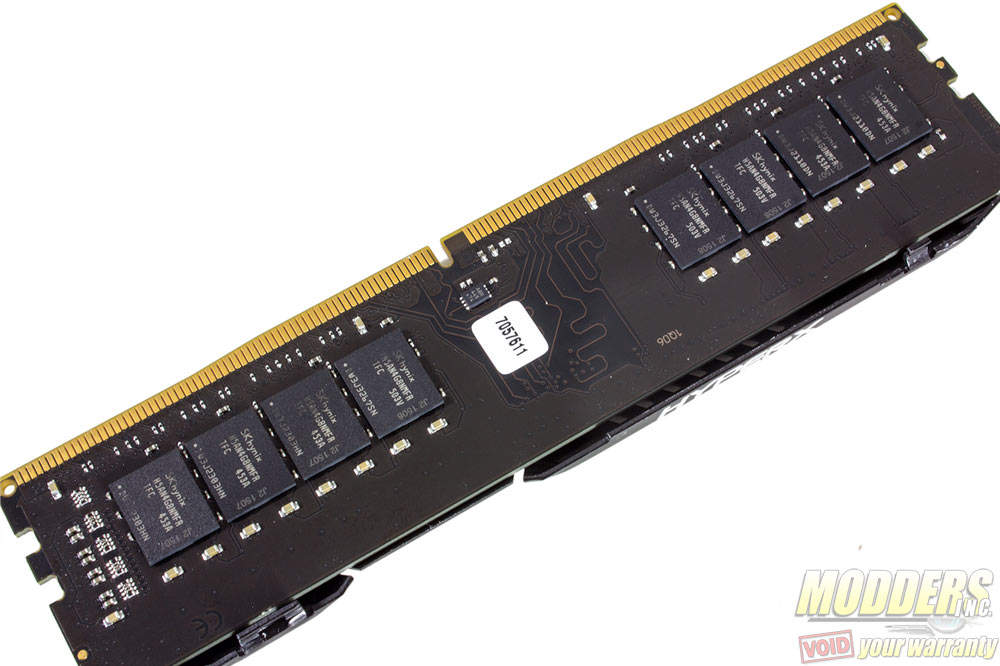

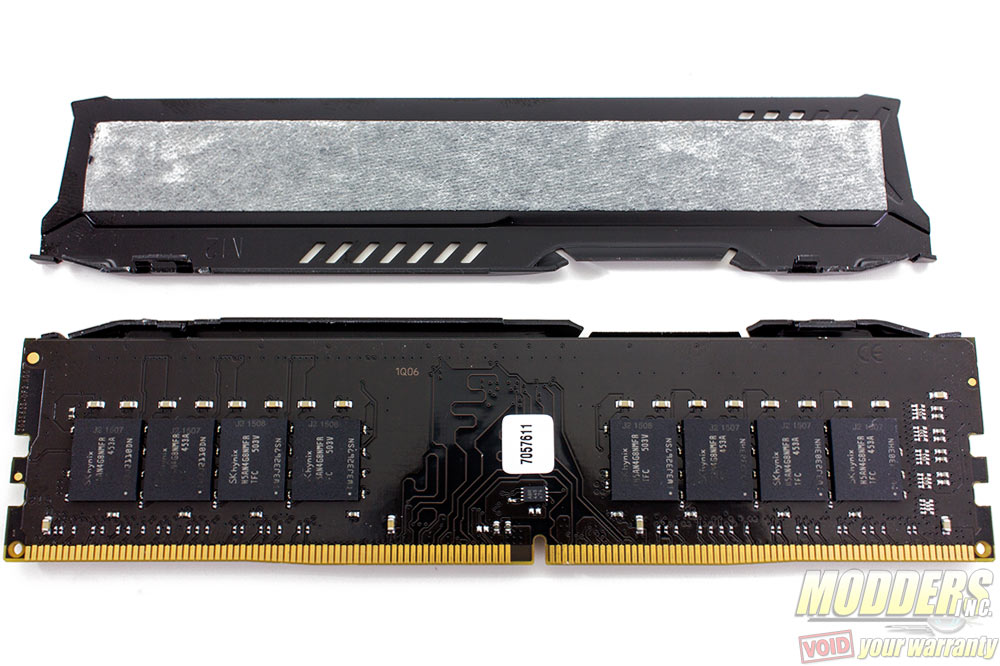

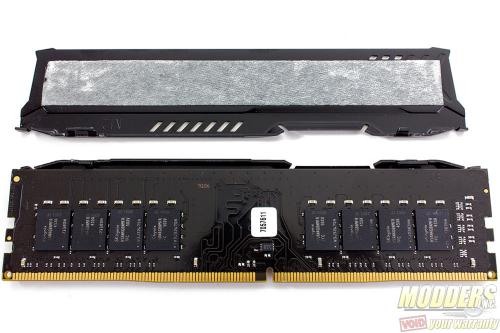

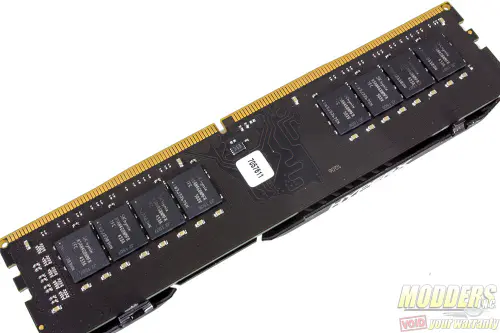

The view from the bottom reveals that the HyperX Fury is a dual-sided module and removing the heatspreader reveals a SK Hynix H5AN4G8NMFR 78-ball FBGA chips in 512 x 8 configuration per side on a black PCB measuring 133.35 x 31.25mm. There are no screws securing the heatspreader to each other and only attaches to the module via thermal adhesive tape on the side. The two piece heatspreader also slide on to each other on the top although the adhesive is the primary bond that keeps it together so you would need to replace this when modding it.


The EEPROM containing the SPD and XMP data is located at the center and here are some of the relevant information inside (via Thaiphoon Burner):

Module Manufacturer: Kingston
Module Part Number: KHX2666C15D4/8G
SDRAM Manufacturer: Hynix
Module Manufacturing Date: Week 32, 2015
Module Manufacturing Location: Keelung, Taiwan
Module Serial Number: A0081A64h
Lot Number: 0000007057611
Module PCB Revision: 00h
SDRAM Stepping: Undefined
Fundamental Memory Class: DDR4 SDRAM
Module Speed Grade: DDR4-2666
Base Module Type: UDIMM (133.35 mm)
Module Capacity: 8192 MB
Reference Raw Card: B1
Initial Raw Card Designer: Micron Technology
Module Nominal Height: 31 < H <= 32 mm
Module Thickness Maximum, Front: 1 < T <= 2 mm
Module Thickness Maximum, Back: T <= 1 mm
Number of DIMM Ranks: 2
Address Mapping from Edge Connector to DRAM: Mirrored
SDRAM Device Package: Standard Monolithic
SDRAM Device Package Type: 78-ball FBGA
SDRAM Device Die Count: Single die
Signal Loading: Not specified
Number of Column Addresses: 10 bits
Number of Row Addresses: 15 bits
Number of Bank Addresses: 2 bits (4 banks)
Bank Group Addressing: 2 bits (4 groups)
SDRAM Device Width: 8 bits
Programmed SDRAM Capacity: 4 Gb
Calculated SDRAM Capacity: 4 Gb
SDRAM Page Size: 1 KB
Primary Memory Bus Width: 64 bits
Memory Bus Width Extension: 0 bits
SDRAM VDD 1.20 V operable/endurant: Yes/Yes
Fine Timebase: 0.001 ns
Medium Timebase: 0.125 ns
CAS Latencies Supported: 9T, 11T, 12T, 13T,
14T, 15T, 16T, 17T,
SDRAM Minimum Cycle Time: 0.750 ns
SDRAM Maximum Cycle Time: 1.500 ns
Nominal SDRAM Clock Frequency: 1333.33 MHz
Minimum SDRAM Clock Frequency: 666.67 MHz
CAS# Latency Time (tAA min): 11.250 ns
RAS# to CAS# Delay Time (tRCD min): 12.750 ns
Row Precharge Delay Time (tRP min): 12.750 ns
Active to Precharge Delay Time (tRAS min): 26.250 ns
Act to Act/Refresh Delay Time (tRC min): 45.000 ns
Normal Refresh Recovery Delay Time (tRFC1 min): 260.000 ns
2x mode Refresh Recovery Delay Time (tRFC2 min): 160.000 ns
4x mode Refresh Recovery Delay Time (tRFC4 min): 110.000 ns
Short Row Active to Row Active Delay (tRRD_S min): 5.250 ns
Long Row Active to Row Active Delay (tRRD_L min): 5.250 ns
Long CAS to CAS Delay Time (tCCD_L min): 5.250 ns
Four Active Windows Delay (tFAW min): 22.500 ns
Maximum Active Window (tMAW): 8192*tREFI
Maximum Activate Count (MAC): Unlimited MAC
SDRAM Post Package Repair: Not supported
Soft Post Package Repair: Not supported
Module Thermal Sensor: Not Incorporated
Manufacturer: Microchip
Model: MCP98244
Revision: 01h
Temperature Monitor Status: Active
Current Ambient Temperature: 28.250°C
Sensor Resolution: 0.2500°C
Accuracy at 75°C to 95°C: ±1°C
Accuracy at 40°C to 125°C: ±2°C
Open-drain Event Output: Disabled
10V of VHV on A0 pin: Supported
Negative Temperature Measurements: Supported
Interrupt capabilities: Supported
SMBus timeout period for TS access: 25 to 35 ms
SPD Revision: 1.0
SPD Bytes Total: 512
SPD Bytes Used: 384
SPD Checksum (Bytes 00h-7Dh): 038Dh (OK)
SPD Checksum (Bytes 80h-FDh): 356Fh (OK)
JEDEC DIMM Label: 8GB 2Rx8 PC4-2666-UB1-10
1333 MHz 18 17 17 35 60 7 7 7 30
1333 MHz 17 17 17 35 60 7 7 7 30
1333 MHz 16 17 17 35 60 7 7 7 30
1333 MHz 15 17 17 35 60 7 7 7 30
1200 MHz 14 16 16 32 54 7 7 7 27
1067 MHz 13 14 14 28 48 6 6 6 24
1067 MHz 12 14 14 28 48 6 6 6 24
933 MHz 11 12 12 25 42 5 5 5 21
800 MHz 9 11 11 21 36 5 5 5 18
Profiles Revision: 2.0
Profile 1 (Certified) Enables: Yes
Profile 2 (Extreme) Enables: No
Profile 1 Channel Config: 2 DIMM/channel
Speed Grade: DDR4-2666 N/A
RAM Clock Frequency: 1333 MHz N/A
Module VDD Voltage Level: 1.20 V N/A
Minimum SDRAM Cycle Time (tCK): 0.750 ns N/A
CAS Latencies Supported: 16T,15T,14T,13T,
CAS Latency Time (tAA): 15T N/A
RAS# to CAS# Delay Time (tRCD): 17T N/A
Row Precharge Delay Time (tRP): 17T N/A
Active to Precharge Delay Time (tRAS): 35T N/A
Active to Active/Refresh Delay Time (tRC): 60T N/A
Four Activate Window Delay Time (tFAW): 30T N/A
Short Activate to Activate Delay Time (tRRD_S): 7T N/A
Long Activate to Activate Delay Time (tRRD_L): 7T N/A
Normal Refresh Recovery Delay Time (tRFC1): 347T N/A
2x mode Refresh Recovery Delay Time (tRFC2): 214T N/A
4x mode Refresh Recovery Delay Time (tRFC4): 147T N/A
