Thermaltake Announces New Core X Computer Case Line

« Core X2

Thermaltake Core X3

Model Core X9
P/N CA-1D8-00F1WN-00
Case Type E-ATX Cube Case
Chassis Dimension
(H*W*D)
502 x 380 x 640 mm
(19.8 x 15 x 25.2 inch)
Net Weight 17 kg / 37.5 lb
Side Panel Transparent Window
Color Exterior & Interior : Black
Material SPCC
Cooling System Front (intake) :
200 x 200 x 30 mm fan   (800rpm, 13dBA)
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan   (1000rpm, 16dBA)
Drive Bays
-Accessible
-Hidden
3 x 5.25’’
6 x 3.5’’ or 2.5’’ (HDD Cage)
1 x 3.5’’, 2 x 2.5’’ (M/B Tray)
Expansion Slots 8
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX)
I/O Port USB 3.0 x 4, HD Audio x 1
PSU Standard PS2 PSU (optional)
LCS Upgradable Supports 1/2”、3/8”、1/4” water tube
Fan Support Front:
3 x 120mm
2 x 140mm
2 x 200mm
Top:
8 x 120mm
6 x 140mm
2 x 200mm
Rear:
2 x 120mm or 2 x 140mm
Bottom:
3 x 120mm
Left / Right Side:
4 x 120mm
3 x 140mm
Radiator Support Front:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm
Top:
2 x 120mm or 2 x 240mm or 2 x 360mm   or 2 x 480mm
2 x 140mm or 2 x 280mm or 2 x 420mm
Rear:
1 x 120mm or or 1 x 140mm
Left / Right Side:
1 x 120mm or 1 x 240mm or 1 x 360mm   or 1 x 480mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Bottom:
1 x 120mm or 1 x 240mm or 1 x 360mm   or 1 x 480mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Clearance CPU cooler height limitation: 250mm
VGA length limitation: 400mm(with ODD cage)
590mm(without ODD cage)
PSU length limitation: 220mm (With Bottom Fan)

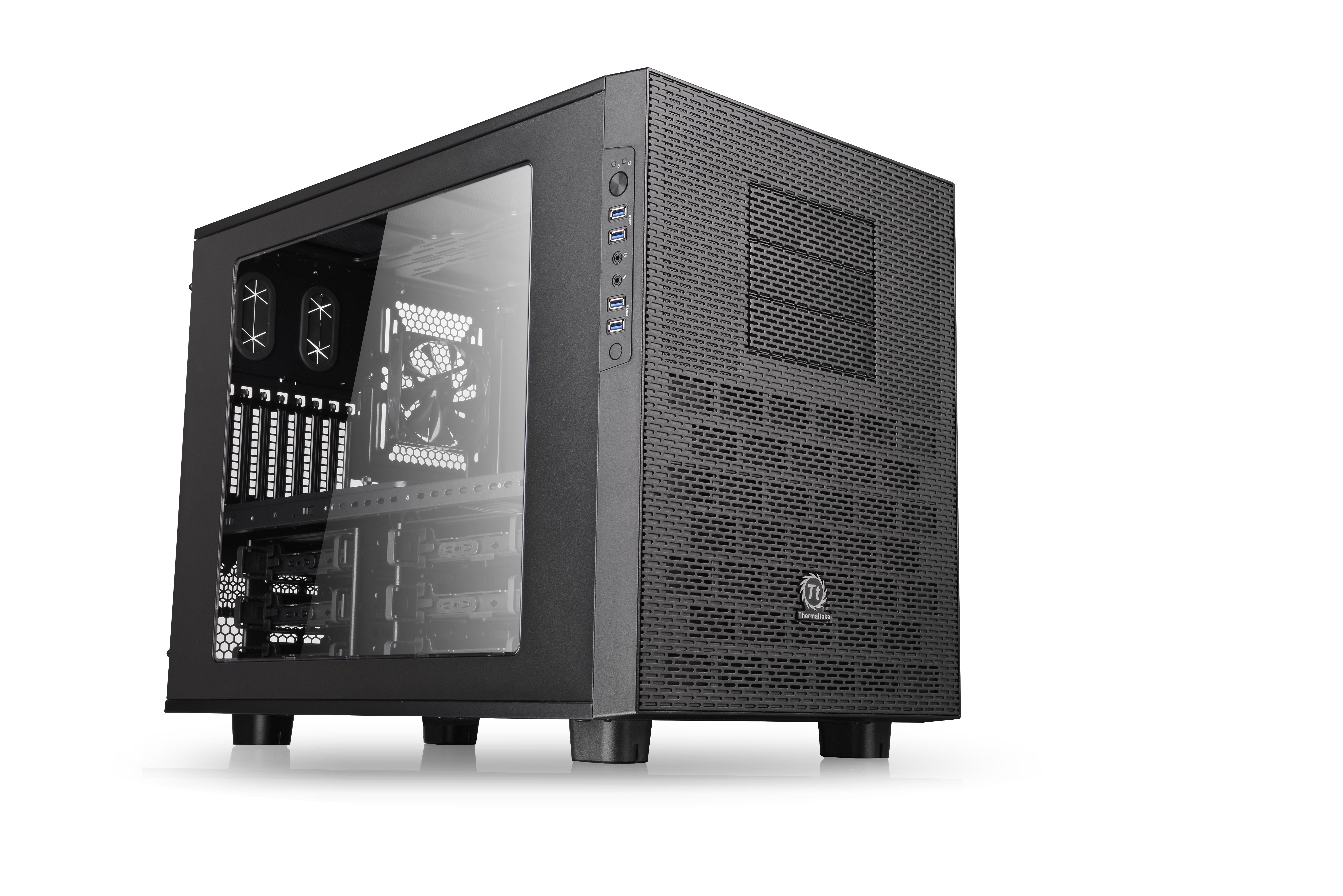

DSC_5671-2

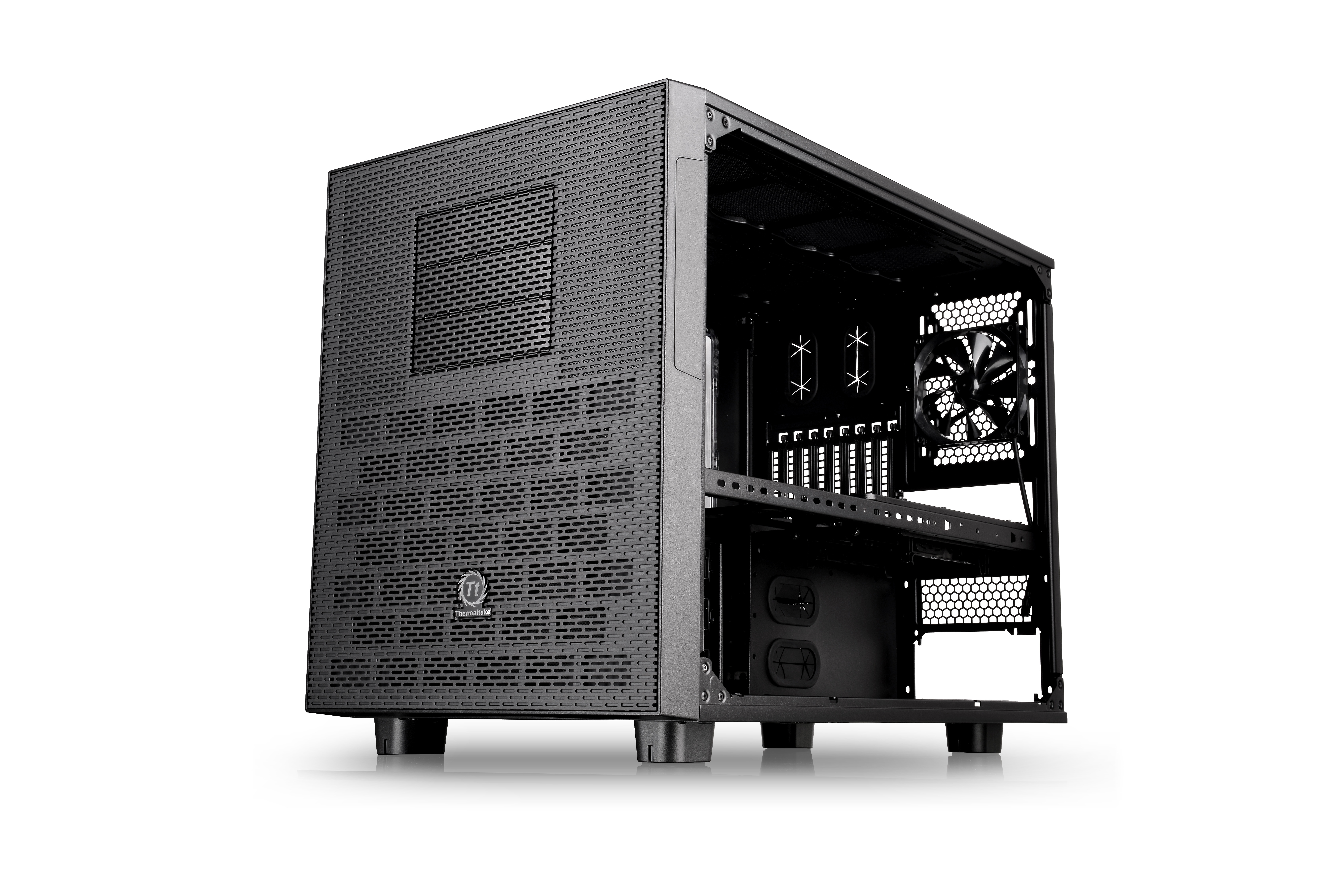

DSC_5686

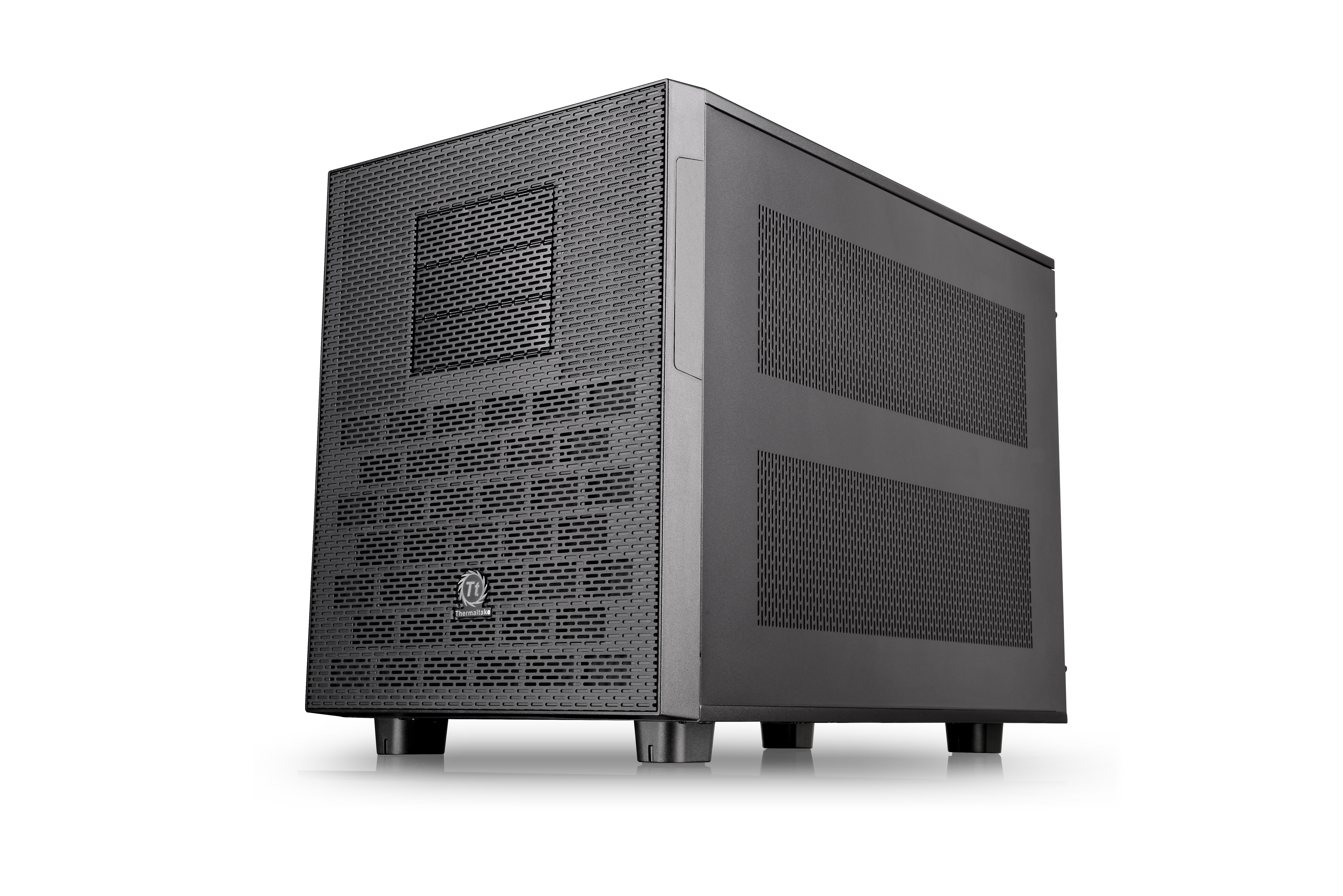

DSC_5686-2

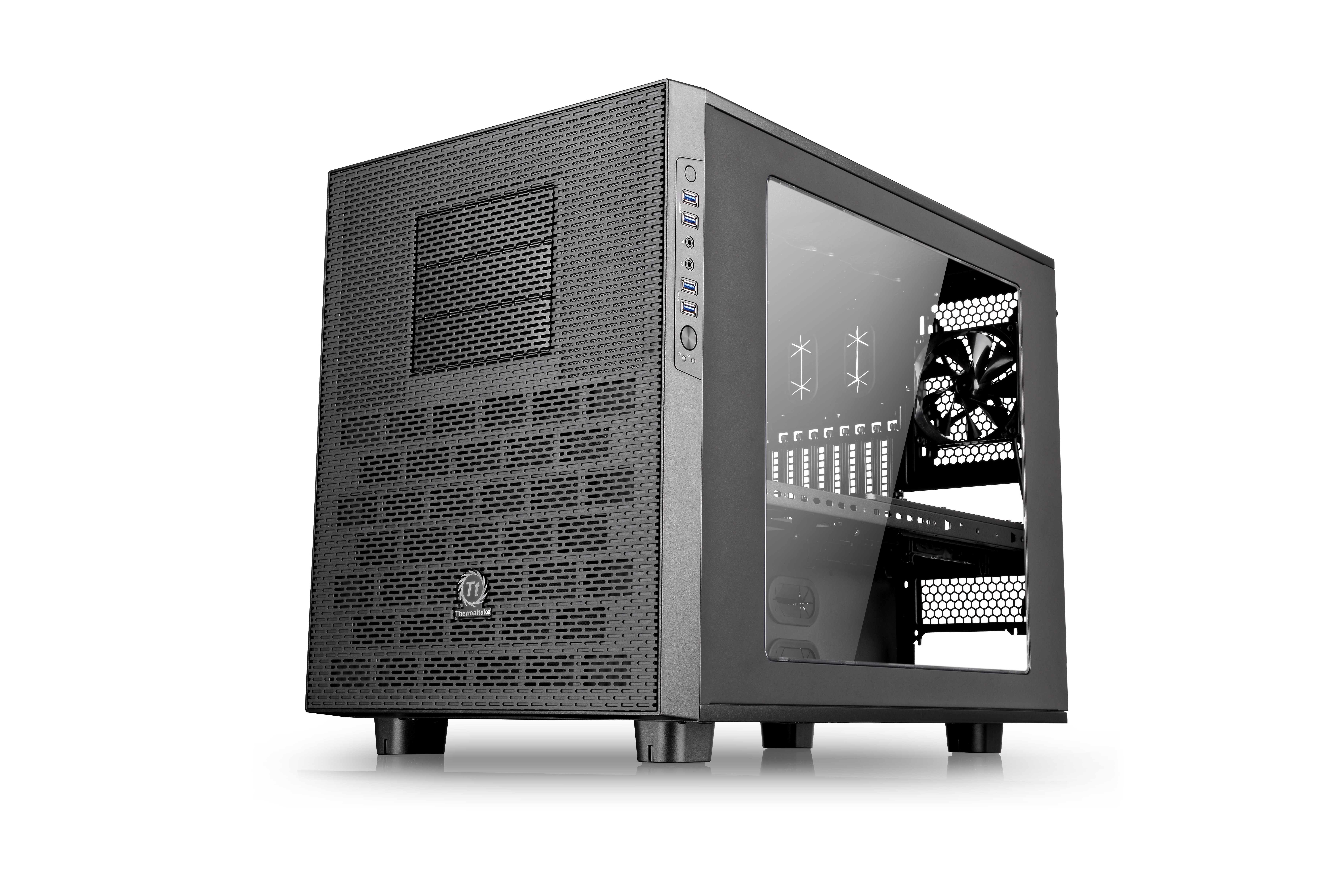

DSC_5699-2

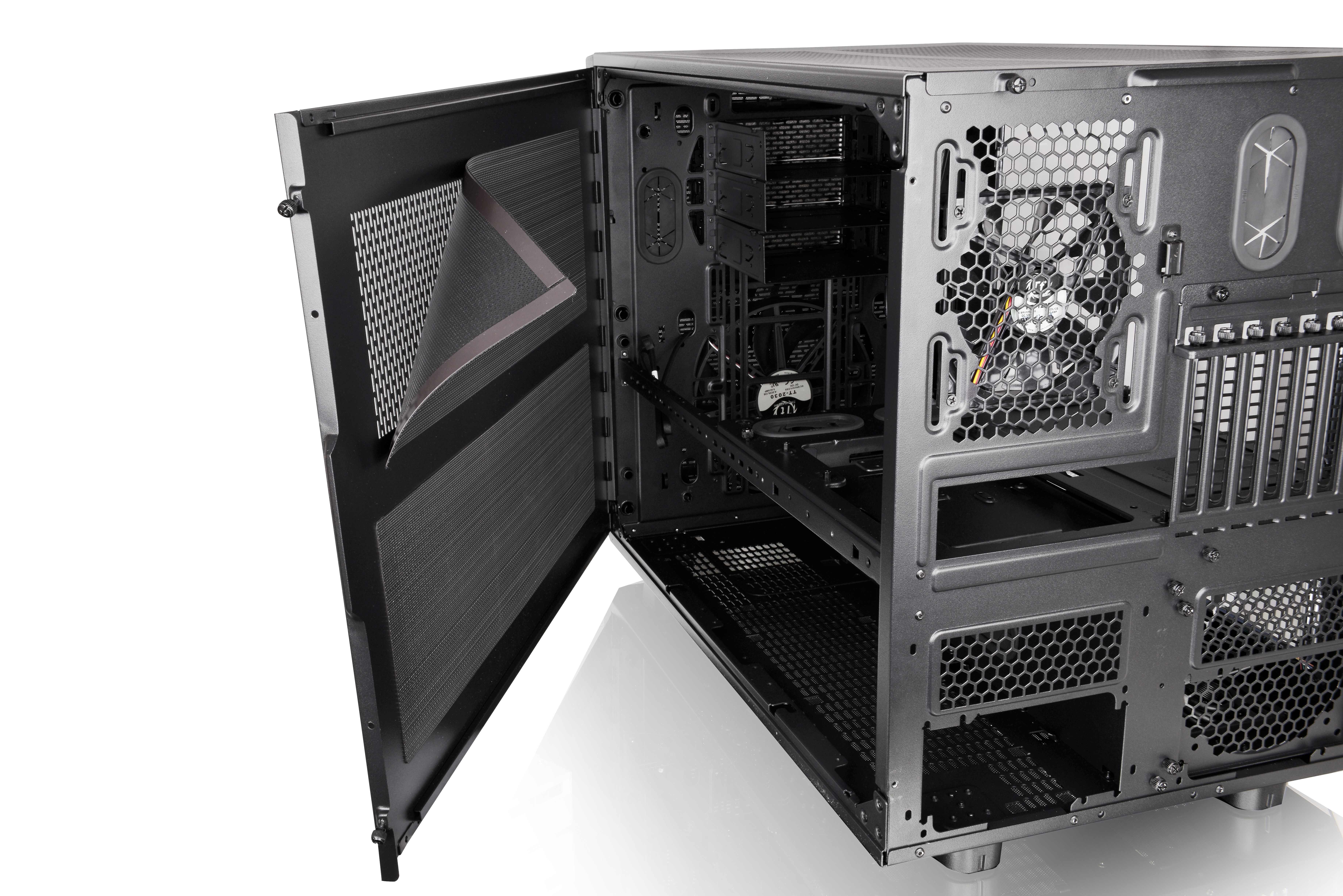

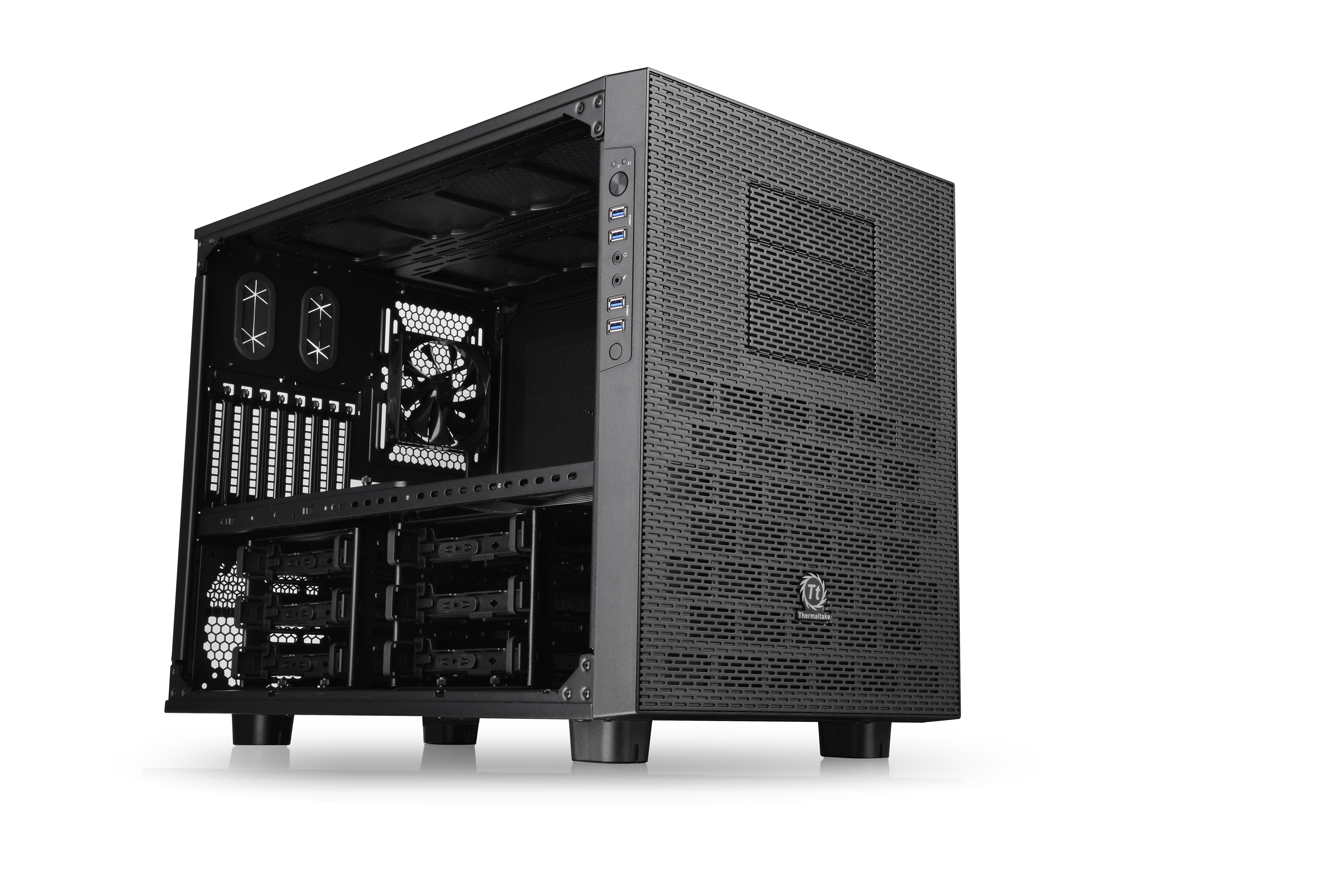

DSC_5813DSC_5671

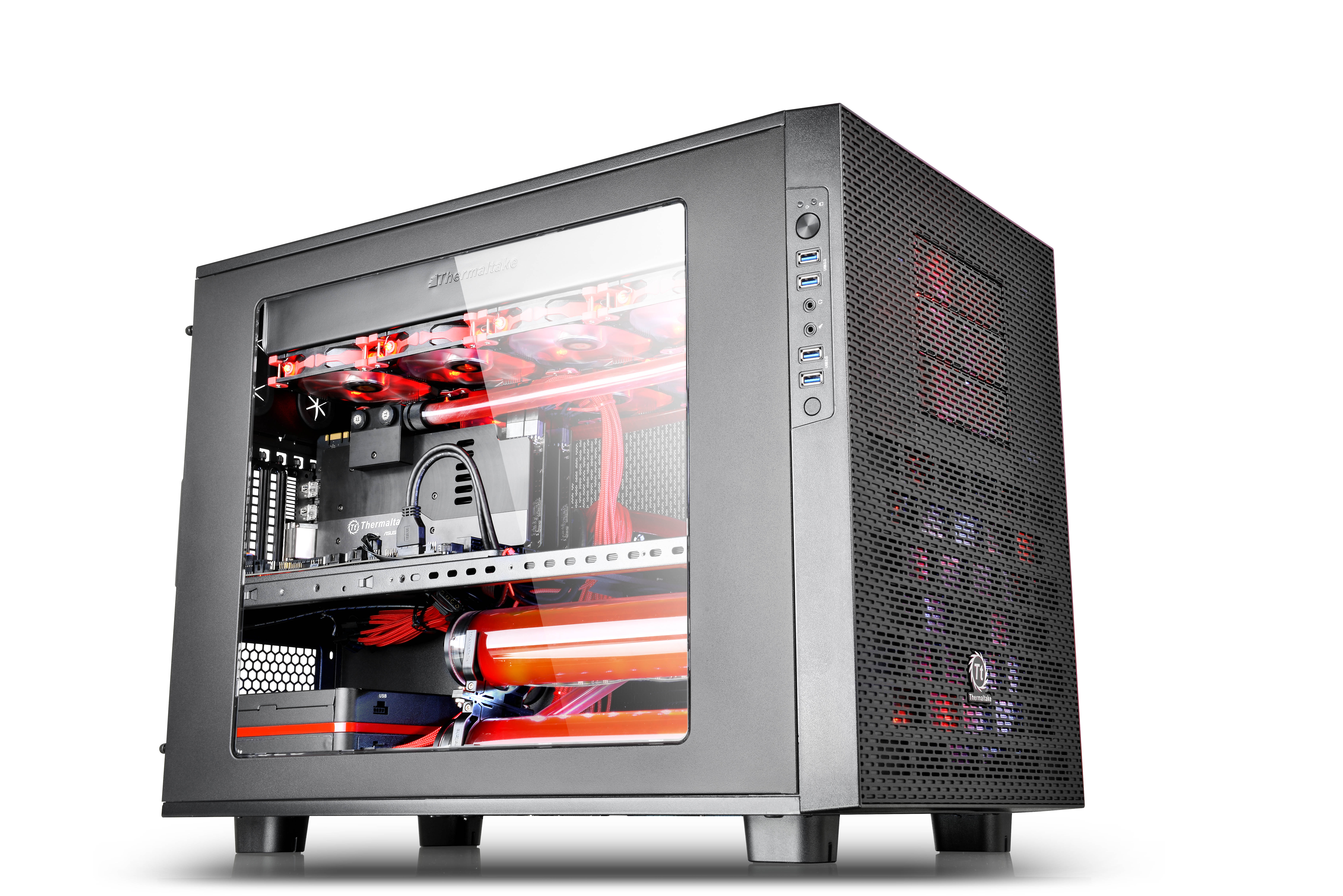

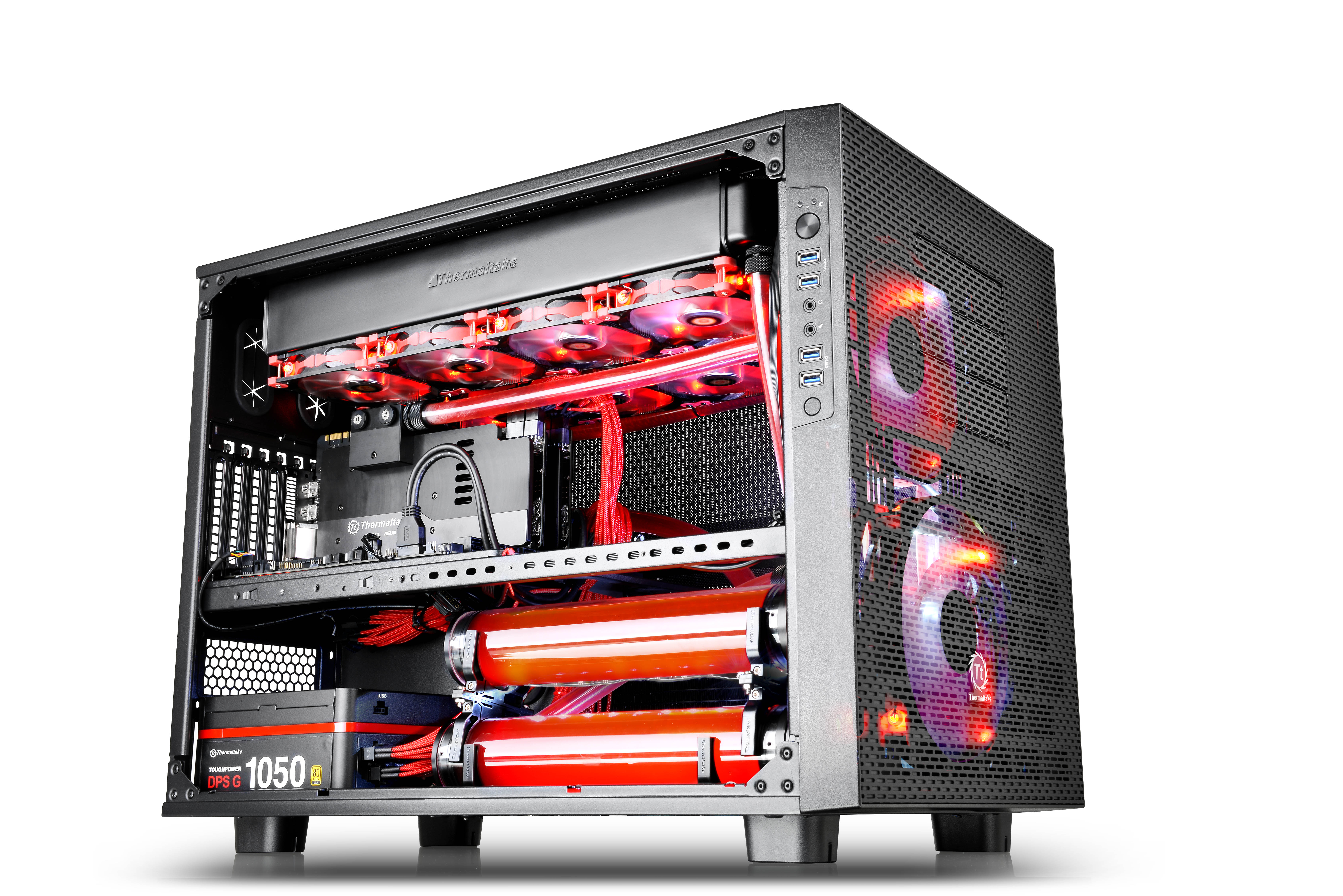

DSC_6937-2 DSC_6937-3

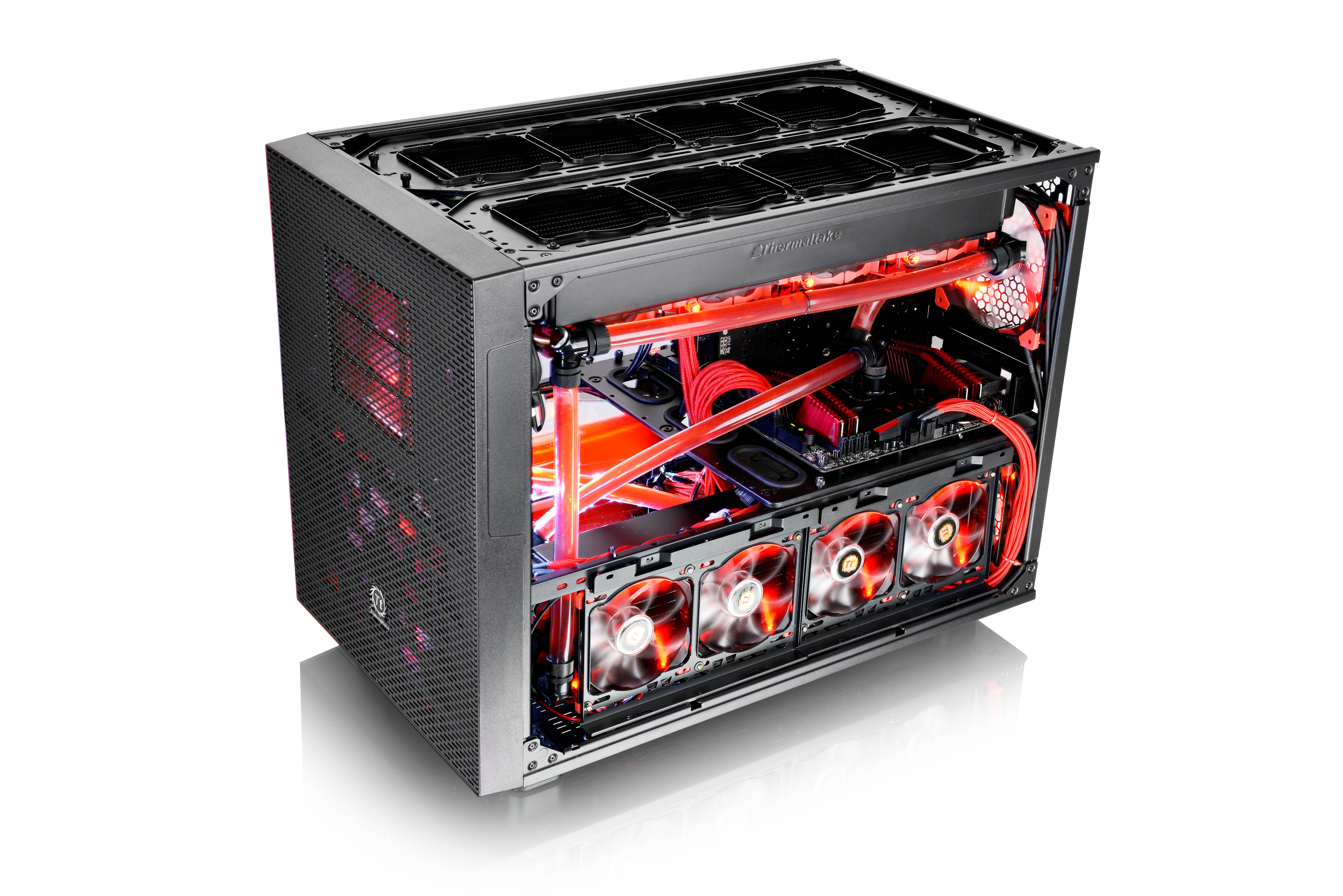

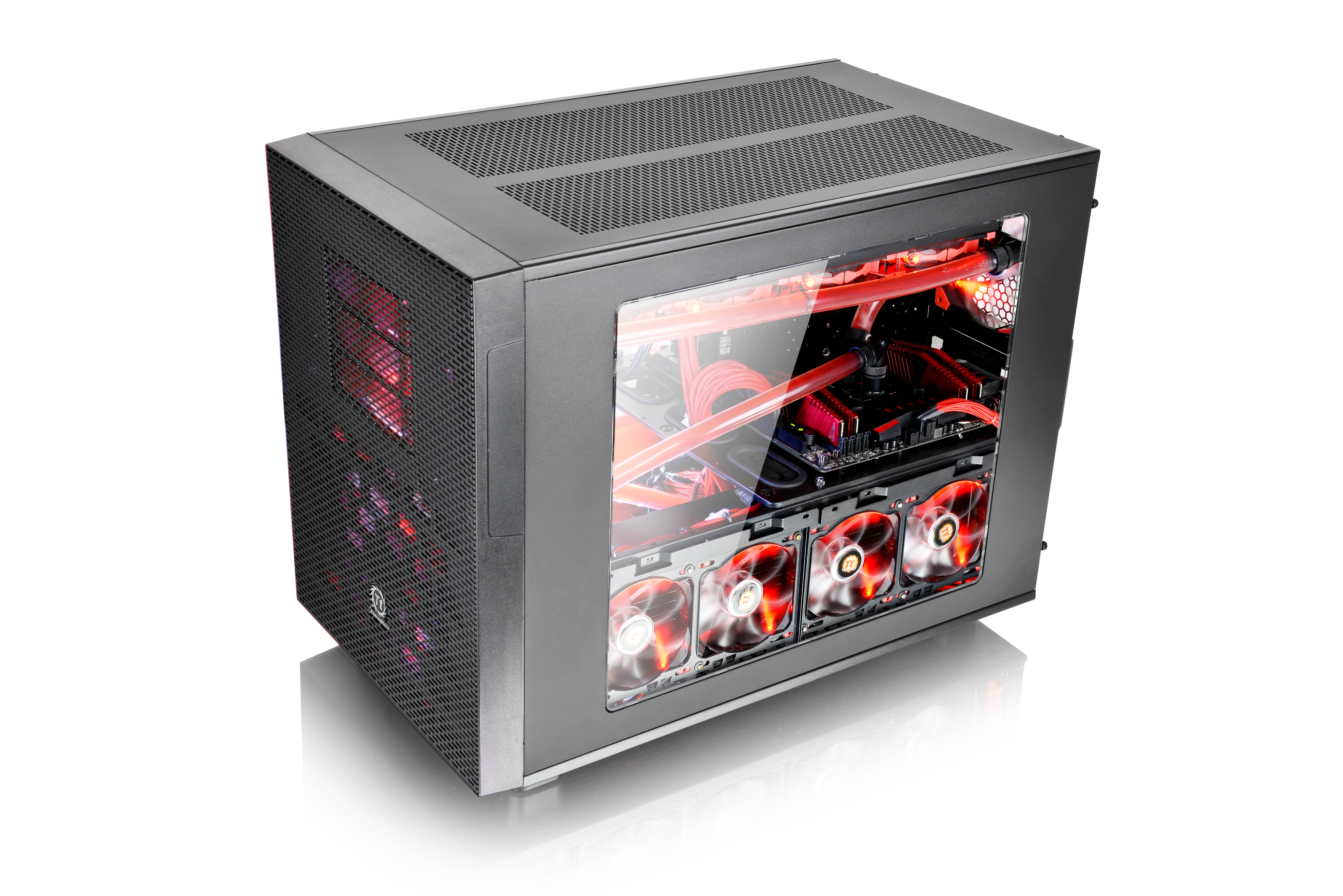

DSC_6956 DSC_6956-3

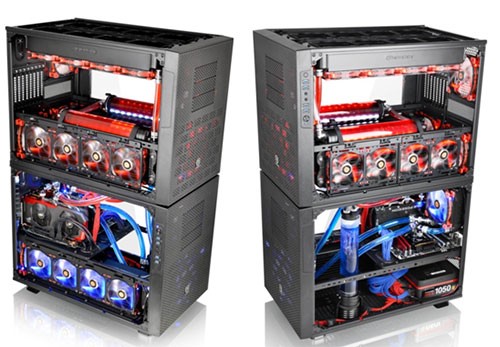

And yes the Core x9 can be stacked too!

Corx9-stacked-1

Core X9 Datasheet
