Thermaltake Announces New Core X Computer Case Line

Core X2 »

Thermaltake has really been pushing the computer case design the past few years with new ideas and styles that are driven from what people have be building and wanting. The guys at the California office are computer enthusiast and are helping mold the items you have been getting. Shannon Robb of the USA office says ” The New Core X series of cases this is specially designed in California, Engineered in Taiwan. The Thermaltake designers in HQ, the USA team and even our CEO put our heads together for awhile to come up with these new cases.”

The new case series called Core X come in three sizes.

Core X1 = mITX
Core X2 = mATX
Core X9 = Full ATX

Lets take a look a look at the Core X1 first.

Model Core X1
P/N CA-1D6-00S1WN-00
Case Type ITX Cube Case
Chassis Dimension
(H*W*D)
426 x 280 x 471 mm
(16.8 x 11 x 18.5 inch)
Net Weight 9 kg / 19.9 lb
Side Panel Transparent Window
Color Exterior & Interior : Black
Material SPCC
Cooling System Front (intake) :
120 x 120 x 25 mm Turbo fan   (1000rpm, 16dBA)
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan   (1000rpm, 16dBA)
Drive Bays
-Accessible
-Hidden
2 x 5.25’’
3 x 3.5’’ or 2.5’’ (HDD Cage), 1 x 2.5’’ (M/B Tray)
Expansion Slots 3
Motherboards 6.7” x 6.7” (Mini ITX)
I/O Port USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
LCS Upgradable Supports 1/2”、3/8”、1/4” water tube
Fan Support Front:
3 x 120mm
2 x 140mm
1 x 200mm
Top:
3 x 120mm
2 x 140mm
2 x 200mm
Rear:
1 x 120mm or 1 x 140mm
Bottom:
1 x 120mm
Radiator Support Front:
1 x 120mm or 1 x 240mm
1 x 140mm or 1 x 280mm
Top:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm
Rear:
1 x 120mm or or 1 x 140mm
Clearance CPU cooler height limitation: 200mm
VGA length limitation: 280mm(with ODD Cage)
400mm(without ODD Cage)
PSU length limitation: 220mm (With Bottom Fan)

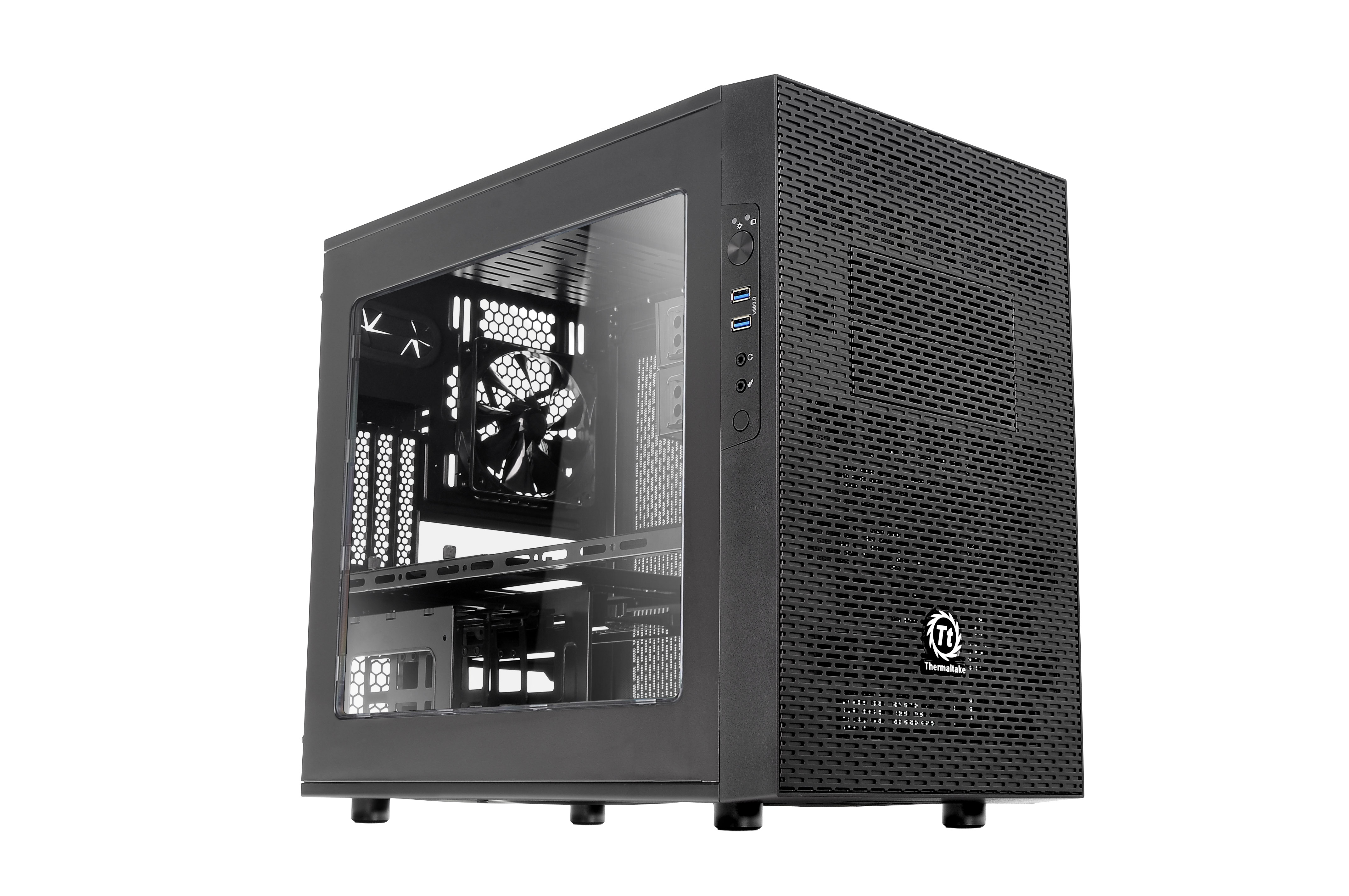

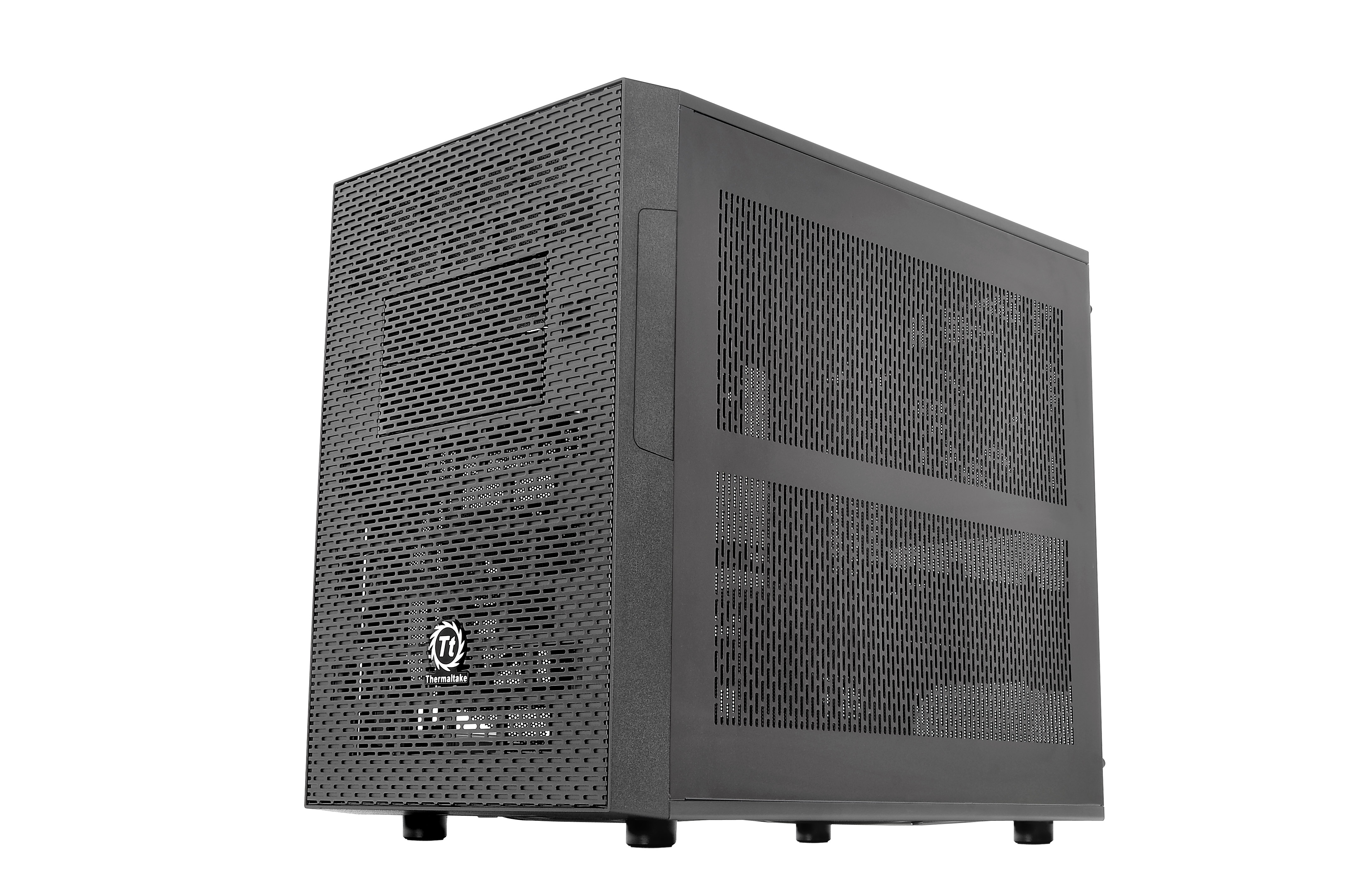

DSC_0449 DSC_0467

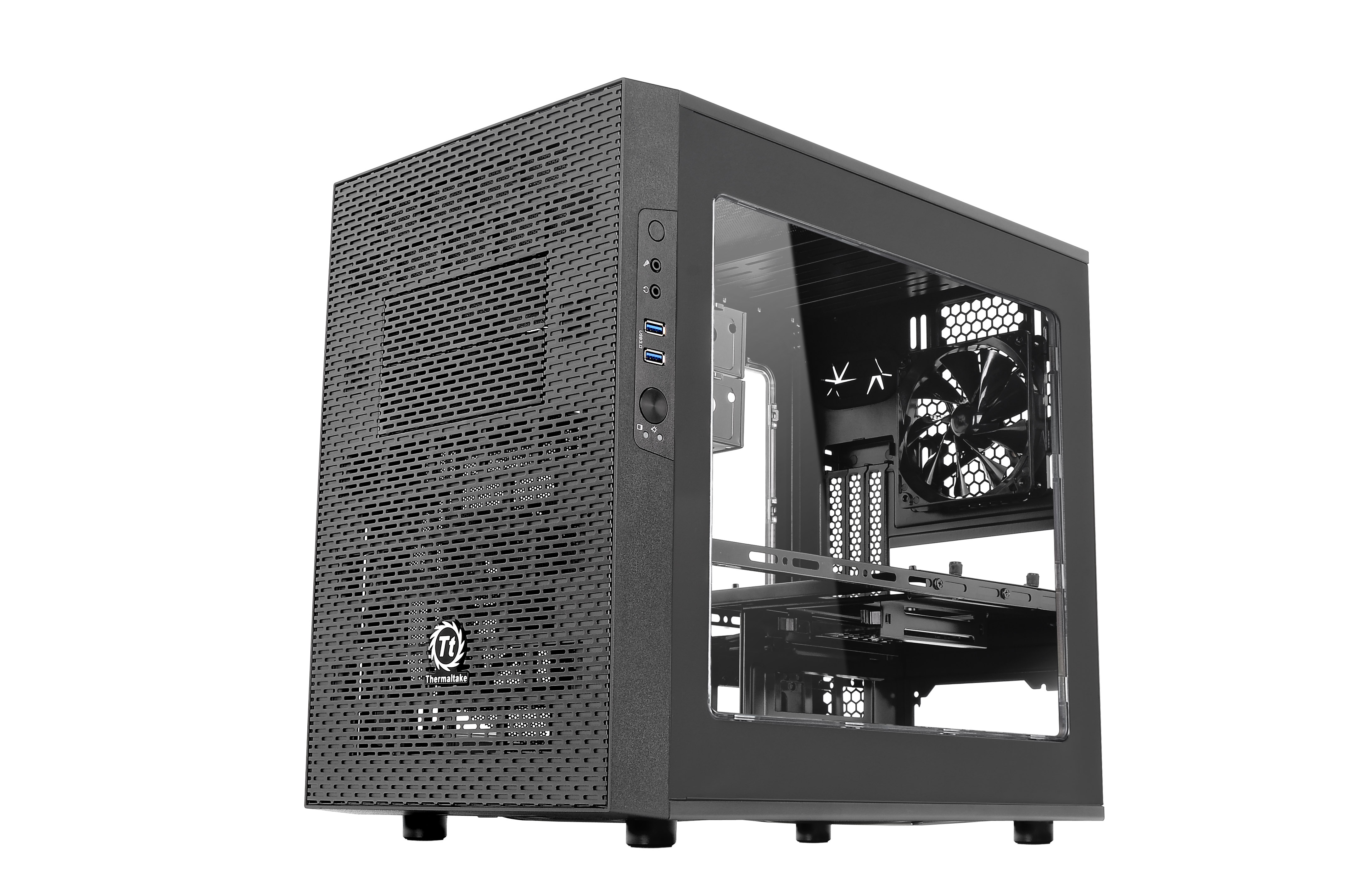

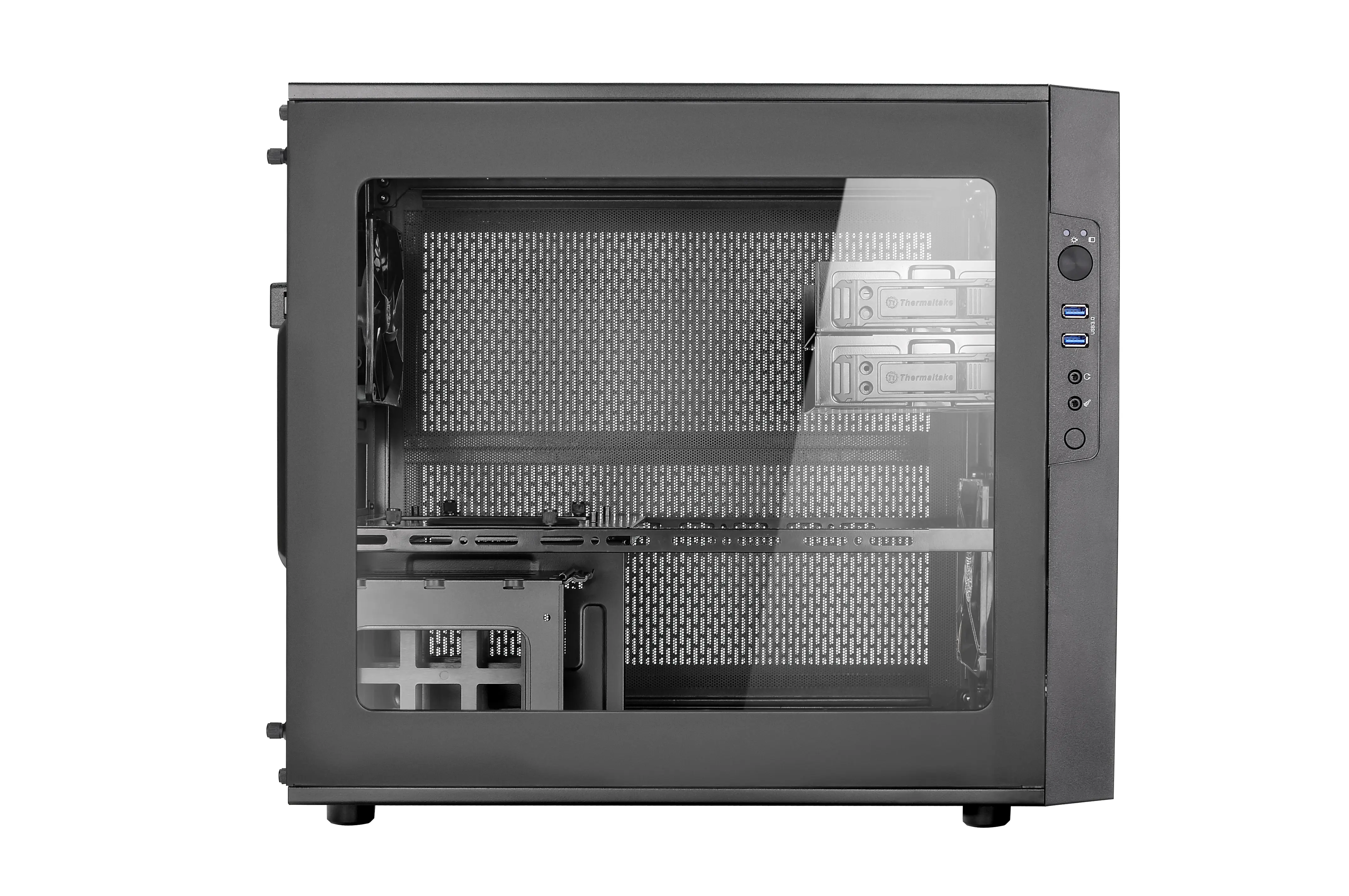

DSC_0475 DSC_0470

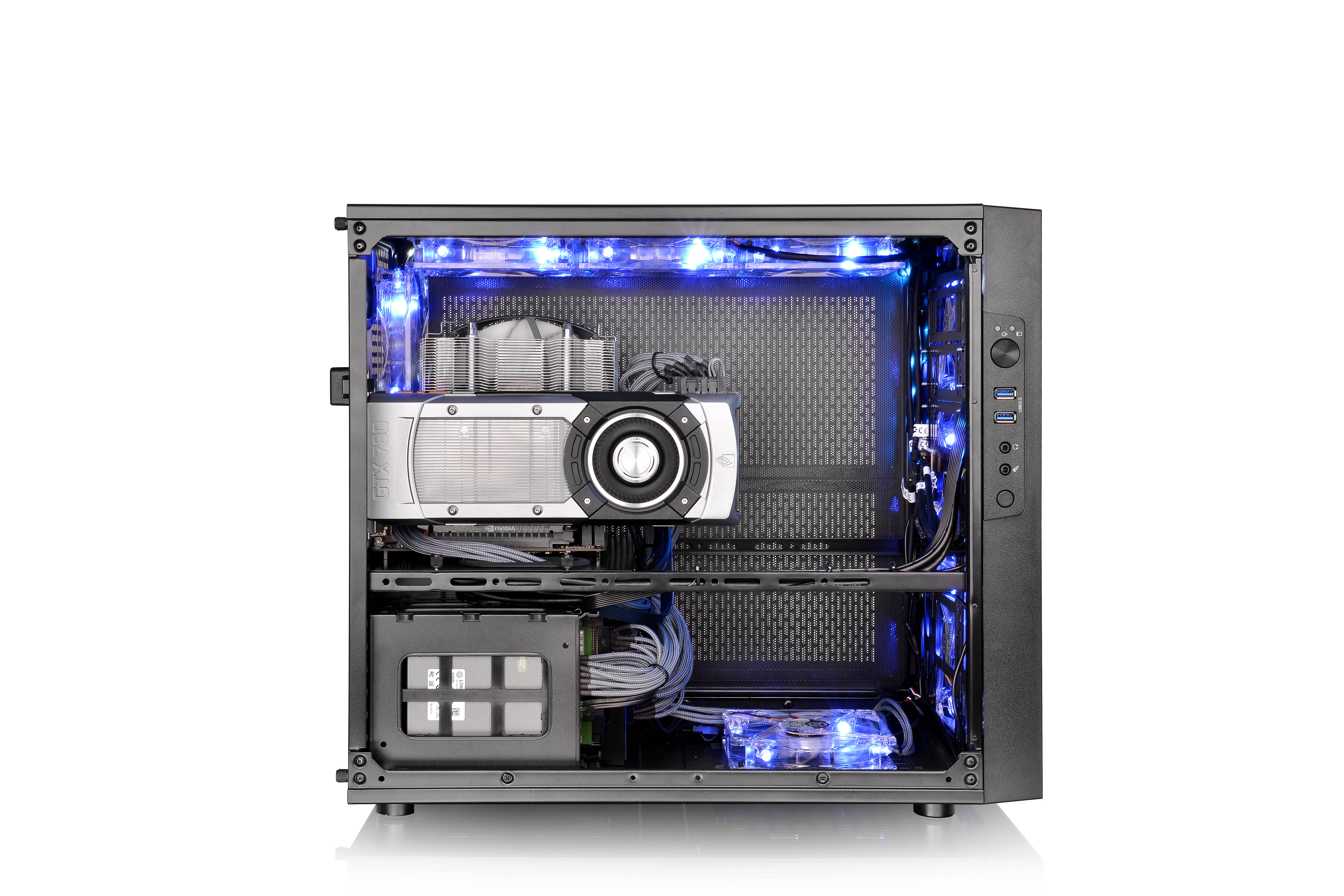

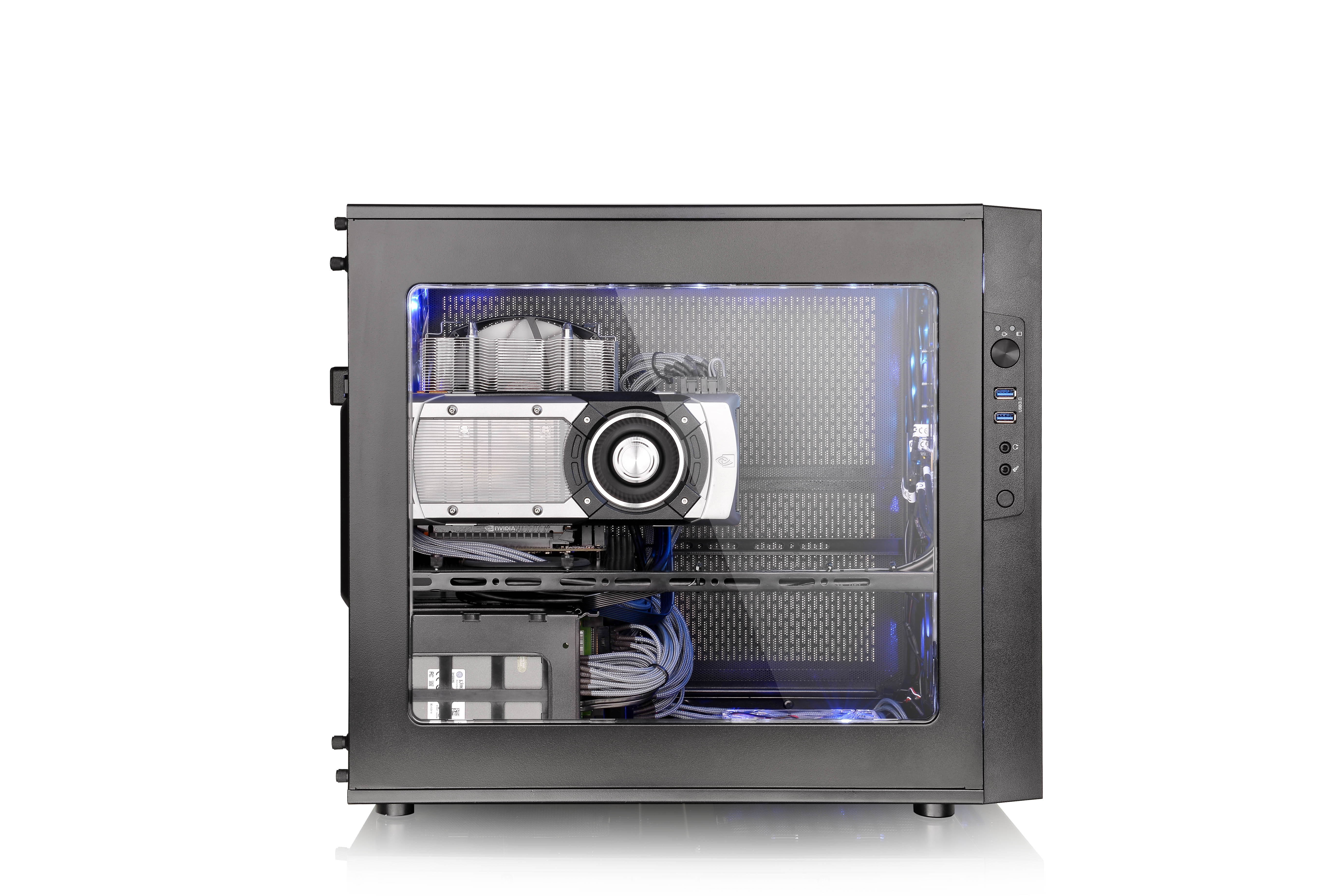

DSC_7651-2 DSC_7651

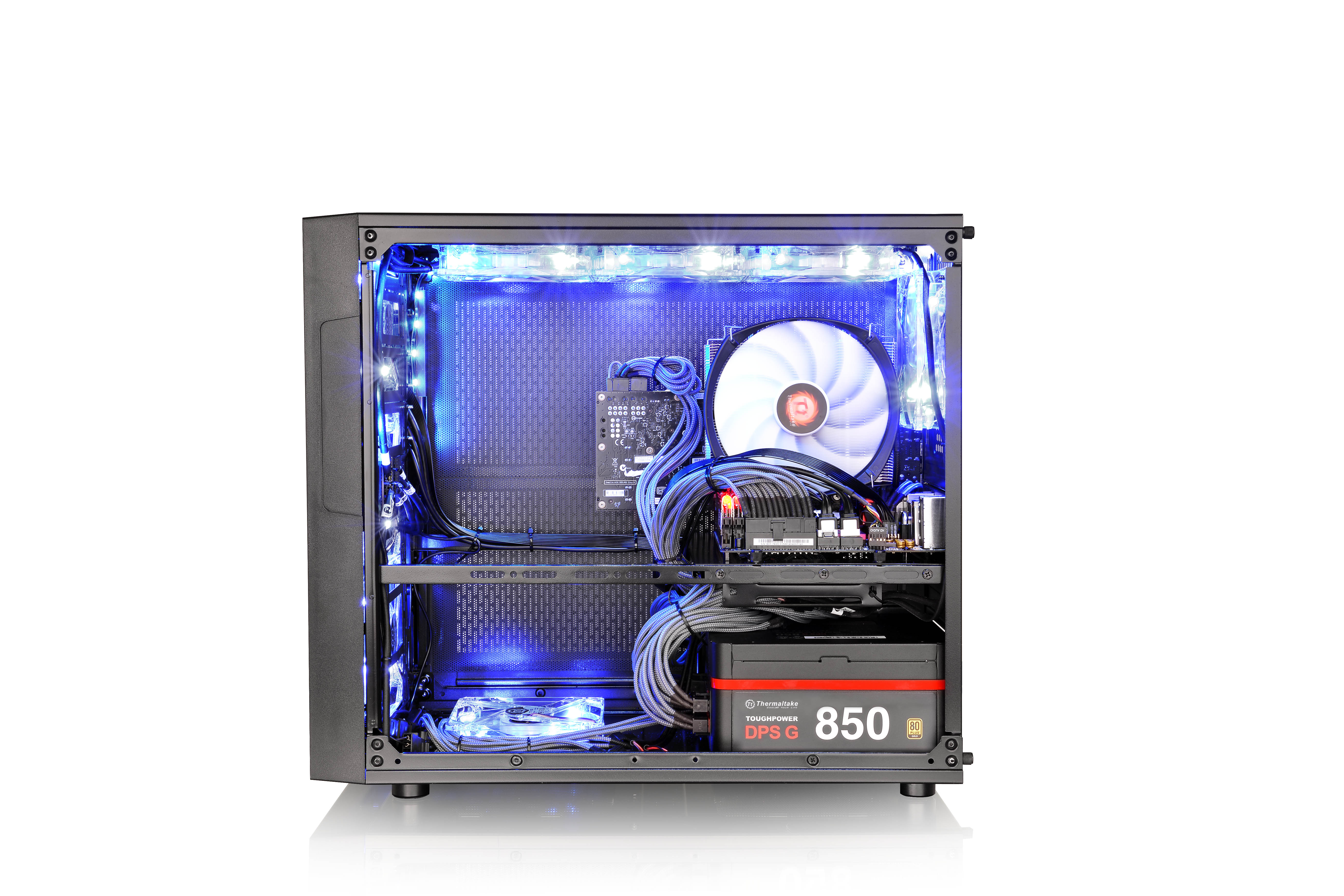

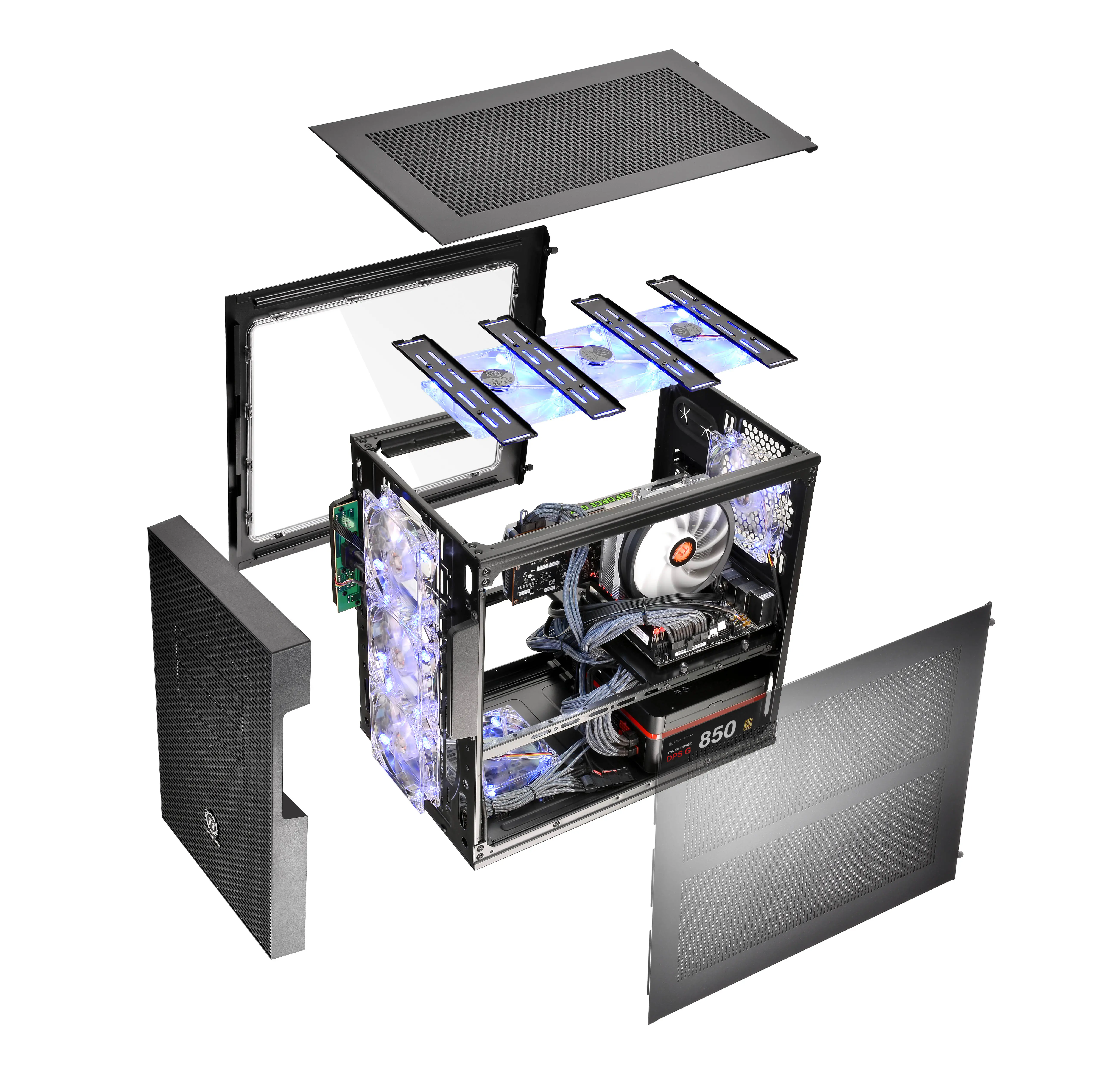

DSC_7700 DSC_7660

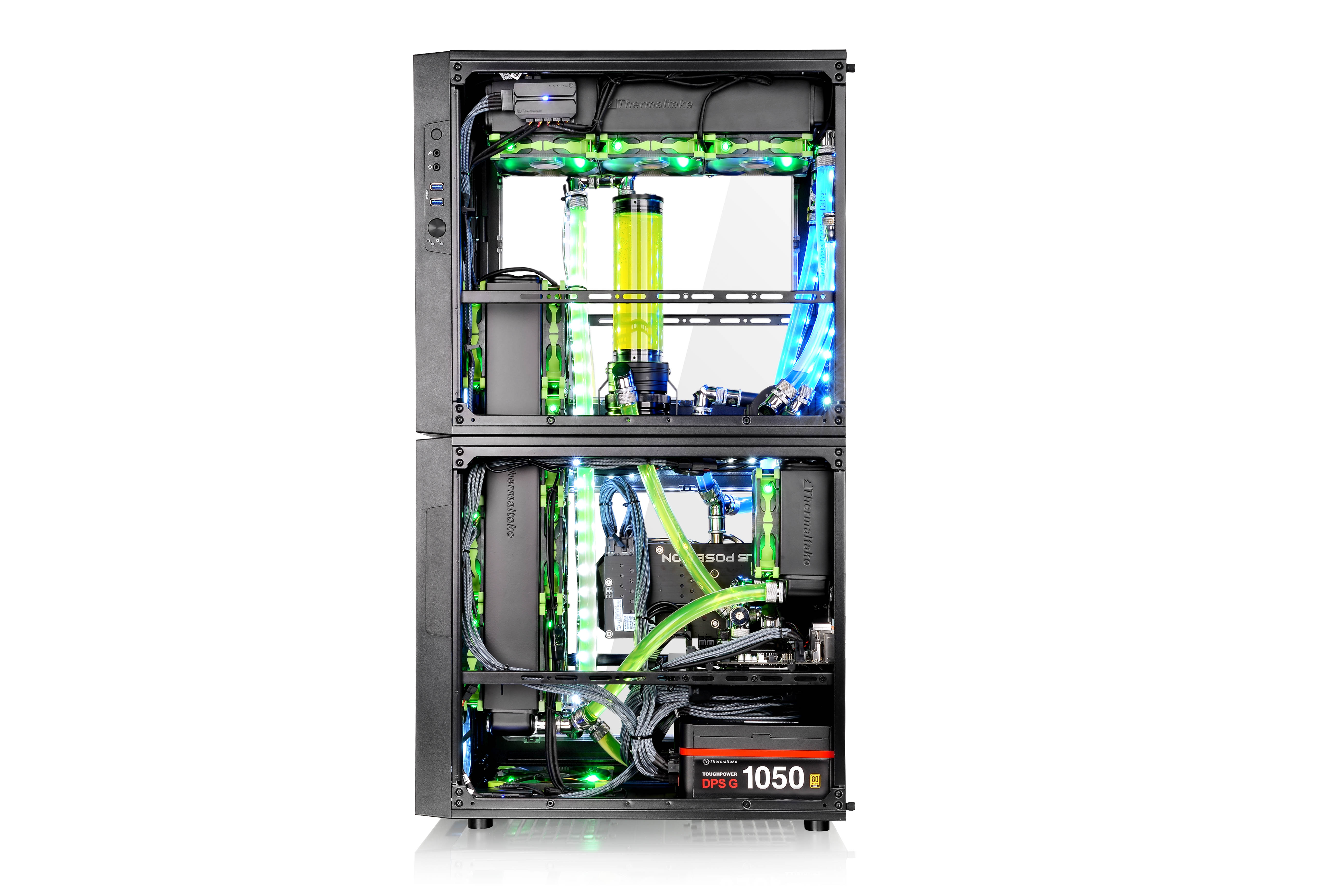

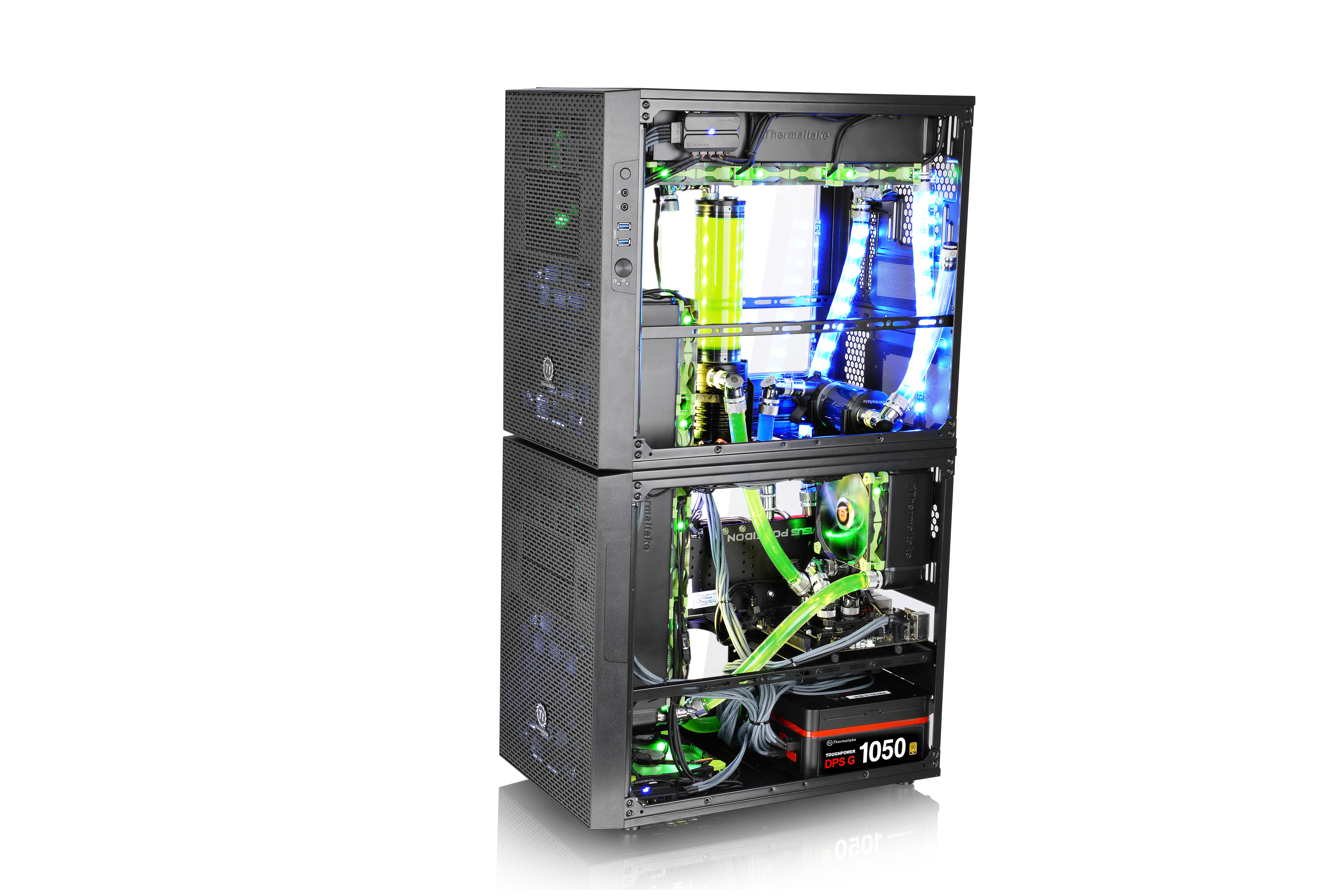

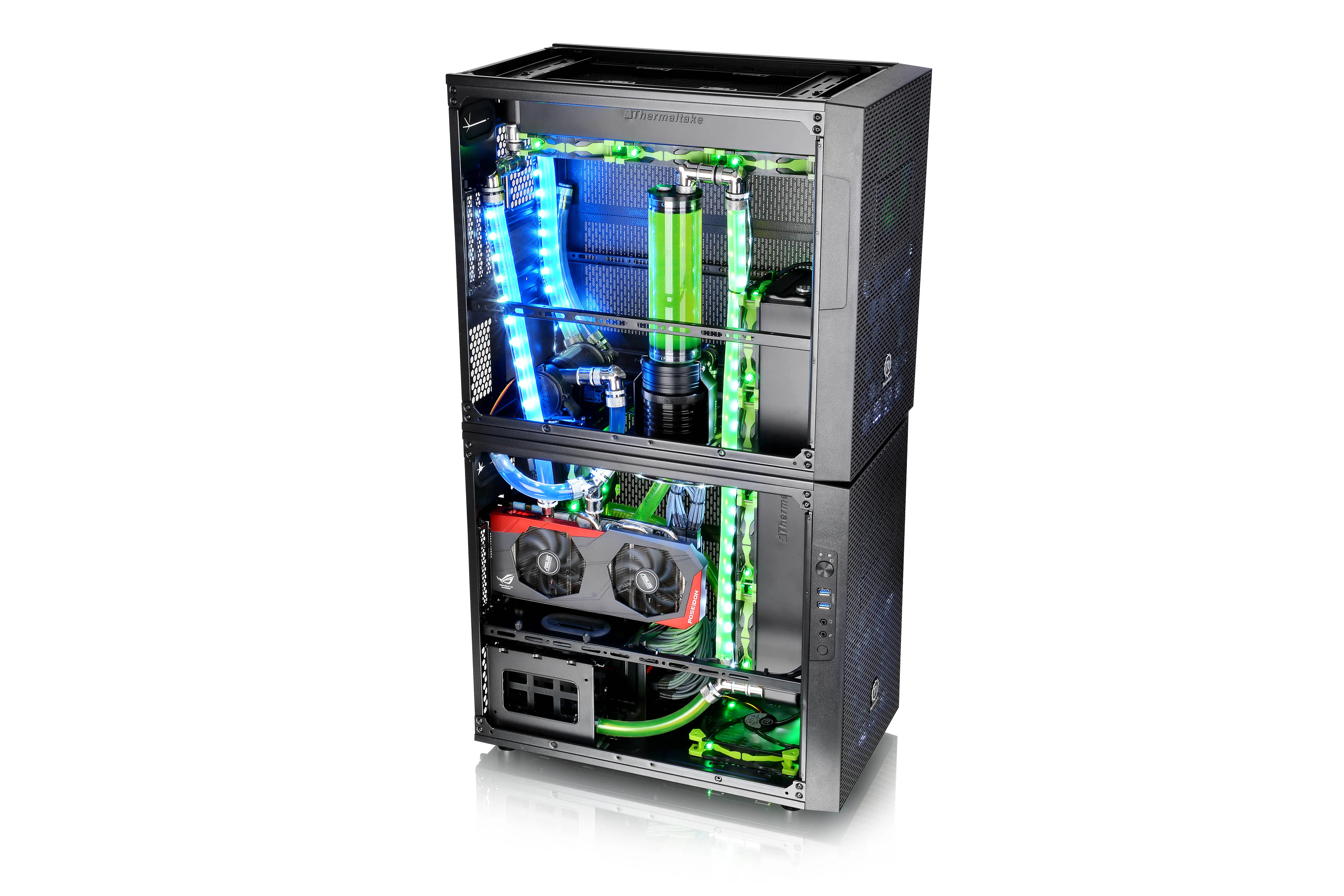

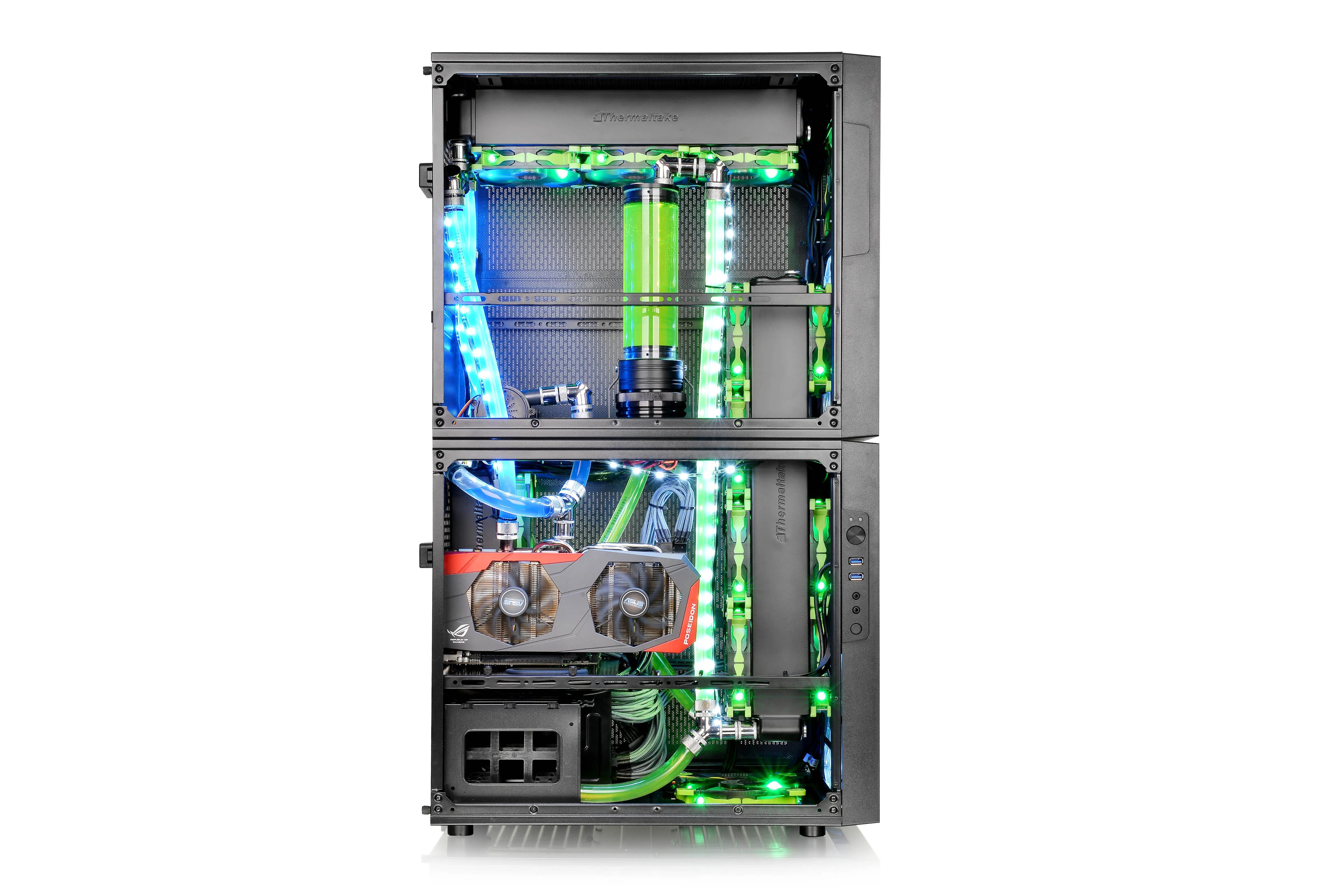

It is stackable!

DSC_7404 DSC_7422
DSC_7457 DSC_7390

CA-1D6-00S1WN-00 Core X1 Datasheet
