Thermaltake Announces New Core X Computer Case Line

« Core X | Core x3 »

The Core X2

Model Core X2
P/N CA-1D7-00C1WN-00
Case Type M-ATX Cube Case
Chassis Dimension
(H*W*D)
465 x 320 x 541 mm
(18.3 x 12.6 x 21.3 inch)
Net Weight 11.6 kg / 25.6 lb
Side Panel Transparent Window
Color Exterior & Interior : Black
Material SPCC
Cooling System Front (intake) :
120 x 120 x 25 mm Turbo fan   (1000rpm, 16dBA)
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan   (1000rpm, 16dBA)
Drive Bays
-Accessible
-Hidden
3 x 5.25’’
4 x 3.5’’ or 2.5’’ (HDD Cage)
3 x 2.5’’ (HDD Tray)
Expansion Slots 5
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
I/O Port USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
LCS Upgradable Supports 1/2”、3/8”、1/4” water tube
Fan Support Front:
3 x 120mm
2 x 140mm
1 x 200mm
Top:
6 x 120mm
2 x 140mm
2 x 200mm
Rear:
1 x 120mm or 1 x 140mm
Bottom:
2 x 120mm
Left / Right Side:
3 x 120mm
Radiator Support Front:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm
Top:
2 x 120mm or 2 x 240mm or 2 x 360mm
1 x 140mm or 1 x 280mm
Rear:
1 x 120mm or or 1 x 140mm
Bottom:
1 x 120mm or 1 x 240mm
Left / Right Side:
1 x 120mm or 1 x 240mm or 1 x 360mm
Clearance CPU cooler height limitation: 230mm
VGA length limitation: 330mm(with ODD Cage)
480mm(without ODD Cage)
PSU length limitation: 220mm (With Bottom Fan)

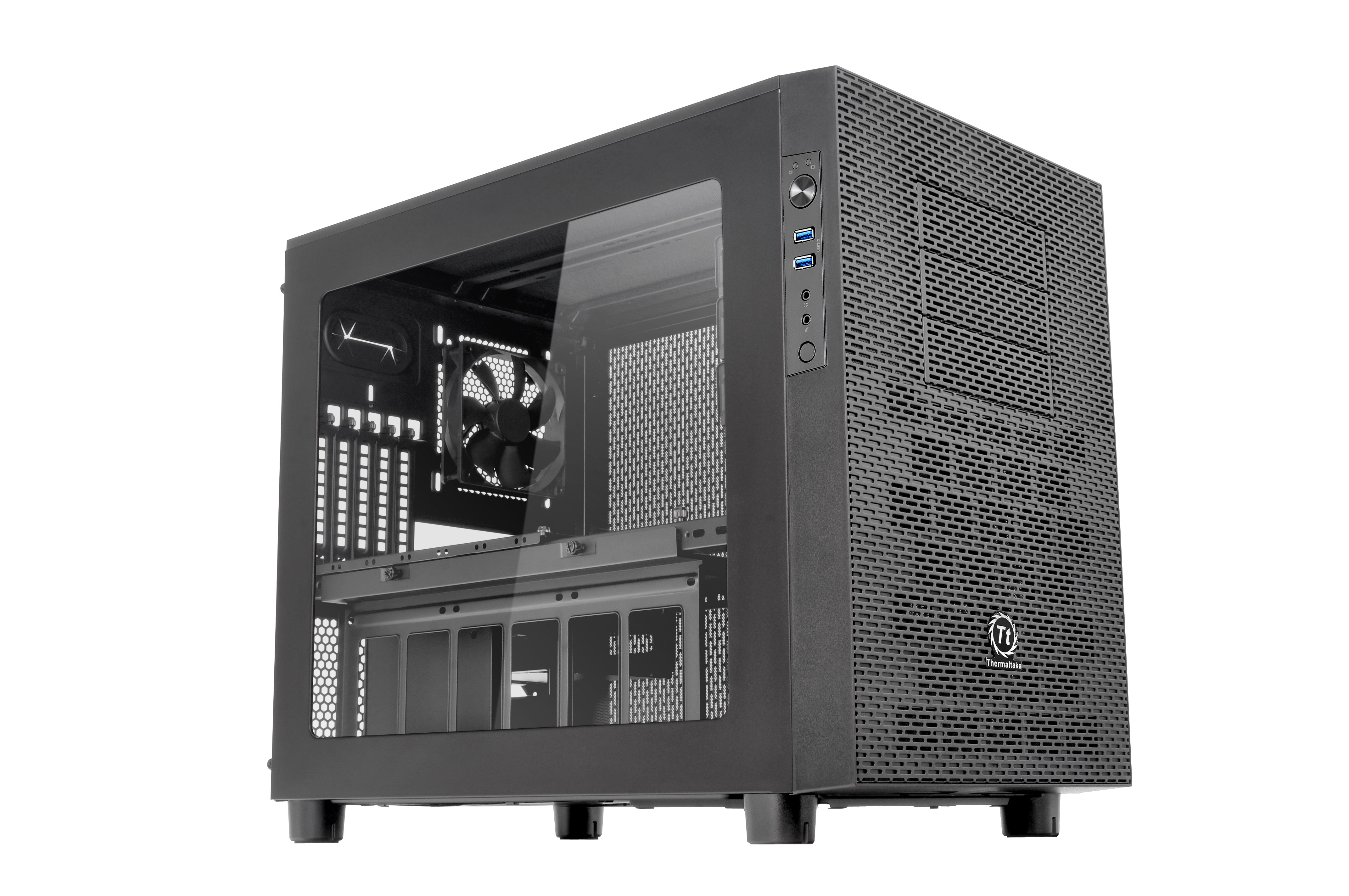

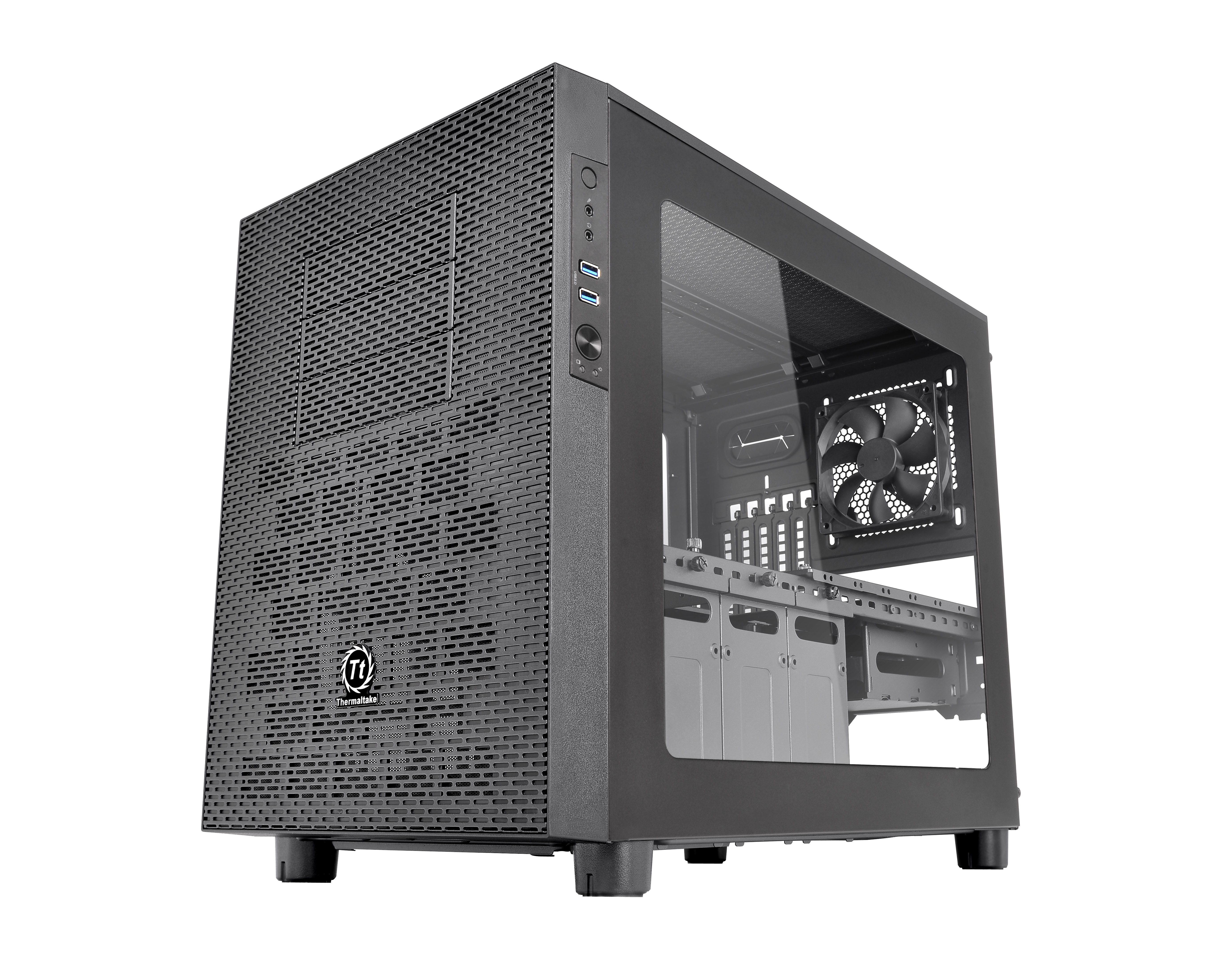

DSC_5905 DSC_0008
DSC_0009

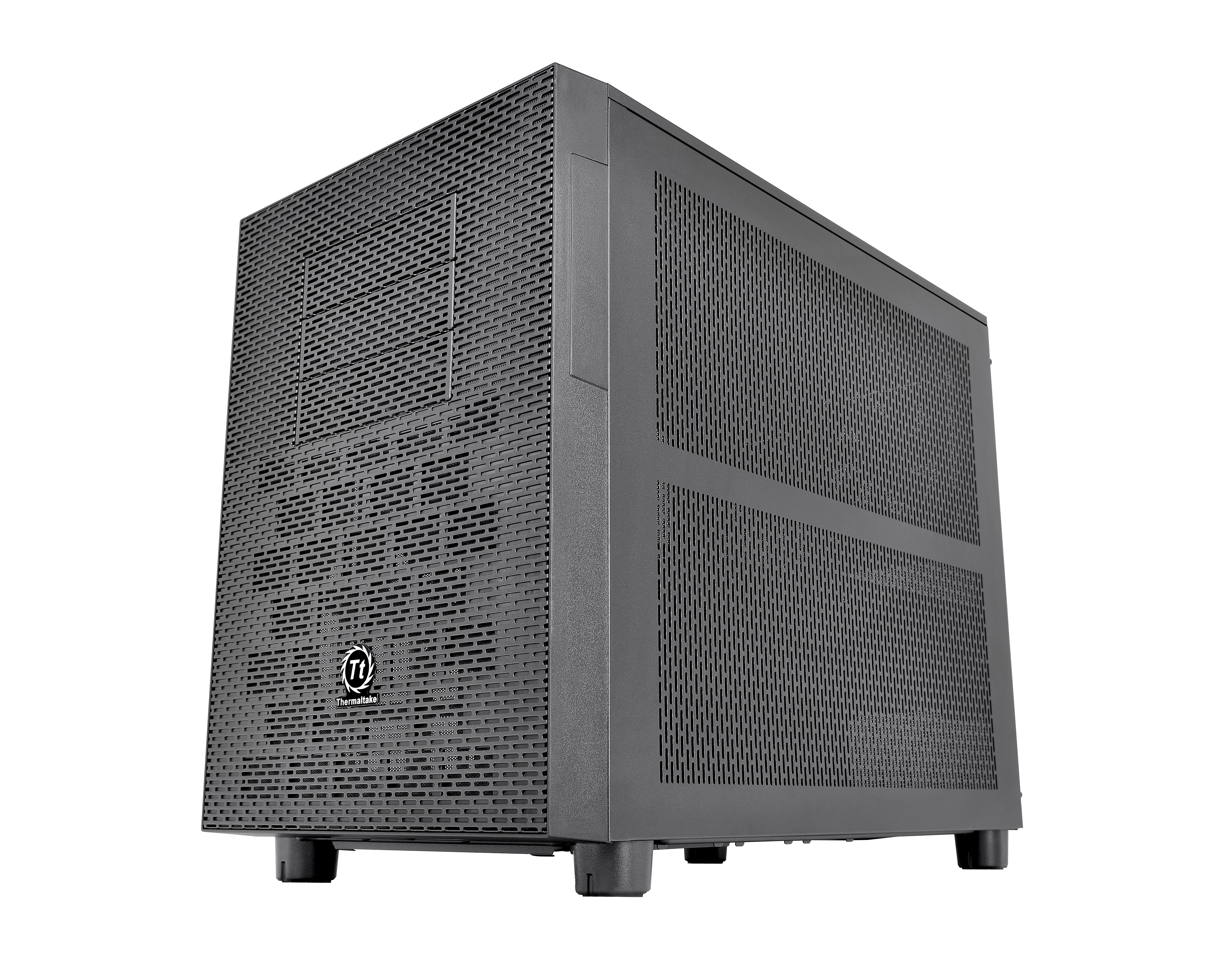

DSC_5902

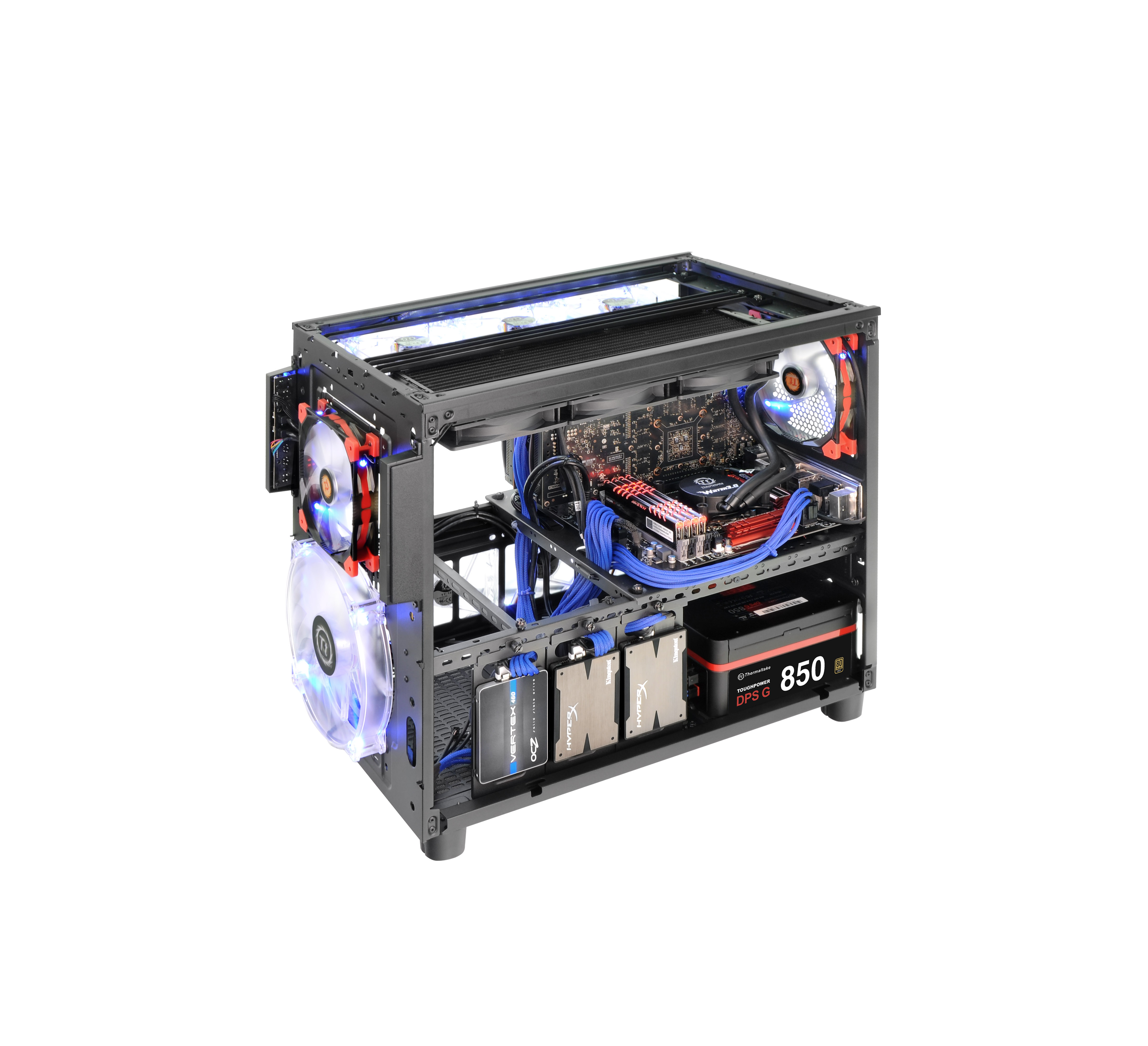

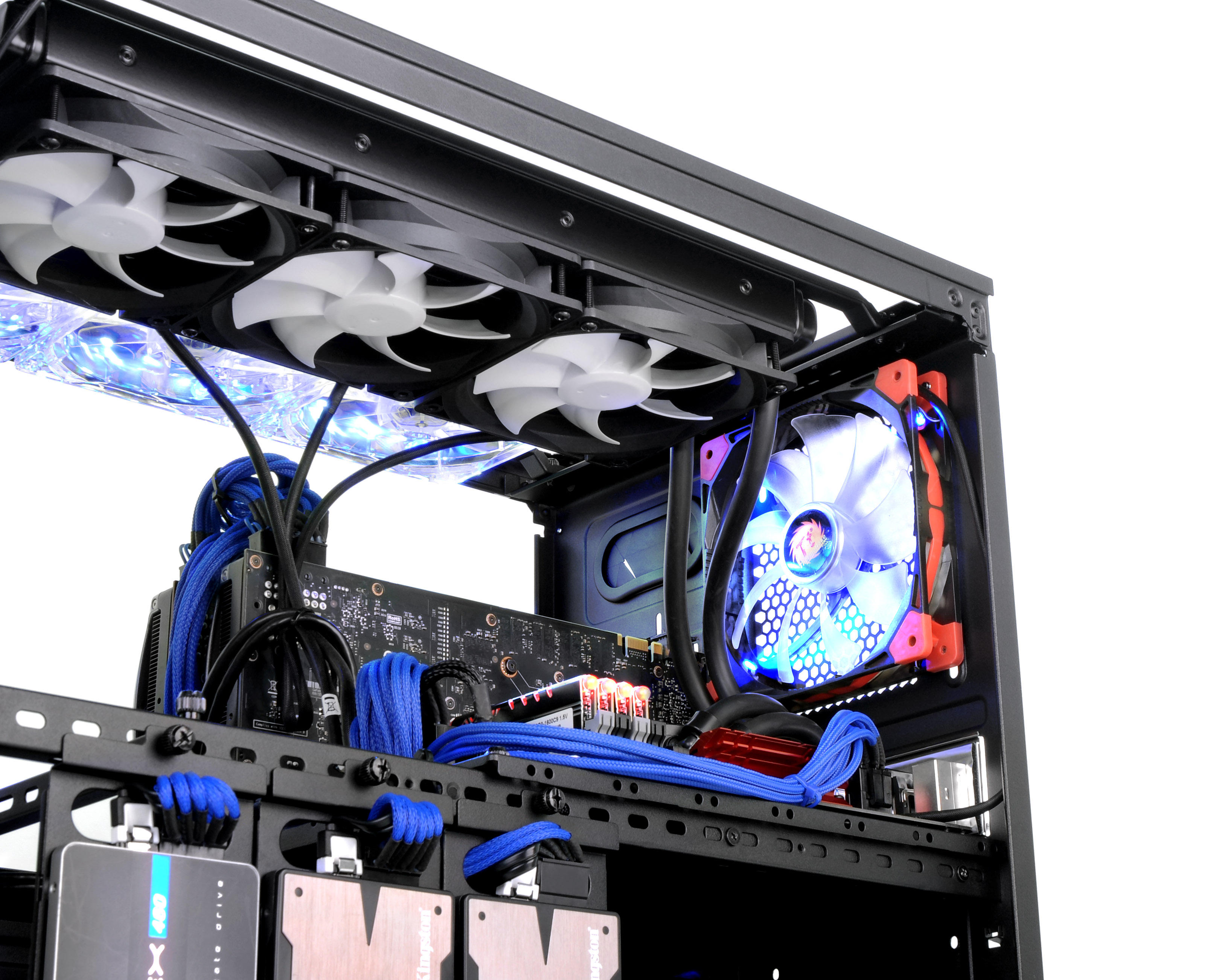

DSC_0206 DSC_0187

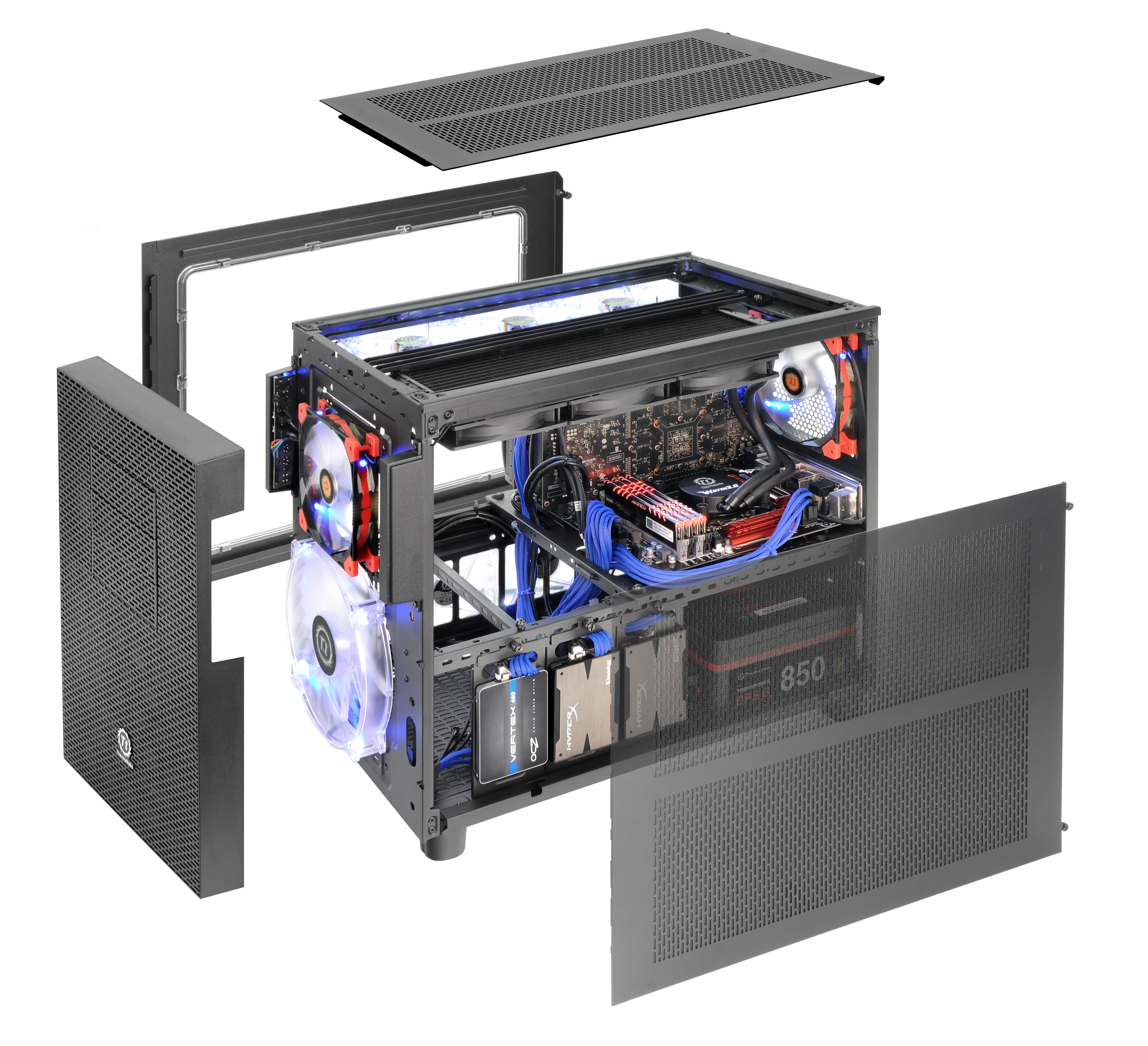

DSC_0188

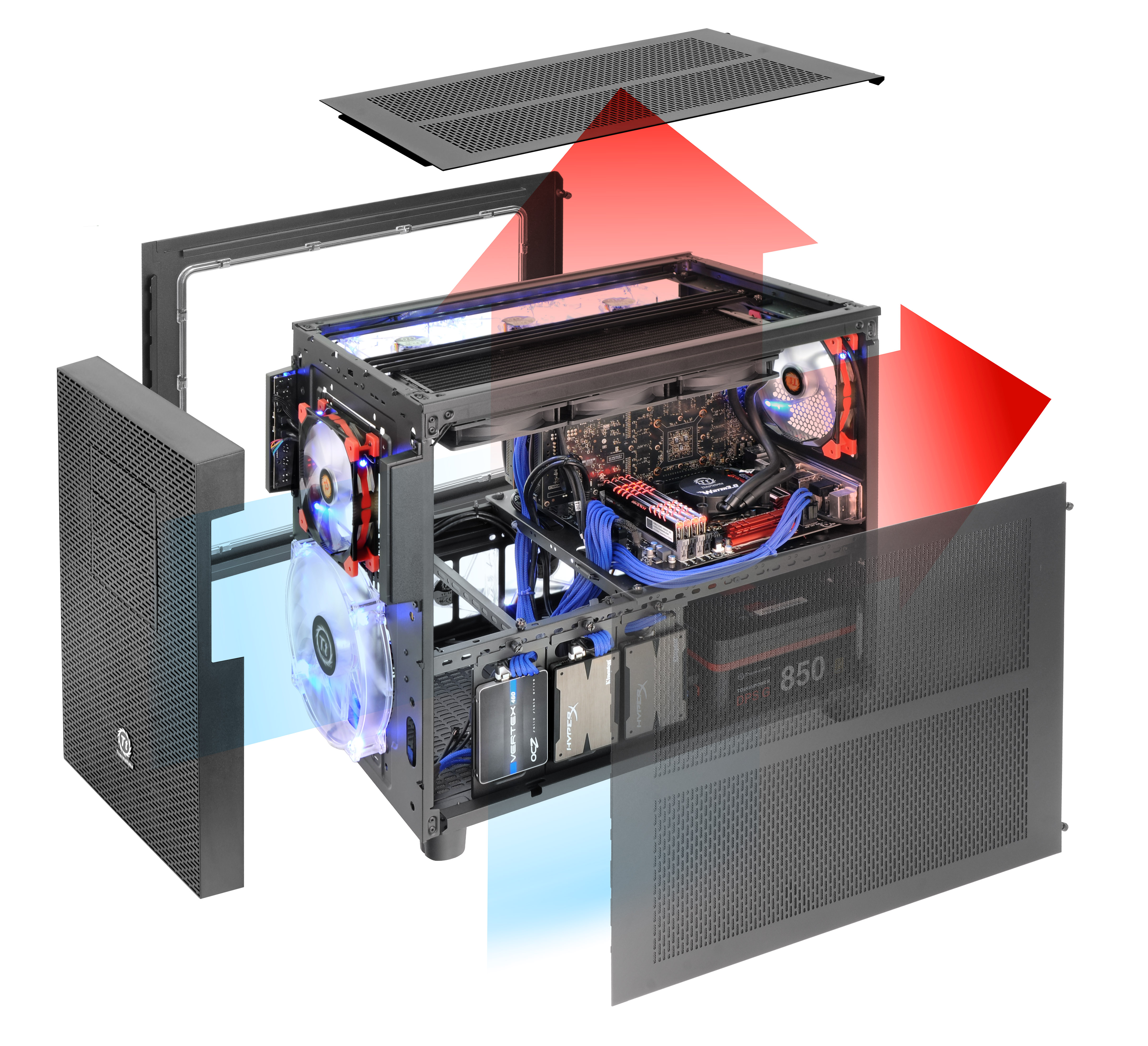

DSC_0189

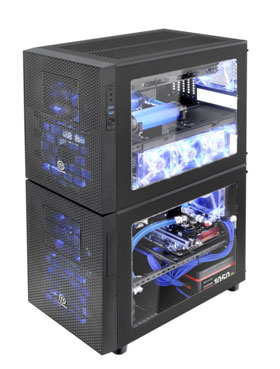

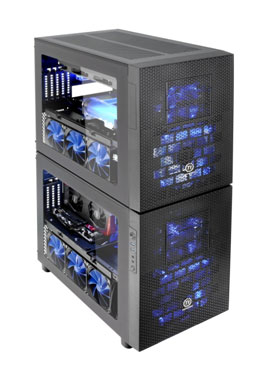

The Core x2 can be stacked as well!

Corex2-stacked-1 Corex2-stacked-2

Core X2 Datasheet
