Thermaltake Toughram XG RGB DDR4 4000

Newest Additions to Thermaltake's RAM Line

Thermaltake Toughram XG RBG Testing »

Toughram XG RGB DDR4 4000Toughram XG RGB DDR4 4000 is one of the newest additions to Thermaltake’s RAM Line.  This DDR4 kit comes with two modules that are currently offered in 8GB each.  The speed of the kit also varies as you can find desired module speed of 3600, 4000, 4400, and 4600Mhz.   In addition to the slick overall design, Toughram XG features RGB that is compatible with a range of RGB applications by Thermaltake. Supported chipsets for Toughram XG are Intel Z590, Z490, and AMD X570, B550.  We are going to be pairing up the Toughram XG with the latest motherboard from ASRock Z590 PG Velocita.  This motherboard supports DDR4 4000 speeds however Toughram XG is not listed as one of the supported modules.  Still, I am eager to see what these RAM modules can do.

Packaging of the Thermaltake Toughram XG RGB

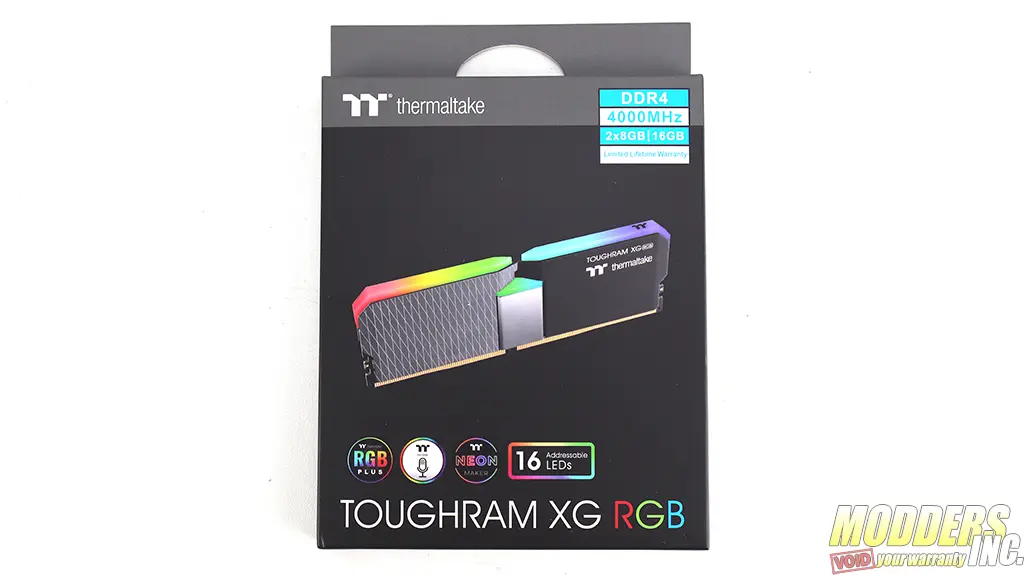

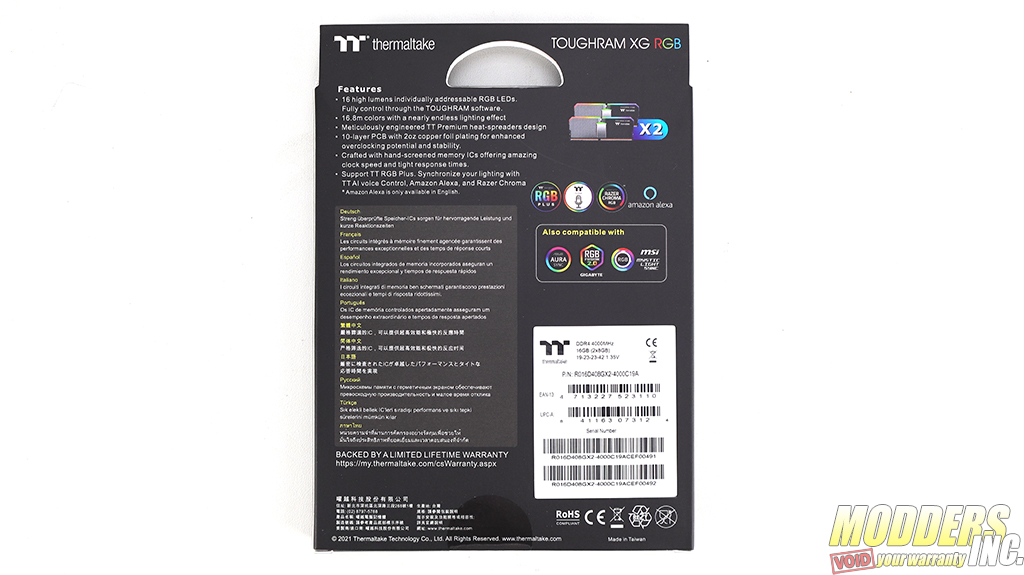

The packaging of Toughram XG is as colorful as the RGB itself.  A lot of helpful information could be found on the back of the package.  The modules we have here on the test bench have DDR4 4000 maximum speeds.  The module speed and capacity are clearly visible on the front of the package.


Toughram XG RGB DDR4 4000

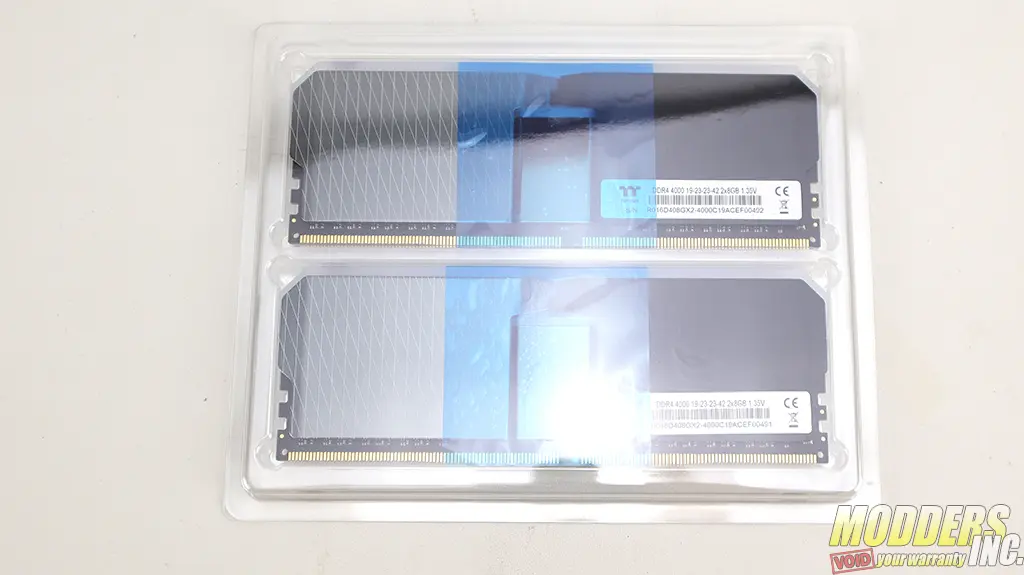

The internal packaging of Toughram XG consists of just the plastic enclosure and that’s about it.  I did found a few plastic sheets that cover the front/chrome area of the heat sink.  My guess this is here to minimize the scratches to the heat sink during shipping.

A Closer Look at the Thermaltake Toughram XG RGB DDR4000

Toughram XG RGB DDR4 4000

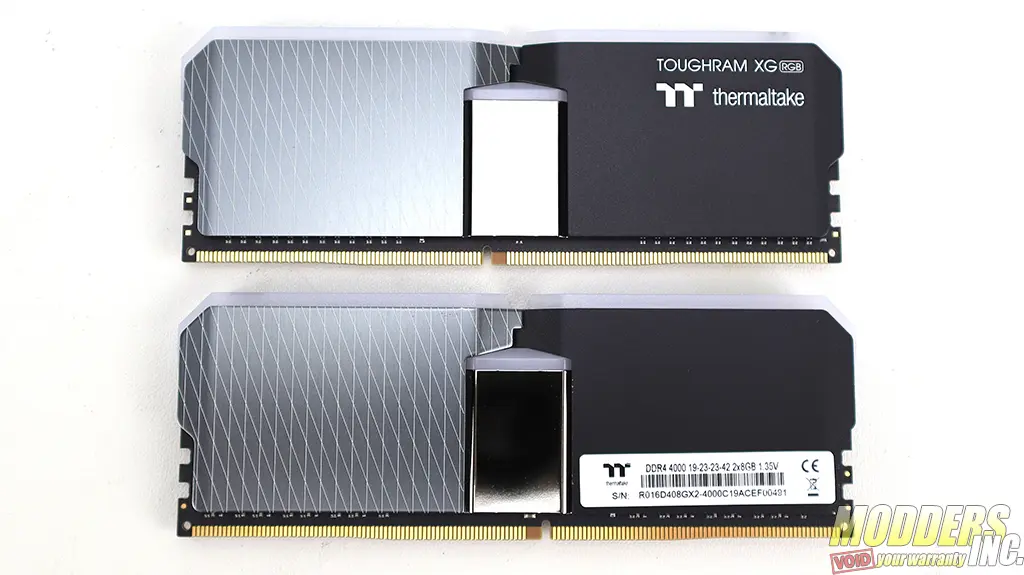

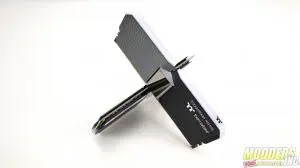

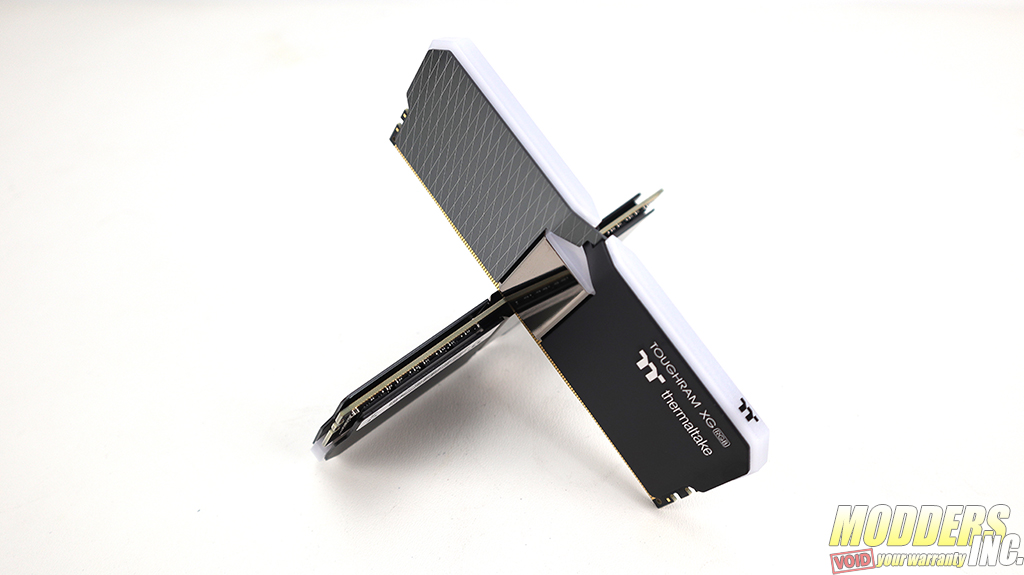

Toughram XG has a standard DDR4 length size with 288 gold plated pins.  In the middle of the modules, there is a stylish break with a chrome finish bezel.

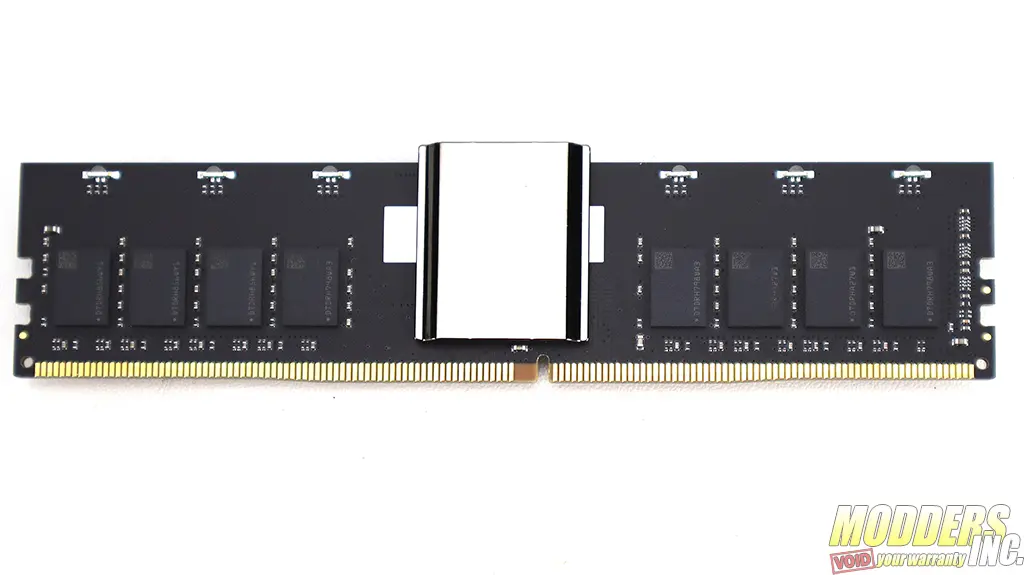

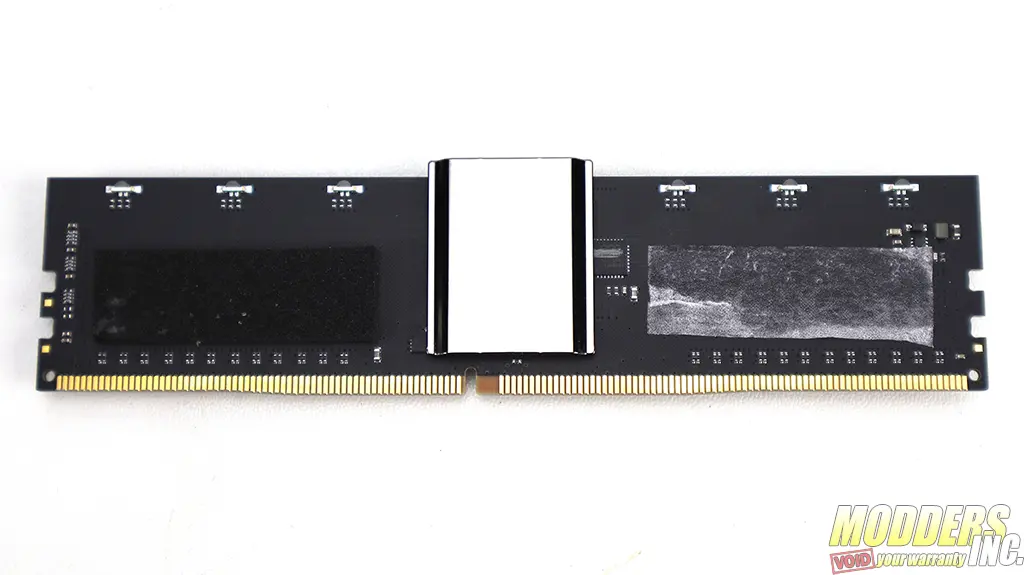

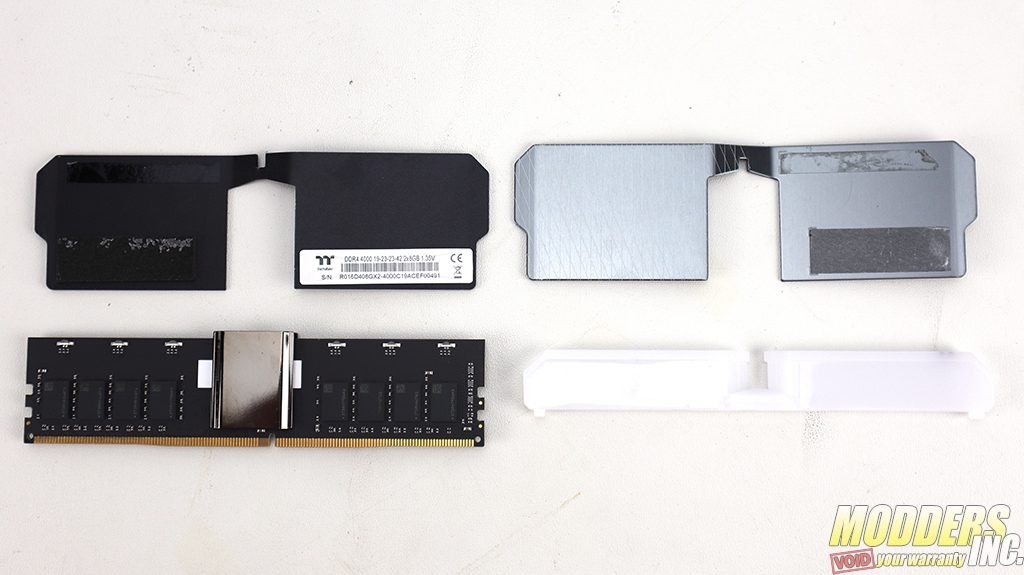

The heat sink has a cross pattern where two plates overlap opposite sides.  The way heat sinks are attached to the module itself is by adhesive tape.

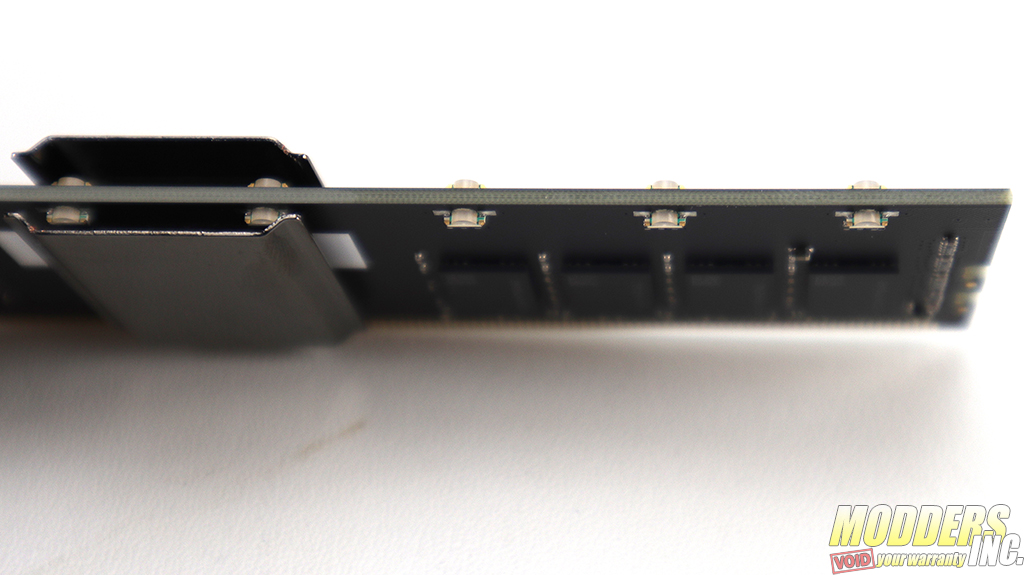

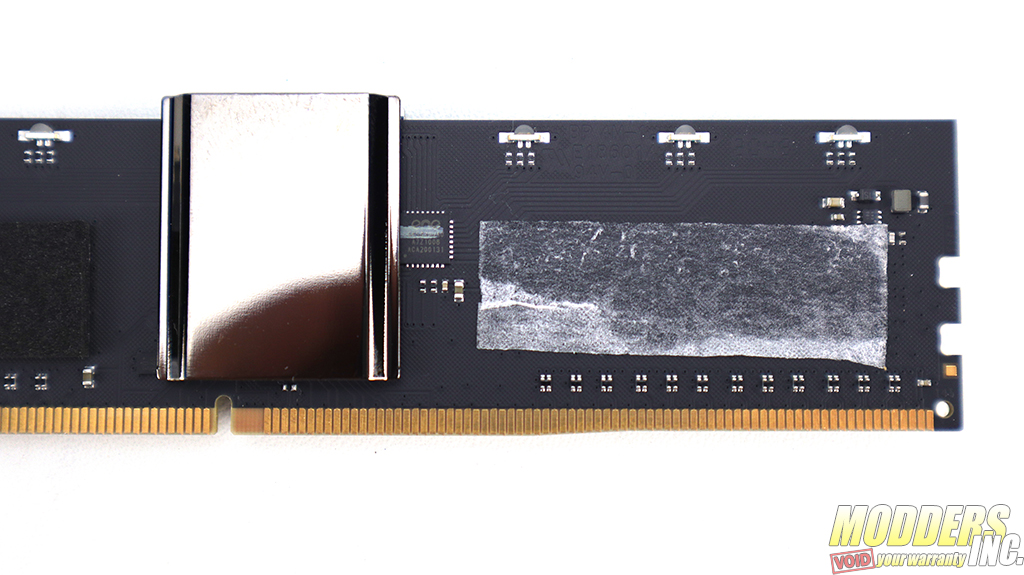

There are eight ARGB micro LEDs on each side of the module.  These ARGB LEDs are compatible with Asus Aurora, Gigabyte RGB Fusion 2.0, MSI Mystic Light Sync, Razer Chroma and of course Thermaltake RGB Plus and Alexa.  Yes, that’s right, you can have Alexa to control lightning modes on your Toughram XG RAM.


P/N R016D408GX2-4000C19A
CAPACITY 16GB Kit (8G x2)
TESTED LATENCY 19-23-23-42
VOLTAGE (V) 1.35 V
SPEED 4000 MHz
COMPATIBILITY Intel 500, 400, 300 Series
AMD X570, B550
PACKAGE CONTENT 2 x 8GB memory module
WARRANTY Limited Lifetime Warranty
