Zotac H55ITX-C-E Motherboard

Page 2 »

   A lot of us “Modders” like to use small compact hardware configurations when it comes time to build that next great mod. For the longest time, there was only a few options that would even be considered for such a build. In the last few years though, this has changed drastically. Not only can you go small, but you can go small with some powerful hardware. Today we are going to take a look at one of Zotac’s ITX based boards geared toward the H55 chipset, the Zotac H55ITX-C-E.

Zotac H55ITX-C-E Motherboard H55ITX-C-E, Motherboard, Zotac 1

Sponsor: Zotac

[hr]



First Look

Zotac H55ITX-C-E Motherboard H55ITX-C-E, Motherboard, Zotac 2     Zotac H55ITX-C-E Motherboard H55ITX-C-E, Motherboard, Zotac 3

  The Zotac H55ITX-C-E comes packed in Zotac’s standard bright packaging. Consumers looking at the product in a brick & mortar store will find a full shot of the motherboard on the rear of the package showing what and where everything is located. To the side of that they have a set of icons listing the more popular features.

Zotac H55ITX-C-E Motherboard H55ITX-C-E, Motherboard, Zotac 4

  Along the side we see find a full list of the features.

Zotac H55ITX-C-E Motherboard H55ITX-C-E, Motherboard, Zotac 5

  Cracking open the box, we can seen that Zotac has everything nicely packed. The motherboard is in the lower section with all the accessories and booklets on top.

Zotac H55ITX-C-E Motherboard H55ITX-C-E, Motherboard, Zotac 6

  Here we have the Users Manual, a Quick Install Guide, the Drivers disc, and a Warranty pamphlet..

Zotac H55ITX-C-E Motherboard H55ITX-C-E, Motherboard, Zotac 7

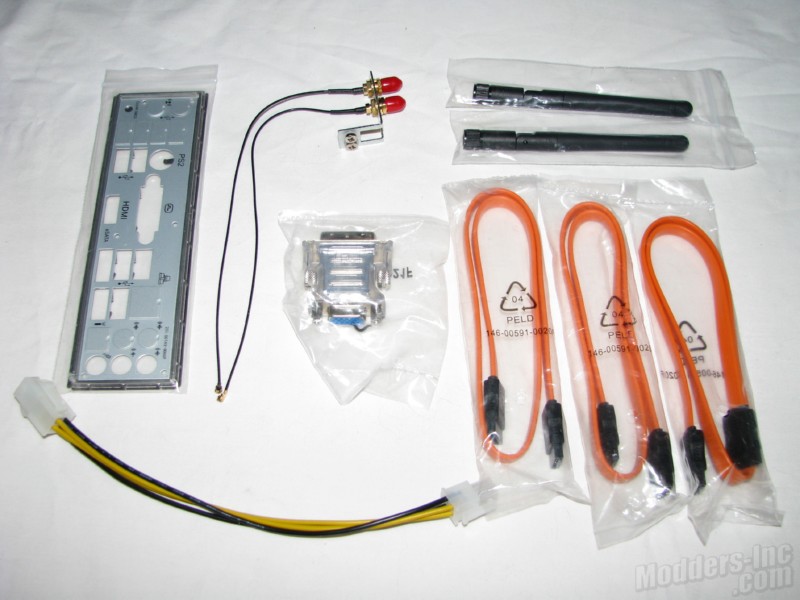

  As far as the accessories go, we have the I/O shield, the WiFi antenna bracket, two antennas, DVIto VGA adapter, three SATA cables, and a 4-pin ATX 12V extension cable.

Zotac H55ITX-C-E Motherboard H55ITX-C-E, Motherboard, Zotac 8

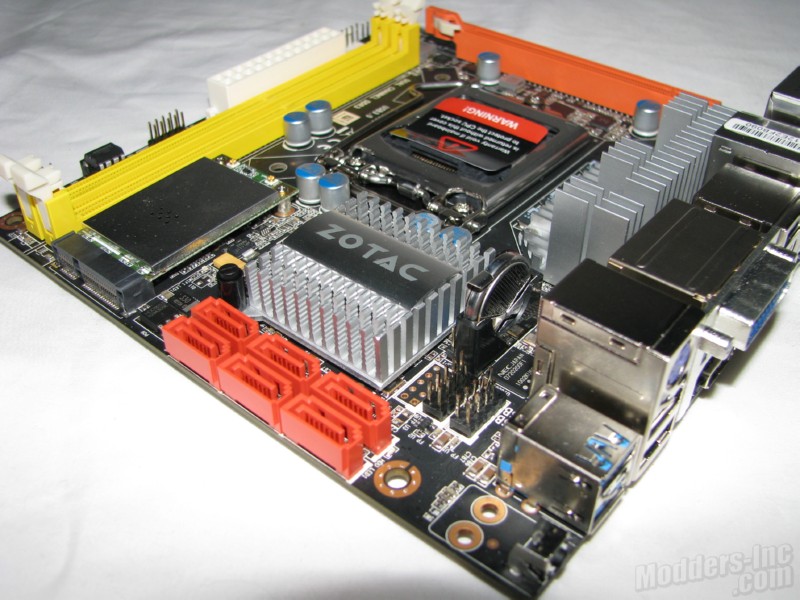

  And last but not least is the motherboard itself.

Zotac H55ITX-C-E Specifications
Model H55ITX-C-E
Chipset Intel H55 Express
CPU Socket LGA1156
Dimensions 6.7in x 6.7in – 170mm x 170mm
Form Factor Mini-ITX
FSB Intel QuickPath Technology
Memory Size Up to 8GB
Memory Slots 2 x 240 pin DDR3 DIMM
Memory Type DDR3 1066/1333
Onboard Audio 7.1 Channels
Onboard LAN 10/100/1000 Mbps
Onboard Video Supports Intel HD graphics
Package Contents 3 x SATA cables
1 x 4-pin ATX extension cable
2 x WiFi Antennas
1 x DVI to VGA adapter
1 x I/O back plate
PCI Expresss x1 1 (mini PCIe) – Occupied by WiFi module
PCI Express x 16 1
Power Connector 24-pin
SATA 6 + 1eSATA (SATA 3.0 Gb/s)
USB 2 x USB 3.0 (on back panel), 10 x USB 2.0 (6 on back panel, 4 via pin header)
Video Ports HDMI + DVI
