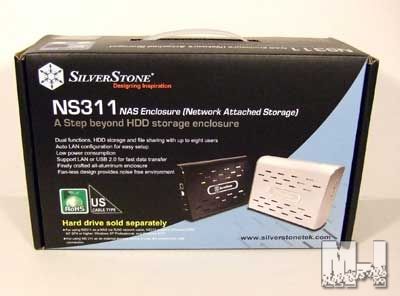

Packaged in a cardboard box, that can also serve as a carring case, we see that Silverstone has given us plenty of details to read on the box about the NS3111 NAS. The enclosure is available in two different colors with one being Black and the other Silver.

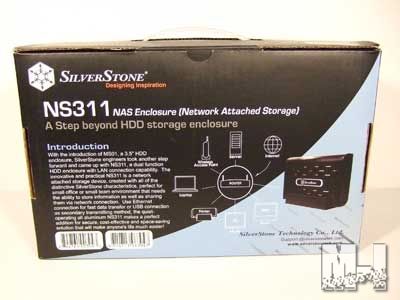

The details described on the back side of the box tells you why the NS311 is different from any other type of hard drive enclosure and how it enteracts with the rest of the items on your home network.

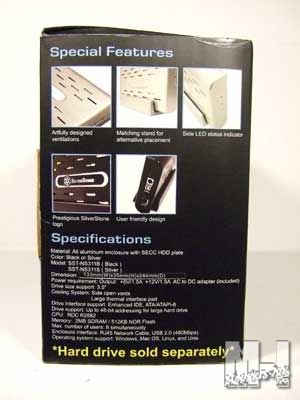

The side of the box gives some beauty shots and more details about the enclosure.
With the introduction of MS01, a 3.5” HDD enclosure, SilverStone engineers took another step forward and came up with NS311, a dual function HDD enclosure with LAN connection capability. The innovative and practical NS311 is a network attached storage device, created with all of the distinctive SilverStone characteristics, perfect for small office or small team environment that needs the ability to store information as well as sharing them via network connection. Use Ethernet connection for fast data transfer or USB connection as secondary transmitting method, the quiet-operating all aluminum NS311 makes a perfect addition for secure, cost-effective and space-saving solution that will make anyone's life much easier!
Specail Features:
Dual functions, HDD storage and file sharing with up to eight users
Auto LAN configuration for easy setup
Low power consumption
Support LAN or USB 2.0 for fast data transfer
Finely crafted all-aluminum enclosure
Fan-less design provides noise free environment
Specifications:
| Enclosure material |
All aluminum enclosure with SECC HDD plate |
| Color |
silver or Black |
| Dimension |
133mm (W) x 35mm (H) x 244mm (D) |
| Net Weight |
1.2 kg |
| Power requirement |
Output: +5V/ 1.5A +12V/ 1.5A AC to DC adapter (included) |
| Drive size support |
3.5” |
| Drive interface support |
Side open vents
Large thermal interface pad |
| Drive interface support |
Enhanced IDE, ATA/ATAPI-6 |
| Drive support |
Up to 48-bit addressing for large hard drive |
| CPU |
RDC R2882 |
| Memory |
2MB SDRAM / 512KB NOR Flash |
| Max. number of users |
8 simultaneously |
| Enclosure interface |
RJ45 Network Cable, USB 2.0 (480Mbps) |
| Operating system support |
Windows, Mac OS, Linux, and Unix |
| Protocol support |
DHCP, TCP/IP, CIFS, HTTP, FTP |
|
