ADATA SX950 SSD Review


« A Closer Look at the ADATA SX950 | Final Thoughts »

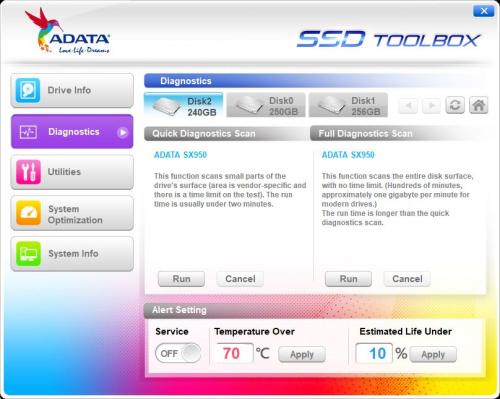

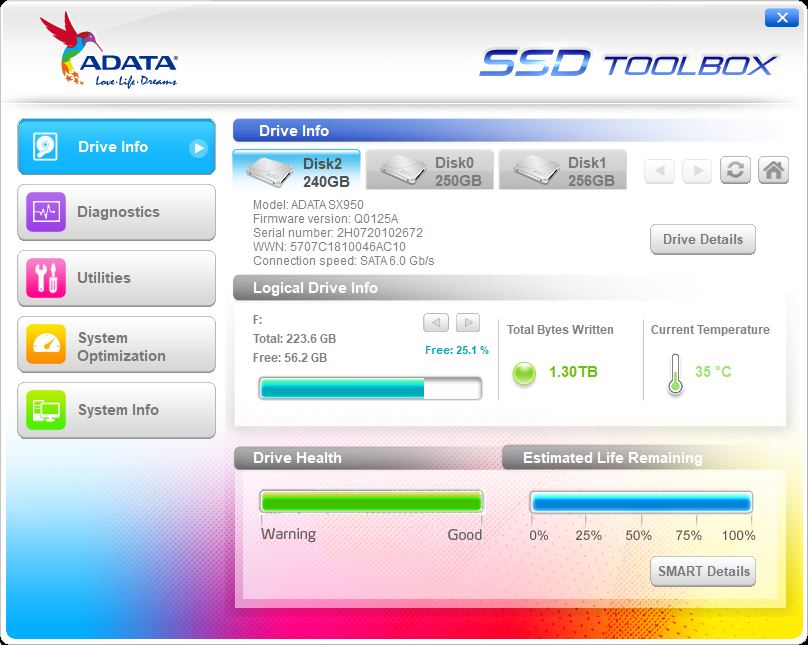

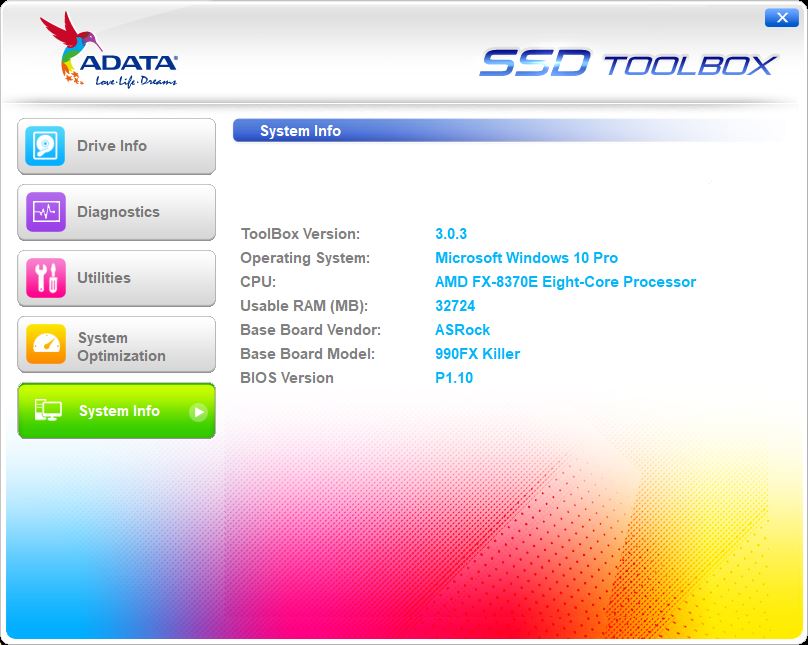

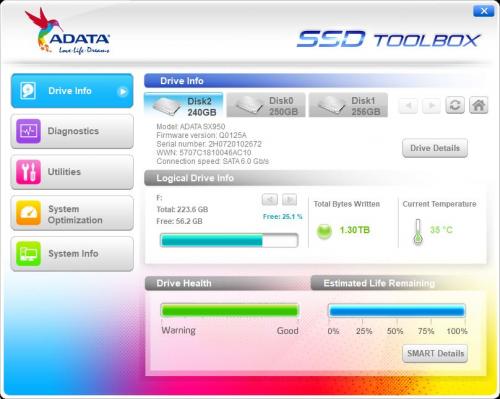

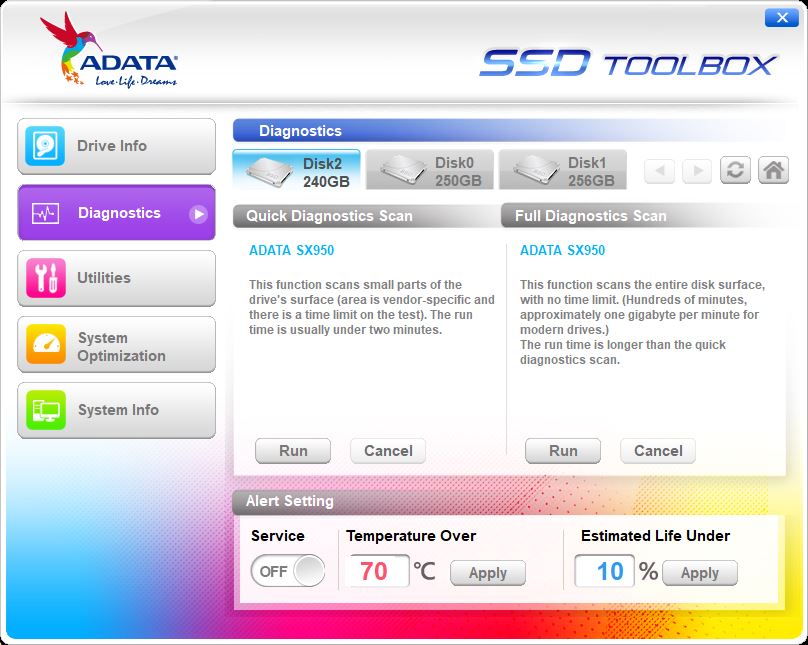

ADATA has an SSD Toolbox software free for download for monitoring, updating firmware and secure erasing an ADATA SSD. The drive info page shows a graphical overview of the drive health including temperature, bytes written and estimated life remaining.

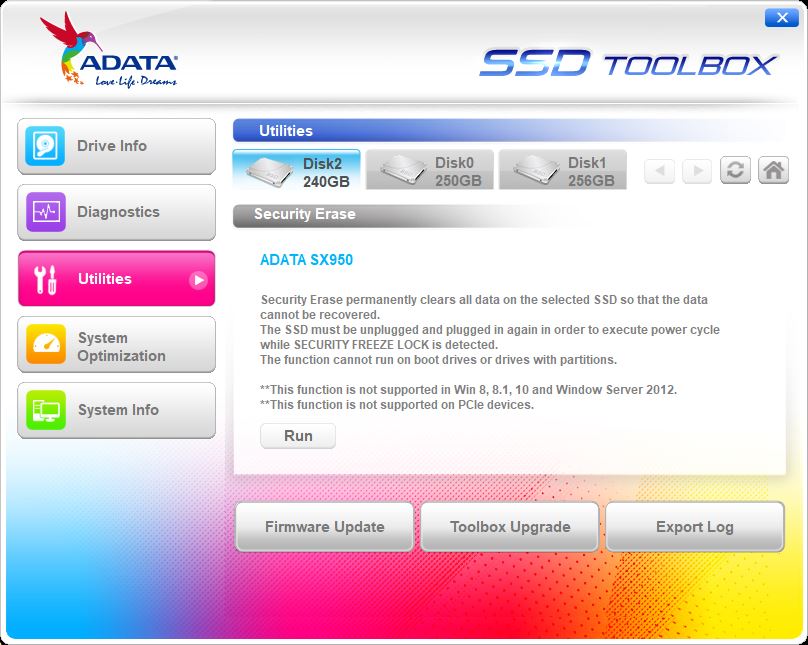

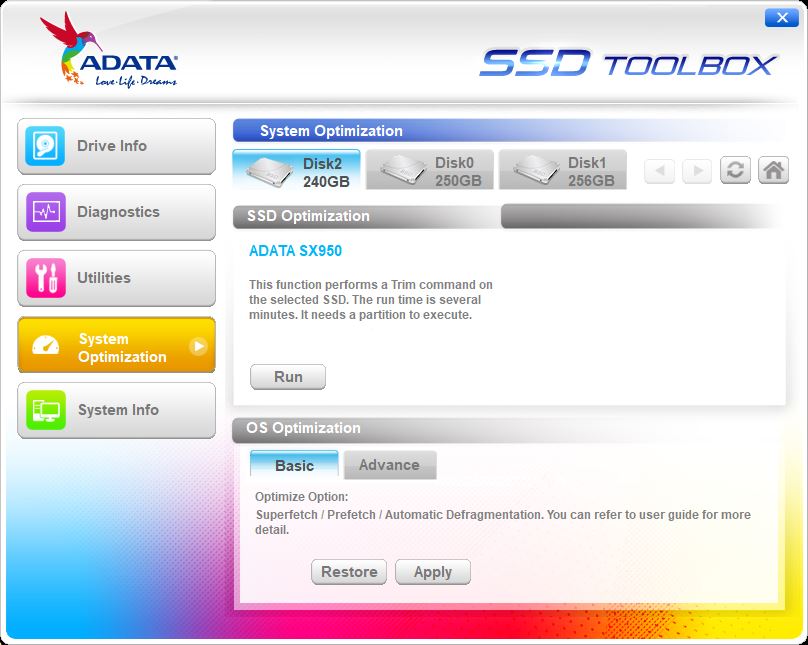

While the SSD Toolbox and its utilities are compatible with Windows 10, secure erase can only be performed on a Windows 7 system. The toolbox version and firmware can be updated here as well as OS optimizations for those running a non-Windows 10 OS.

Following benchmarks were performed to demonstrate in the lab and real-world performance data.

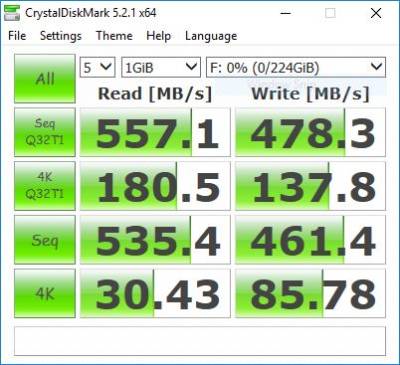

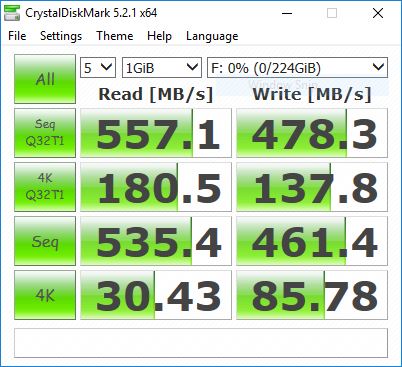

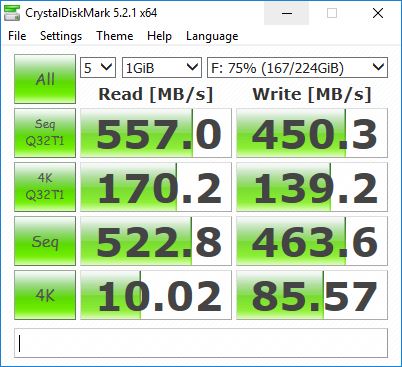

CrystalDiskMark was performed on the stock (right out of the box) SX950 and at 75% full SX950. Read and write tests for “Seq Q32T1”, “4K Q32T1”, “Seq” and “4K”.

Seq Q32T1: Sequential (Block Size=128KiB) Read/Write with multi Queues & Threads
4K Q32T1: Random 4KiB Read/Write with multi Queues & Threads
Seq: Sequential (Block Size=128KiB) Read/Write with single Thread
4K: Random 4KiB



AIDA64 disk benchmark suite that measures read performance (in MB/s) and show average read access. All tests are set to the 1MB block size.

SX950 SSD Review

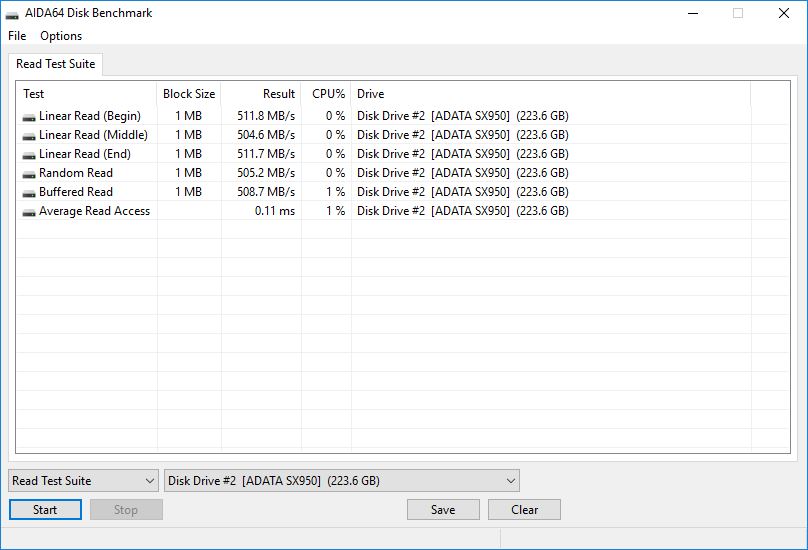

AIDA64 75% Read benchmark
SX950 SSD Review
AIDA64 75% Linear Read benchmark
SX950 SSD Review

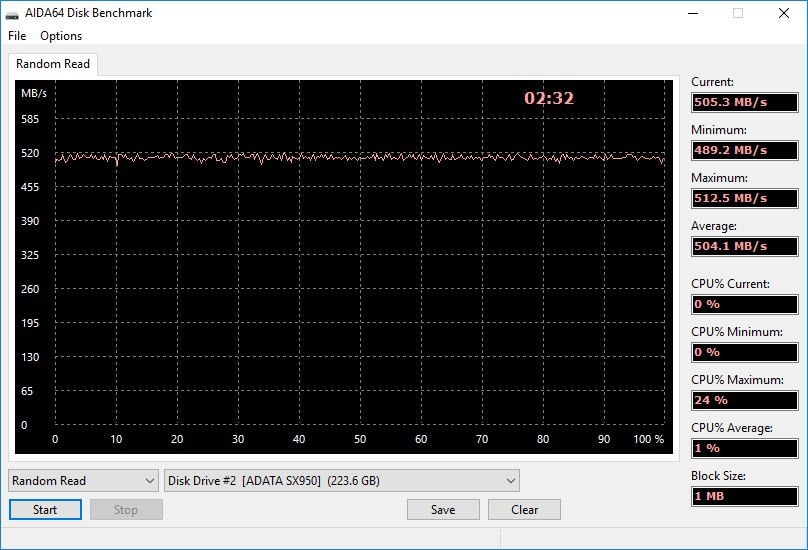

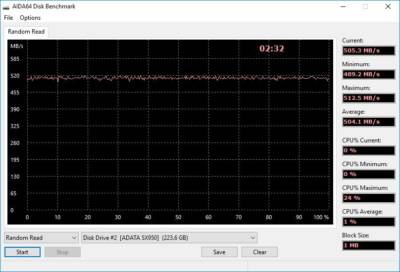

AIDA64 75% Random Read benchmark
SX950 SSD Review

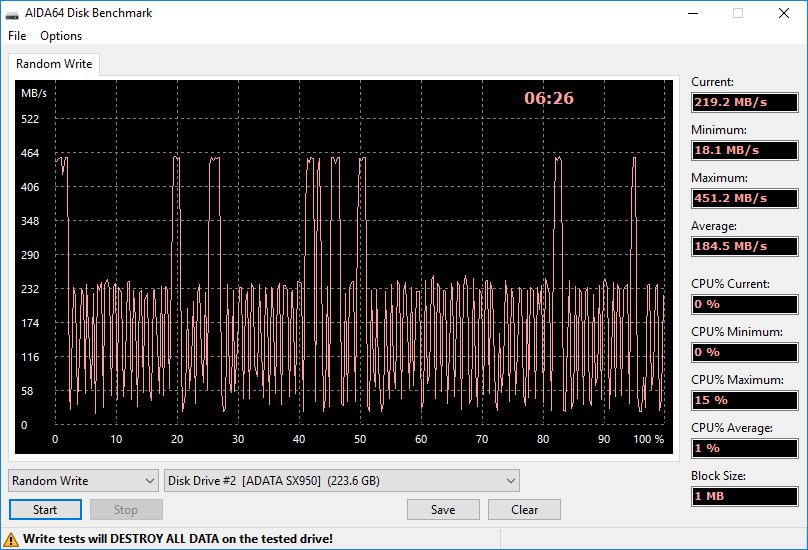

AIDA64 Random Write benchmark

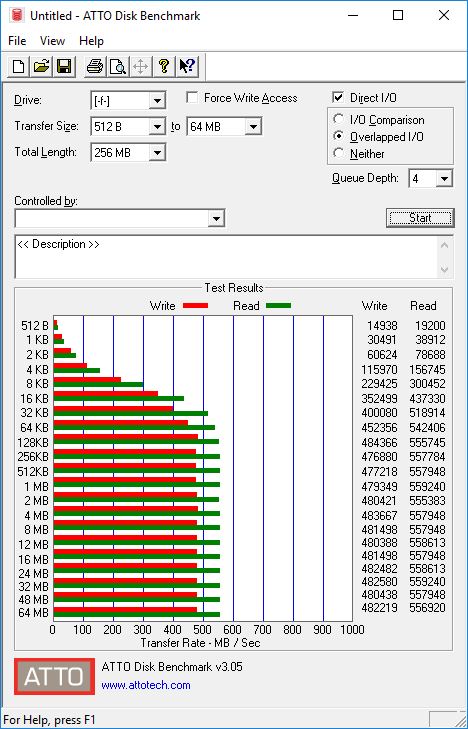

ATTO disk benchmark is a 32-bit compressible data benchmark that measures read and write speeds across various file transfer sizes from 0.5KB to 8192KB to show SSD behavior.

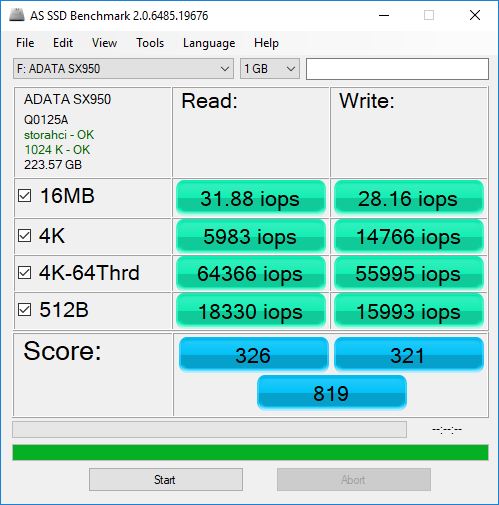

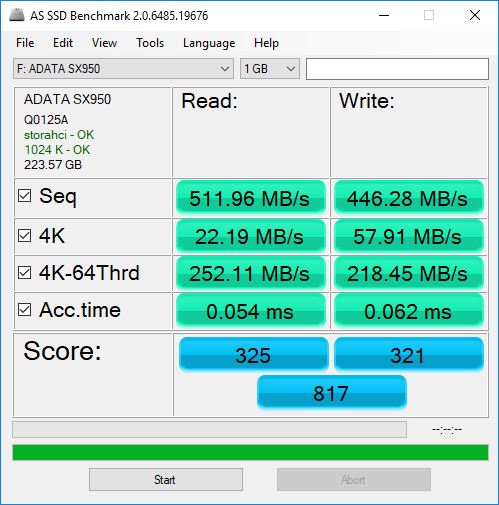

AS SSD uses incompressible data for benchmarking and can measure read/write performance in MB/s or in IOPS. AS SSD also has a Copy Benchmark which simulates ISO, Game and program performance, providing both speed and access time results.

SX950 SSD Review

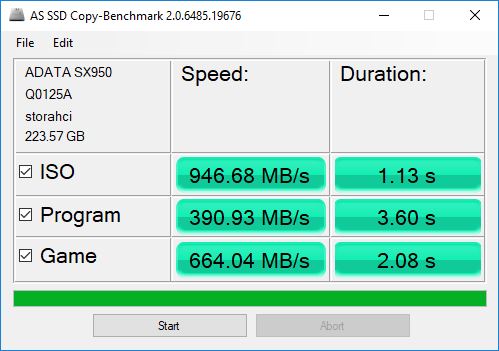

AS SSD Copy Benchmark


Anvil Storage Utilities is a comprehensive storage testing program that provides plenty of information and option for each test. For this review, 100% incompressible, 46% incompressible (simulating Applications) and 0-fill compression data were used to observe behavior across.

SX950 SSD Review
Anvil Storage Utilities 75% SX950


SX950 SSD Review

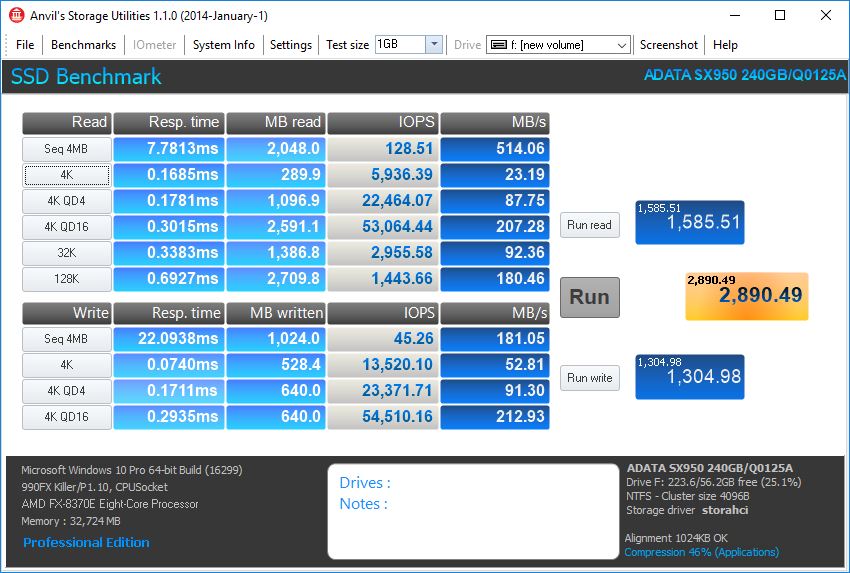

Anvil Storage Utilities 46% Applications SX950


SX950 SSD Review
Anvil Storage Utilities 100% Incompressible SX950

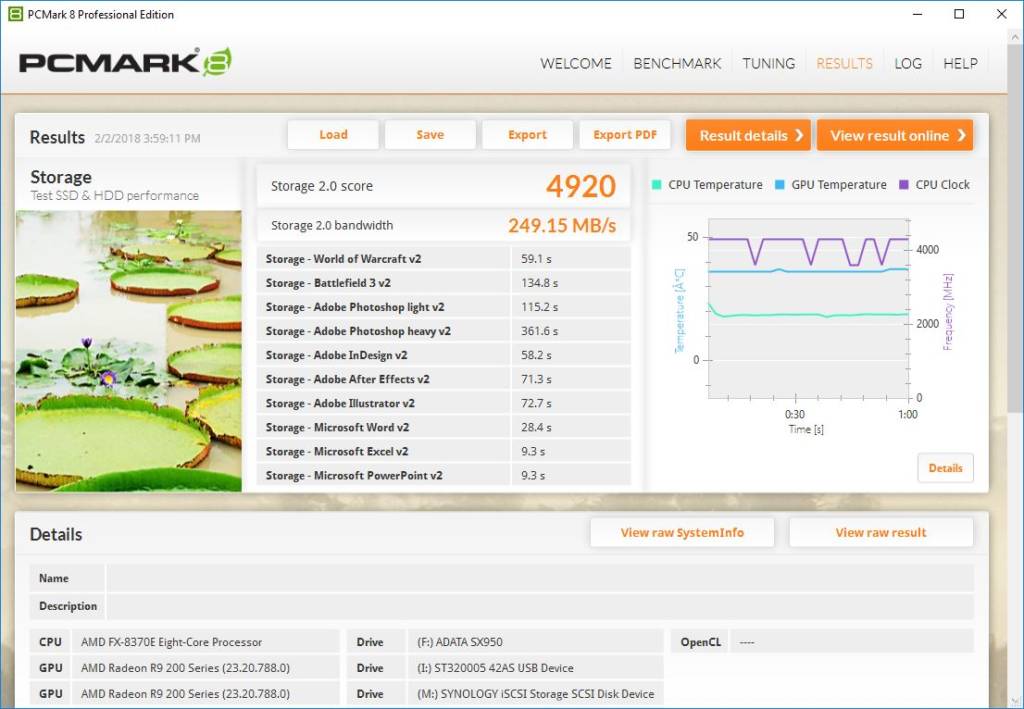

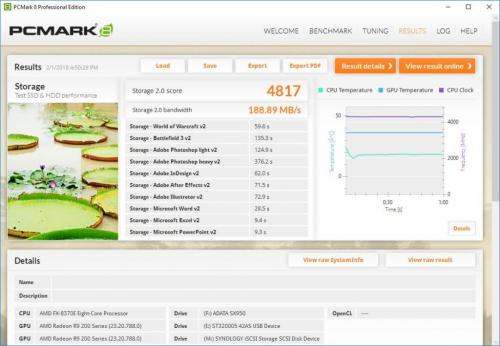

PCMark 8 from Futuremark is a semi-synthetic testing suite that has a specialized Storage testing performance feature. It simulates storage performance while playing games, running productivity and creative programs and generates a total score based on how long each test took and the storage device behavior during its 3-set run.

Previous page 1 2 3 4Next page
