Corsair Obsidian Series 500D

The Newer and Better ATX Mid Tower Case



We take a look at the NEW Obsidian Series 500D ATX mid-tower case from Corsair along with some ML Series RGB fans and the Commander Pro. The New 500D features smoked tempered glass side doors and premium aluminum trim that gives the 500D a new look and style. New features include tempered side panels that hinge open and installing fans and radiators is now easier with removable trays that can hold up to five 120mm fans or four 140mm fans. The backside of the Obsidian 500D brings you easy-to-use mounts for up to two 3.5in HDDs and three 2.5in SSDs and improved cable management to route and hide all your wires. Take a look at our video for a deep dive into the New Obsidian 500D ATX Mid Tower Case.



Hardware Installation and Clearance Compatibility



  • External height: 507mm
  • External length: 500mm
  • External width: 237mm

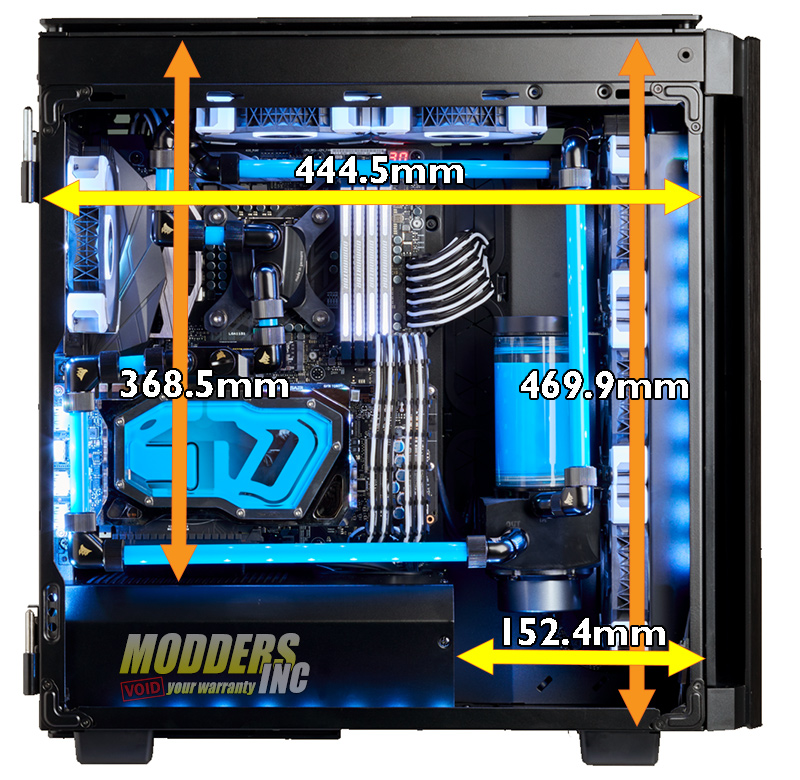

  • Internal length: 445mm
  • Internal height: 469.9mm.
  • Internal depth: 172mm (to the glass)

Motherboard Types:

  • Mini-ITX
  • MicroATX
  • ATX

Front-mounted:

  • Radiators size 360mm or 280mm
  • Fan size 3x120mm or 2x140mm

Rear-mounted:

  • Radiator size 120mm
  • Fan size 120mm

Top-mounted:

  • Radiator size 240mm
  • Fan size 2x120mm

Bottom mounted:

NA

Compatible Corsair Liquid Coolers:
H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i

CPU Tower Coolers:

  • CPU heat-sink height clearance is 170mm
  • Large CPU backplate cutout

Power Supply:

  • There is a removable shroud
  • 225mm Max Clearance for Power Supply installation

Video Card clearance:

  • There is 370mm Max of clearance

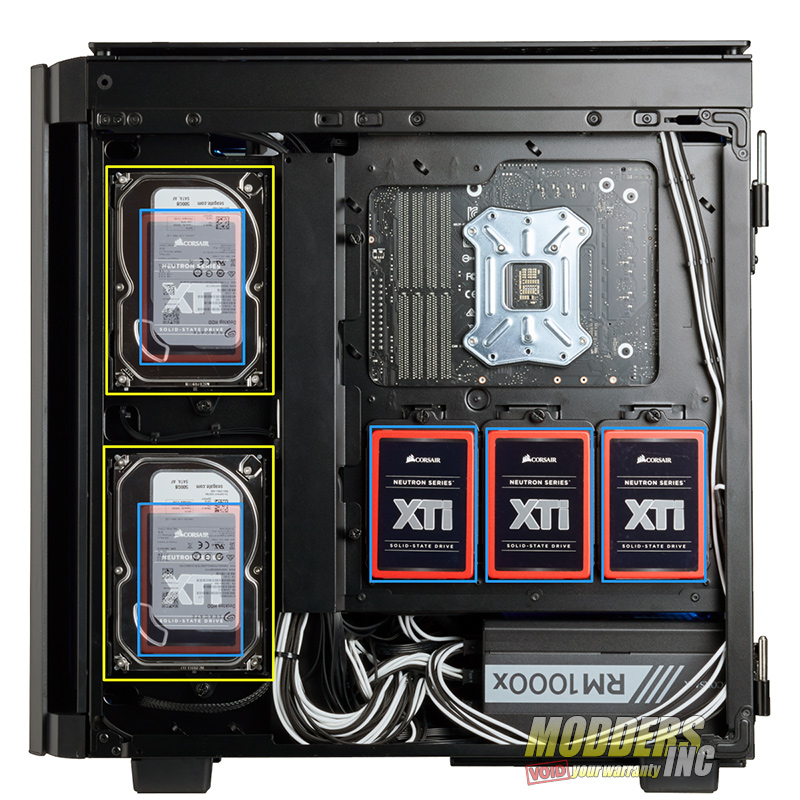

Storage Sizes and Locations

  • (2) 3.5 inch Drives
  • (3) 2.5 SSD Drives space to add two more

Modders-Inc Hardware Must Have Award
