ECS LEET Z170-Lightsaber Review: A Cut Above

Article Pages: « System Benchmarks (CPU, Memory, Compression, Multimedia) | Final Thoughts »

Subsystem and Gaming Benchmarks

Four SATA 6G ports are provided by the Z170 chipset and four are provided via ASMedia ASM1061. The USB 3.0 Ports are provided onboard and in the back panel via Intel Z170 chipset and as well as via  ASMedia ASM1142.

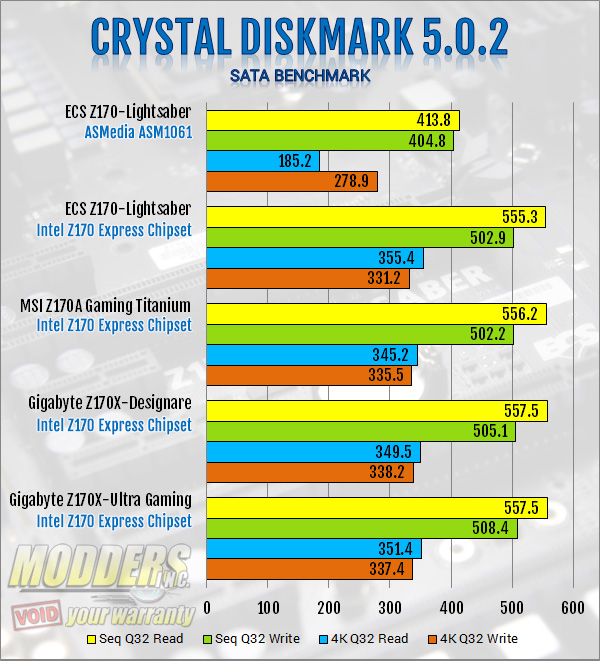

ECS Z170-Lightsaber Crystal DiskMark SATA

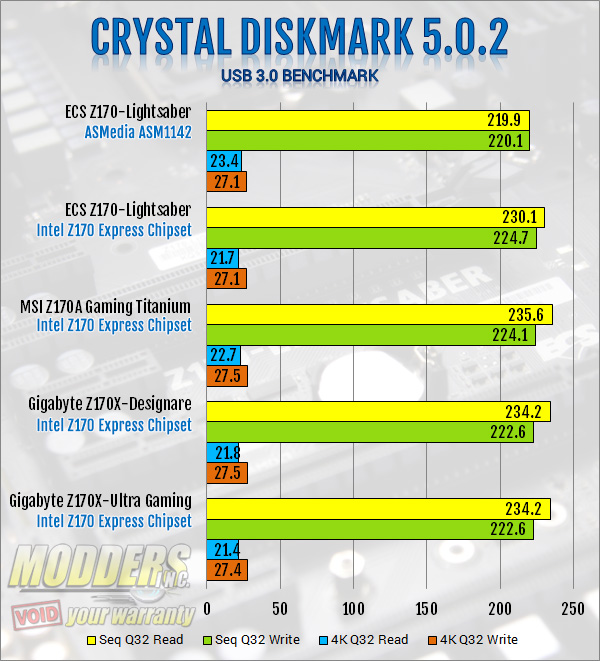

ECS Z170-Lightsaber Crystal DiskMark USB3

*The drive enclosure used for USB testing is a regular USB 3.0 with a SATA6G SSD connected inside and is not to be taken as a display of maximum USB 3.1 throughput possible.

On-board Audio

Before proceeding with audio benchmarks, Deferred Procedure Call latency must be first checked to make sure that the system is capable of producing useable results when the Rightmark Audio Analyzer benchmark was run. DPC is a Windows function that involves prioritizing tasks within the OS and high DPC latencies can be caused by several things including hardware device conflict. The DPC Latency Monitor graphically displays the latency level of the system in real time.

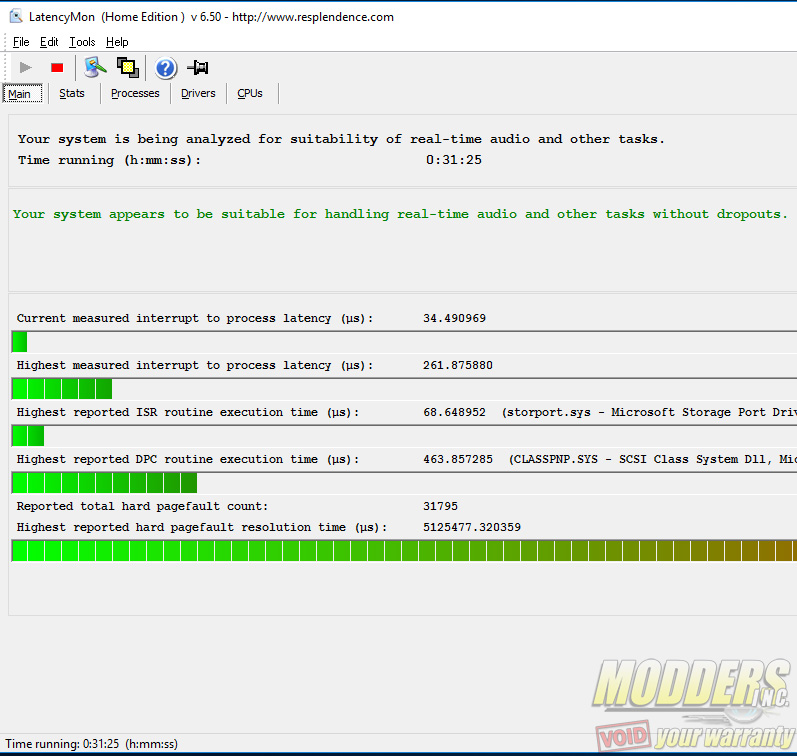

latencymon

After leaving the system running for 20+minutes, the ISR and DPC routine execution times peaked at 68.65 and 463.86 respectively and are well under the 4000 microseconds range (at which point the system will be unsuitable for real-time audio playback), so the audio tests can proceed.

RightMark Audio Analyzer tests using a short 3-inch 3.5mm audioloop cable that goes in the rear line-in and line-out ports for a loopback test to objectively test internal audio performance.

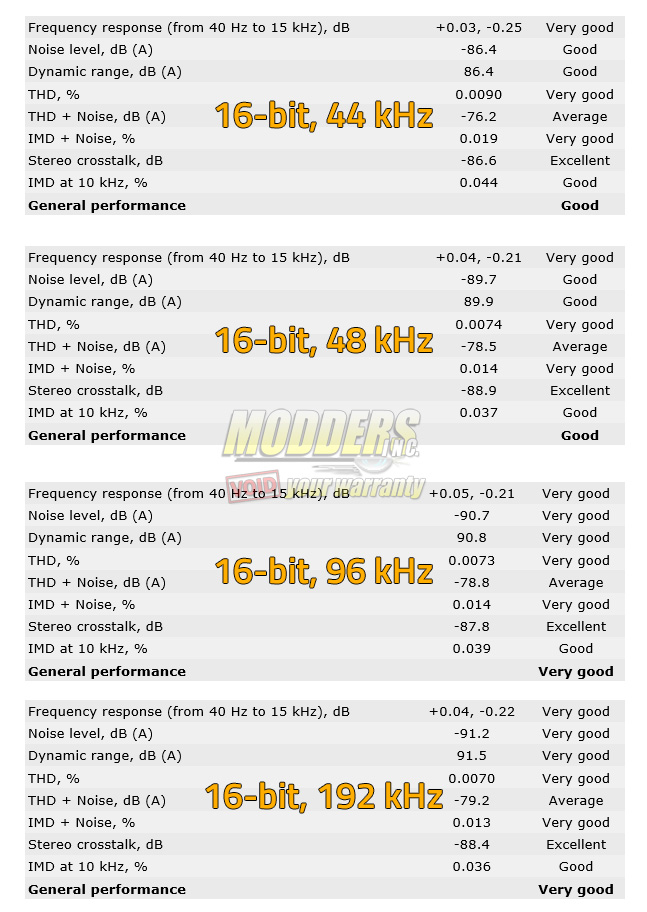

 Rightmark Audio Analyzer 16-bit

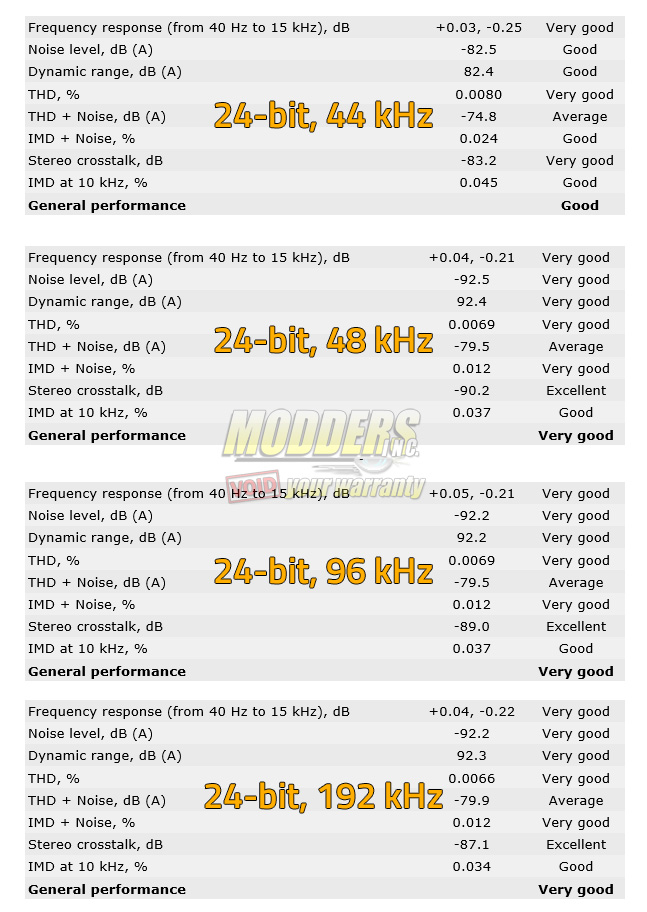

Rightmark Audio Analyzer 24-bit

Network Connectivity

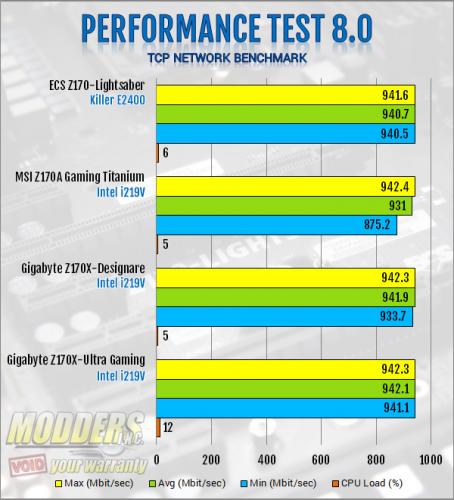

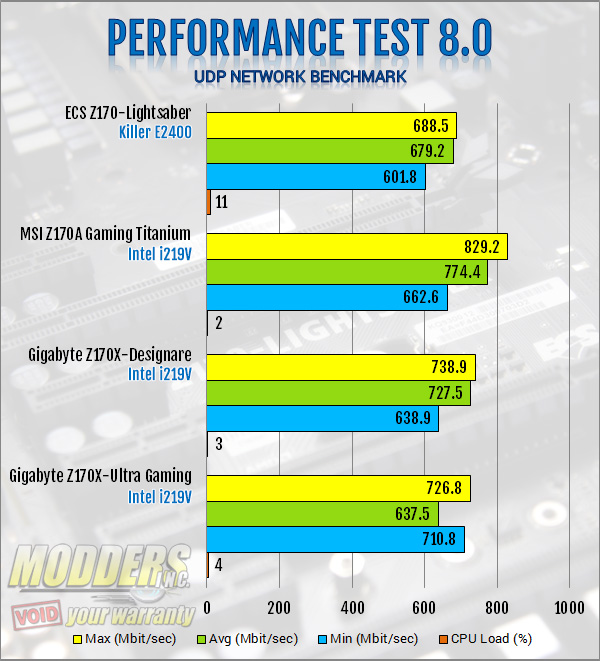

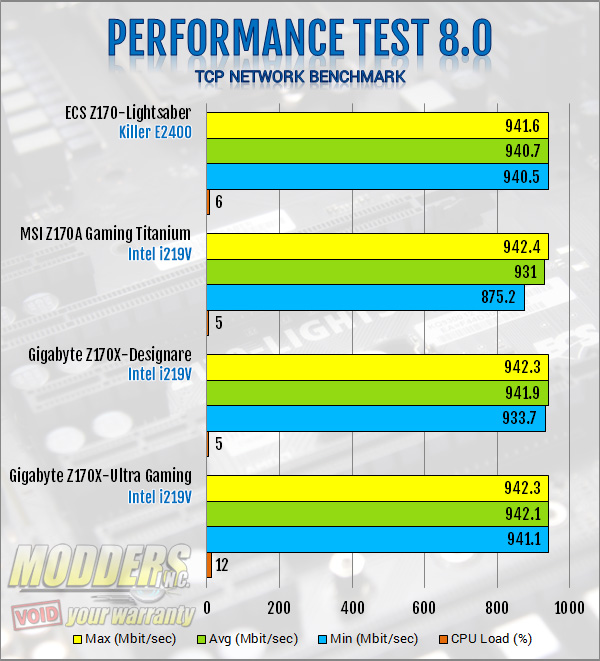

Network testing was conducted with a 4-port Cisco E3200 Gigabit Dual-Band Wireless N router and a pair of 6-ft long Cat5E cables connecting the server PC and the test motherboard. The server system is running an Intel Core i7-5775C processor on an Asrock Z97 Extreme 4 motherboard with an Intel i218V PHY. Interrupt Moderation was disabled, running TCP and UDP tests.

Gaming Tests

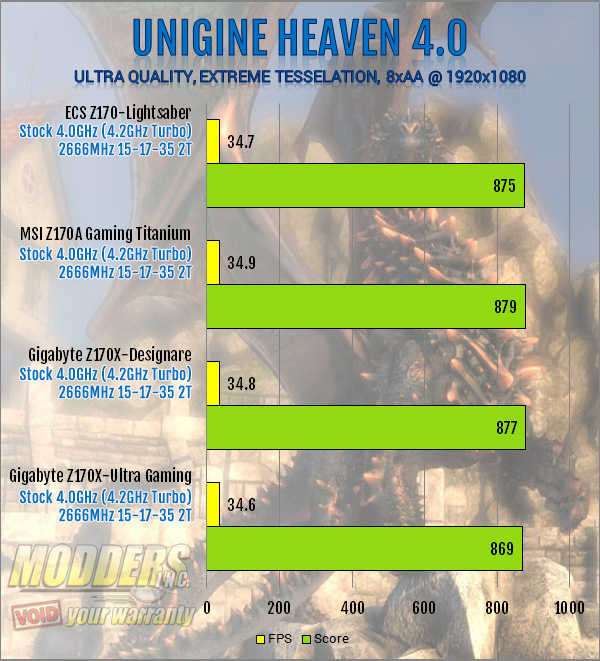

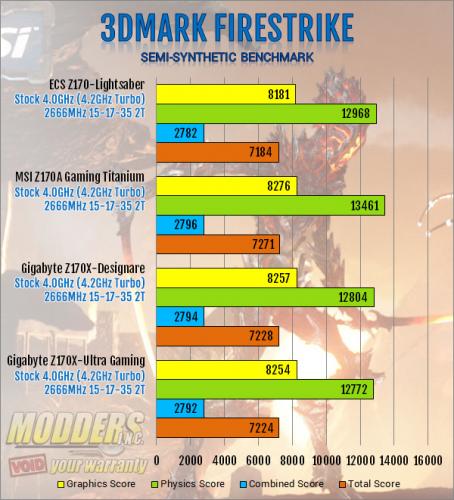

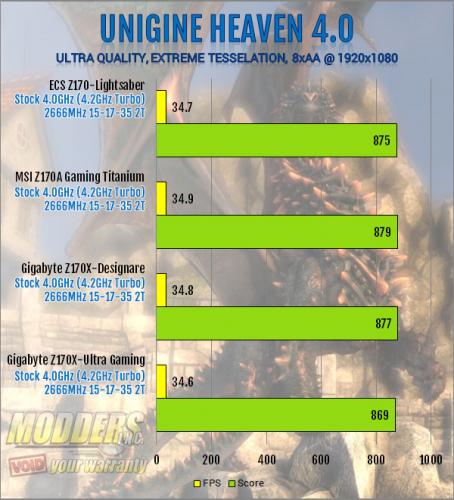

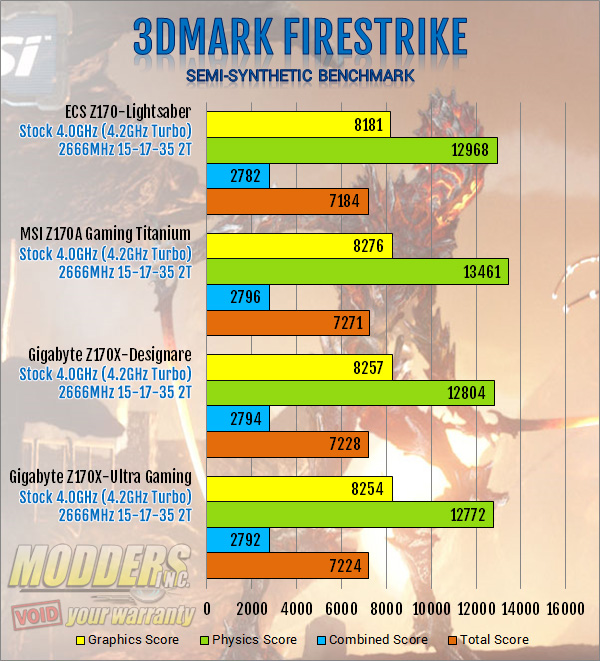

Futuremark’s 3DMark is a semi-synthetic gaming benchmark that calculates both graphics and CPU-bound physics in a controlled series of tests and provides scores that can be compared with other gaming platforms. Unigine Heaven is a synthetic benchmark that is completely GPU bound for testing possible PCI-E graphics performance inconsistencies.

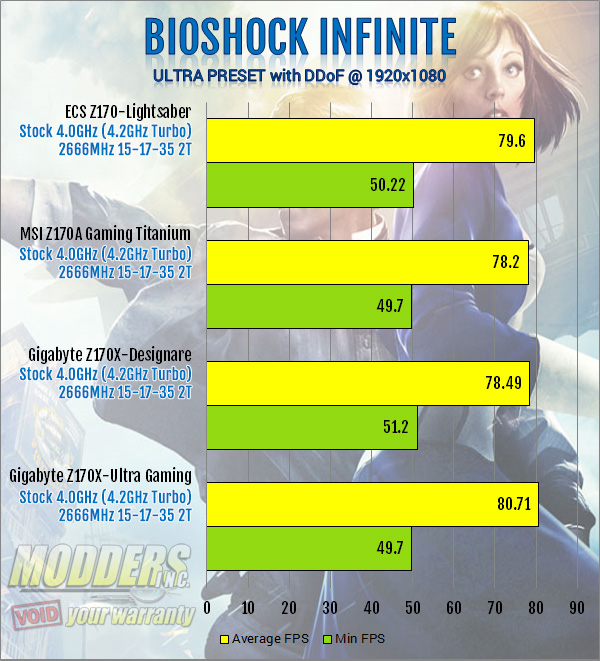

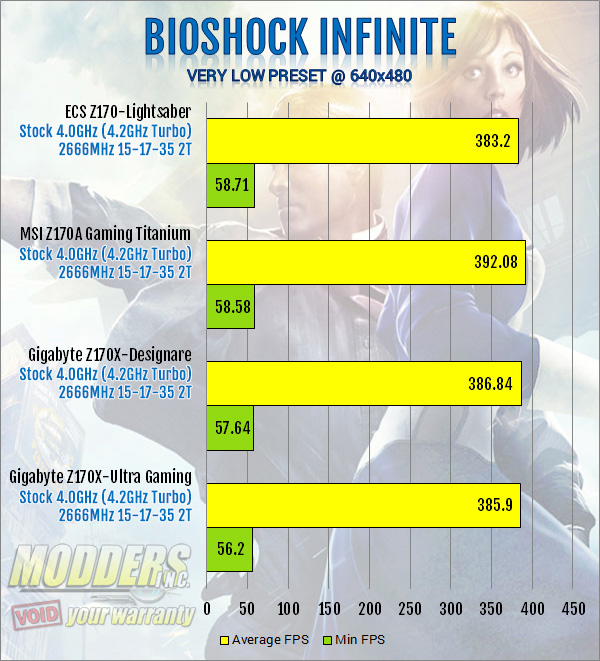

A gaming test run for Bioshock Infinite at the lowest resolution and settings was performed as well as a test with maximum details at a 1920 x 1080 resolution. CPU performance difference can be gauged due to the reduced reliance on the discrete GPU at those low levels theoretically but a high resolution benchmark was also conducted to see if there are inconsistencies with PCI-E graphics performance.
