Swiftech H240 X3 All in One Cooler Review

Increased Looks and Performance

Article Index: >>    Packaging »

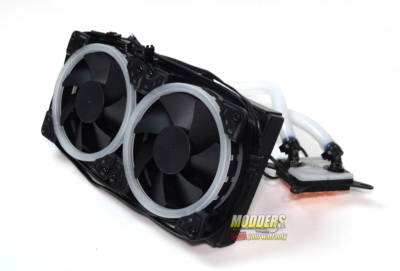

Swiftech H240 X3

As reviewers, we tend to swap out hardware on a very regular basis. Because of this, as test bench is a must for any serious reviewer. Not too long after setting up my test bench, I decided to move my main system to a test bench as well. However, the enthusiast in me demanded it be water-cooled. So, I ended up with the Praxis wet-bench due to its ability to take a 360 mm radiator. While searching for the hardware to do a proper custom loop, I came across the H320 X2 Prestige from Swiftech, and fell in love. It was a 360 mm All in One cooler with an Apogee XL2 block. It was the first cooler that allowed me to break 5.0 GHz on my 7700k. Since then, all my PCs have been cooled by Swiftech AIO coolers. They perform great and are far easier to deal with than a full custom loop. So, when Swiftech asked us to look at their all new H240 X3, I couldn’t wait to get my hands on it.

Swiftech’s X2 line up of AIO coolers were the first brand of all in one’s I’d feel comfortable recommending to our readers, customers and even my friends. The H320 X2 was the first and only AIO cooler that never left my bench after being tested. Now, with the release of the H240 x3, there have been several improvements over the X2 series. The H240 X3 has a redesigned waterblock, the Apogee SKF “LT”, this is based off their popular Apogee SKF block. The X3 series features a tempered glass reservoir. One of the most exciting improvements for me is the addition of Mayhem’s Pastel White Nanofluid Coolant. The newest fluid to hit the market. The X3 series of coolers is the first AIO on the market to feature this coolant. But the most important thing isn’t the aesthetic, or even the coolant. The most important aspect of the cooler is how well it performs. So, let’s take a closer look at the H240 X3 and see how it did cooling the Ryzen 7 2700.

Review Sample Provided by: Swiftech
Product Name/Link to Website: H240 X3
Product was given in exchange for work done to produce this review.

Specifications

Radiator with patent pending integrated pump and reservoir (1 each)
Radiator body
MaterialBrass tubes, louvered copper fins
Body dimensions127 mm x 254 mm x 28 mm (H240X3) / 127 mm x 375 mm x 28 mm (H360X3) /
Fill-port thread classG 1/4
Barb fittingsIntegrated swivel 90° elbows, 3/8″ (10mm) OD
Installation hardware
  • Standard: (8) coarse thread fans screws
  • Alternate: (8) 6-32 x 1 3/16 (30mm)  Philips screws
Lighting typeSwiftech IRIS compatible ALED
Reservoir
MaterialTempered Glass
Capacity70 ml
Lighting typeSwiftech IRIS compatible ALED
Pump
Pump speed controlPWM
Pump Speed range1200 ~ 3000 RPM
Pump nominal voltage12 VDC
Pump nominal power6W
Max. Static Pressure2.8 mH₂O
Max. discharge11 l/mn
Redundant fail safe
  • Software current limiting fail-safe and
  • Hardware shutoff built-into the pump power wires. The hardware fail safe is only triggered in case of a firmware malfunction.
Pump Bearing typeCeramic shaft, PTFE bearing
Pump Power connectorSATA
Pump RPM & PWM connectorMini 4-pin
Pump MTBF60,000 hours
ROHSCompliant
Helix™ IRIS Fan
Dimensions120 mm x 120 mm x 25 mm
Speed controlPWM
Speed range900+/- 25% ~ 1800+/- 10%  RPM
Airflow range24 ~ 60 CFM
Static pressure range0.61 ~ 2.35 mmH₂O
Noise level range<16 ~ <32 dB/A
Nominal Voltage12 v
Nominal current0.2 A
Bearing TypeZ-axis
ConnectorMini 4-pin
MTBF60,000 hours
ROHSCompliant
Apogee™ SKF “LT” Waterblock
Housing materialAcetal
Base plate materialC110 copper
Cooling engine0.125mm x 0.125 micro-fin array
Barb fittingsSwivel elbows, 3/8″ (10mm) OD
Port threadG1/4 standard
Installation hardware & processor + socket compatibility
  • For Intel LGA 1150/51/55/56
    • M4 to M3 Standoffs + Back-plate
  • For Intel LGA 2011
    • (4) Spring loaded screws with M4 thread
  • For AMD AM2, AM3, FM1,FM2, 93, AM4, TR4
    • (2) Pre-assembled brackets & spring loaded screws
    • Bracket installation screws
Lighting typeSwiftech IRIS compatible ALED
Tubing & Coolant
MaterialMayhem non-plasticizing PVC tubing
ColorClear
Dimensions5/8″ x 3/8″ (16/10mm)
CoolantPre-filled with Mayhem’s non-toxic Pastel Nanofluid Coolant
Clamps (4 each)
MaterialBlack anodized aluminum
IRIS ECO V2 Controller (1 each)
PWM Ports4
RPM signal portChannel 1
ALED connectors3
2 pin connector1
Power connectorSATA
PWM/RPM connectorMini 4-pin
Installation hardwarePeel-off sticker,  mounting screws & nuts
ROHSCompliant
Tim-Mate 2, 1g syringe thermal compound
Quick Installation Guide
