OrigenAE is a high end Computer Component manufacturer. They were first established as Uneed International back in 2000 and re-branded as OrigenAE Technology in mid 2005. OrigenAE offers innovative high end computer components that set the bar for many to follow. Their goal is to develop the pioneering products that can provide the consumer with a high quality experience that will allow you to work, play, or relax with their premium grade technologies.

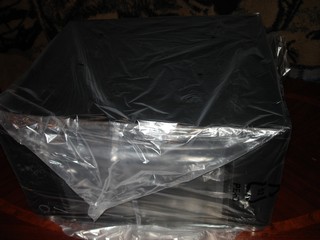

The OrigenAE S21T comes packaged exceptionally well in a double box system and is padded ideally for the high end equipment inside. Upon opening the box, you will see that it is treated as most treat their high end audio equipment for shipping. The S21T Enclosure is also bagged to prevent as much dust and smudges as possible.

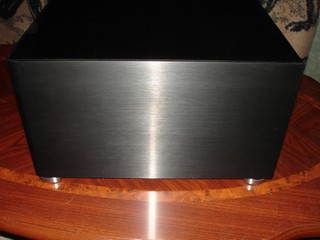

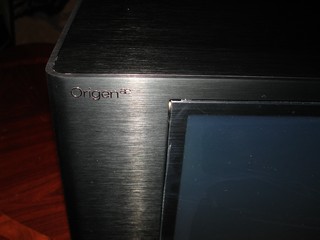

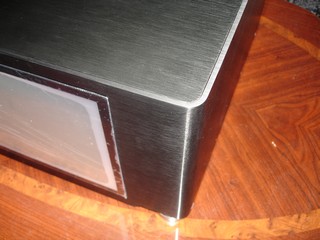

Pulling the S21T out of the box you will find out what a quality built case feels and looks like. Looking at the first picture we can see that the brushed aluminum look is uniform and the aluminum panels are thick, which does suggest that the case is going to be on the heavy side. The 12.1 inch TFT monitor is covered with yet another plastic layer to prevent any damage to it. Looking at the exterior of the S21T, you will see that OrigenAE is committed to producing a quality finish that is carried throughout the entire case. Yes, that means the back and bottom of the S21T have the same brushed aluminum look.

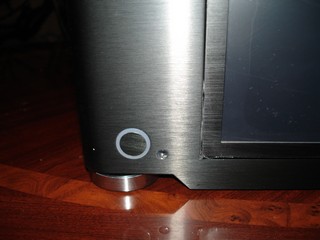

The outer casing is constructed of high grade 5mm aluminum. The front and sides of the S21T are one piece and give a very nice and clean look to it. The brushed aluminum case feet also give you the feel of high end audio equipment. At this point in time, I must say that the S21T is by far the highest quality case that I have had the pleasure of working with. Everything is well thought out and fits like a glove.
Specifications:
|
External dimensions (WxHxD)
:
Construction materials
:
Mainboard support
:
PSU support
:
PCI / AGP card support
:
Drive bays
:
Fan support
:
Expansion slots
:
Front I/O ports
:
IR solution
Net weight
Available colors
TFT specification
|
- 435mm x 220mm x 390mm
- All aluminum chassis
- ATX, Micro ATX
- Full ATX
- Full size
- 10 x 3.5" internal drive bays
- 1 x 5.25" external drive bay
- 1 x 120mm rear exhaust fans
- 2 x 92mm intake fans
- optional 120mm extractor module
- 7
- 2 x USB ports (+2 internal)
- 1 x Firewire (1394) port
- 1 x Headphone (HD & AC97)
- 1 x Microphone (HD & AC97)
- 1 x Multi format media bay
- included Microsoft IR (IR221)
- optional Irtrans IR controller (IR210)
- ~9.8kg
- Black, Silver
- 12.1 " screen size
- 16:10 ratio
-
1920 x 1080 max resolution
- 1280 x 800 native resolution
- 1 x SVGA input
- 12V DC input
- 9W power consumption
- Auto power on feature
- Supported resolutions |
Features:
- 12.1" motorized TFT touch screen display
- 1920x1080 TFT resolution support
- one piece 5mm aluminium front & sides
- 1 x 120mm exhaust fan (pre-installed)
- 2 x 90mm intake fan (pre-installed)
- 1 x 120mm optional extractor module
- front media bay, USB hub, Audio & Firewire
- matched optical drive bezel
- removable motherboard tray
- rubber isolation hard drive screws
- supplied with IR221 Module
- supplied with RC197 programmable remote
- support for up to 10 hard drives
- matching aluminum stylus
|
