Ultra X-Finity 500 Watt PSU (Blue)

Sponsor: Ultra Products

Price: 99.99

Author: Tazz

Published: Fri, Oct-27-2006

 Description:

     Today we are going to take a look at one of the Ultra X-Finity (2nd Generation) 500 Watt power supplies. The X-Finity power supply boasts dual rail technology for better power distribution along with a few other nice features. Ultra has been around for a good while now and continue stepping up to the challenge of bringing consumers excellent products.

 First Impression:

     The power supply is one of the key components in your computer. If your power supply is of poor quality or overloaded you could have various problems with your computer and not realize that its electrical related. Its always important to buy top quality hardware for your computer. Having reviewed various items from Ultra I am eager to see what kind of results I get with the Ultra X-Finity 500 Watt power supply. Seeing how this is a 2nd generation power supply you can easily come to the conclusion that the first generation had to be pretty good to result in a 2nd generation product being made. Just for a little comparison I am going to run my Ultra X-Connect 500 Watt PSU threw the same steps to see how holds up to the X-Finity.

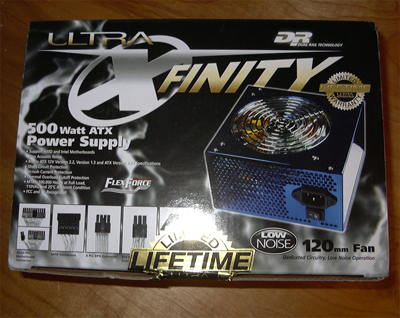

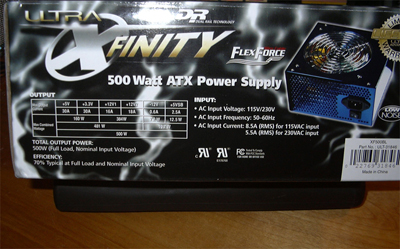

     As with all the other Ultra products I have seen first-hand. The X-Finity comes in an attractive looking box providing the consumer with a full list of information. This definitely would come in handy sitting on the shelf in the store. You are presented with a complete list of connectors supplied, specifications, and circuit protection offered.

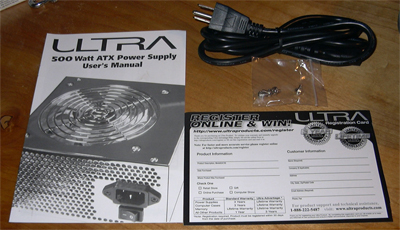

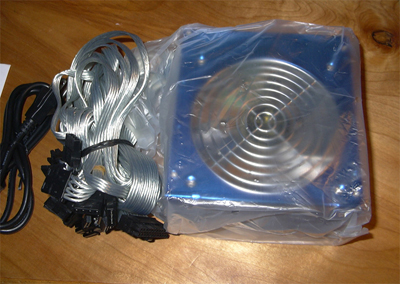

     The contents of the package include the X-Finity PSU, Power cable, User's Manual, Registration card, and 4 mounting screws. The PSU is wrapped in a transparent bag and fits snugly inside the box.

Output

AC INPUT 115V/230V 10A/6A 60/50Hz
MAX OUTPUT
CURRENT +5V +3.3V +12V1 +12v2 -12V +5VSB
30A 30A 16A 18A 0.6A 2.5A
500W Max
Combined
Watts 160W  384W 7.2W 12.5W
481W 19.7W
500W

Total Output Power:
500W (Full Load, Nominal Input Voltage)
Efficiency:
70% Typical at Full Load and Nominal Input Voltage

Input

AC Input Voltage: 115V/230V
AC Input Frequency: 50-60Hz
AC Input Currents:
8.5A (RMS) for 115VAC input
5.5A (RMS) for 230VAC input

Additional Features

Supports AMD and Intel Motherboards
Low Acoustic Noise
120mm Fan
Meets ATX Version 2.2, v1.3, and
ATX 12V Version 2.03 Specifications
Short Circuit Protection
In-Rush Current Protection
Thermal Overload Cutoff Protection
MTBF > 100,000 Hours at Full Load,
110VAC and 25C Ambient Condition
FCC and UL Recognized

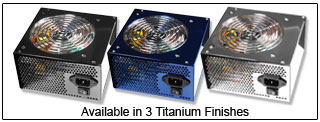

The X-Finity is available in three titanium finishes (Black, Blue, and Titanium).
