Aorus TRX40 Xtreme CES 2020 Case Mod Build

3960X, 32GB, 8TB AIC SSD Add-in, RTX 2080 Super

Hey! Welcome to my second build of CES 2020 for the Aorus booth. Last time we looked at my Z390 Aorus Waterforce build, this time around, the new TRX40 platform is taking the spotlight. Parts sponsored by Aorus and Thermaltake.

For this build, I wanted to showcase the hardware as much as possible while keeping the look at sober as possible. As my typical styling, I wanted to keep the case as stock looking as possible, while having mods to be able to show off the Aorus hardware. So, without further ado, here’s the hardware I have to work with.

Specifications:

CPU : Threadripper 3960X 24-core

Motherboard : Aorus TRX40 Xtreme

RAM : 32 GB Aorus RGB 3200 MHz C16 kit with demo sticks

GPU : Aorus RTX 2080 Super Xtreme Waterforce WB

Case : Thermaltake View 71 Snow

Power Supply : Thermaltake PF1 Thoughpower ARGB 1200W with Thermaltake white and black extensions

Fans : Thermaltake Riing Trio 140mm

LEDs : Thermaltake Lumi Plus



Watercooling components were entirely Thermaltake branded, while the coolant was a custom mix. Now, let’s move on to mods? Sure!

Backside (motherboard tray) fan mountable panel towards the front delete

Top radiator bracket, HDD cage and dust filters removed

Under chassis cable management

Hardware viewing side cut to create a view 37 styled viewing angle.

front I/O port and reset button shave/delete

Rear glass painted partially

Vinyl work on glass panels and front bezel

Waterblock cover sticker swap

Custom GPU support “bracket) (my personal favorite)

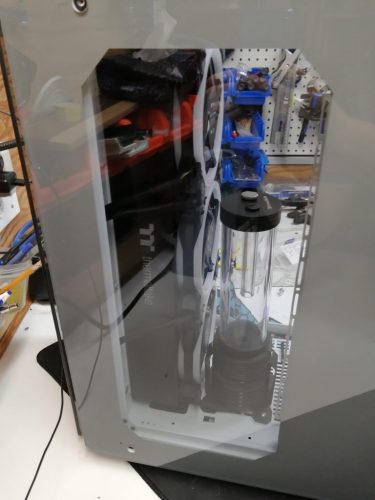

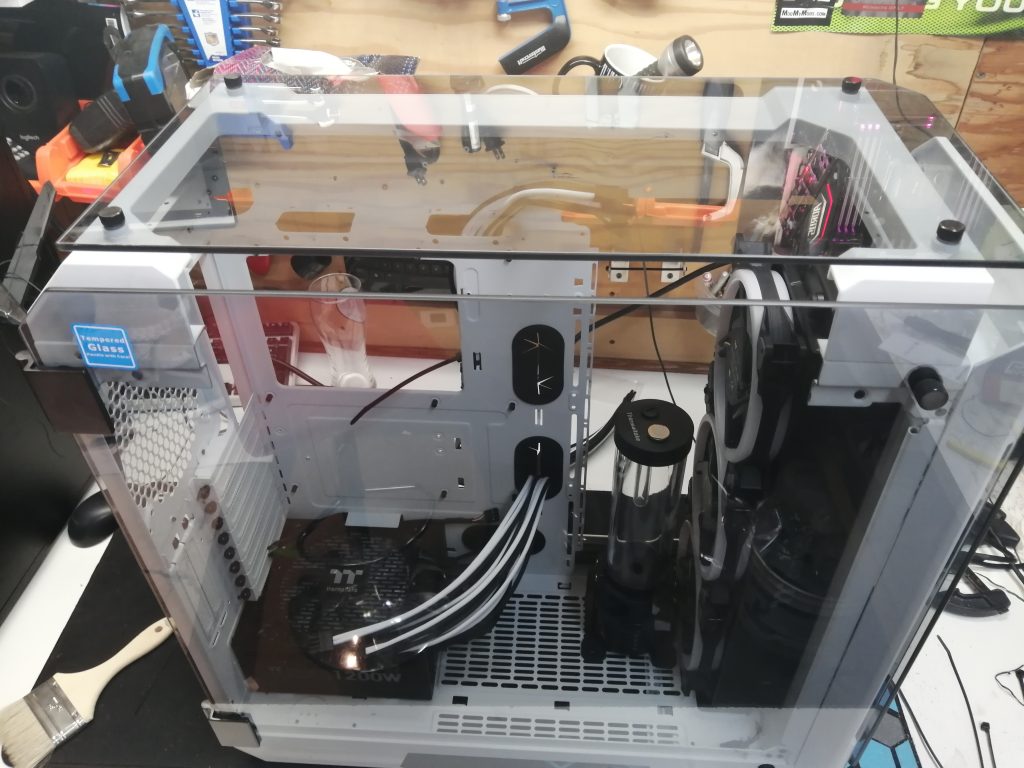

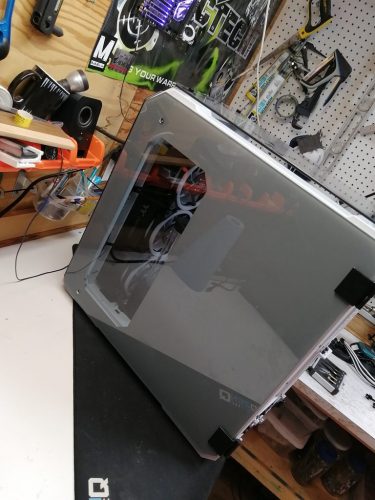

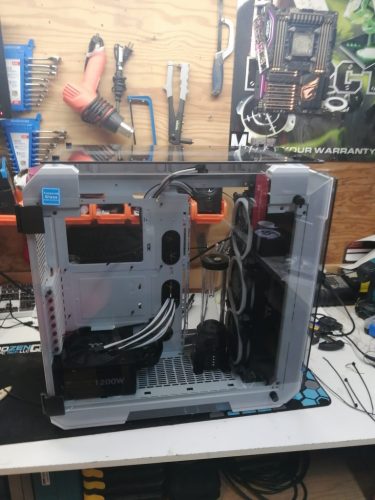

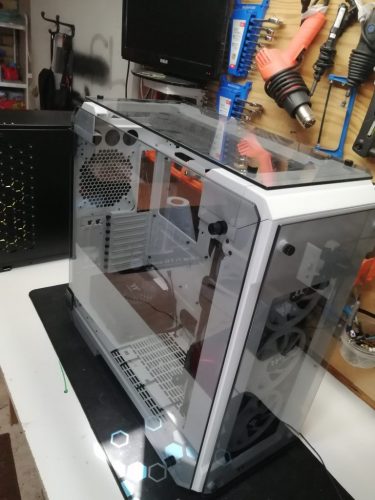

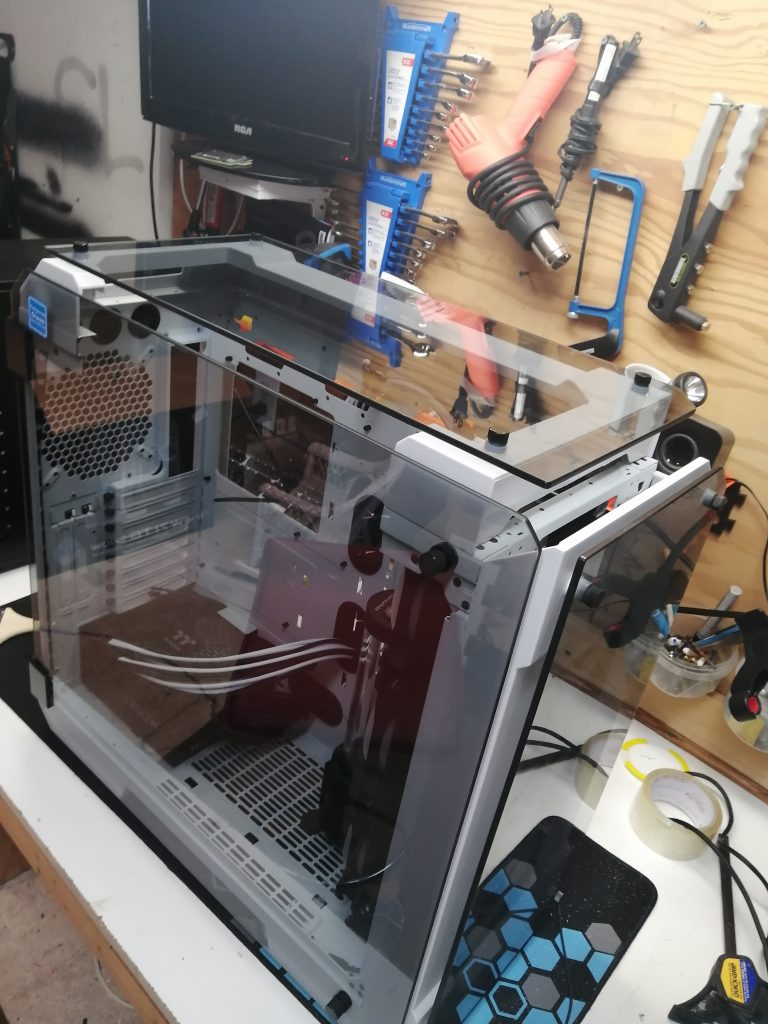

After drilling a few rivets I removed the motherboard tray fan mount, I didn’t need this, so removing it was the best option for creating as much potential view angles. Paired with the rear painted glass (painted the interior for a smoked, but still white and even look) giving a very nice look.

Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191015 151018Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191015 151008Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191007 120120

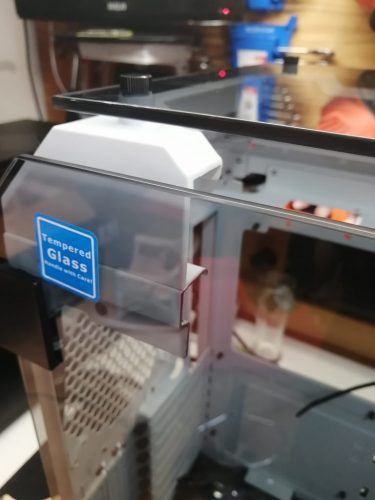

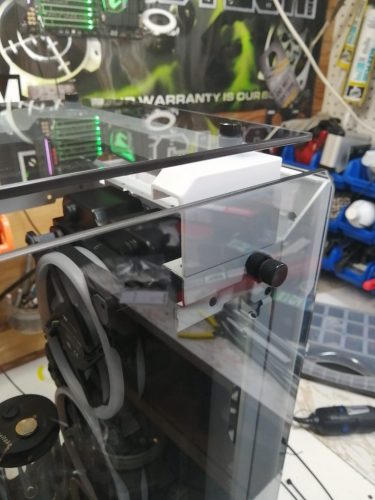

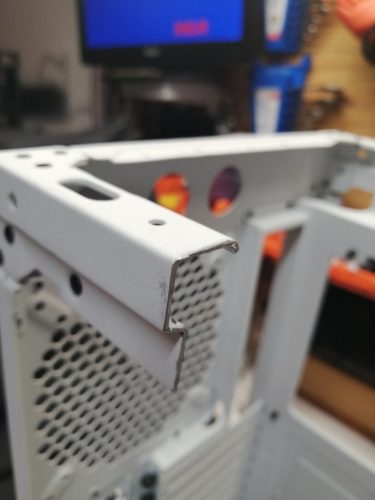

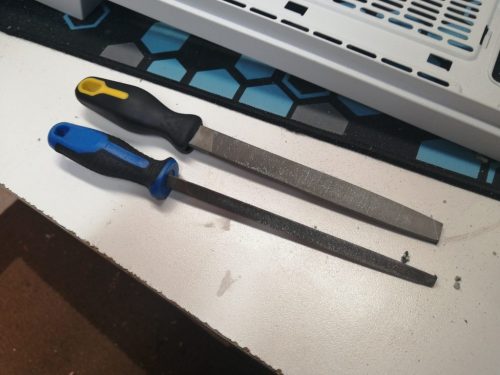

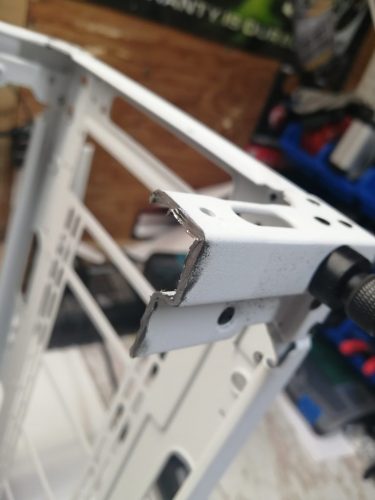

For the top, removing the radiator bracket and cutting the front side opened up the case so much, you’d even think this was a different case! Cutting the plastic top bezel, steel case cross member, filing them, sanding, then painting for an almost OEM look. Doing this greatly weakened the case structure though, the top and side glass panels now work together to keep the case square, without them, it became quite flimsy in those two corners (which was expected).

Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191007 090201 Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191007 090223 Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191007 090207 Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191007 120038 Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191007 120054 Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191007 120059 Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191007 120104

As far as cable management goes, I don’t have many pictures, unfortunately, but basically, I passed most accessory cable (everything but PSU cables) under the case and did my management there, that’s why you see a few tie-wraps on the bottom grill. There are two fan controllers (for LEDs and fans), power button cable, pump cable (which I converted to 6-pin PSU directly). If you look behind the motherboard tray, on the bottom, you can see the pass-through hole I did for the cables.

Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191015 111303

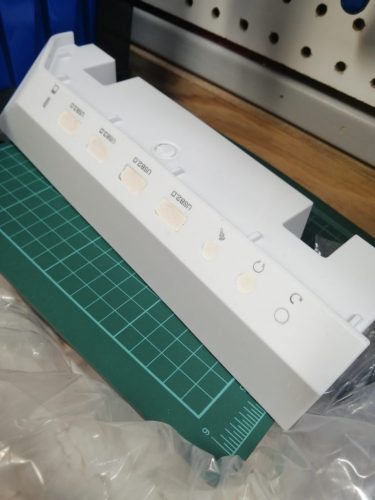

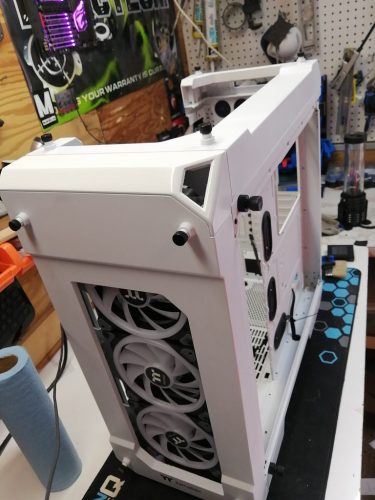

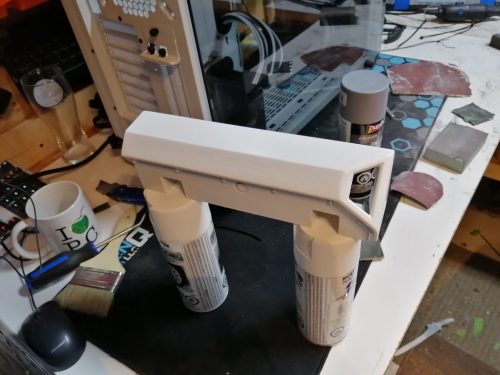

Since this build was going for a more “show” look, I sacrificed a few things for cleaner aesthetics, namely the omission of a drain valve, but for modding, I totally shaved the front I/O section, removed all USB ports, Audio and reset button along with HDD activity LED. I put masking tape on the back for backing, then applied Bondo, sanded then painted and clear coated. It turned out quite nice! Would you have noticed if I didn’t tell you?!

Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191007 120131 Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191014 214447 Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191015 111303 Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191015 115914

As far as vinyl work goes, I did a sort of pattern that matched the ones on the motherboard, I also put our logo on the front bezel, as well as Thermaltake and Aorus Logos on the side viewing glass panel. Here’s a picture of the patterned vinyl itself.

Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191105 161141

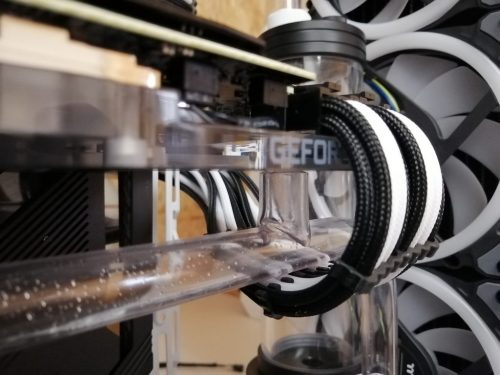

Now, the moment I’ve been waiting so much, my favorite mod of this build. It’s so damn simple, but I must’ve put a good 2-3 hours in this doing it perfectly. This heavy GPU had a bit of sag and to be honest, I don’t want any sag in my builds, I think it’s hideous and ruins aesthetics of any build. So, basically I took a 16mm PETG tube, pierce a hole bigger and bigger until the radius was 16mm, to fit over another tube, this ended up requiring a lot of filing (and 2-3 scrap attempts). I then heated it up and formed it over a 16mm tube to give it the PERFECT shape. I then wedge it between the GPU waterblock and tubing going under the GPU (pump outlet tube) right behind the 8+8 PCIE cables to keep it unseen, while doing the best job possible to keep the GPU straight.

Aorus TRX40 Xtreme CES 2020 Case Mod Build IMG 20191105 102837

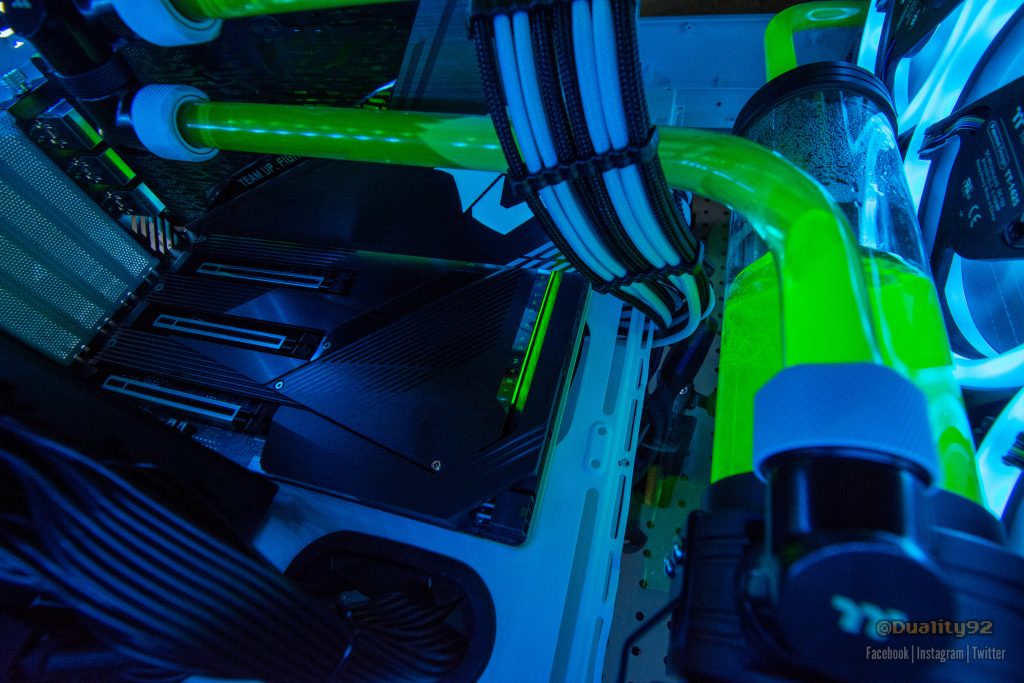

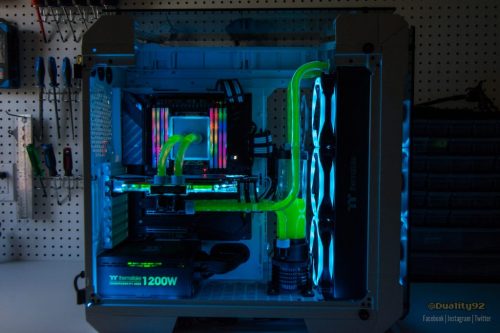

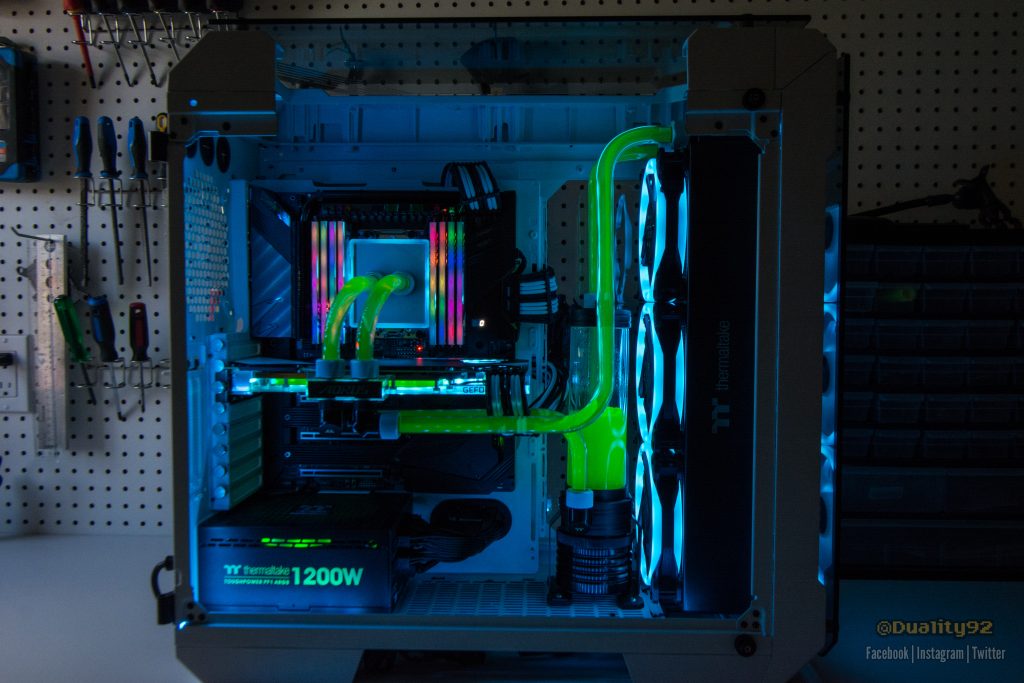

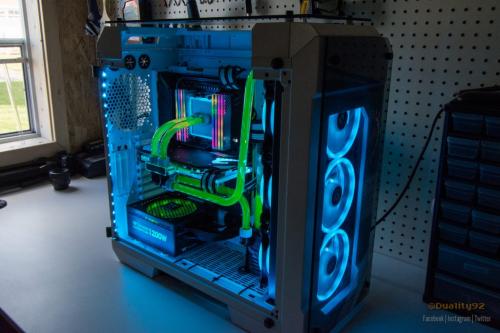

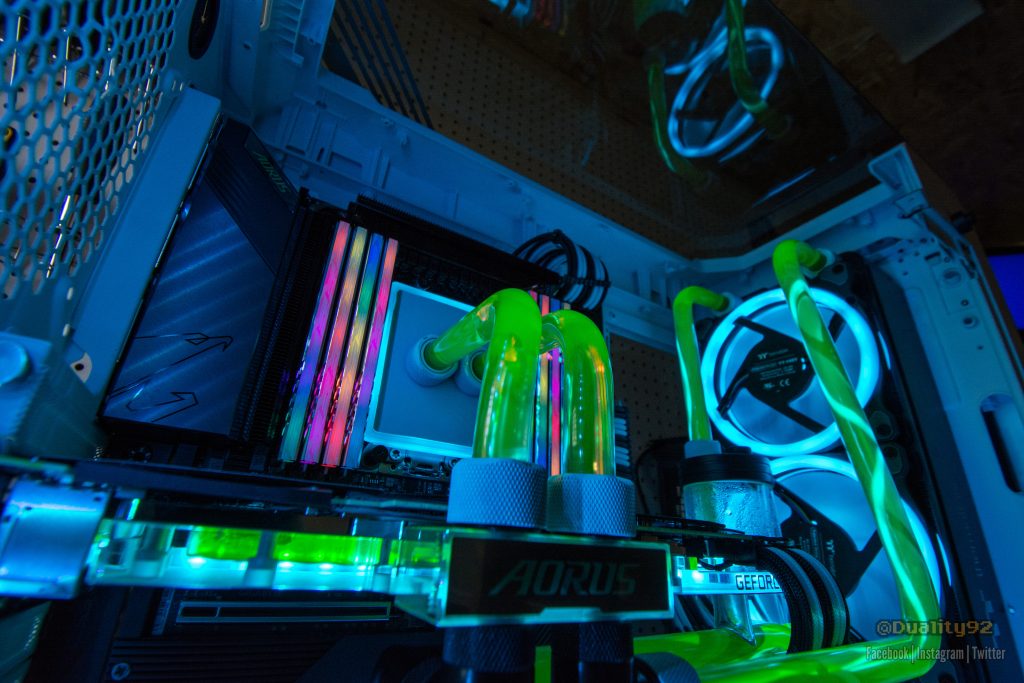

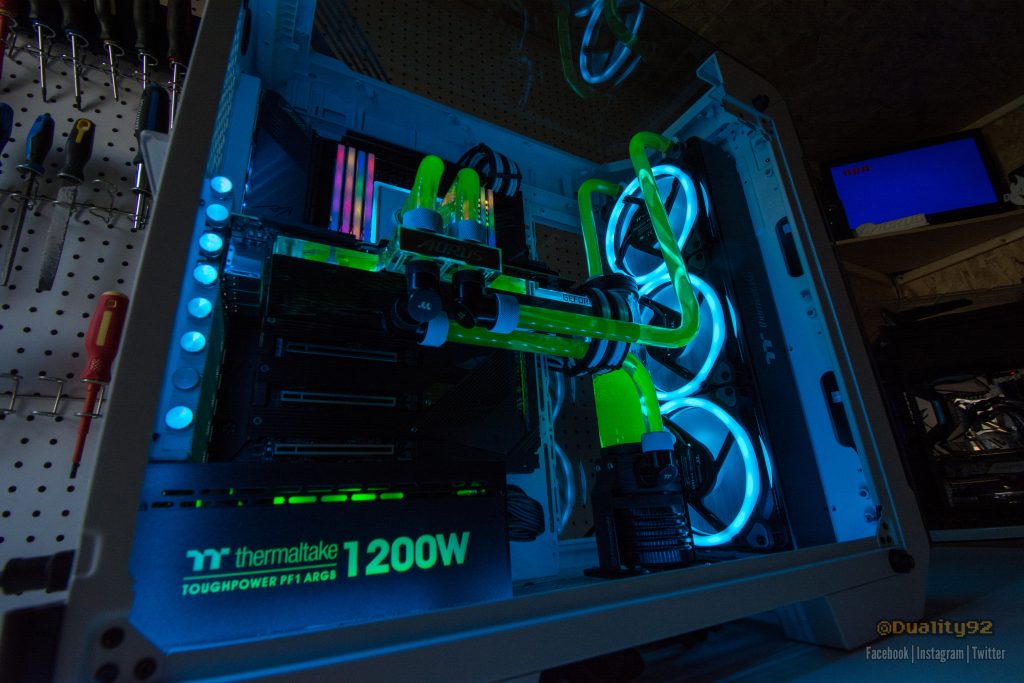

Now, in the same mentality of keeping the hardware as showcased as possible, I routed the tubing sort of over each other to only see one tube looking from the front. I opted for a parallel setup to also keep tubes at a minimum. This way, the motherboard was not covered by any tubing apart from the one passing under the GPU.

Aorus TRX40 Xtreme CES 2020 Case Mod Build 20191106 DSC 8139 Aorus TRX40 Xtreme CES 2020 Case Mod Build 20191106 DSC 8137 Aorus TRX40 Xtreme CES 2020 Case Mod Build 20191106 DSC 8140 Aorus TRX40 Xtreme CES 2020 Case Mod Build 20191106 DSC 8141 Aorus TRX40 Xtreme CES 2020 Case Mod Build 20191106 DSC 8142

Now, at the CES show, Aoryus added a massive 8TB AIC SSD, which almost topped out at 20GB/S!! Insane speeds! This new PCIE Gen 4.0 is very capable! I want to give again a massive thanks to Aorus and Thermaltake for the sponsors and making this possible for me! I hope you liked this article about this case mod! If you have any comments or questions, don’t hesitate to contact us!
