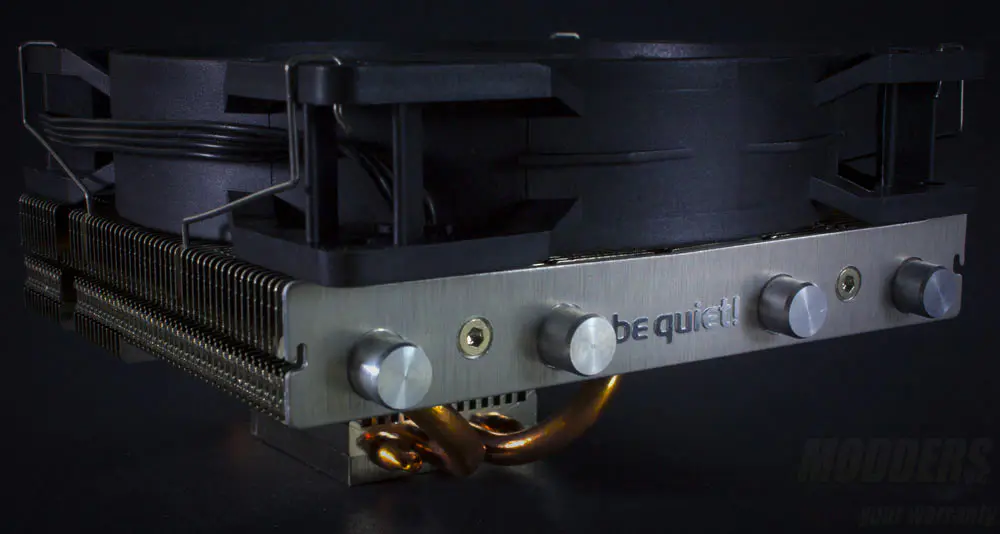

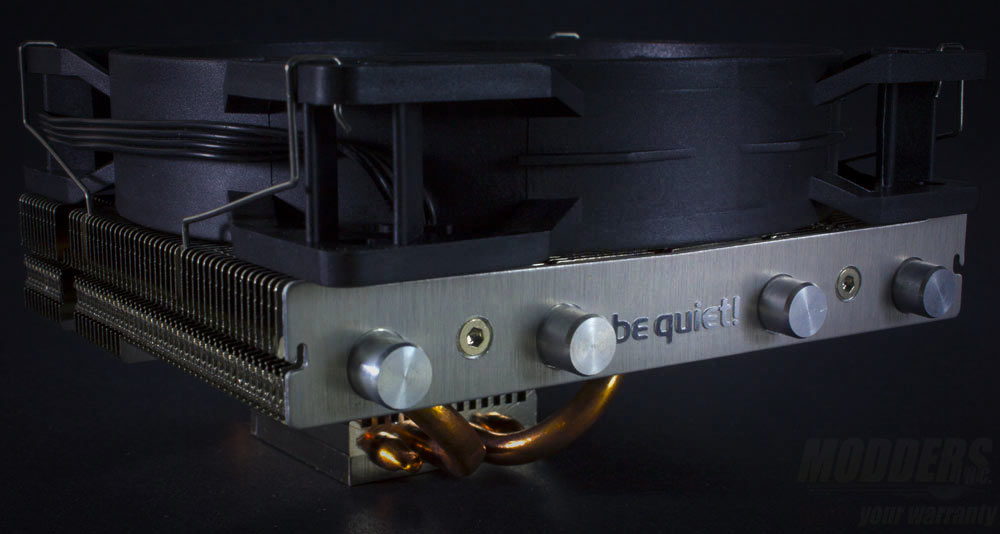

Prioritizing silent operation, Be Quiet!’s Shadow Rock LP is a low-profile cooler meant to be used on systems with limited space such as an HTPC or compact enclosures. With four 6mm-thick copper heatpipes and a 120mm Be Quiet! Pure Wings PWM fan, the Shadow Rock LP is rated to dissipate up to 130W of heat from any Intel LGA775 through LGA2011 CPUs or AMD FM2 APUs.[sc:sponsor sponsor=”Be Quiet!” product_link=”http://www.bequiet.com/en/cpucooler/570″ product_name=”Shadow Rock LP CPU Cooler” product_price_link=”http://amzn.to/1knWWfn” product_price=”$44.90 (MSRP)” ]
The packaging is very compact with a simple yet effective labeling. There is not much in the way of padding inside which is understandably considering the cost. However, the heatsink unit is held in place by cardboard holders at the bottom to minimize movement during transport. Dimensions and measurements are given on the box as well so potential buyers get an estimate of compatibility with their system.

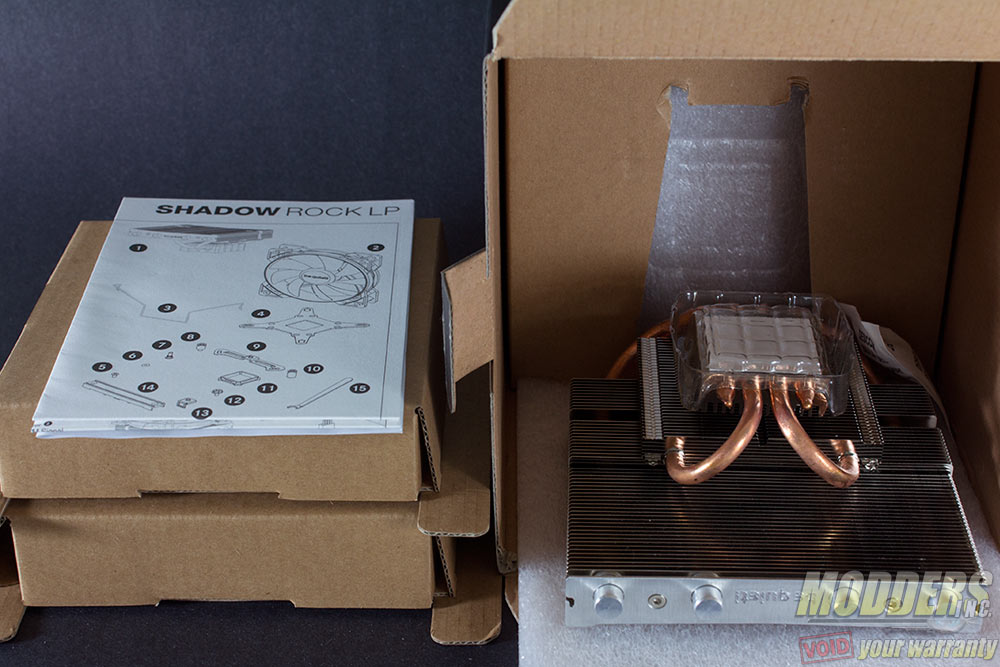

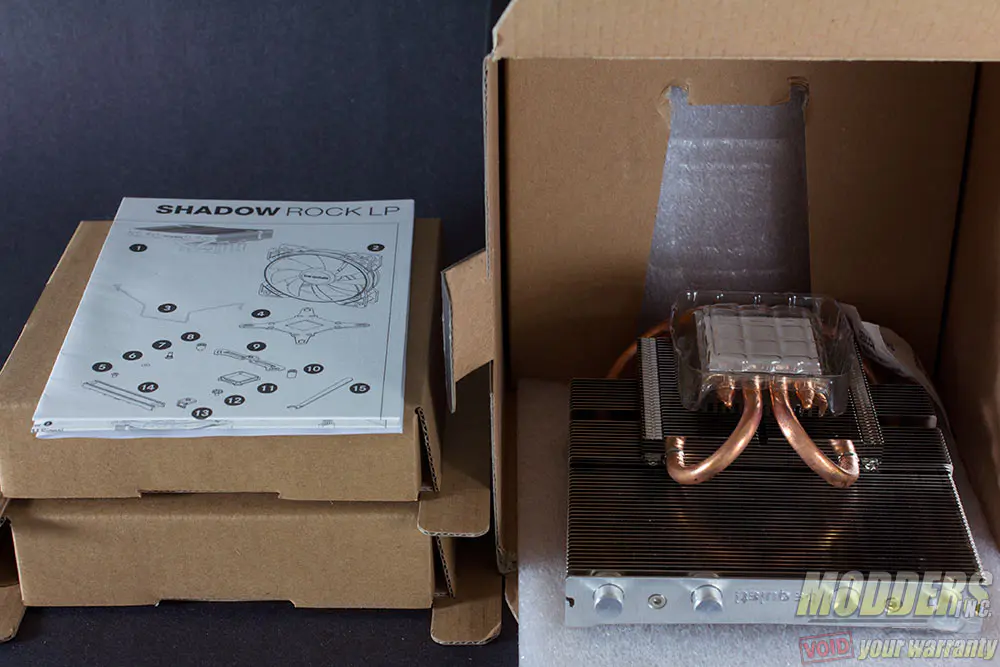

Be Quiet’s products have a uniform black and white packaging cover across all their product line with the left trim indicating the market segment the particular product is aimed towards. For the Shadow Rock LP, this label has “premium” printed on the side. The contents inside are padded with folded and reinforced cardboard.
Curiously, the Shadow Rock LP has a slightly different mounting mechanism compared to other Be Quiet coolers such as the Dark Rock series or even other Shadow Rock series coolers. The universal backplate is noticeably more compact for higher compatibility when it comes to mini-ITX mainboards which the Shadow Rock LP would most likely be used.

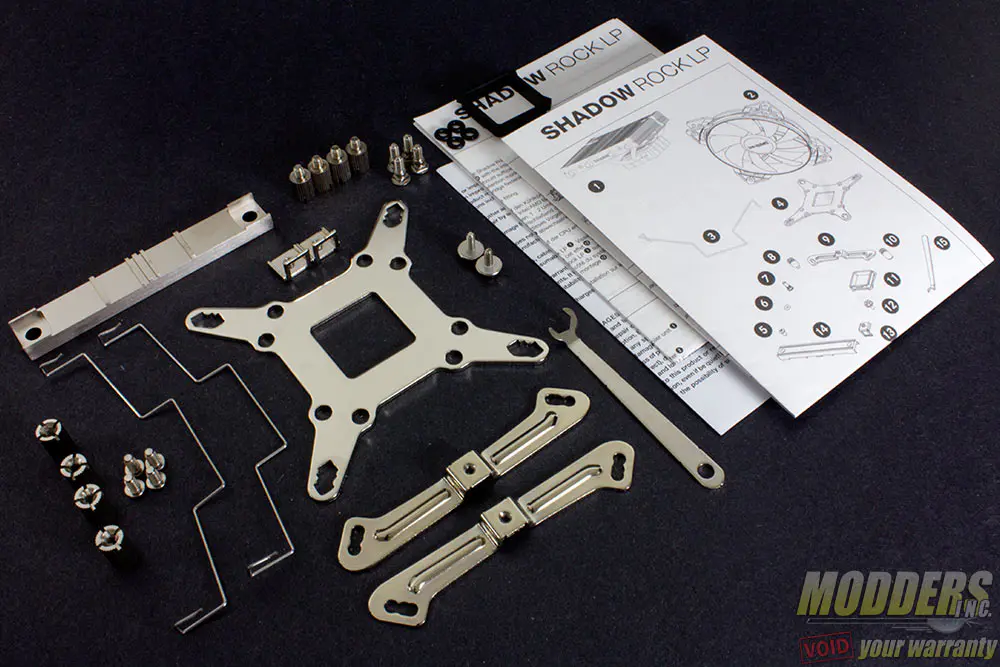

Accessories bundled with the Shadow Rock LP include illustrated user manuals, backplate and mounting support for AMD and Intel motherboards, one set of fan clips as well as a hex spanner.
|Socket Compatibility||Intel LGA2011 (-3) Square ILM
Intel LGA775, LGA115x. LGA1366
AMD AM2(+), AM3(+), FM1, FM2(+)
|Dimensions (L x W x H)
134 x 122 x 75.4
|Dimensions with fan installed
134 x 122 x 50.4
|Material||Copper (base and heat-pipes), aluminium (cooling fins), machined nickel contact surface|
||1 x PureWings PWM 120mm fan|
||120 x 120 x 25mm|
|Air flow @ 12V (cfm / m3/h)||
87 / 51.4
|Air pressure @ 12V (mm H2O)||1.25|
