NVIDIA RTX 3070 Founders Edition Unboxing and Review

The little brother packs a solid punch

Benchmarks for the NVIDIA 3070 FE »

NVIDIA has released its newest graphics card, the NVIDIA RTX 3070 Founders Edition. Based on the current 3000 series card architecture we get a graphics card that is lower in price and lower in performance. With a suggested retail price of $499.00 USD, this makes the NVIDIA RTX 3070 FE very affordable for almost everyone. But the biggest question is can it handle the workload or our demanding games we like to play. Can we crank up the graphics to the max and not have to worry about slow down? Make sure you watch the video for more insight into the NVIDIA RTX 3070 Founders Edition.

NVIDIA RTX 3070 Founders Edition


NVIDIA RTX 3070 Founders Edition Fans

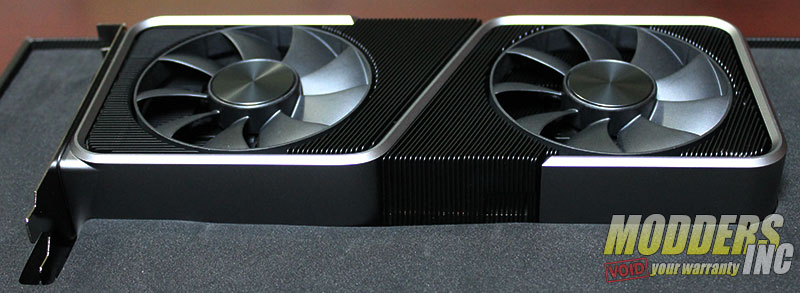

The NVIDIA 3070 FE has all the same visual features that the 3080 and 3090 Founders Edition graphics card have. The new bold style is quite different than what we have seen in the past. With a more refined and sleeker look, it kind of gives you the feeling that you are looking at a luxury vehicle.

NVIDIA RTX 3070 Founders Edition Top

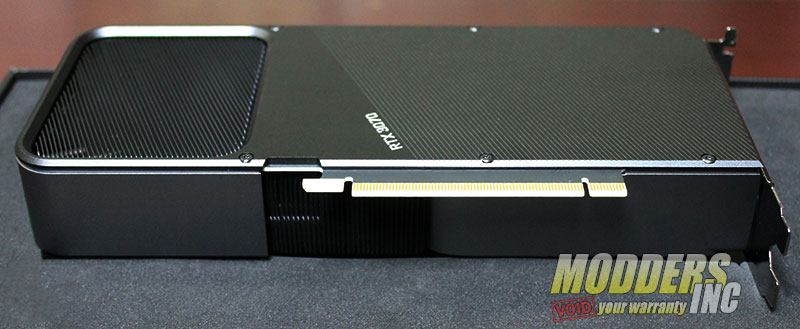

The top of the 3070 FE is just as sleek with a solid back cover over two-thirds of the card. The remainder of the card is taken up by a pass-thru cooling fan.

NVIDIA RTX 3070 Founders Edition Unboxing and Review 3070, Nvida, rtx, RTX 3070 1

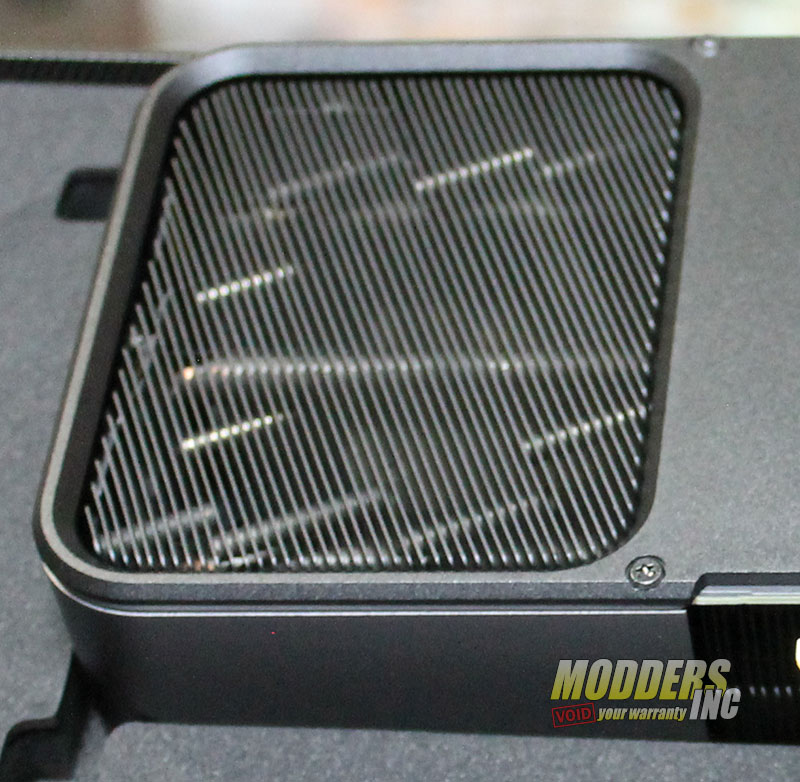

A closer look does show us that the air pass through the card and a good portion of the cooling heat pipes and fins. The air that does exit the card here will be pushed up towards the top of a PC case and should be helped along with the normal fans mounted at the top. Thus this will help minimize any warm air that could be sucked into an air cooler. If you are water cooling your CPU you have nothing to really worry about.


NVIDIA RTX 3070 Founders Edition Unboxing and Review 3070, Nvida, rtx, RTX 3070 2

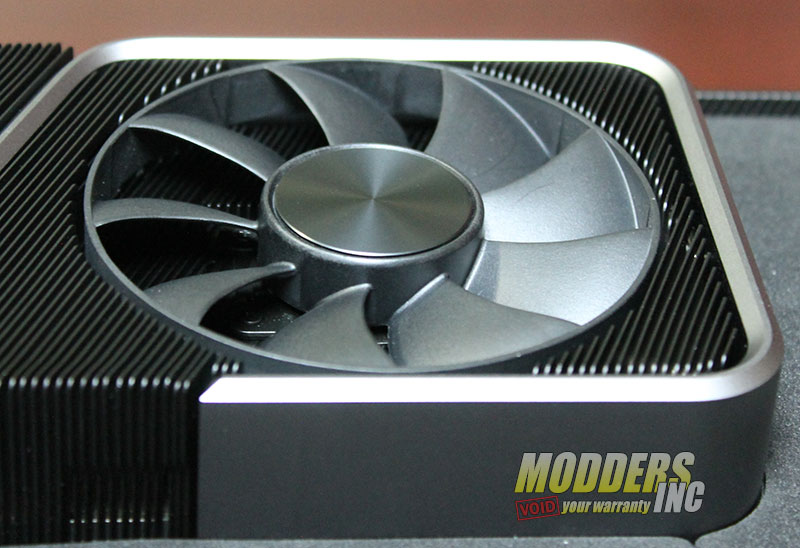

This the other side of the pass-through fan that is located at the right side of the 3070 FE

NVIDIA RTX 3070 Founders Edition Unboxing and Review 3070, Nvida, rtx, RTX 3070 3

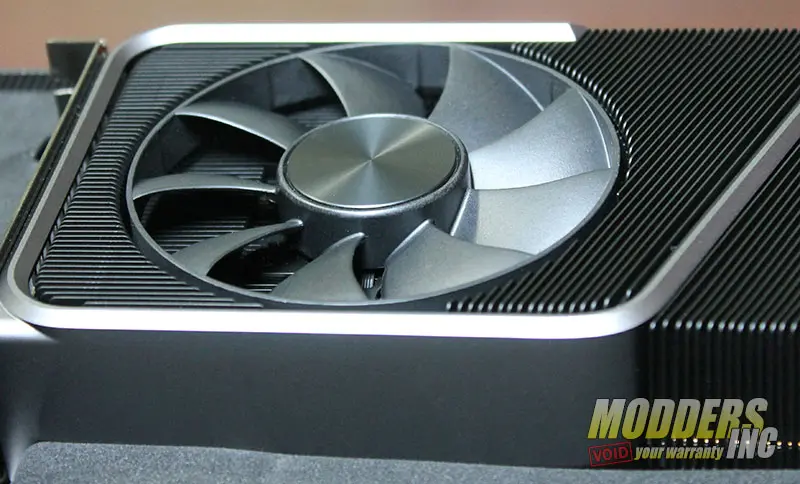

The fan located on the left side of the card is identical to the other one, but this cooling fan does the normal job of pushing the air out through the card and exit out the rear where the video connections are located. The RTX 3070 flow-through system is up to 16dBA quieter and has a 44% higher thermal performance than the RTX 2070 Founders Edition.

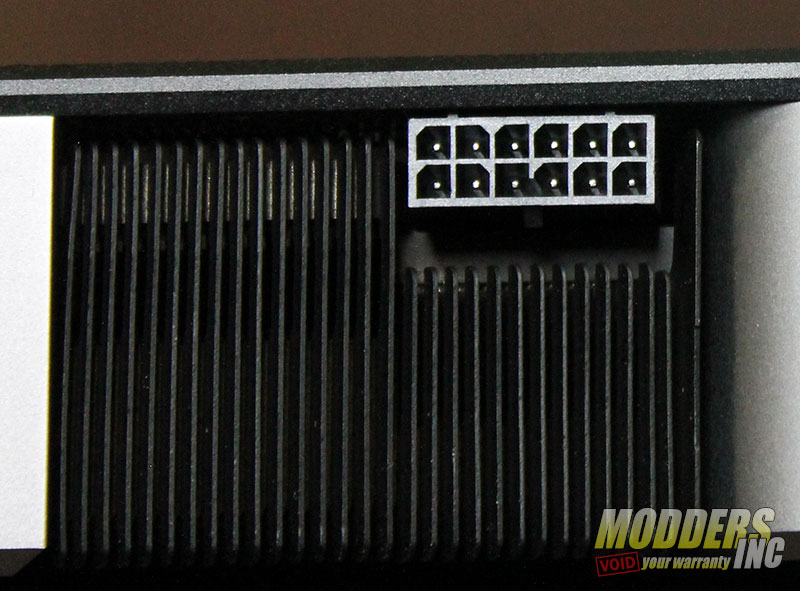

NVIDIA RTX 3070 Founders Edition 12 pin power connectionLike the 3080 and 3090 FE card, the 3070 Founders Edition also uses the new 12 pin connector to power the card. But unlike the larger FE cards, this unit only requires 220 watts of power which not that much more than a 2070 but way less than the power-hungry 3090. We can also see some cooling vents, which are located in the middle of the card along with the 12 pin power connector


NVIDIA RTX 3070 Founders Edition Unboxing and Review 3070, Nvida, rtx, RTX 3070 4

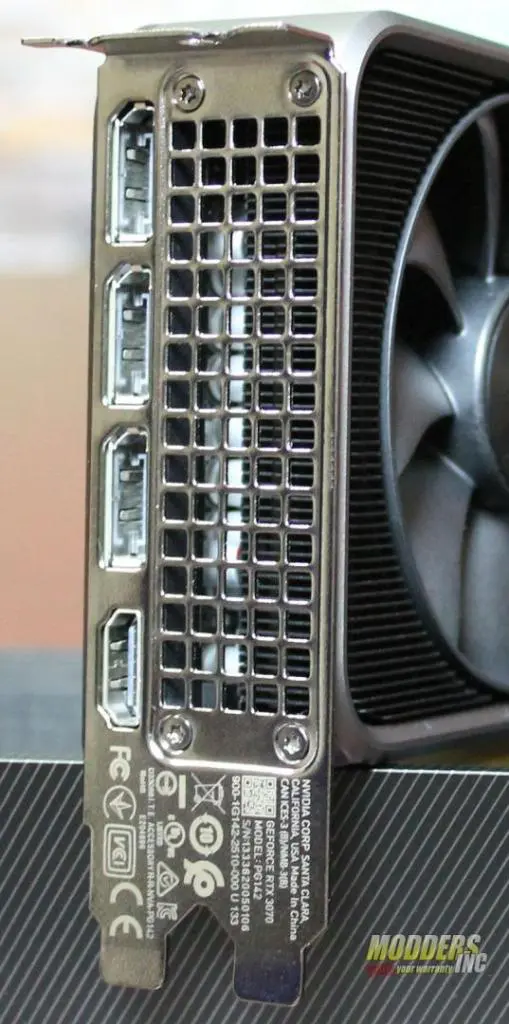

Connections to the NVIDIA 3070 FE is pretty normal with a single HDMI and three display ports. But the HDMI 2.1 — GeForce RTX 3070 GPUs (and all of the 3000 series cards) are the first available to feature HDMI 2.1 support with support for 4K@120Hz (4K120). HDMI 2.1 increases total bandwidth over HDMI 2.0b from 18Gigabits/sec to 48 and adds support for high-dynamic-range (HDR) supporting brighter images with higher contrast and more vibrant colors with better shadows and highlights.


NVIDIA RTX 3070 Founders Edition Unboxing and Review 3070, Nvida, rtx, RTX 3070 5

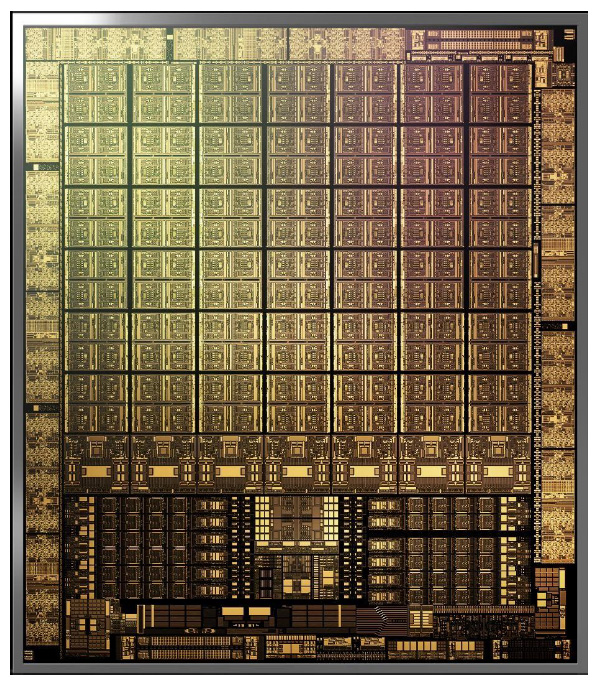

The NVIDIA Ampere architecture Streaming Multiprocessor (SM) is the building block of the GPU, and it’s full of different Cores and Units and memory. One of the big changes in the NVIDIA Ampere architecture SM is with a 32-bit floating-point (FP32) throughput. NVIDIA designed a new datapath for FP32 and INT32 operations, which results in all four partitions combined executing 128 FP32 operations per clock. Does this help gaming? Yes. Graphics and compute operations and algorithms rely on FP32 executions, and so do modern shader workloads. Ray tracing denoising shaders benefit from FP32 speedups, too. The heavier the ray tracing rendering workload, the bigger the performance gains relative to the previous generation.

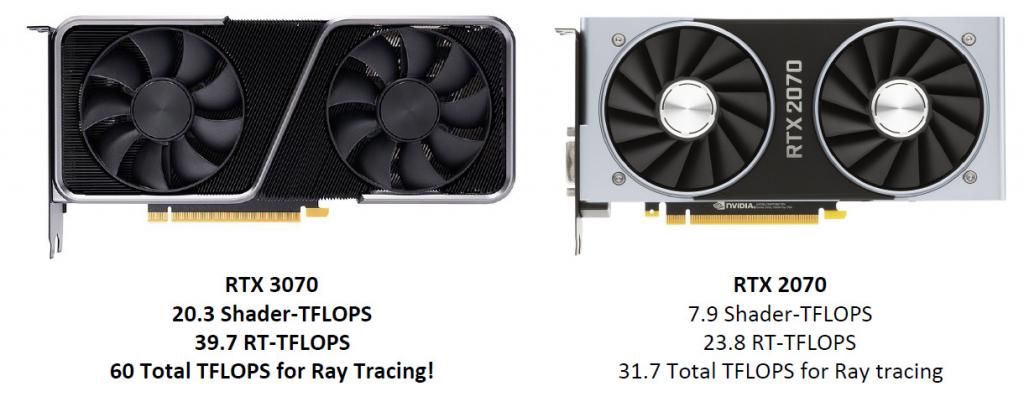

Let’s look at the numbers: RTX 3070 has 5888 CUDA cores—over twice the CUDA cores that the RTX 2070 has. It delivers 20.3 TFLOPs of shader performance plus dedicated RT Cores with the equivalent 39.7 TFLOPs of performance, for a total of 60 effective TFLOPs of performance while ray tracing.

NVIDIA RTX 3070 Founders Edition Unboxing and Review 3070, Nvida, rtx, RTX 3070 6



GPU GeForce RTX 2070 (Founders Edition) GeForce RTX 3070 (Founders Edition)
SMs 36 46
CUDA Cores  2304 5888
Tensor Cores 288 (2nd Generation) 184 (3rd Generation)
RT Cores 36 (1st Generation) 46 (2nd Generation)
Texture Units 144 184
ROPs 64 96
GPU Boost Clock 1710 MHz 1725 MHz
Memory Clock  7000 MHz 7000 MHz
Total Video Memory  8192 MB GDDR6 8192 MB GDDR6
Memory Interface 256-bit 256-bit
Memory Bandwidth  448 GB/s  448 GB/s
TGP 185 Watts 220 Watts
