NZXT Hale 90 V2 1000 Watt Power Supply

Page 2 »

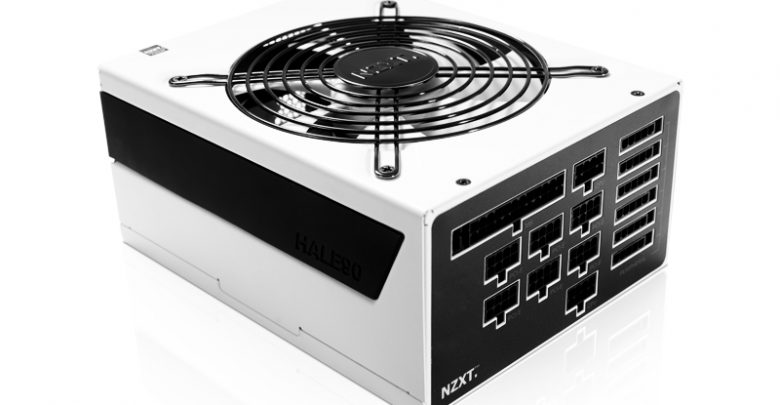

NZXT Hale 90 V2 1000 watt power supply
HALE90 V2 1000W

Power! We all need more power for our PCs, right? How much power is enough? The power supply is a crucial component when selecting components for a PC build. But wattage isn’t the only number folks should be looking at when selecting a power supply. The quality or how clean the power feeding those hungry components is critical as well. If the power supply output is dirty damage, as well as a lot of hair pulling can ensue. The NZXT Hale 90 V2 1000 watt power supply is the latest entry into the power supply market and it is a fully modular power supply featuring 80 plus gold certification, active PFC, and silent cooling.
[sc:sponsor sponsor=”NZXT” product_link=”http://www.nzxt.com/new/products/power_supplies/hale90_v2_1000w” product_name=”HALE90 V2 1000W” ]


Our power supply reviews are intended to only cover the features of the power supplies, thus we call them a Power Supply Overview. This is due to the fact of not having the appropriate equipment to test them to our and your standards. Because of this you will not see any load or performance testing sections, but we will give you our best thoughts about the unit. Thank you~ Modders-Inc


  • 80 Plus Gold Certification ensures efficiency levels up to 90%
  • Completely modular design with labeled back plate for easy installation and clean look
  • NZXT design element infused on the exterior/interior power supply with world’s first Innovative white and black PCB design for better isolation and identification
  • Patented Multiple Intelligence Ability Controller:MIA ICTMis designed for ultimate performance, eco-friendly, and improving lAC-DC power conversion
  • IFCT:The intelligent fan control technology is designed for better thermal solution
  • Powerful +5Vsb that supports motherboards with fast USB charging that can also power USB devices while PC is on standby
  • High quality Japanese Capacitor to promote longer lifespan and better reliability surpassing 5 year warranty
  • Strong single +12V rail that provides stability and ease of use with the ability to deliver clean currents under a heavy load
  • SLI and CrossFire Ready
  • 135mm Dual ball-bearing fan for smooth, silent rotation, and optimal air intake
  • Auto Range:AC main is from 90V to 264V and no need in tiny select switch.
  • Active PFC
  • Full protections for over voltage, current, power, temperature, under voltage, and short circuit protection
  • Safety Approvals for:UL / cUL / CB / TUV / CE / FCC / CCC / GOST-R / C-tick
  • Backed by a 5 Year Manufacturer’s Warranty
  • Standard:Comply ATX 12V V2.31 and EPS 12V V2.92



Tech Spec.

Dimensions 190mm x 150mm x 86mm
Specifications HALE90 V2 1000W
Intel Standard ATX12V / EPS12V
Input Voltage Range 90Vac ~ 264Vac
Input Frequency Range 47Hz ~ 63Hz
PF Correction Active@0.99(Typically)
Fan Type 135mm dual ball-bearing
Efficiency 80 Plus Gold certificated
Rated Output Power 1000 watts @ 50°C
Hazardous Materials WEEE/RoHS
Energy Saving Energy Star 5.0 / ErP 2013
Operation Temperature 0°C ~ 50°C
Voltage Sense Cable +3.3V/+5V/+12V
Cables Full modular
MB Connector (20+4 pins) 1
CPU connector (4+4 pins) 2
PCI-e Connector (6+2 pins) 6
SATA (15 pins) 12
Floppy (4 pins) 2
Peripheral (4 pins) 14
MTBF >100,000 hours
Warranty 5 years

Features and specifications on this page are provided by NZXT.
