Tuniq TX-2 and TX-4 Thermal Compound Review

« Intro | Page 3 »

Test System and Benchmark Results

During out testing the ambient temperature was a constant 72 degrees Fahrenheit, and temperatures are averaged across all CPU cores. Temperatures were measured using RealTemp, load temperatures were produced by running Prime95 for 30 minutes and then averaging temperatures. Our test system was run completely on default settings, all clocks were at stock speeds.

Processor Intel Core i5-4670K (Retail)
Motherboard Gigabyte GA-Z87X-UD3H
Memory Samsung Green DDR3 1600
Drive Seagate 600 480GB SSD
Video Card Galaxy GTX 760 GC
Thermal Compound Tuniq TX-2 & TX-4
Case Raidmax Vampire
Power Supply Antec 750W Blue
Operating System Windows 7 x64 Pro

tuniq-tx2-tx4-dots



Both the TX-2 and the TX-4 thermal compounds are grey in color. On the left is the TX-2, and the TX-4 is on the right. The TX-2 definitely appears to be watery compared to the TX-4.

tuniq-tx2-tx4-smear

The smear test shows that the TX-2 seems to spread a bit more when it smears, which may be due to the fact that it’s not as thick as the TX-4. The TX-4 definitely produced a thicker, more even spread.

tuniq-tx2-paper-reverse-wattery

As I said, the TX-2 (on the left) definitely appears to be watery. Or at least much more-so than the TX-4.



TX-4-1
Excrete about 0.1ml of TX-4 thermal grease on to the surface of the CPU.
TX-4-2
Use TIM spreader to push out the TX-4 thermal grease.
CIMG4753

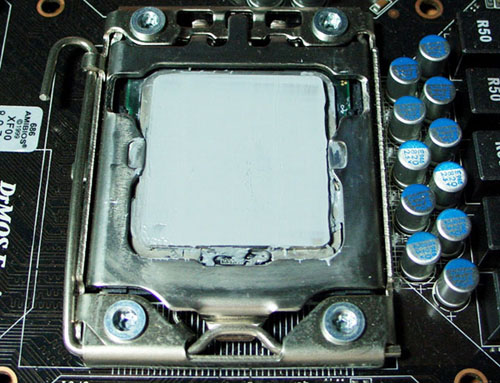

Thermal grease is smoothly applied on the CPU.

The above show how Tuniq suggest how you apply their thermal compounds using the TIM spreader.





TPtemp

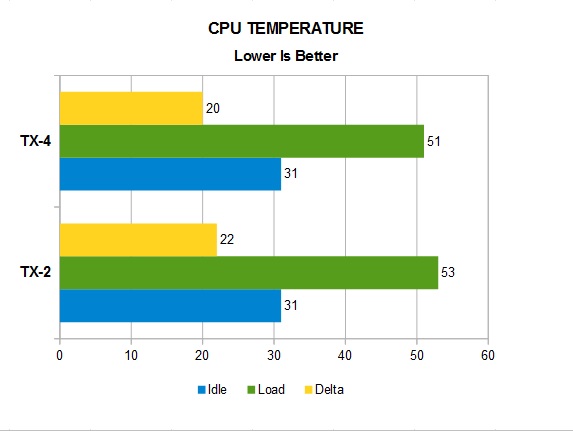

As you can see, there isn’t a very large difference between the two thermal compounds. However, they TX-4 was able to beat out the TX-2 by about 2 degrees Celsius. This may not seem like a lot, but in the end it could mean the difference in a 4.4GHz overclock and a 4.5GHz overclock.
