CPU

AMD Ryzen 7 3700X and AMD Ryzen 9 3900X CPU Review

Is this what we have been waiting for?

« A Closer Look At AMD Ryzen 3rd Gen CPUs | Testing and Performance »

Test System and Benchmarks

AMD Ryzen 7 3700x Test Bench
Component
Product NameProvided By
ProcessorAMD Ryzen 7 3700xAMD
MotherboardAorus X570 MasterGigabyte
MemoryG.Skill Trident Royal F4-3600C16D-16GTRG 16-16-16-36 (XMP)G.Skill
DriveSamsung 240 EVO 256GB SSD, Crucial MX500 1 TB SATA III SSDSamsung/Crucial
Video CardsNvidia GeForce RTX 2080 TI Founders EditionNvidia
MonitorBenQ EL2870U 28 inch 4K HDR Gaming Monitor 3840×2160 @ 60 Hz
CaseDimasTech EasyXLDimasTech
Power SupplyCooler Master Silent Pro M2 1500WCooler Master
Operating SystemWindows 10 1903 x64 Pro with latest patches and updates



AMD Ryzen 9 3900x Test Bench
Component
Product NameProvided By
ProcessorAMD Ryzen 9 3900xAMD
MotherboardASRock X570 TaichiASRock
MemoryG.Skill Trident Royal F4-3600C16D-16GTRG 16-16-16-36 (XMP)G.Skill
DriveSamsung 240 EVO 256GB SSD, Crucial MX500 1 TB SATA III SSDSamsung/Crucial
Video CardsNvidia GeForce RTX 2080 TI Founders EditionNvidia
MonitorBenQ EL2870U 28 inch 4K HDR Gaming Monitor 3840×2160 @ 60 Hz
CaseDimasTech EasyXLDimasTech
Power SupplyCooler Master Silent Pro M2 1500WCooler Master
Operating SystemWindows 10 1903 x64 Pro with latest patches and updates



Intel Core i7-8700k/Core i9-9900k Test Bench
Component
Product NameProvided By
ProcessorIntel Core i7-8700K (Retail)/Intel Core i9-9900K (Retail)Intel
MotherboardAorus Z390 ProGigabyte
MemoryG.Skill Trident Royal F4-3600C16D-16GTRG 16-16-16-36 (XMP)G.Skill
DriveSamsung 240 EVO 256GB SSD, Crucial MX500 1 TB SATA III SSDSamsung/Crucial
Video Cards Nvidia GeForce RTX 2080 TI Founders EditionNvidia
MonitorBenQ EL2870U 28 inch 4K HDR Gaming Monitor 3840×2160 @ 60 Hz
CaseDimasTech EasyXLDimasTech
Power SupplyCooler Master Silent Pro M2 1500WCooler Master
Operating SystemWindows 10 1903 x64 Pro with latest patches and updates



Early Adopter Pains

So I’m a little bit late with my reviews. I’ve spent the last week or so troubleshooting some issues with both AMD and the folks over at Gigabyte. You could say I experienced some early adopter pain and I think it’s important to talk about it. So, what I experienced was on the Aorus X570 Master, the AMD Ryzen 9 3900x wasn’t boosting properly. I get that Precision Boost is opportunistic and all that. However, I would never see a single core in single-core testing go above 4.2 GHz. I tried every combination of BIOS from Aorus and Matt was super helpful in getting information to the right people over there and even sent a 2nd motherboard. However, I still could not get the 3900x to perform properly on either. The 3700x rocked it after the F5e BIOS release. Once I switched to the ASRock motherboard, scores got quite a bit better. However, what I saw in a piece of software made me realize that I may not have been comparing apples to apples and I’ll get to that in a second.
AMD Ryzen

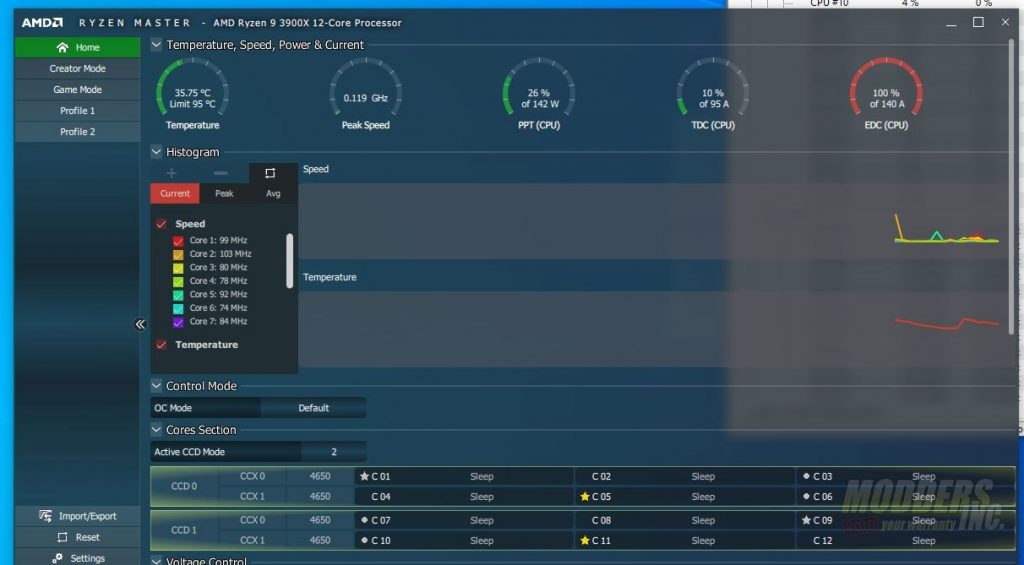

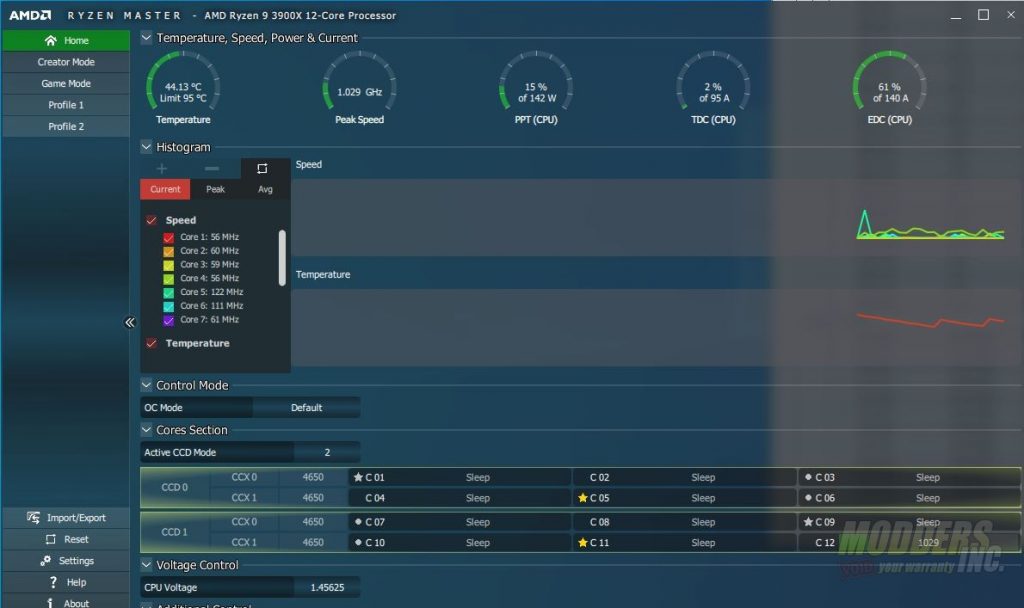

After the first round of testing on the Aorus board, I downloaded and installed the Ryzen Master software. I noticed that one of the indicators, specifically the EDU gauge in the upper right corner was pegged at 97-100% of 140a all the time. I didn’t matter what power profile I chose the gauge was still pegged. Keep in mind these are the stock settings on each of the motherboards with ONLY XMP enabled (for now). Once I swapped over to the ASRock board, the gauge bounced around and was sitting around 40% of 230a which was a higher limit than the Aorus motherboard.
AMD Ryzen

I went back into the ASRock BIOS and manually set the PPT, TDC, and EDC, settings to match with what AMD has set on their stock CPU. Through overclocking in the BIOS, you can set higher limits. Other than setting the power limits for the CPU, I did not allow Precision Boost Overdrive to add any additional frequency to the CPU.
AMD Ryzen



With that set, I want to show the boost behavior that I experienced between the two boards. I used CPUID’s HWMonitor Pro’s graphing functions in a benchmark of Xplane 11. This is a flight simulator that thrives on single-core performance.

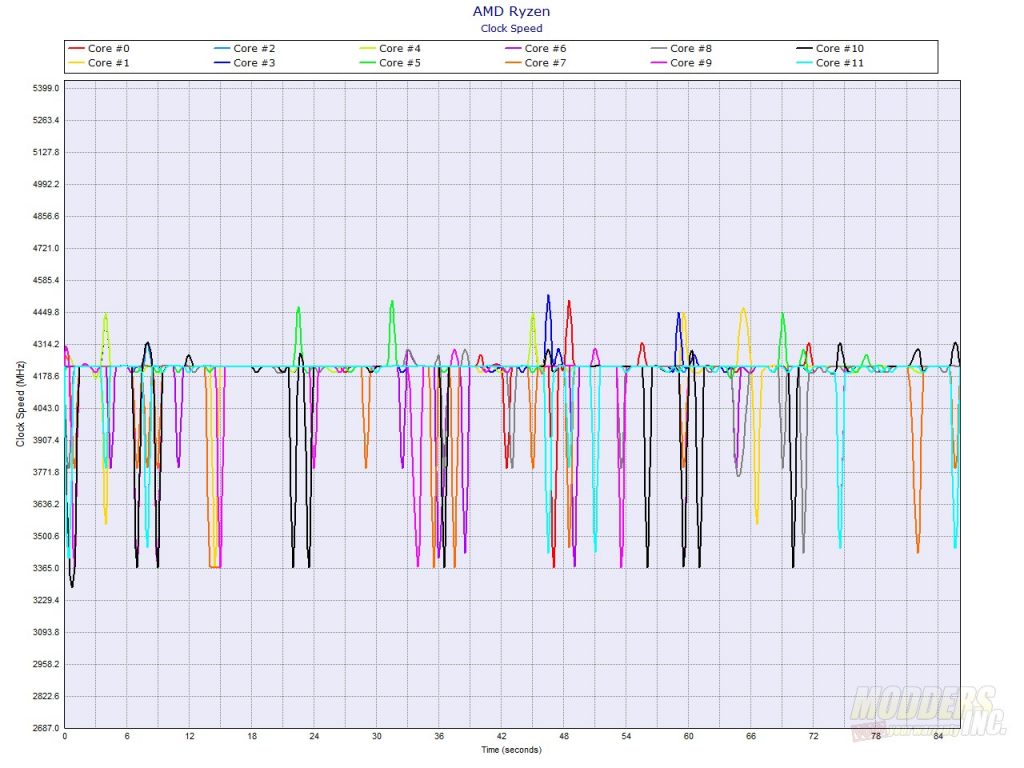

First up, the 3900x on the Aorus X570 Master.
AMD Ryzen

As you can see, the CPU does peek up above 4.2GHz in small spikes here and there. However, the main frequency sat right around 4.2 GHz.

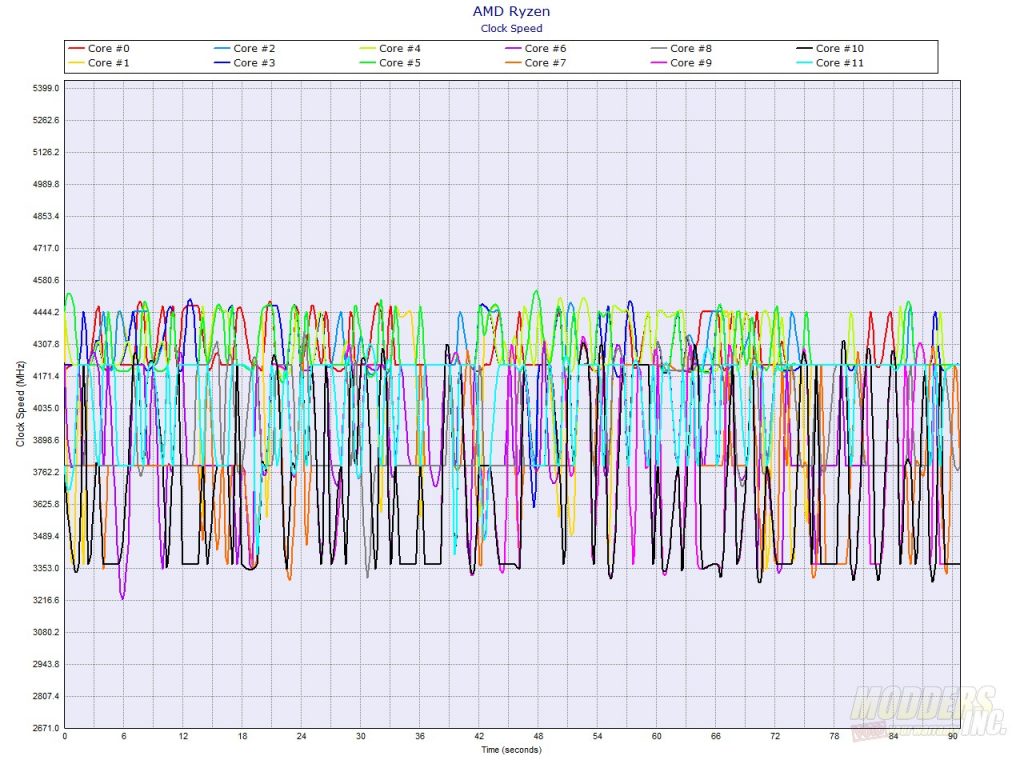

Next up, the ASRock X570 Taichi in the same test.
AMD Ryzen

On the ASRock motherboard, we get more cores boosting above the 4.2 GHz mark more often. There is most definitely a boost speed difference between the two motherboards.

My experience above is just my experience. I know other reviewers that are using the Aorus X570 motherboard with the same BIOS revision that are not experiencing the issues that I did. Their graphs look a lot like the ASRock graph above. I thought it was important to lay out why I didn’t use the Aorus motherboard for the 3900x review and what my experience was. The change in boost speed represented about a 7-12% increase in performance over the Aorus X570 motherboard and right in line with the performance that other reviewers experienced with the 3900x.

The BIOS on all the motherboards had enhanced core performance turned OFF. CPUs were allowed to boost to their manufacture’s specification. XMP was turned on to profile 1 which set the memory to DDR4-3600 CL 16. All motherboard enhancements for CPUs were disabled in order to show a CPU to CPU comparison.

Cooling for ALL CPUs did not use the stock coolers. For the Intel System, I used a custom look with an EKWB Velocity waterblock and the AMD used the same custom loop with an EKWB Velocity waterblock for AMD CPUs. Fans were set to the normal profile vs. Silent or full speed.

For synthetic benchmarks, each benchmark was run on each system three times. Then we picked the best of the three results. The system was allowed to idle in between each benchmark for no less than 30 minutes. This gives the processor time to rest and cool down a bit before the nest test is performed. The ambient temperature is kept as close to 21°c, or 70°f as possible. We use both Core Temp and Hardware Monitor to record temperatures and CPUZ to validate clock speeds and voltages.
