Closer Look at the ASUSTOR AS4004T

AS4004T is a 4-bay device that has ABS plastic shell with an aluminum frame on the inside. The color of the entire shell is black however the frame is painted silver. On the front of the device, there are two buttons, one for power and one for copying to the NAS from an external source. AS4004T also has a set of front-facing LEDs which show the hard drive and network activities. In addition to buttons and LEDs, there is a single USB 3.0 connection in the front for any external devices you may want to use.

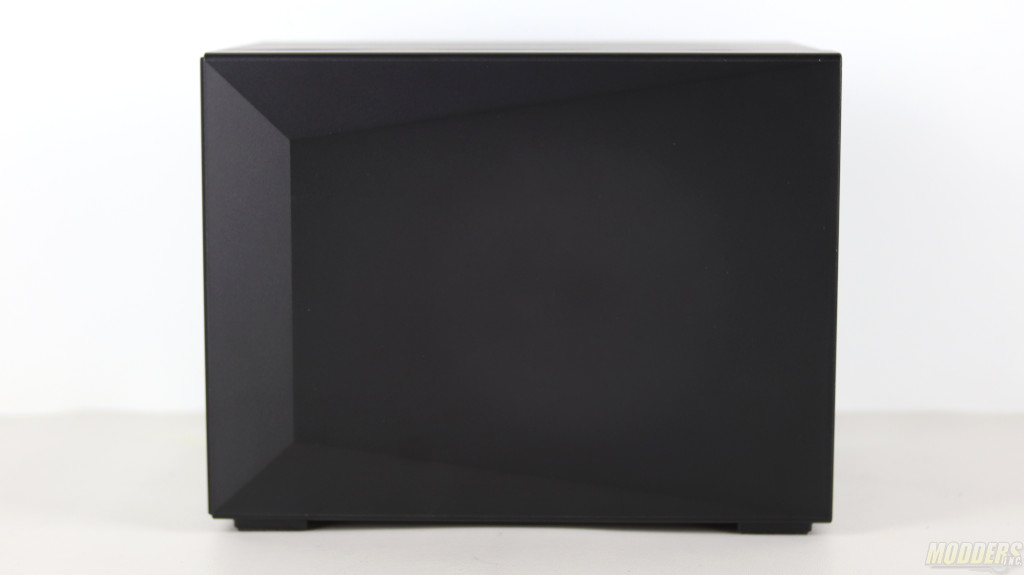

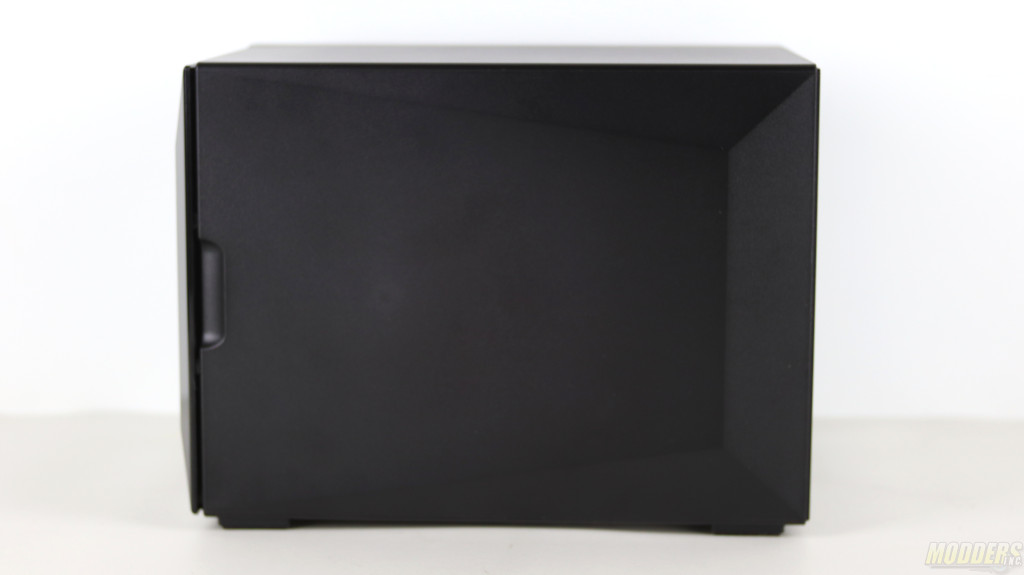

There are no ventilation holes on either side of the device. AS4004T is not completely square as it has a stylish pop-up design on both sides of the device.

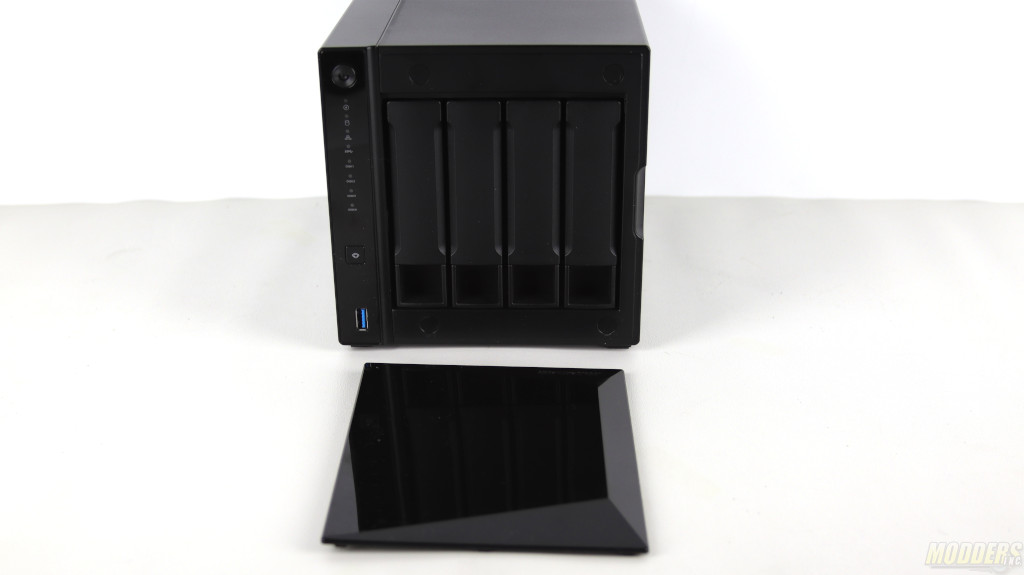

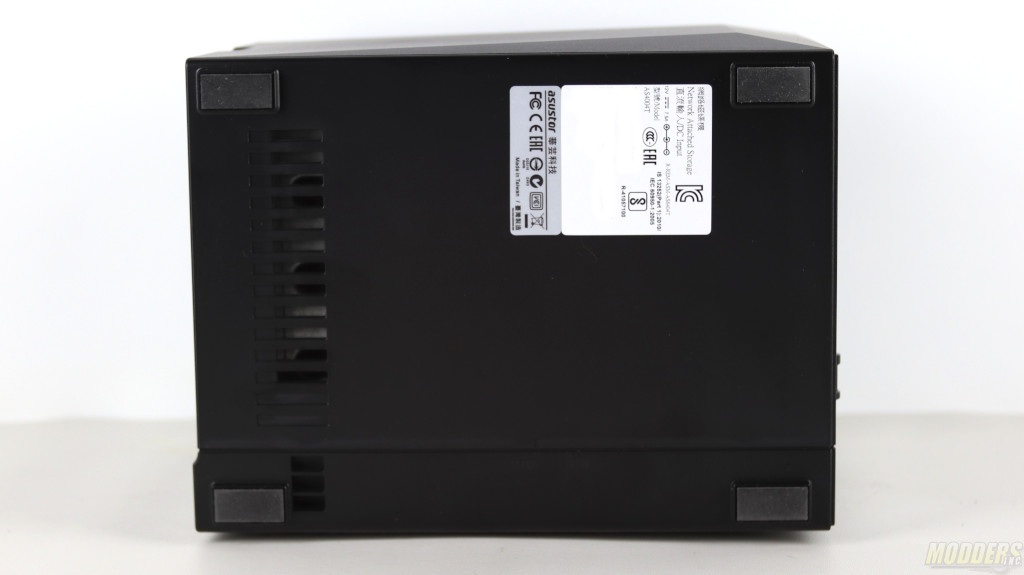

To gain access to the hard drives you would need to remove the front bezel which is magnetically attached to the case. To keep AS4004T on the flat surfaces Asustor glues four rubber pads on the bottom of the enclosure. At the bottom of the device there are air intake slots.

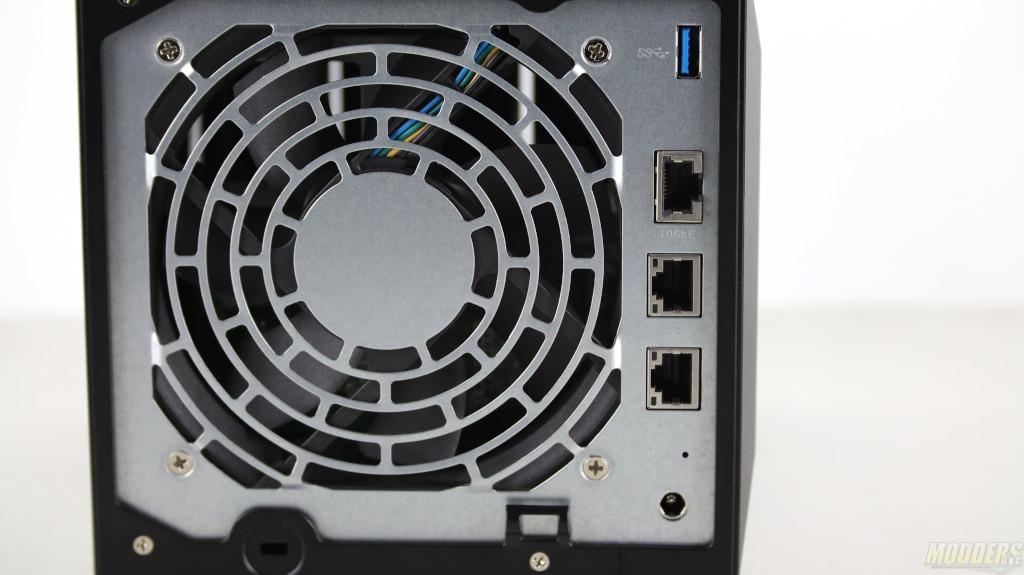

AS4004T is actively cooled by a 120mm fan. On the back of the device, there is one USB 3.0 Connector, one 10GbE jack, 2 1Gbe jacks, a power connector, and a Kensington security port. To remove hard drive sleds, you need to operate a small lever in the front of the drive and pull it out. The drive sleds do not require any tools or screws to install drives in them. Hard drives are being held by a pair of clips.

Asustor AS4004T

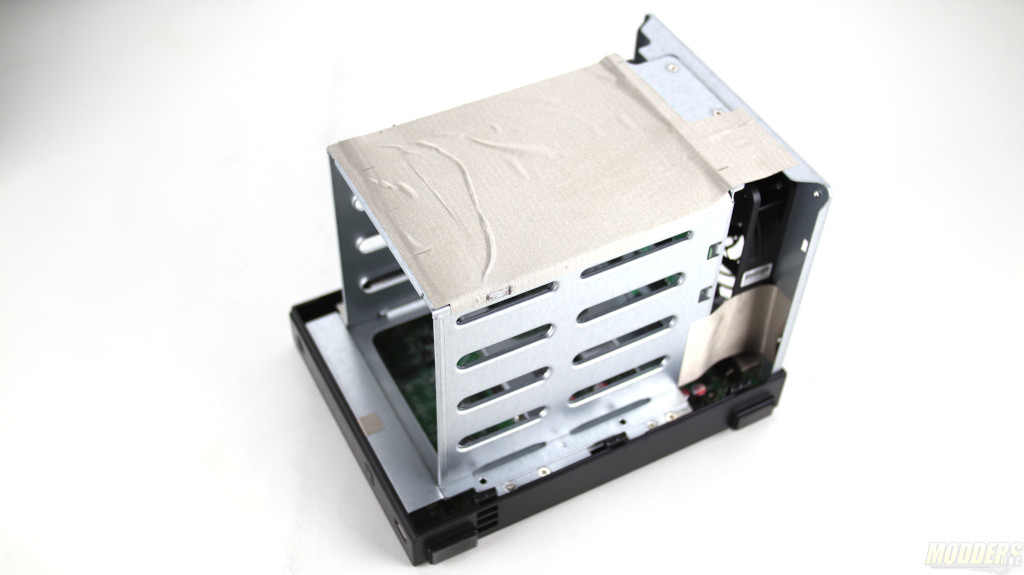

AS4004T is very well packaged and grounded. As you can see from the pictures the entire shell is grounded in multiple places. I don’t think I have ever seen this much grounding tape on a device like this.

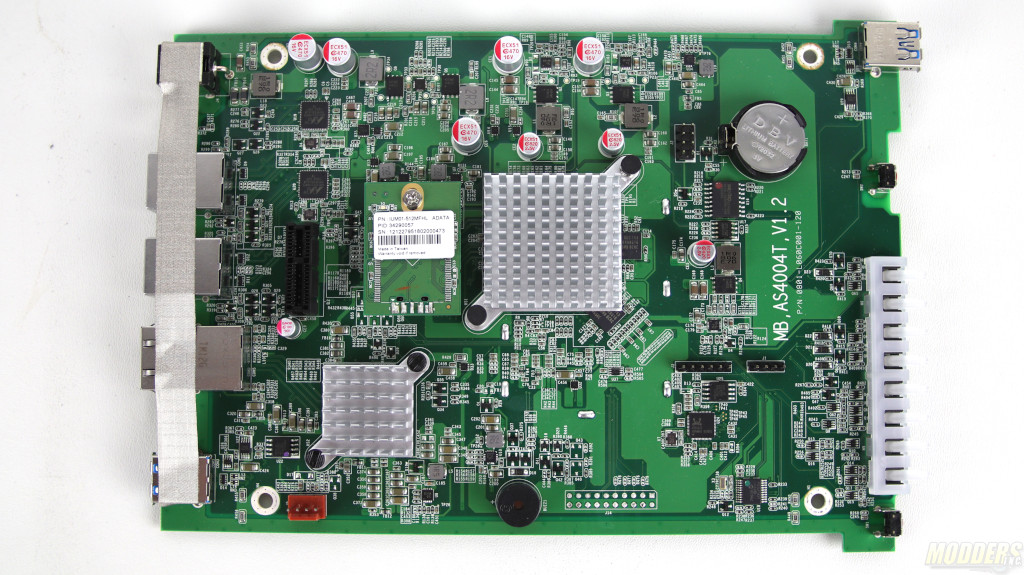

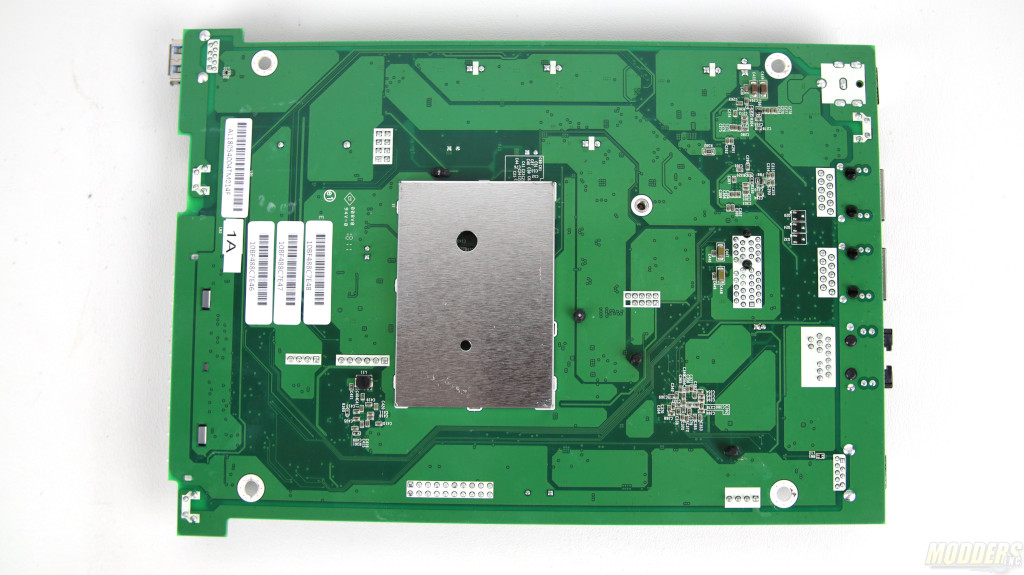

The motherboard is extremely clean and has no over fluxing spots or excess of soldering on the components. The CPU and 10GbE controllers are passively cooled by a pair of aluminum heatsinks. On the back of the board, I found a metal cage that is soldered on.

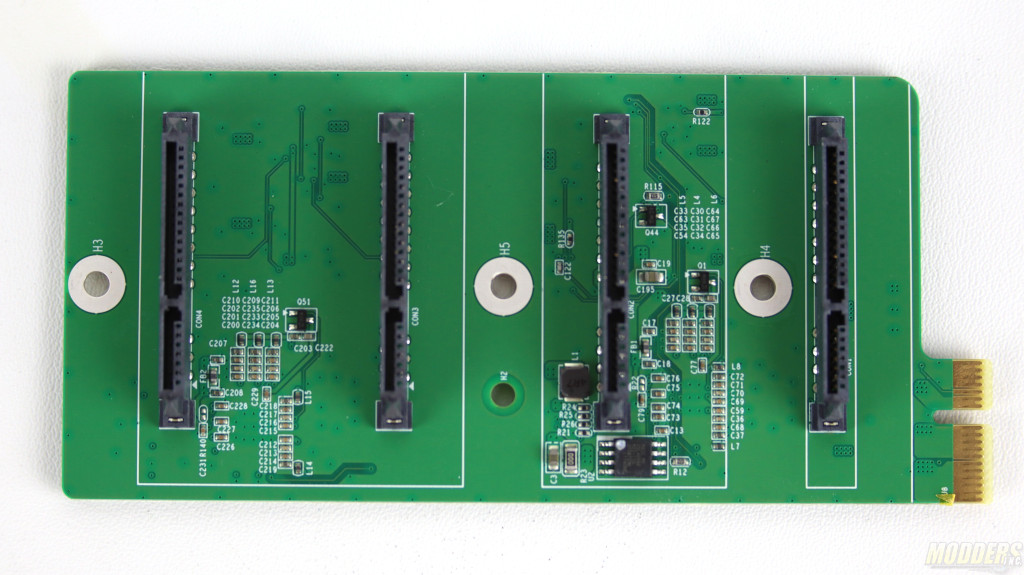

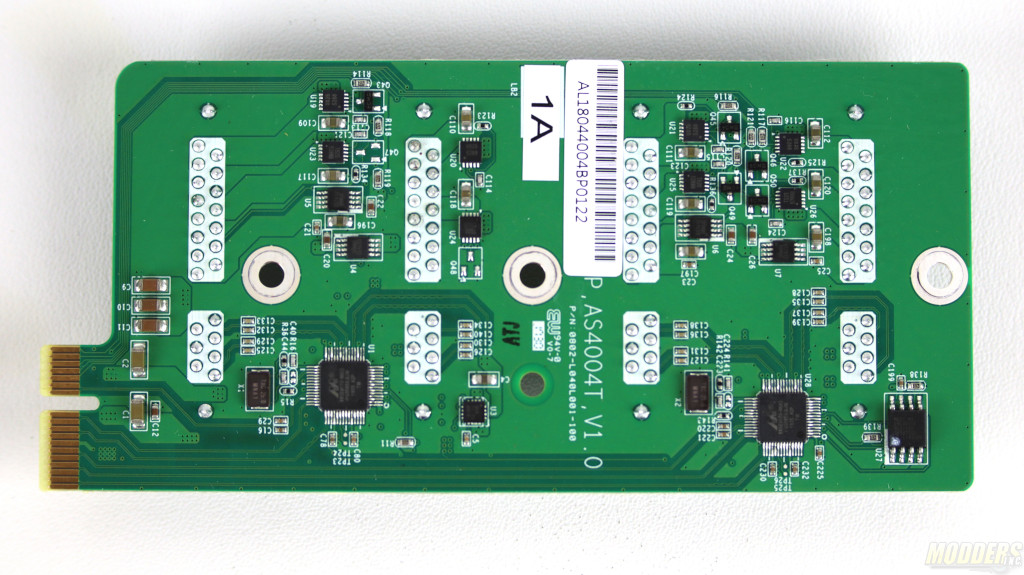

Daughter board which connected the drives to the motherboard is extremely clean as well.



Here are some of the chips I found on in AS4004T.

Asustor AS4004T

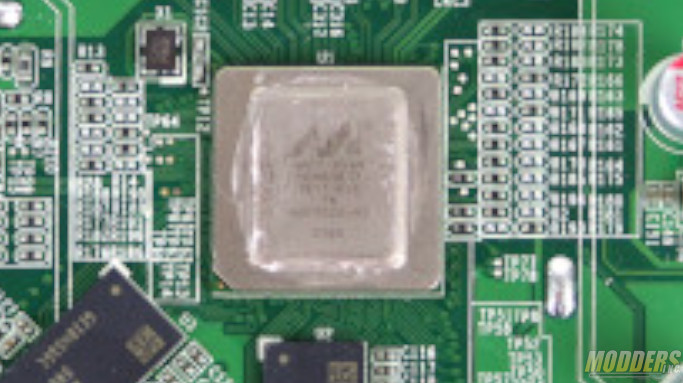

The CPU of this device is by Marvell, Armada 7K Dual-core ARMv8 Cortex-A72 Embedded Processor (88F7020-A2).

Asustor AS4004T

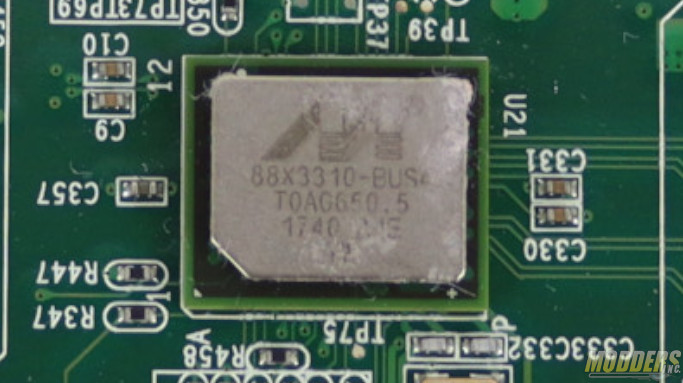

The 10GbE controller is also by Marvell, Alaska Single 10GBase-T/NBase-T Ethernet Controller (88×3310-BUS4).

Asustor AS4004T

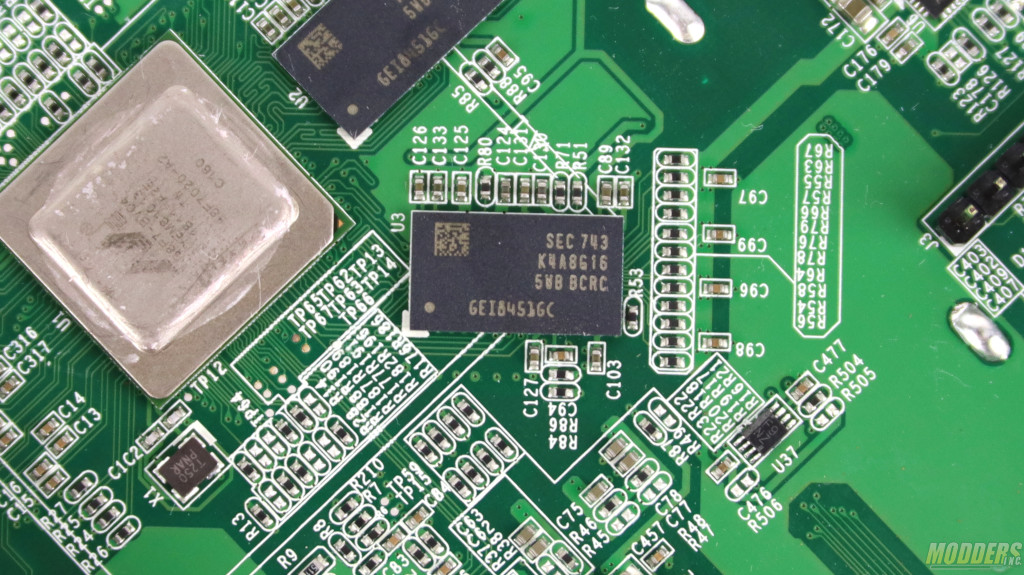

AS4004T has 2 GB of RAM by Samsung, DDR4 Ram Modules (K4A8G16 5WB BCRC). These are soldered on and cannot be upgraded.

Asustor AS4004T

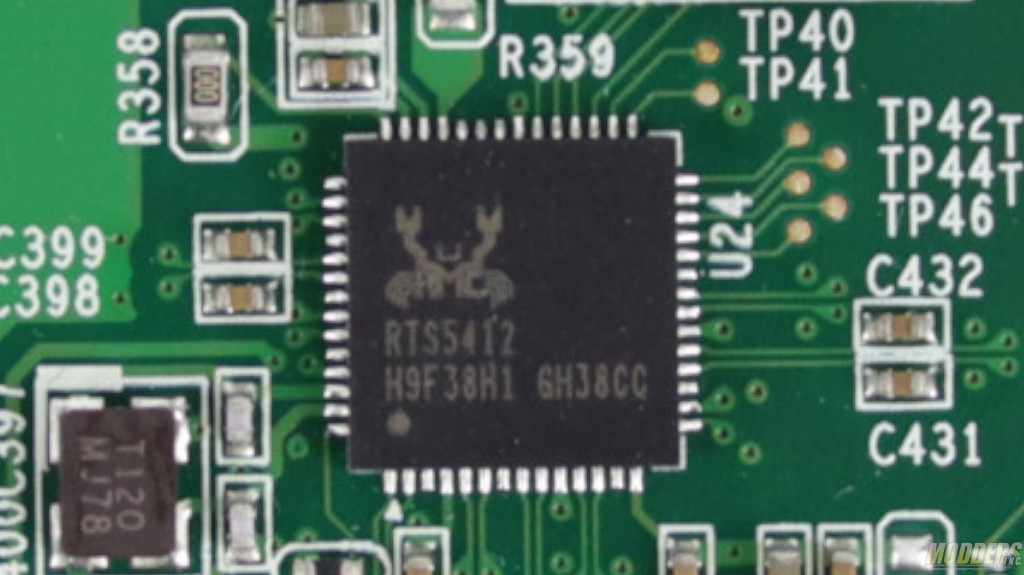

Marvell USB 3.0 Controller (RTS5412) supports the two USB 3.0 connectors in AS4004T.

Asustor AS4004T

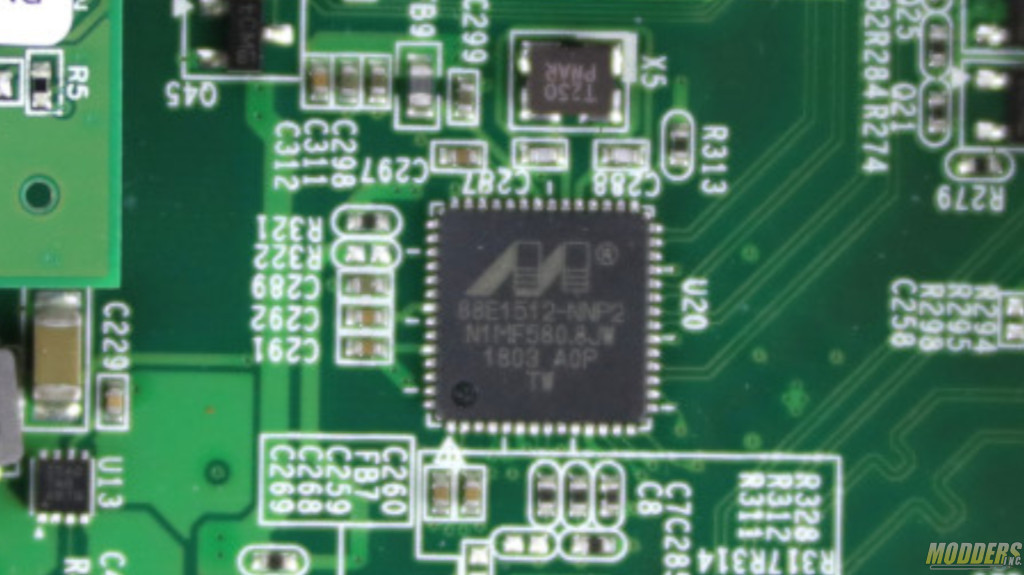

The 1Gbps connection is supported by (2x) Marvell Energy Efficient Ethernet Controllers (88E1512-NNP2).

Asustor AS4004T

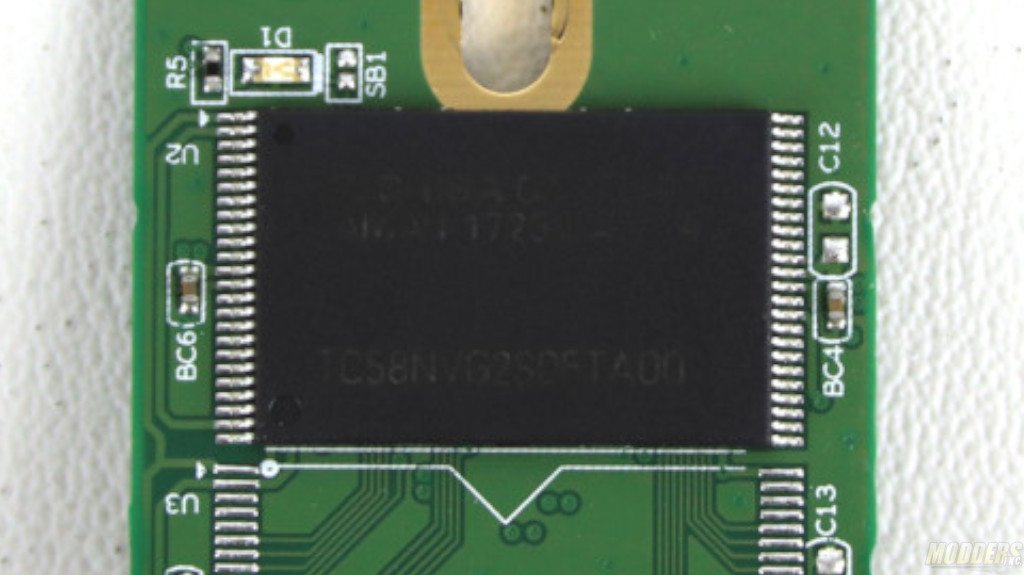

The Disk On Module (DOM) is supported by Toshiba Memory (QA3554).

Asustor AS4004T

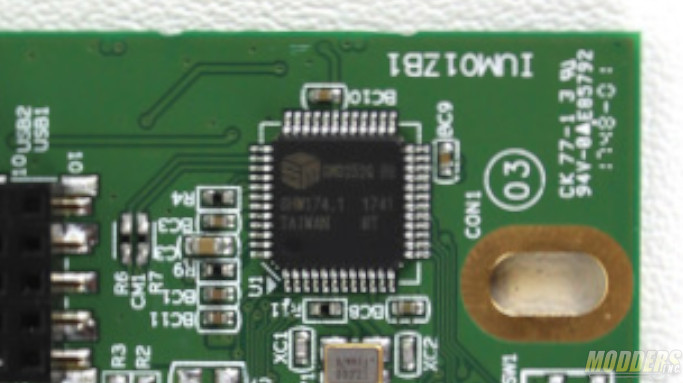

The Disk On Module controller is by SiliconMotion, USB 2.0 Dual Channel Flash Controller (SM3252q BB).

ASUSTOR Software

ASUSTOR Start-up Wizard could be found in the previous review of AS1002Tv2 as it is identical. The detailed information on the Startup Wizard could be found here.

ASUSTOR Data Master Overview also could be found in my previous review of AS1002Tv2 which could be found here. ADM 3.2.7 RRE3 offers some small improvements and bug fixes. A list of all of the changes could be found here.
