Test System and Benchmark Results

Test System:

Processor Intel Core i7-4770K (Retail)
Motherboard ASUS Maximus VI Gene Z87 Motherboard (1603 BIOS)
Memory Mushkin Stealth 1600MHz DDR3
Drive OCZ Agility 4 256GB SSD
Video Card Intel Integrated Graphics
Thermal Compound Noctua NT-H1
Case DimasTech Mini v1
Power Supply Corsair HX850W
Operating System Windows 7 x64 Pro

Test was conducted on a DimasTech MiniV1 open-air test-bench for parity performance between tower-style coolers and C-type downward or upward blowing coolers. Ambient temperature is measured at the fan intake and kept as constant as possible (room controlled temperature). All case and heat sink fans were benchmarked with fan control settings disabled and running at 100% unless otherwise specified.

To get closer to real world performance, a retail Intel i7-4770K CPU was used (non-delidded). Stock settings use a constant 1.1Vcore voltage while overclock settings use a constant 1.2Vcore voltage with EIST disabled (1.28Vcore OC test added for high-end air coolers). The Intel core i7-4770K integrated graphics was used for display output and no discrete graphics card was installed to prevent additional heat sources from contributing inside and outside the case. Multi-core enhancement is enabled in the BIOS by default and left on (ASUS Turbo Core policy used instead of Intel standard). Note that performance results on this setup are not directly comparable with any benchmarks from some of the previous reviews as the UEFI BIOS on the motherboard has been updated and now has a much tighter control on the Vcore voltage.

Mushkin Stealth DDR3 modules ensure full compatibility with any CPU cooler tested as its heatspreaders only add ~1.5mm to the standard JEDEC module height of 30mm compared to other modules which limit cooler compatibility.

Temperatures are averaged (last minute) from individual core temperature results monitored by AIDA64 after 15 minutes using the default CPU, FPU, Memory and Cache simultaneous load. AIDA64 is able to use the latest instructions including AVX and AVX2, etc unlike other older CPU load tests so it is also a lot more “future proof” as more software start to utilize it.

FPU-only load average is used to simulate worst case scenario load levels similar to Intel Burn Test or OCCT. Please keep in mind that this test is brutal and not even close to real-world load (especially not that constant for that amount of time), so not many CPU coolers are expected to pass this test but the ones that do are exceptional. Results marked “100″ and in red means thermal limit was reached and the CPU was throttled, even for just but a second. This includes results where even just the first core reached the limit and even if it briefly happened.

It is marked as 100 in red in the review if it happens three times. Three runs are conducted per cooler and a fourth run is done after a remounting to verify. Last minute average is taken instead of peak because it represents the averaged behaviour of the thermal performance instead of worst-case scenario or a snapshot. Temperature delta results are used to account for variance since not all heatsinks can be conducted on the same day.

aida
Screenshot of the Noctua NH-U9S under FPU-only load surviving 15-minute run in AIDA64. Getting the thermal behaviour presents a more accurate performance assessment than a single second snapshot or a mere peak temperature recording.

The Corsair HX850W power supply’s fans only ramp up when system load is past 20% making it an excellent power supply to use for when testing the CPU cooler’s noise levels. Any load under that and the fan does not spin at all, effectively acting in passive mode.

The American Recording Technologies SPL-8810 meter is placed 20-inches/50cm from the source fan to measure sound level. The entire test unit is moved to an acoustically treated room to get the ambient noise as low as controllably possible for real-world results. All other fans are disabled to eliminate sound sources that are not from the cooling unit itself that is being tested. This includes all case fans and all other component fan is shut off. The boiler during winter or the air conditioner during summer is also shut off to eliminate ambient noise further and sound testing is conducted from 2AM to 5AM so sound traffic from the outside is minimized as much as possible. Fan levels are controlled manually via software and at a separate time from the temperature testing.

Sound level measurement is logarithmic so it is on a separate graph than temperatures because it is on a completely different scale.

A FlirONE Thermal Imaging Camera was used to observe thermal behaviour under load. This is a lower-cost thermal imaging unit equipped with a low resolution thermal lens working in conjunction with a regular resolution camera lens to produces a composite image. Because of the FlirONE’s low resolution performance, it is not used as a benchmarking tool to measure temperature but rather a tool for observing thermal behaviour under load.

Benchmarks:

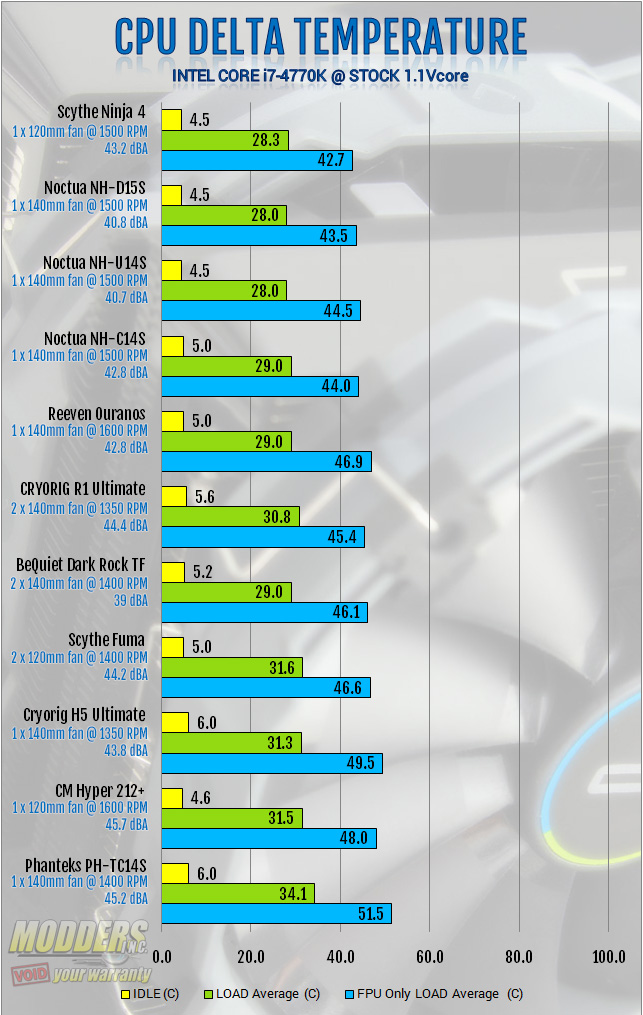

graph1

graph2

Interesting result here in the 4.2GHz overclocked benchmark as the R1 Ultimate does very well under standard load going head to head with the NH-D15S but fails the FPU-only survival load test. It takes 1 minute 10 seconds until CPU throttles.

42ghzthrottle

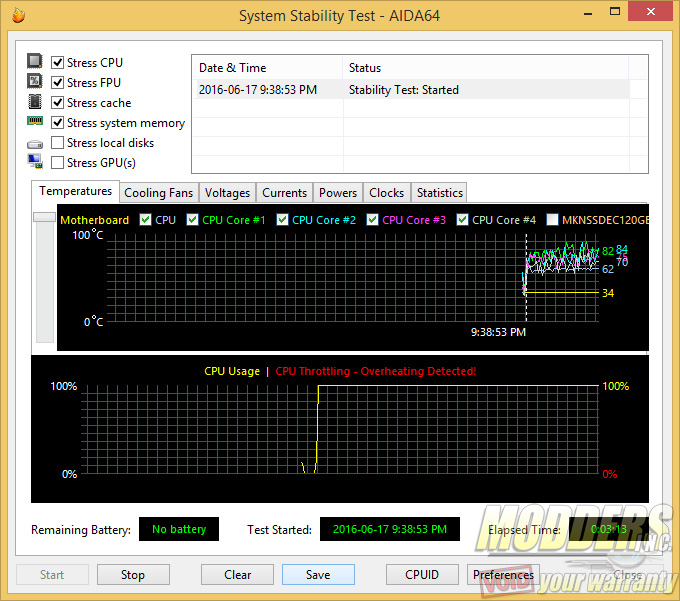

Pushing the overclock to 4.4GHz 1.28Vcore, it does not pass the standard load test either, hitting the throttle limit after only 3 minutes:

44ghz_standardload

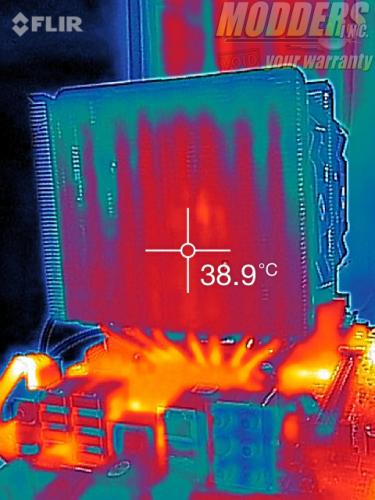

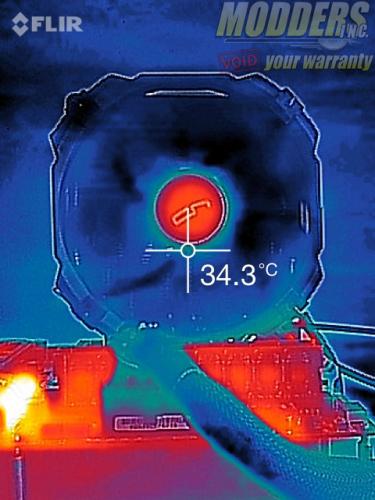

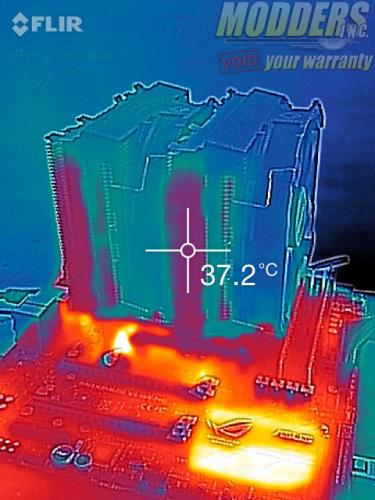

Thermal behaviour (white with red bias are the hot parts, black with blue bias are the colder parts):

From the IR camera, there is thermal build up in the exhaust side and it is not leaving fast enough. The heatpipes themselves are glowing hot so at least we know that it is absorbing the heat there, the issue seems to be more about the transfer to the fins.

Sound Profile (Fan RPM vs Noise Level) – Room ambient noise is 34.8dBA:

Fan Speed 2x XF140 fan
RPM dBA
1350 44.4
1300 42.3
1200 40.4
1100 39.4
1000 38.3
900 37.5
800 36.5
