Fractal Design: Meshify C Mini – Tempered Glass Edition

I Shall Call Him Mini Me[shify]

Article Index:

When you look at the original Meshify C, Fractal Design probably isn’t the first enclosure manufacturer that comes to mind as its potential mastermind. This is a company that built its reputation on building cases that would look right at home at the Federal Bureau of Investigation’s annual LAN party. The Swedish company isn’t exactly known for its aggressive designs, and refreshingly, Fractal’s unique brand of aggressive doesn’t involve RGB LEDs (at least not yet). Meshify is all about maximizing airflow, and it doesn’t hurt that this case looks damn good doing it.

It’s hard to overstate the popularity of the Meshify C, so it’s no surprise that Fractal decided to release a scaled-down version of it, for Micro ATX and Mini ITX motherboards. Airflow is just as big a priority here, but read on to see if the sequel to the original is more Empire Strikes Back or Zoolander 2.

Review Sample Provided by: Fractal Design
Product Name: Meshify C Mini Tempered Glass Edition
Product was given in exchange for work done to produce this review.

Technical Specifications

Meshify C Mini – TGE
Model NameFD-CA-MESH-C-MINI-BKO-TGD
Front Panel ColorBlack
Dimensions (mm)D409 x W217 x H412mm
MaterialSteel, Metal Mesh, ABS, Tempered Glass
M/B TypeMicro ATX, Mini ITX
I/O2 x USB 3.0, HD Audio
Drive Bays5.25″0
3.5″2 (Convertible to 2.5″ bay)
2.5″5 (2 x Converted from 3.5” bays)
Expansion Slots5
Fan SlotsFront3 x 120mm, 2 x 140mm (1 x 120mm fan pre-installed)
Rear1 x 120mm (1 x 120mm fan pre-installed)
Top2 x 120mm, 2 x 140mm
PSU Tunnel1 x 120mm (With HDD bay removed)
Radiator SupportFront1 x 280/240/140/120mm (144mm maximum width)
Rear1 x 120mm (125mm maximum width)
Top1 x 240/120mm, (40mm maximum memory height)
PSUATX 12V (Optional, 175mm maximum length)
Maximum CompatibilityVGA Card Length: 315mm
CPU Cooler Height (From M/B to side panel): 172mm

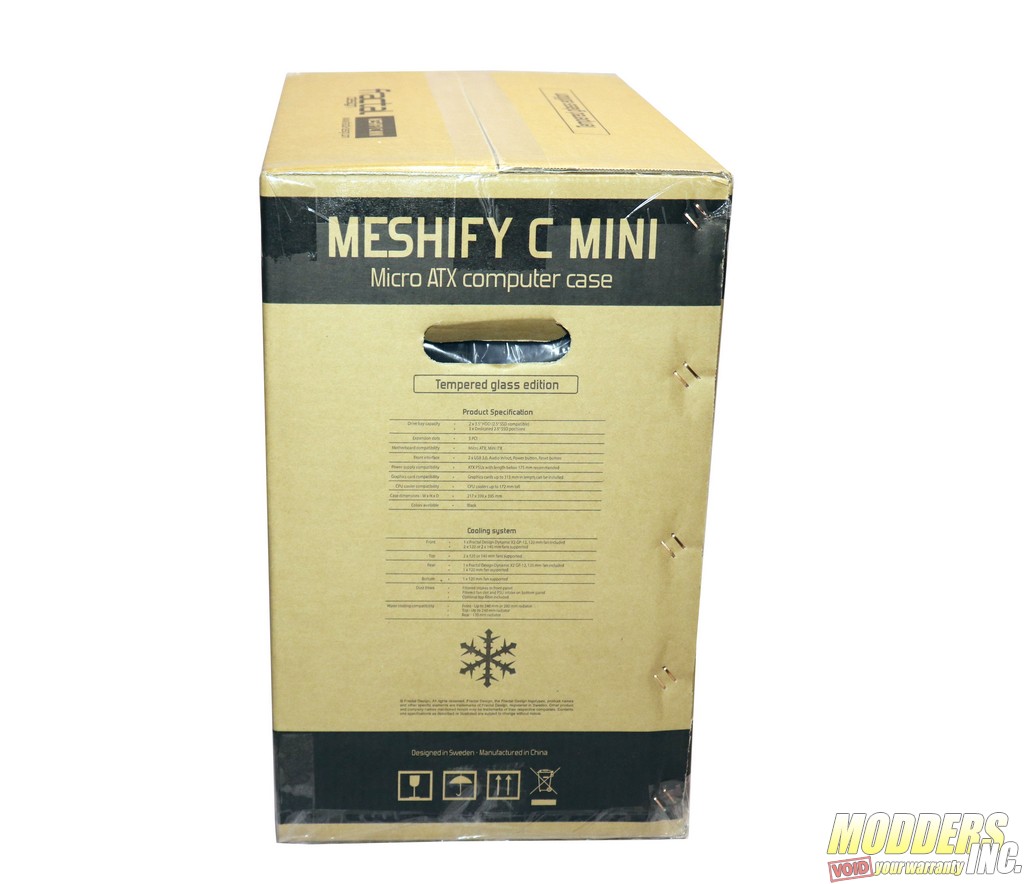

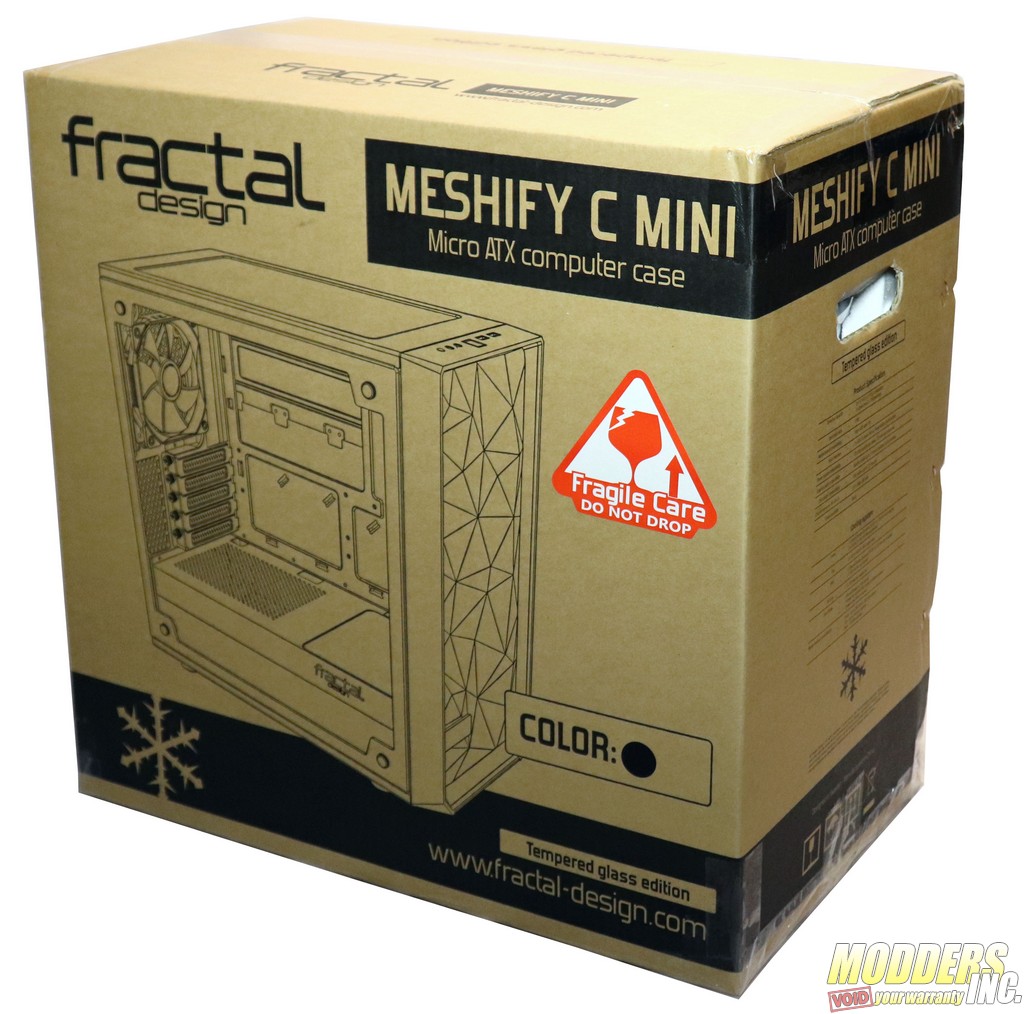

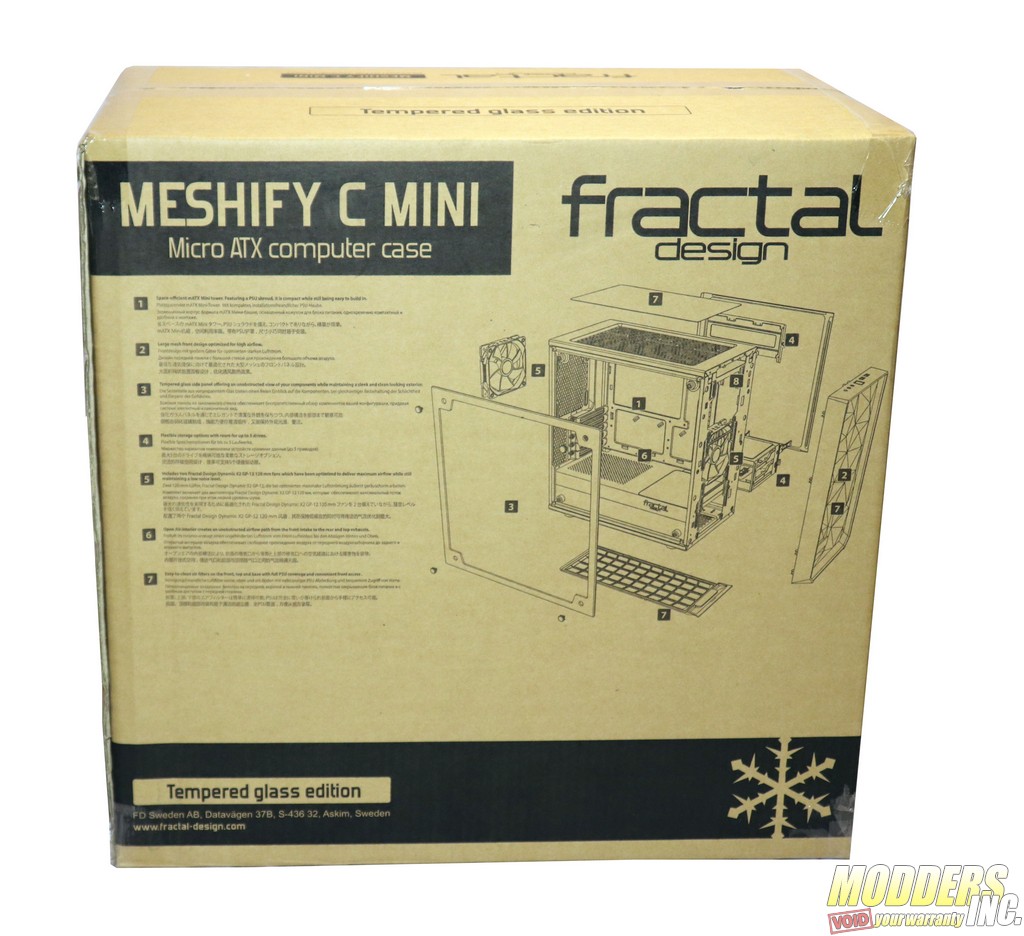

The Meshify C Mini – Tempered Glass Edition we reviewed shipped in a thick brown recycled cardboard box, that features a technical drawing-style illustration on one side, a list of stand-out features on the short side, and an exploded view of the case on the other side. As we’re writing this, we’re only aware of the black version of the case, but the shipping box seems to indicate that it may be available in other colors at a future date.



The dimensions listed on the box refer to the case without feet installed, side panel thumb screws, tempered glass panel screws, and other protrusions factored in. The real dimensions, with all of that stuff included, are 409 x 217 x 412mm (DxWxH).

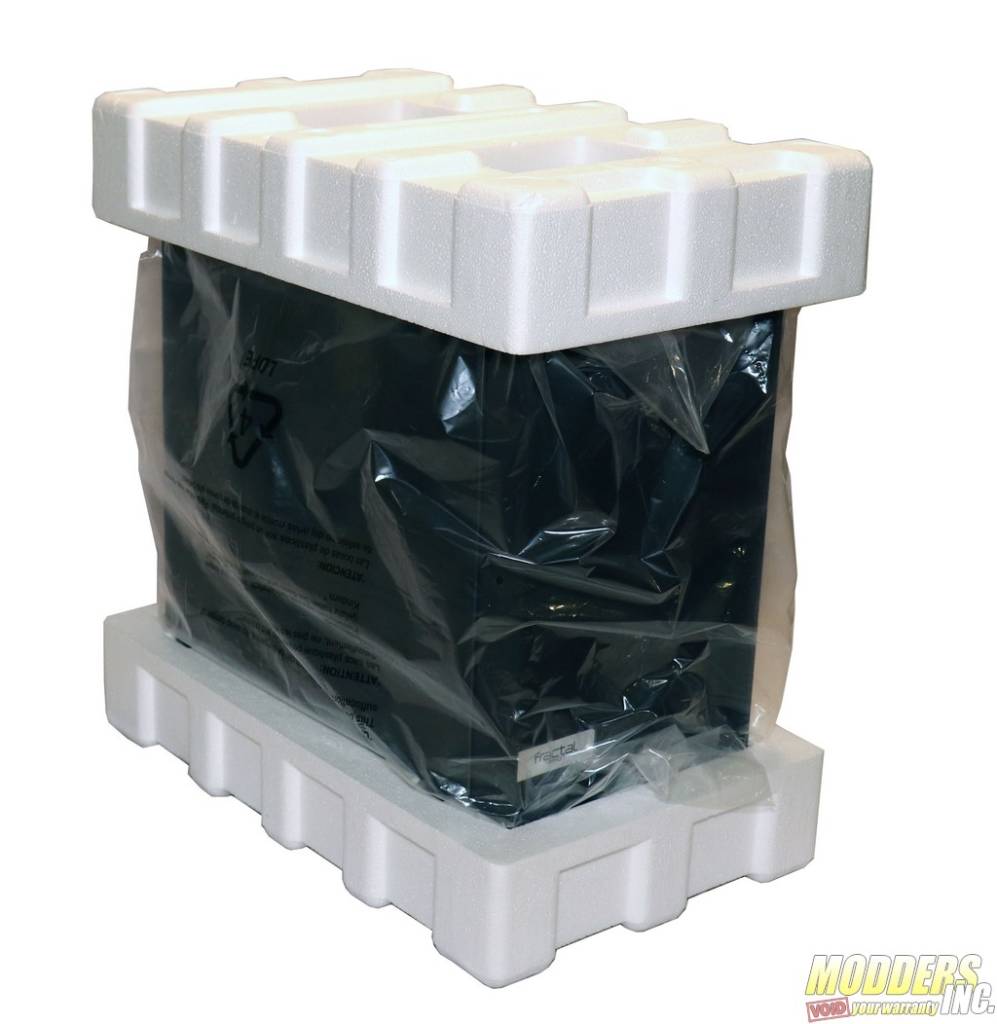

Inside the box, the case is suspended in the middle of the box by a pair of thick rigid pieces of Styrofoam. The case ships with the tempered glass panel installed, but it looks like the outer box could take a good deal of punishment before the case structure or glass panel suffer as a result.
