Silverstone LD03-AF ITX Case Review

Pointing out the differences in the LD03 and the LD03-AF cases

Packaging Changes »

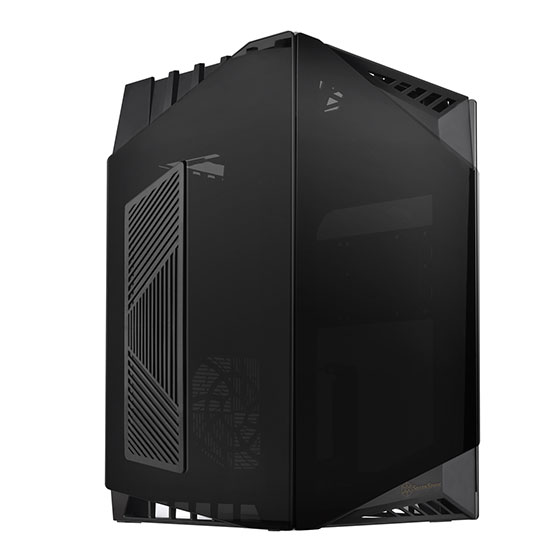

Silverstone LD03-AF ITX Case Review ld03 af 34right

Silverstone’s LD03 impressed us with its unique design and practical construction when it first launched in late 2019.  Silverstone hasn’t been idle since then however and launched the LD03-AF, an updated version of the LD03 that focuses on airflow for more power-hungry components that would have overheated in the original LD03.  We have the LD03-AF on the test bench and will be taking a look at the new LD03-AF to see what updates Silverstone has made, and whether or not they improve on the original case.  You can find our review of the original LD03 here: Silverstone LD03



Specifications

LD03-AF LD03
Material Dark-tinted tempered glass, satin plastic, steel Dark-tinted tempered glass, satin plastic, steel
Front Panel Glass on plastic frame Glass on plastic frame
Top Panel Plastic Plastic
Left Side Panel Glass on metal frame with plastic vent section Glass on metal frame
Right Side Panel Glass on metal frame Glass on metal frame
Front I/O Ports 1x USB 3.0 Type A

1x USB 3.1 Type C

2x 1/8″ audio

2x USB 3.0 Type A

2x 1/8″ audio

Weight 5.22 kg / 11.51 lbs 5.34 kg /11.77 lbs
Dimensions 265 mm (W) x 414 mm (H) x 230 mm (D)
10.43″ (W) x 16.3″ (H) x 9.06″ (D)
265 mm (W) x 414 mm (H) x 230 mm (D)
10.43″ (W) x 16.3″ (H) x 9.06″ (D)

Compatibility

LD03-AF LD03
Motherboard Compatibility ITX, DTX ITX, DTX
Max Cooler Height 190 mm / 7.48 in 190 mm / 7.48 in
Max GPU Length 309 mm / 12.10 in 309 mm / 12.10 in
Max GPU Width 167 mm / 6.59 in 167 mm / 6.59 in
Max GPU Thickness 2 slot 2 slot
GPU Wattage No recommended limitations Up to 200W* – Air cooled (open air design)

Up to 300W* – Air cooled (blower design)

Over 300W – Hybrid or liquid cooled

Power Supply Type SFX, SFX-L SFX, SFX-L
Storage Drives 2x 2.5 in
or1x 2.5 in + 1x 3.5 in
2x 2.5 in
or1x 2.5 in + 1x 3.5 in
Expansion Slots 2 2
Total Fans Supported 2x 120 mm (Preinstalled) 2x 120 mm (Preinstalled)
Top Radiator Support 1x 120 mm, single fan only 1x 120 mm, single fan only
Bottom Radiator Support 120 mm, single fan or push-pull 120 mm, single fan or push-pull
Dust Filters Left panel graphics card intake

Bottom panel

Back panel power supply intake

Bottom panel
Back panel power supply intake

* Silverstone recommends that you avoid using cards above this wattage due to the glass side panel limiting airflow to the graphics card.

Included Accessories

LD03-AF LD03
Fan Splitter Cable 1x 2-way splitter 1x 2-way splitter
Spare Pop Rivets 2x 2x
